Портативный Контейнер емкостью для кислоты T14 ASME IMDG oc ISO 20


Поделиться:


Цена:21 500,00 $ - 22 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 25585.59 $* 26864.96 $*
Aug-19-2025 25370.53 $* 26639.9 $*
Jul-19-2025 21285.55 $* 22349.61 $*
Jun-19-2025 24940.51 $* 26187.70 $*
May-19-2025 21715.42 $* 22801.62 $*
Apr-19-2025 24510.23 $* 25736.38 $*
Mar-19-2025 24295.23 $* 25510.13 $*
Feb-19-2025 24080.75 $* 25284.56 $*
Jan-19-2025 23865.58 $* 25058.35 $*

Характеристики


Product Description

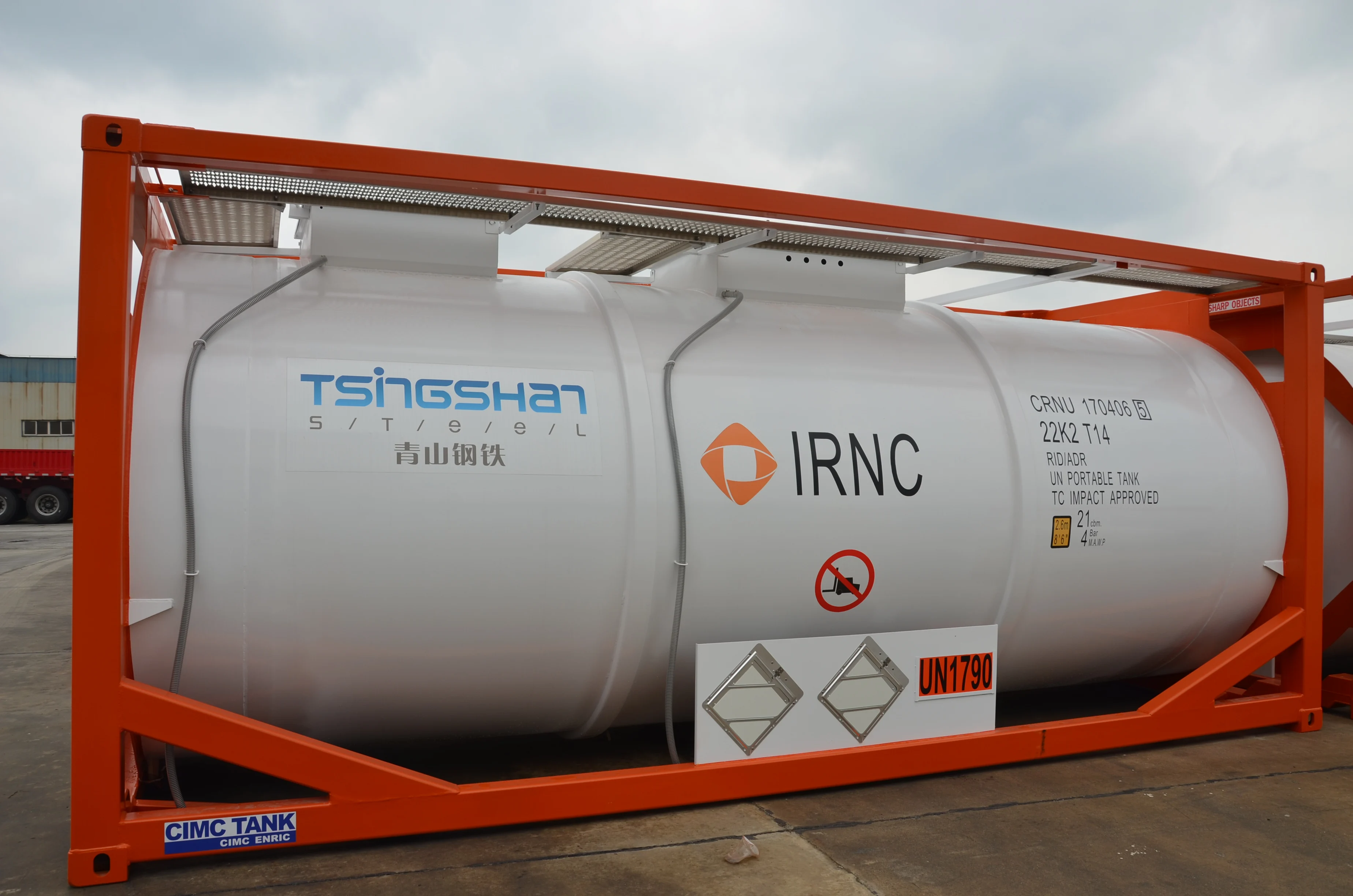

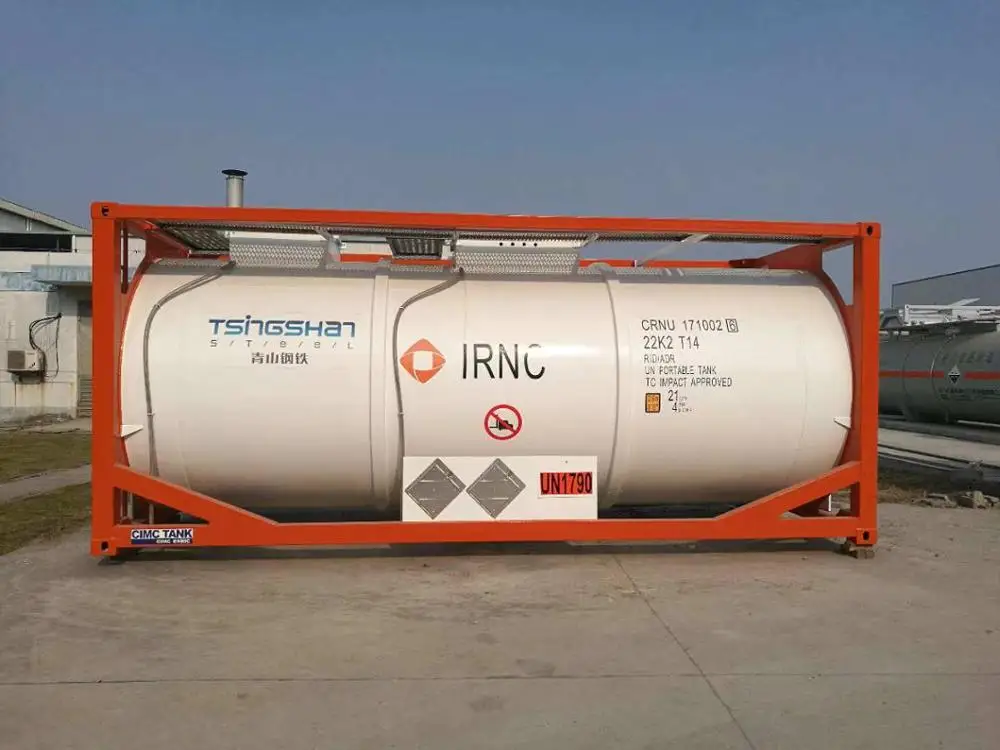

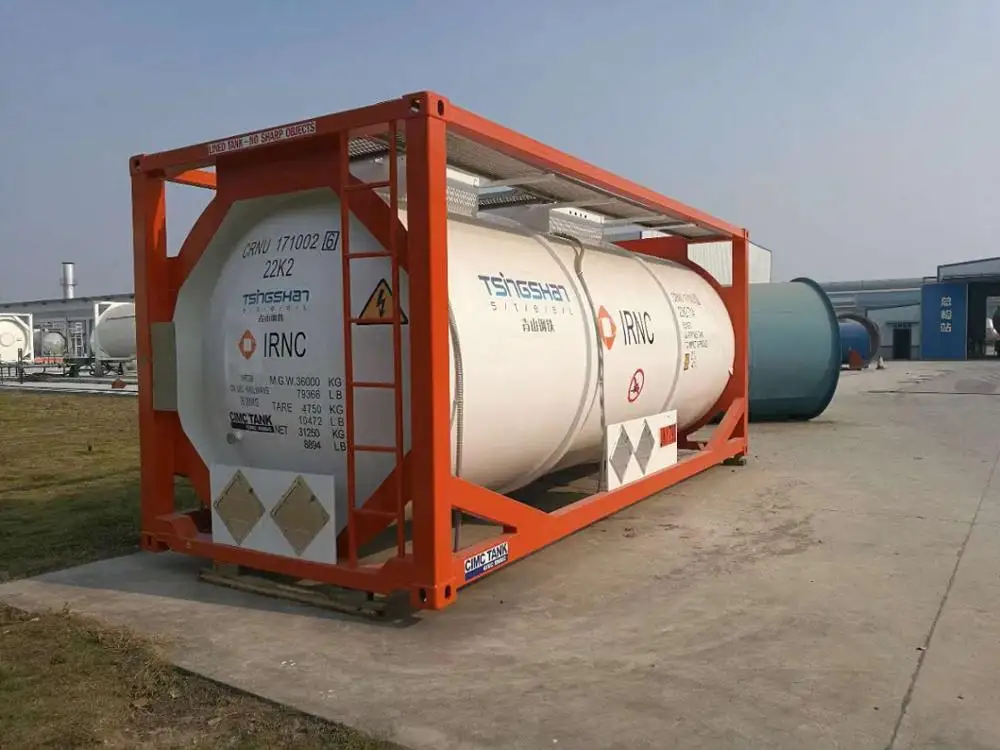

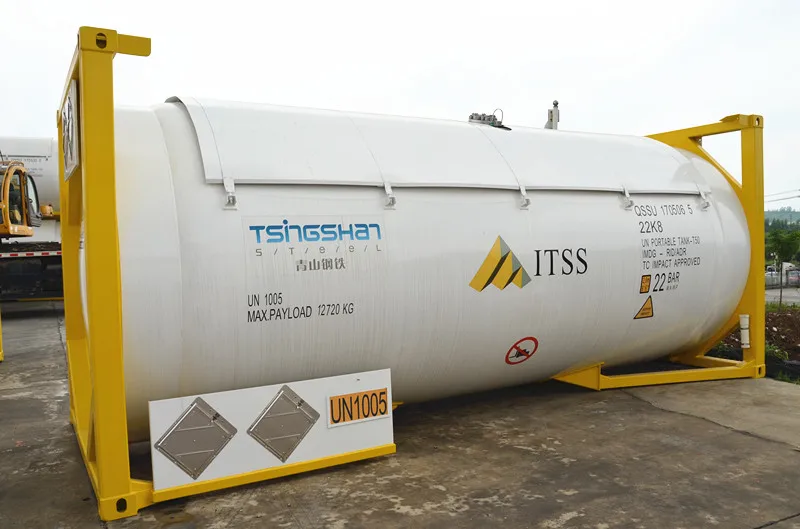

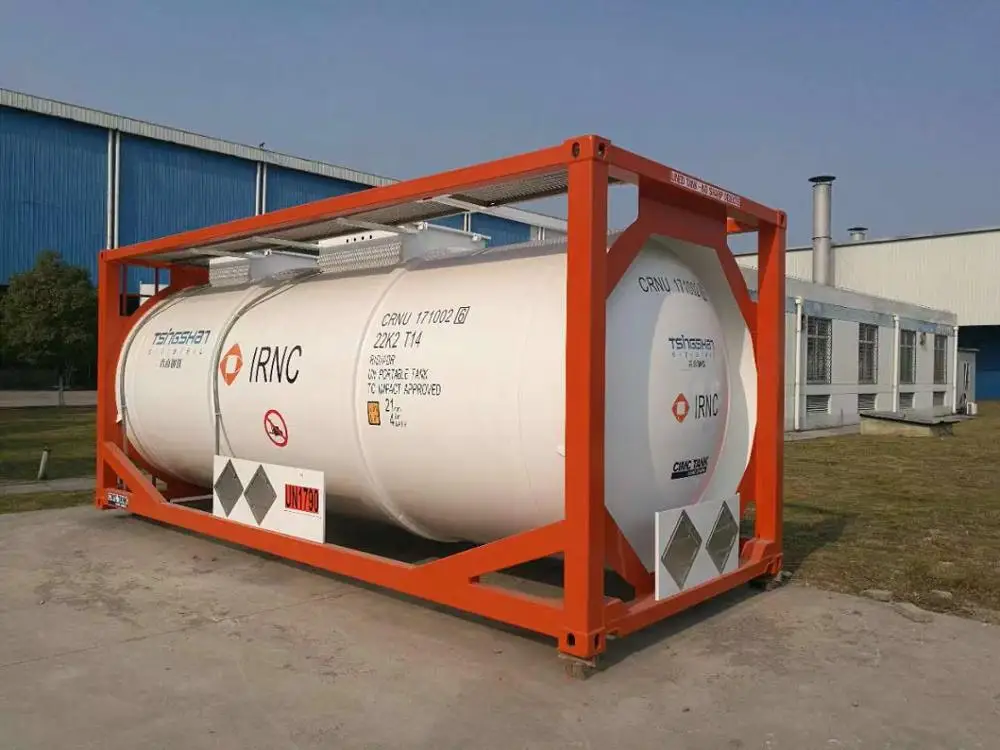

20 FEET LPG Tank Container

Design Code



ASME Code

Capacity



24,700L

Liquid



LPG

Frame Dimension(L*W*H)



6058*2438*2591mm

Tare Weight



6500kg

Max. Gross Weight



35000kg

Specified Design Pressure



1.8MPa

Internal MAWP

1.8MPa at 55

External MAWP

0.1MPa at 55

Design Temperature

55

MDMT

-40at 1.8MPa

Hydrotest Pressure



2.58MPa

Leakage Test Pressure



1.64MPa

Shell Material



SA-612M Normalized

Heads Material



SA-612M Normalized





U2 Stamp



YES







40 FEET LPG Tank Container

Design Code



ASME, IMDG, ADR, CSC, ISO

Capacity



51700L

Liquid



LPG

Frame Dimension(L*W*H)



12192*2438*2591mm

Tare Weight



11900kg

Max. Gross Weight



36000kg

Specified Design Pressure



1.8MPa

Internal MAWP

1.8MPa at 55

External MAWP

0.1MPa at 55

Design Temperature

55

MDMT

-40at 1.8MPa

Hydrotest Pressure



2.58MPa

Leakage Test Pressure



1.64MPa

Shell Material



SA-612M Normalized

Heads Material



SA-612M Normalized

U2 Stamp/U2



YES




Packaging & Shipping



Our Services

 The containers specified herein are manufactured under sufficient quality control, which will be approved by one of following authorized agency.



ASME, IMDG, ADR, CSC, ISO



Company Information


CIMIC Containers with the longest history.  Covering the manufacture of dry cargo container, refrigerated container and special container as well as thebusinesses of modular buildings and floor. Its annual production capacity of dry cargocontainer exceeds 2.4 million TEUs and the annual production capacity of refrigerated
container surpasses 0.19 million TEUs with products being widely used in North America, Europe, Asia and other world major logistics systems.

NEW 1.png


FAQ


1.  Standard and certificate:

UN PORTABLE TANK,ASME, IMDG, ADR, CSC, ISO,BV,UIC,TIR,TC

(T14 IMDG CFR49 ,ADR/RID)



2.  Productivity

100units per day

3.  Logo

Design and painting as your request

4.Payment

50% deposit , 50% before shipment

5. Guarantee

Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.

Decal guarantee   Seven (7) years.



6. Contact information

Email : artest_zhang2004 (@)aliyun.com or 313365674 (@)qq.com

Mobile phone: 008613920482102

Whatsapp: 008613920482102

Skype: 008613920482102
