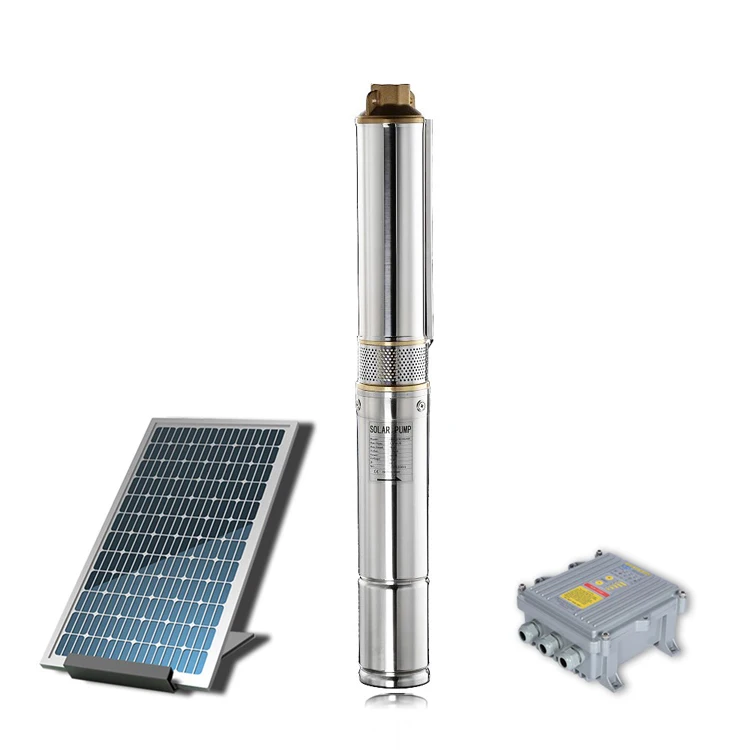

Погружной насос с двигателем постоянного тока Jilu 3in из нержавеющей стали для орошения сельского
- Категория: Насосы и запчасти >>>
- Поставщик: Ningbo,Jilu,Leader,Drive,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 162.65 $* | 170.12 $* |
| Aug-20-2025 | 160.14 $* | 168.92 $* |
| Jul-20-2025 | 135.18 $* | 142.58 $* |
| Jun-20-2025 | 158.81 $* | 166.72 $* |
| May-20-2025 | 137.38 $* | 144.31 $* |
| Apr-20-2025 | 155.85 $* | 163.30 $* |
| Mar-20-2025 | 154.2 $* | 162.75 $* |
| Feb-20-2025 | 152.9 $* | 160.31 $* |
| Jan-20-2025 | 151.94 $* | 159.29 $* |
Характеристики
MODEL SELECTION
No. | Outline | Max head | Max flow | Model | Outlet | Voltage | Power | ||
inch | Mtrs. | m³/hr | inch | VDC | KW | HP | |||
1 | 3 | 25 | 3.0 | 3SPC3/25-D24/200 | 1.25 | 24 | 200 | 0.3 | |
2 | 3 | 35 | 3.0 | 3SPC3/35-D24/300 | 1.25 | 24 | 300 | 0.5 | |
3 | 3 | 47 | 3.5 | 3SPC3.5/47-D48/400 | 1.25 | 48 | 400 | 0.5 | |
4 | 3 | 80 | 3.5 | 3SPC3.5/80-D48/600 | 1.25 | 48 | 600 | 0.8 | |
5 | 3 | 80 | 3.5 | 3SPC3.5/80-D72/600 | 1.25 | 72 | 600 | 0.8 | |
6 | 3 | 95 | 3.5 | 3SPC3.5/95-D48/750 | 1.25 | 48 | 750 | 1.0 | |
7 | 3 | 95 | 3.5 | 3SPC3.5/95-D72/750 | 1.25 | 72 | 750 | 1.0 | |
8 | 3 | 123 | 3.8 | 3SPC3.8/123-D72/1100 | 1.25 | 72 | 1100 | 1.5 | |
9 | 3 | 123 | 3.8 | 3SPC3.8/123-D110/1100 | 1.25 | 110 | 1100 | 1.5 | |
10 | 3 | 155 | 3.8 | 3SPC3.8/155-D110/1300 | 1.25 | 110 | 1300 | 1.7 | |
11 | 3 | 180 | 3.8 | 3SPC3.8/180-D110/1500 | 1.25 | 110 | 1500 | 2.0 | |
12 | 3 | 45 | 5.0 | 3SPC5/45-D48/500 | 1.25 | 48 | 500 | 0.7 | |
13 | 3 | 50 | 5.2 | 3SPC5.2/50-D48/600 | 1.25 | 48 | 600 | 0.8 | |
14 | 3 | 50 | 5.2 | 3SPC5.2/50-D72/600 | 1.25 | 72 | 600 | 0.8 | |
15 | 3 | 65 | 5.5 | 3SPC5.5/65-D72/750 | 1.25 | 72 | 750 | 1.0 | |
16 | 3 | 65 | 5.5 | 3SPC5.5/65-D110/750 | 1.25 | 110 | 750 | 1.0 | |
17 | 3 | 84 | 6.0 | 3SPC6/84-D110/1100 | 1.25 | 110 | 1100 | 1.5 | |
18 | 3 | 125 | 6.0 | 3SPC6/125-D110/1500 | 1.25 | 110 | 1500 | 2.0 | |
19 | 3 | 46 | 7.0 | 3SPC7/46-D72/750 | 1.25 | 72 | 750 | 1.0 | |
20 | 3 | 46 | 7.0 | 3SPC7/46-D110/750 | 1.25 | 110 | 750 | 1.0 | |
21 | 3 | 62 | 7.5 | 3SPC7.5/62-D110/1100 | 1.25 | 110 | 1100 | 1.5 | |
22 | 3 | 78 | 7.5 | 3SPC7.5/78-D110/1500 | 1.25 | 110 | 1500 | 2.0 | |

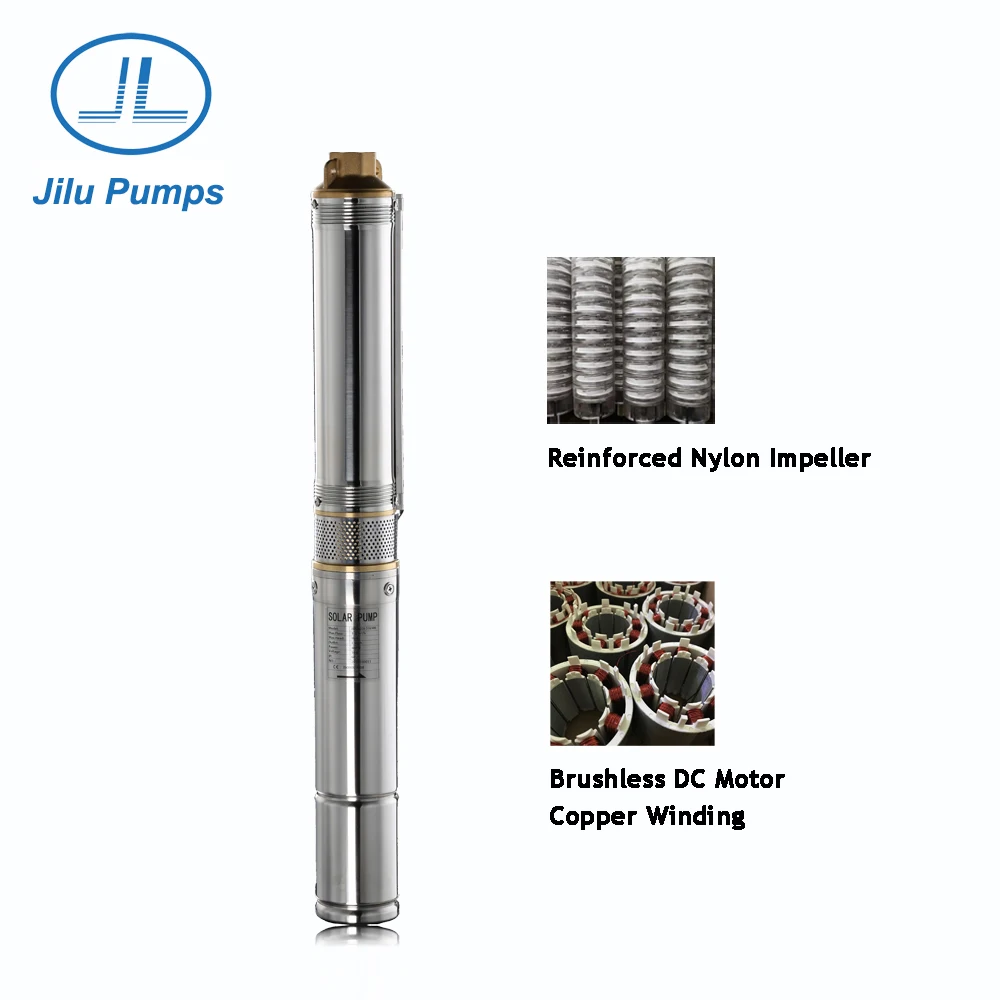

PUMP DETAILS
NEMA Standard
Coupling of pump end
NEMA Standard
Connection and splines
Outlet/Discharge
Brass or Die-cast 304SS
Impeller
Reinforced Nylon
Pump Tube
AISI 304 SS
NSK Bearing
1pc front bearing
★Double end bearing
Mechanical Seal
High sand resistance and IP68 protection degree.
Ceramics and Carbon
Sand Guard
Helps to prevent sand inside the water entering in mechanical seal then to motor.
Motor Rotor
Shaft - AISI 304 Stainless Steel
Rotor lamination - Higher than
required corresponding motor
power
Magnetic steel - N35UH NdFeB
Magnet
Motor Stator
Reinforced plastic bobbin
100% enamelled copper wire
Stator lamination - Higher than required corresponding motor power
Motor Pressure Test
Motor leakage test
5KGS pressure
90 seconds
Twice

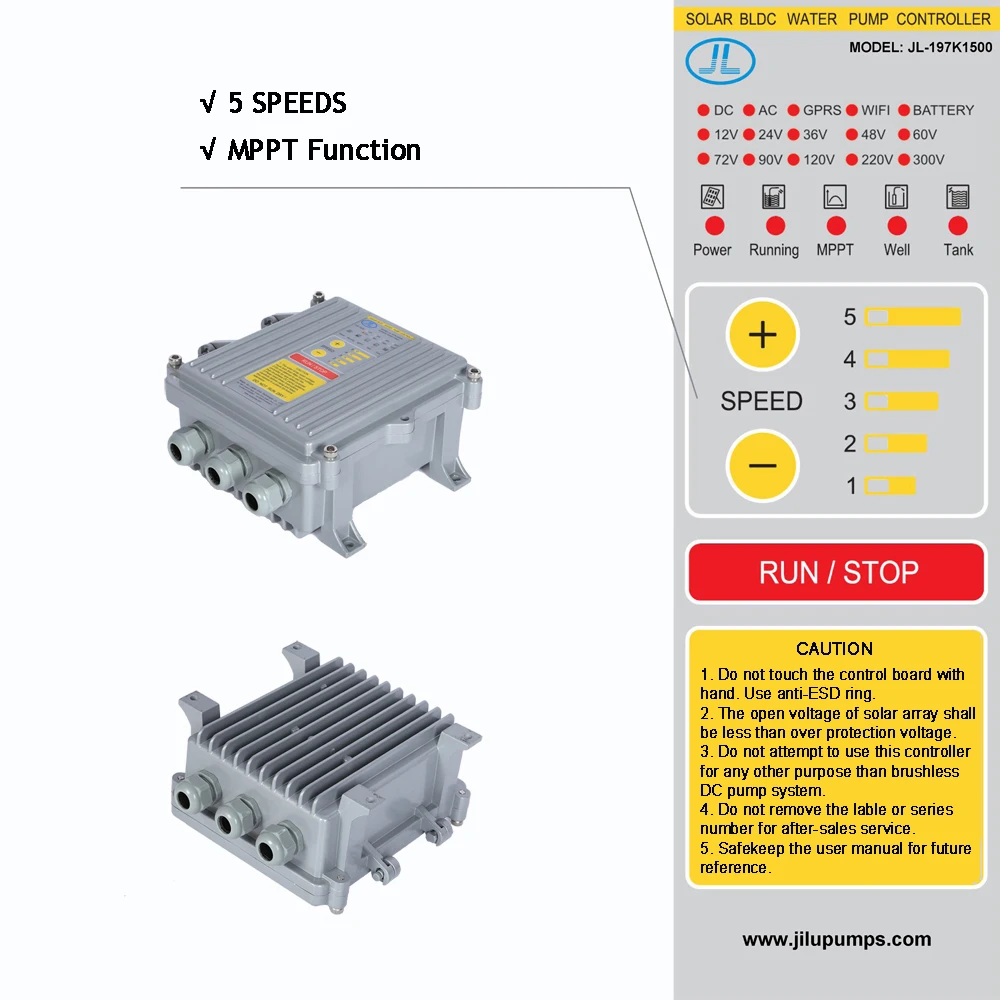

CONTROLLER DETAILS
Classic Version
1. 92~99.9% MPPT efficiency
2. All necessary protections available: Anti-Reverse Protection
Phase loss
Under-voltage
Over-voltage
Over-current
Overload
Short circuit
...
3. Unique enclosure with design patent
2. All necessary protections available: Anti-Reverse Protection
Phase loss
Under-voltage
Over-voltage
Over-current
Overload
Short circuit
...
3. Unique enclosure with design patent
5. 72 Hours factory acceptance test
6. Higher Allowance, Higher MOSFET, Filter the high instantaneous voltage
7. 30% Extra Capacitor
8. 1.5oz Copper Foil
9. Soft Start-Up System
10. MPPT&DSP Chip Technique
11. Full-Automatic Operation
12. Intelligent Cloud Platform - Optional
RS485 mode - Optional
6. Higher Allowance, Higher MOSFET, Filter the high instantaneous voltage
7. 30% Extra Capacitor
8. 1.5oz Copper Foil
9. Soft Start-Up System
10. MPPT&DSP Chip Technique
11. Full-Automatic Operation
12. Intelligent Cloud Platform - Optional
RS485 mode - Optional
Cable water joint
Lockhole for safe
Mounting holes
★ 2020 New Version Controller
PLUS FUNCTION:
◆ Touch screen ◆ Digital display: Power, Voltage, Speed
◆ Error code display ◆ Timing setting
HOW WE PRODUCE
Automatic SMT Line
DIP Line
Semi-automatic Tin Stoves
Repair welding to check each board is qualified.
Burn-in Test
With panels on roof, we test each controller at least 48 hours to check the performance.
Installation

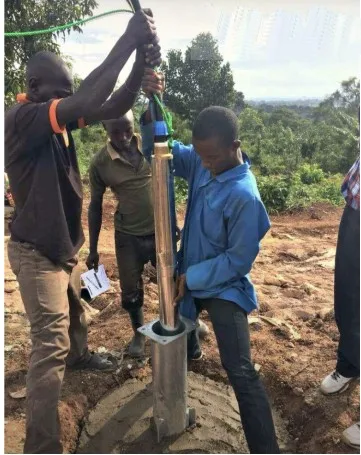

Pump installation

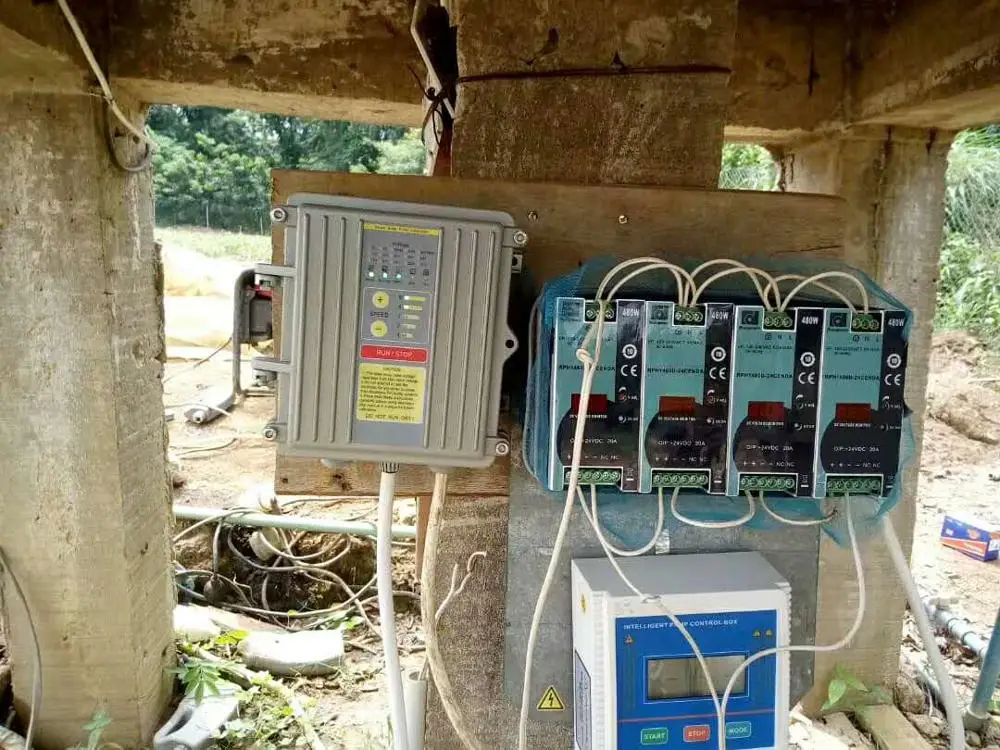

MPPT controller installation
Water pumping out !
Packing & Delivery
Package includes | Quantity |
Pump end (NEMA standard coupling) | 1PC |
Motor (NEMA standard connection) | 1PC |
MPPT pump controller | 1PC |
Well/Borehole level sensors | 1SET |
Tank level sensors | 1SET |
Heat-shrinkable tube | 1SET |
Socket screw wrench | 1PC |
Terminals | 1SET |
User manual | 1PC |
Strong Plywood Cases
Also popular as:
Column Air Bag
Clear Model Name Print
Controller- Carton with pearl wool
Pump set- Tough Paper tube
1. Retail order, lead time ≤ 7 days.
2. Bulk order, please ask sales person at any time.
Delivery through Express (DHL, UPS, FedEx, ARAMEX), by Air, by Sea are all accepted, please contact us to advice best shipping way for you.
Our Service
Controller burn-in test
We test each controller for 72 hours or more connected with solar pump and solar panels.
Solar Panels on the roof
Solar panels are connected on our factory roof for our test of each model.
Pump performance test
We use this machine to test pump flow, head, power etc.
Service We offer
▲Within warranty, we provide replacement for faulty pump or controller if due to manufacturing defects.
▲We'd like to offer technical training and support to the agents face to face if possible.
▲Intelligent engineers are available for technical supports.
▲Any suggestions to our products, we'll be glad to listen to you.
