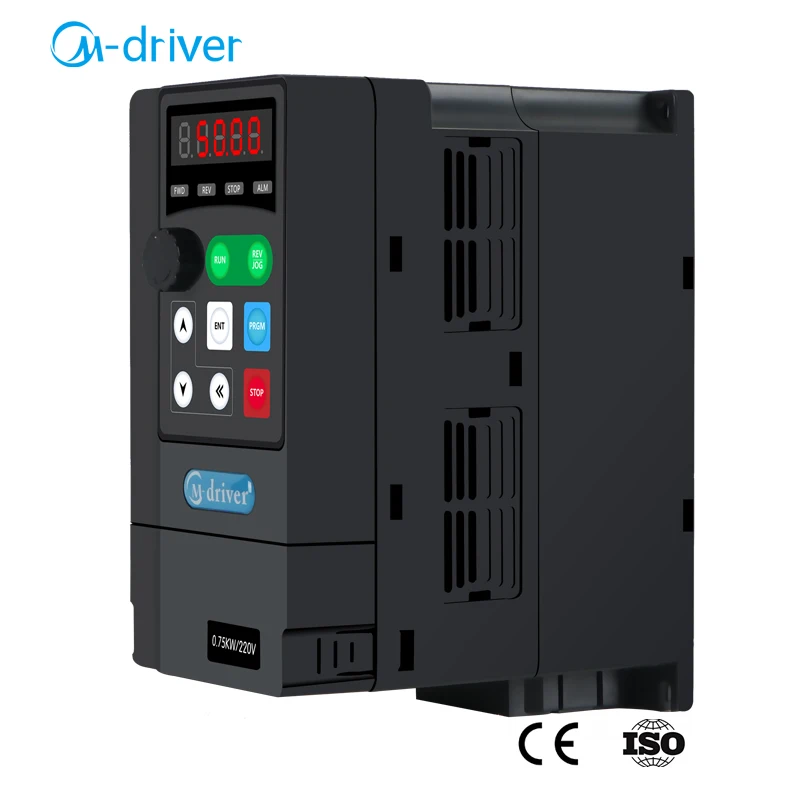

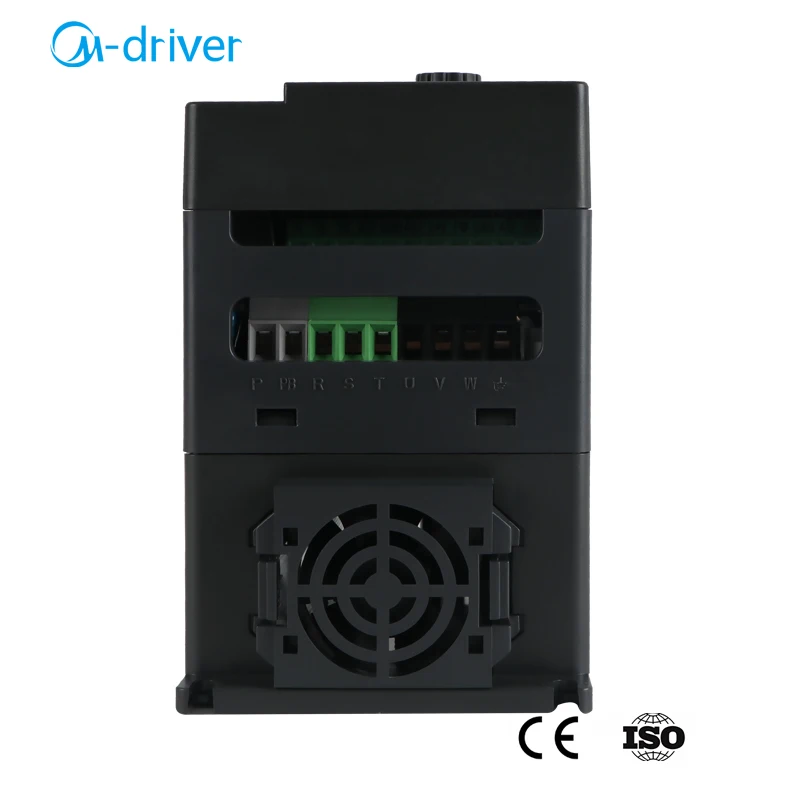

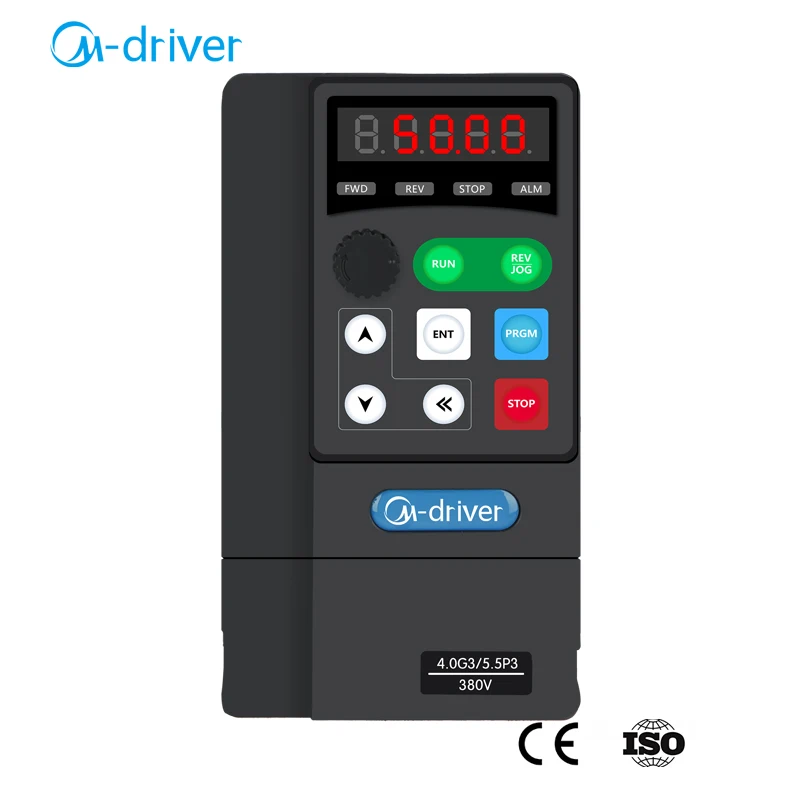

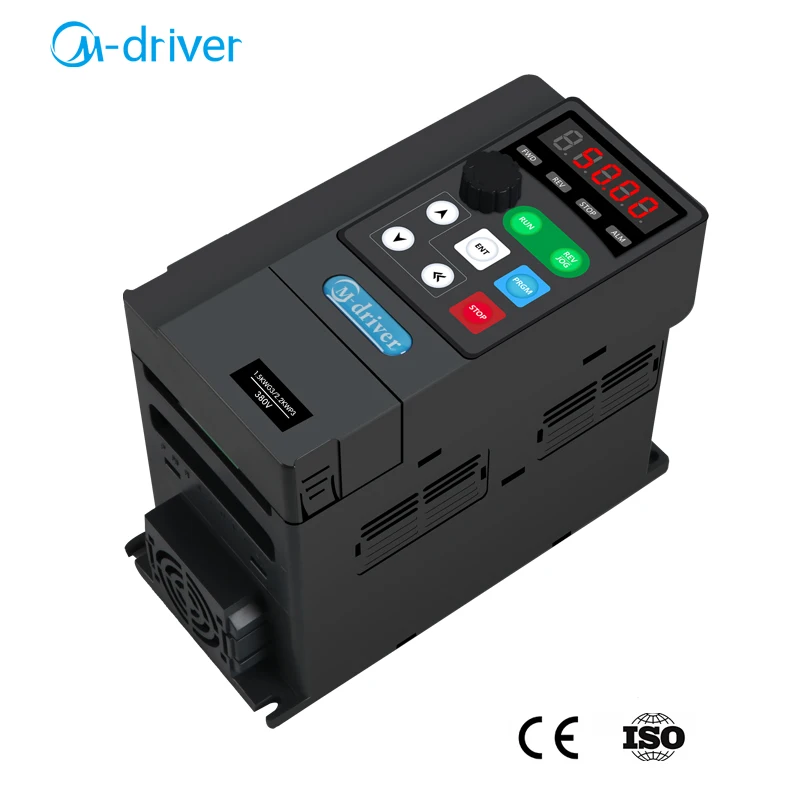

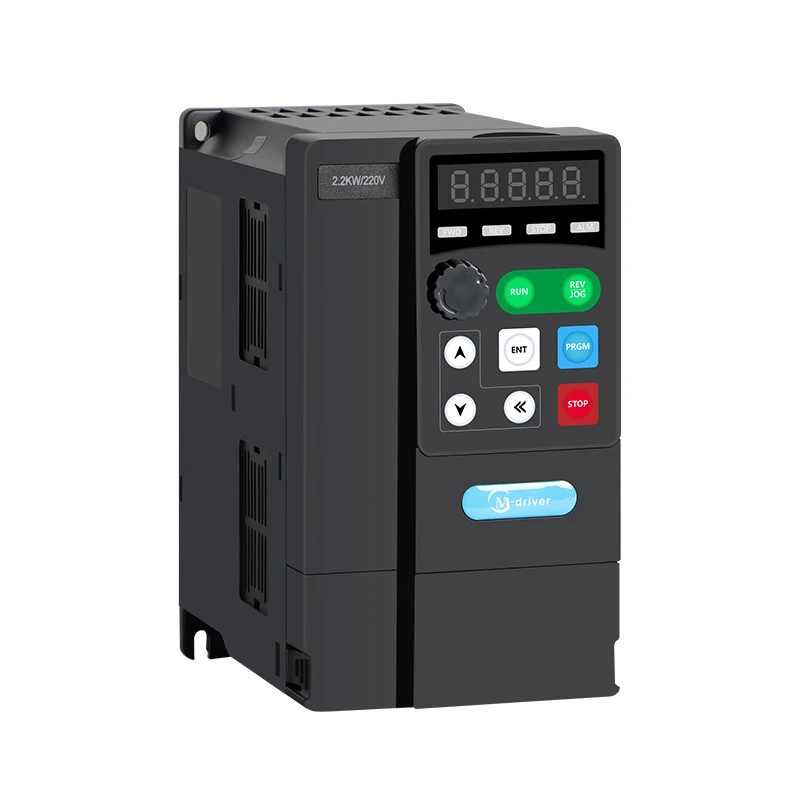

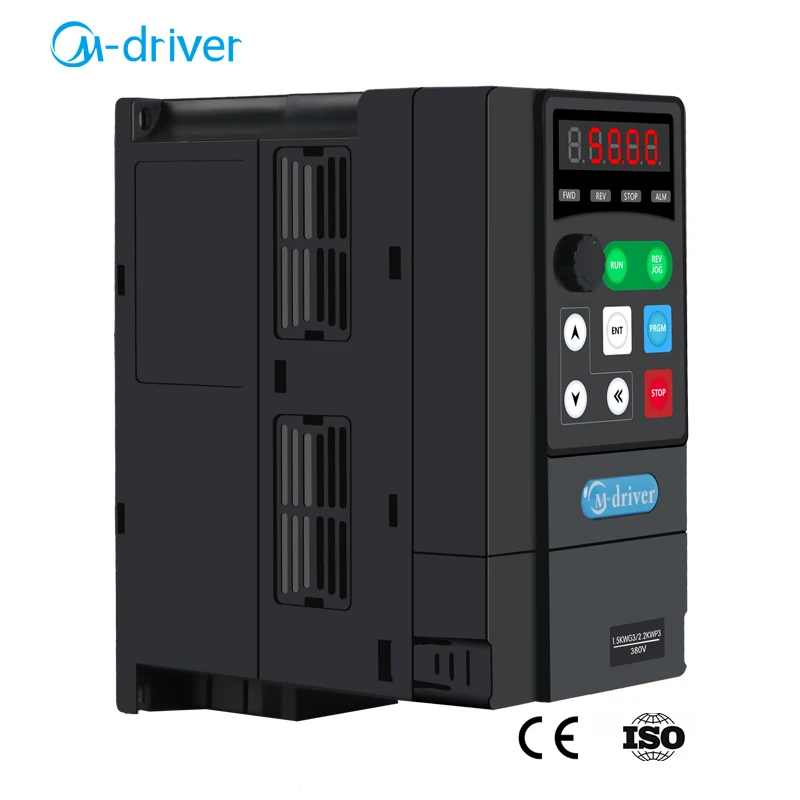

220V 50HZ 110V 60HZ Converter AC Frequency Inverter 2.2KW VFD Drive for Motor
Model
M0022G1
Power range
AC 220V (-15%~+30%) 2.2KW
Output Frequency Range
0~500Hz
Control Mode
V/F Control, Sensorless Vector Control
Starting Torque
0.5Hz/150%(SVC), 1Hz/150%(V/F);
Communication port
RS-485, which support MODBUS protocol
Vibration
Less than 5.9m/s
Fault Protection
protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.
Specification
Item
Specifications
Basic function
Over load capability
G type:150% rated current 60s;180% rated current 3s
P type:120% rated current 60s;150% rated current 3s
Torque boost
Auto torque boost function; Manual torque boost 0.1%~30.0%
V/F curve
Linear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2)
V/F separation
2 ways: separation and semi-separation
Acc./dec curve
Straight line or S curve acceleration and deceleration mode,
Four kinds of acceleration and deceleration time. Acceleration and deceleration time range from 0.0s to 6500.0s
DC braking
DC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s
Brake current value:0%-100%
Jog control
Jog frequency range:0.00Hz~50.00Hz;
Jog acceleration/deceleration:0.0s~6500.0s.
Simple PLC
It can realize at maximum of 16 segments speed
Basic function
Multiple segment speed running
Running via the built-in PLC or control terminal.
Built-in PID
It is easy to realize process-controlled closed loop control system.
Auto voltage regulation (AVR)
It can keep constant output voltage automatically in the case of change of network voltage.
Over-voltage/current stall control
It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process.
Quick current limit
Minimize the over-current fault, protect normal operation of the AC Drive.
Torque limit & control
"Excavators" characteristics, automatically limit torque during operation, prevent frequent over-current tripping. Closed loop vector mode can realize the torque control.
Personalized function
Instantaneous stop non-stop
When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep running in a short period of time.
Rapid current limit
To avoid AC Drive frequent over-current fault.
Timing control
Timing control function:set time range 0Min~6500.0Min.
Running
Command source
Operation panel reference, control terminal reference and serial communication port reference. These channels can be switched in various modes.
Frequency source
There are totally eleven types of frequency sources, such as digital reference, analog voltage reference , analog current reference, pulse reference, MS speed, PLC, PID and serial port reference.
Input terminal
5 digital input terminals.
2 analog input terminals.
1 supporting 0-10V voltage input or 0~20mA current input terminal.
Output terminal
2 digital output terminals.
2 relay output terminals.
2 analog output terminals, supporting 0~10V voltage output or 0~20mA current output.
Keyboard operation
Keyboard potentiometer
Equipped with keyboard potentiometer or coding potentiometer.
Keyboard operation
Protection function
It can implement power-on motor short-circuit detection, input /output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection.
Environment
Using place
Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude
Below 1000m
Ambient temperature
-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
Humidity
Less than 95%RH,without condensing
Vibration
Less than 5.9m/s (0.6g)
