Б/у машина для изготовления винтов из стали
US $1000-$2000
Лидер продаж машина для производства винтов из гипсокартона изготовления гвоздей
- Категория: Thread Rolling Machines >>>
- Поставщик: Xuchang,Huarui,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.28 $* | 0.58 $* |
| Aug-19-2025 | 0.66 $* | 0.26 $* |
| Jul-19-2025 | 0.1 $* | 0.59 $* |
| Jun-19-2025 | 0.8 $* | 0.27 $* |
| May-19-2025 | 0.52 $* | 0.2 $* |
| Apr-19-2025 | 0.76 $* | 0.45 $* |
| Mar-19-2025 | 0.72 $* | 0.14 $* |
| Feb-19-2025 | 0.3 $* | 0.21 $* |
| Jan-19-2025 | 0.1 $* | 0.73 $* |
Характеристики
Best selling drywall screw making machine for making nail and screw
Step1:Cold heading machine, for making the screw blanks
Step2: For making the threads of the screws
Product Description
1. Automatic Cold heading machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Model | Max. Screw Dia. (mm) | Max. Screw length(mm) | Capacity (pcs/min) | Motor (kw) | Weight (Ton) | Overall size (m) |
ZM3-18A/B | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
ZM3-28A/B | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
ZM4-28B | 4 | 28 | 120-160 | 1.5/0.37 | 0.97 | 1.5*0.9*0.9 |
ZM4-28D | 4.5 | 28 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1*1.2 |
ZM4-40B | 4 | 40 | 120-150 | 1.5/0.37 | 0.97 | 1.6*1*1.2 |
ZM4-40D | 4.5 | 40 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1.1*1.1 |
ZM5-40B | 6 | 40 | 120-150 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
ZM5-60B | 6 | 60 | 110-140 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
ZM5-80B | 6 | 80 | 80-100 | 2.2/0.37 | 1.9 | 2*1.1*1.2 |
ZM5-100B | 6 | 100 | 60-80 | 3/0.18 | 2.1 | 2.4*1.2*1.2 |
ZM5-120B | 6 | 120 | 50-70 | 3.6/0.37 | 2.3 | 2.8*1.3*1.3 |
ZM6-60B | 8 | 60 | 80-110 | 4/0.37 | 2.8 | 2.3*1.3*1.3 |
ZM6-100B | 8 | 100 | 60-90 | 4/0.37 | 2.7 | 2.3*1.3*1.3 |
ZM6-120B | 8 | 120 | 60-70 | 4/0.37 | 3 | 2.4*1.3*1.4 |
ZM6-170B | 8 | 170 | 40-70 | 4/0.37 | 3.7 | 3*1.3*1.5 |
2. Full automatic thread rolling machine
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.
The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.
Model | Max. Screw Dia (mm) | Max. Screw length (mm) | Motor (kw) | Capacity (pcs/min) | Weight (Ton) | Overall size (m) |
HR6-60A | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
HR6-60B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
HR6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
HR8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
HR8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.7*1.7*1.3 |
HR8-120B | M8 | 120 | 5.5 | 100 | 2.1 | 2.4*1.8*1.4 |
HR10-120B | M10 | 120 | 7.5 | 80 | 1.8 | 2.35*1.95*1.4 |
HR12-120B | M12 | 120 | 11 | 60 | 3 | 2.45*2*1.45 |
HR12-160B | M12 | 160 | 13 | 60 | 3 | 2.45*2*1.45 |
HR12-220B | M12 | 220 | 15 | 50 | 3.5 | 2.5*2*1.45 |
HR16-120B | M16 | 120 | 15 | 50 | 3.8 | 2.5*2.1*1.45 |
HR16-160B | M16 | 160 | 15 | 50 | 4 | 2.5*2.1*1.45 |
Detailed Images
Detailed pictures

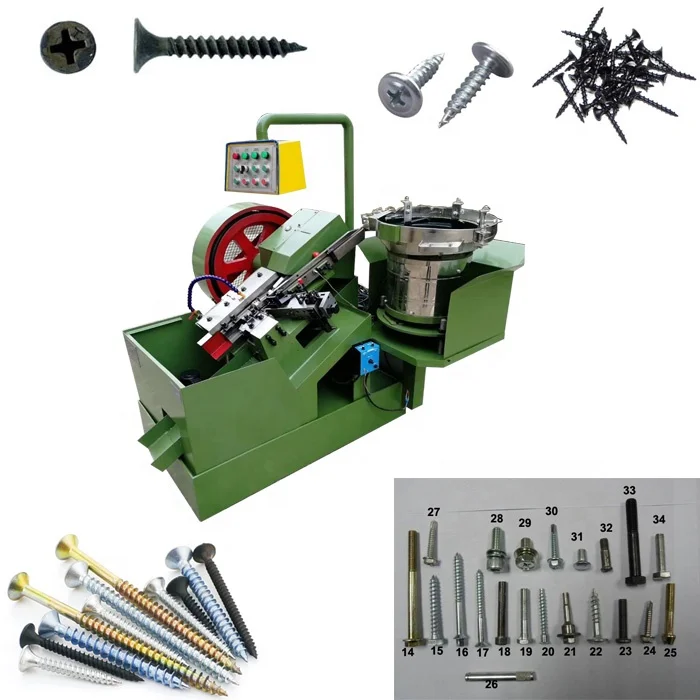

Finished screws can be made
Workshop show
After-Sales Service
1.All products purchased in our company are guaranteed to keep in good repair for two years. If quality problems happen in guarantee period, our company will maintain for free.
2.Before sending the machine, we will test and adjust, so you can use directly when you get it. Operation video & instruction will be sent to clients, to help them use the machines better.
3. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
4. Any problems occur while using, professional advice will be offered.
5. All kinds of frequently used parts are supplied all the year round.
6. 24 hours on line service.
Packaging and shipping
CE Certification
Customer Visit
Any enquiry are welcome, please feel free to contact us.
Whatsapp/Wechat is 0086 13569926370 ,
Skype: wu.ada1
