Новая модель KL-K103X 12V приемо-код обучения переключатель контроллер беспроводной пульт дистанционного управления с
- Категория: Аксессуары и запчасти >>>
- Поставщик: Shenzhen,Kelvin,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 243.10 $* | 248.65 $* |
| Jul-18-2025 | 197.55 $* | 201.86 $* |
| Jun-18-2025 | 239.46 $* | 244.3 $* |
| May-18-2025 | 237.94 $* | 242.0 $* |
| Apr-18-2025 | 189.66 $* | 193.63 $* |
| Mar-18-2025 | 233.8 $* | 238.46 $* |
| Feb-18-2025 | 231.55 $* | 236.85 $* |
| Jan-18-2025 | 229.43 $* | 234.3 $* |
Характеристики
Please contact us for more product information, price concessions, etc.
Parameter | |
Input | DC 12V (DC9V, 24V is customized) |
Channel | 1 |
Current | 8mA |
Frequency | 433MHz / 315MHz (other frequency is customized) |
Receiver Sensitivity | -103dBm |
Decoding Type | Learning Code(EV1527) / Fixed Code(2262) |
Output Mode | Switching Signal (Dry Contact) |
Working Mode | Momentary / Toggle / Latching |
Max Load of Relay Contact | 7A |

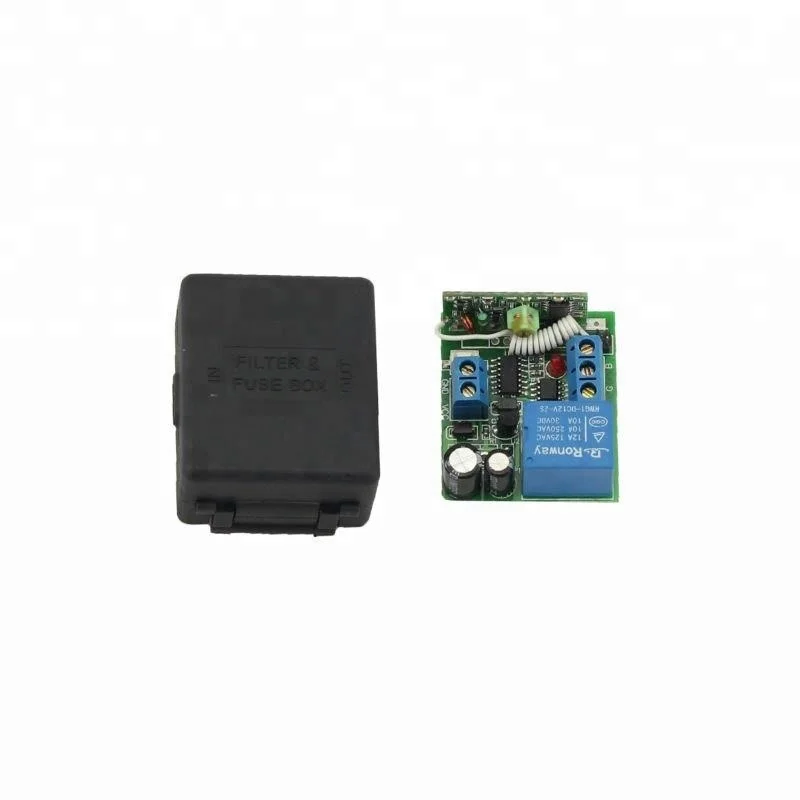

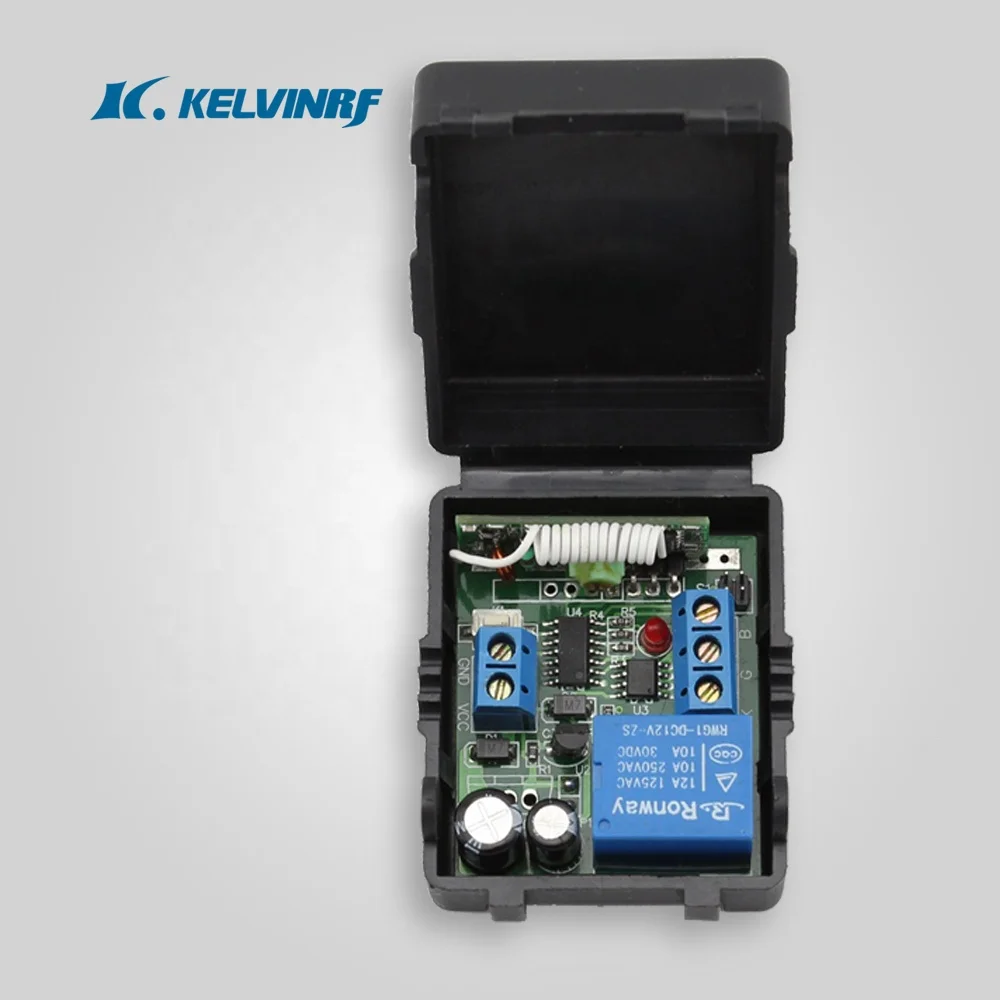

12V Receiver Learning Code switch Controller Wireless remote control module with Relay KL-K103X![]()
![]()
![]()
![]()
It is Widely used in motorcycles, automobiles anti-theft anti-lost personal alarm products, home security system products, etc.
Encoding Type: Fixed code,Learning code
Encoding Mode: Fixed code by soldering
Working Mode : Non-lock. self-locking, inter-locking
Operation Method:
1. Match code:
Hold learning button and learning indicator light blinks, then press a buttons of remote control, if indicator lights flashes 3 times, match code successfully. Maximum 20 remote controls can be matched.
Pls note that KL-K103X can learn any data code. It means it can be controlled by whichever button you press on the remote while matching.
2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.
3.Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggle
Jumper on S2→ Latching
No Jumper on S1 &S2→ Momentary
Working Mode:
1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.
Wiring Way & Diagram:
B=Normally Closed, G=Common, K=Normally Open.
