Характеристики
Product Description
Brife Description

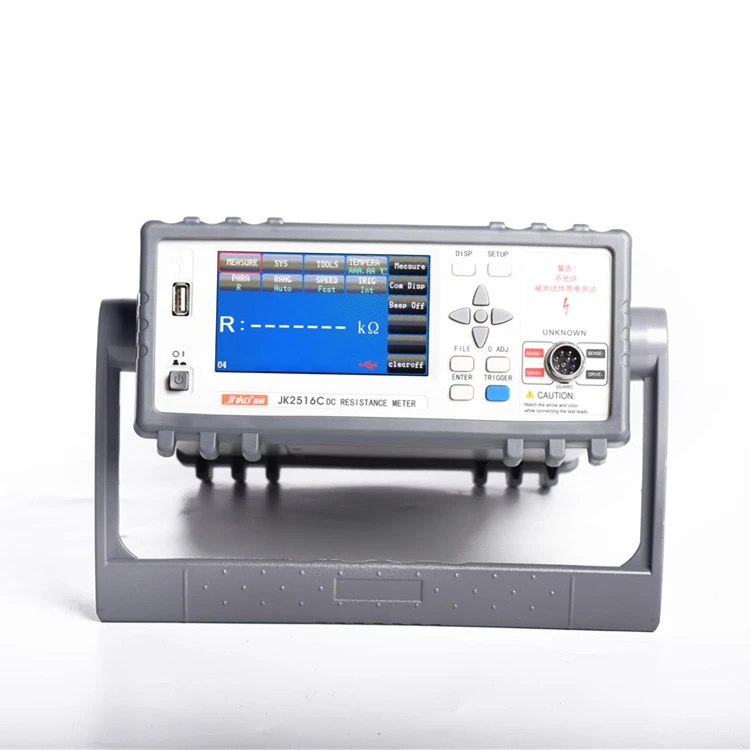

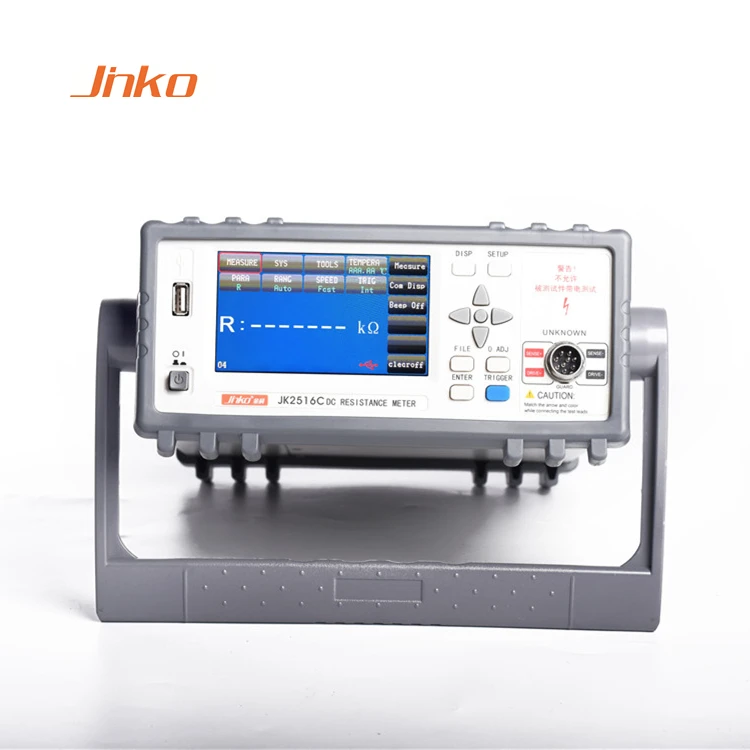

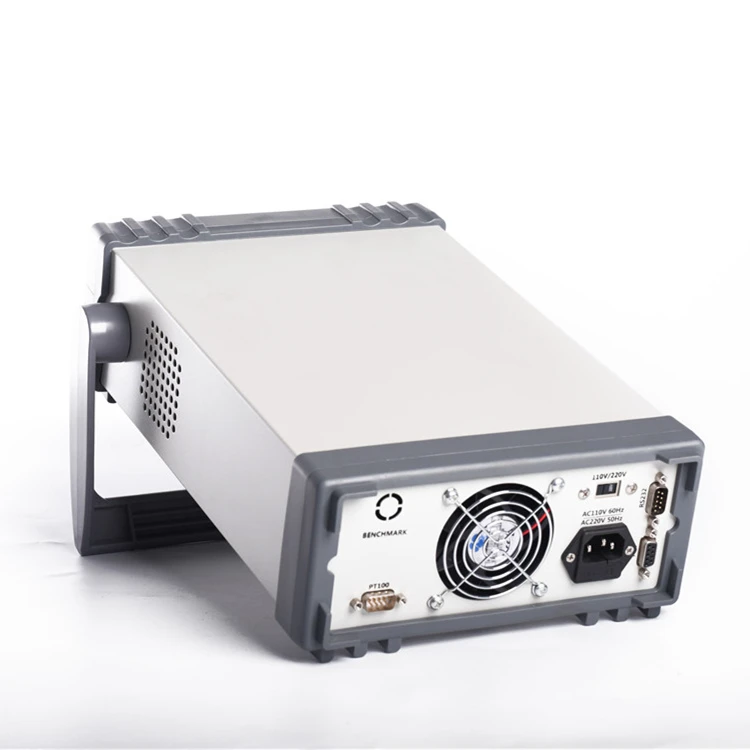

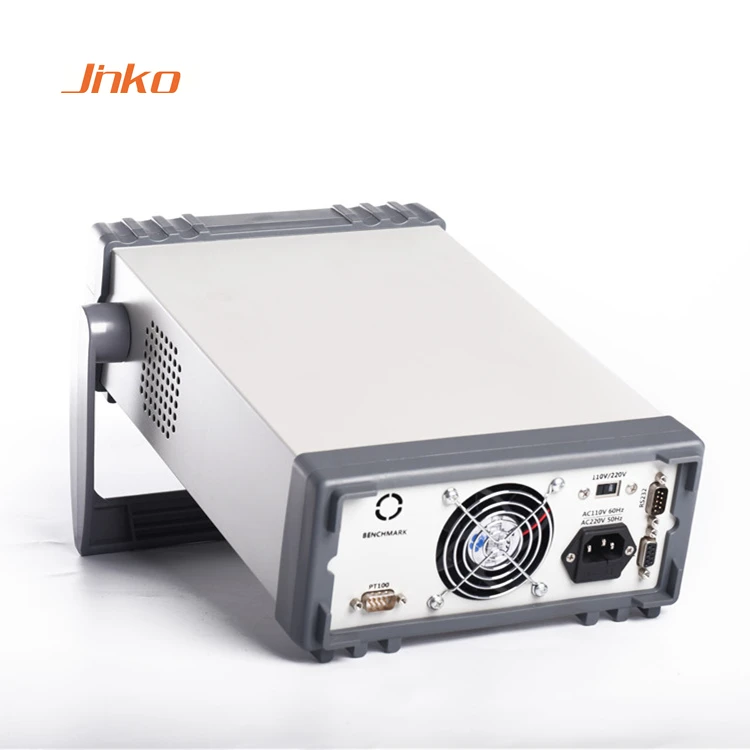

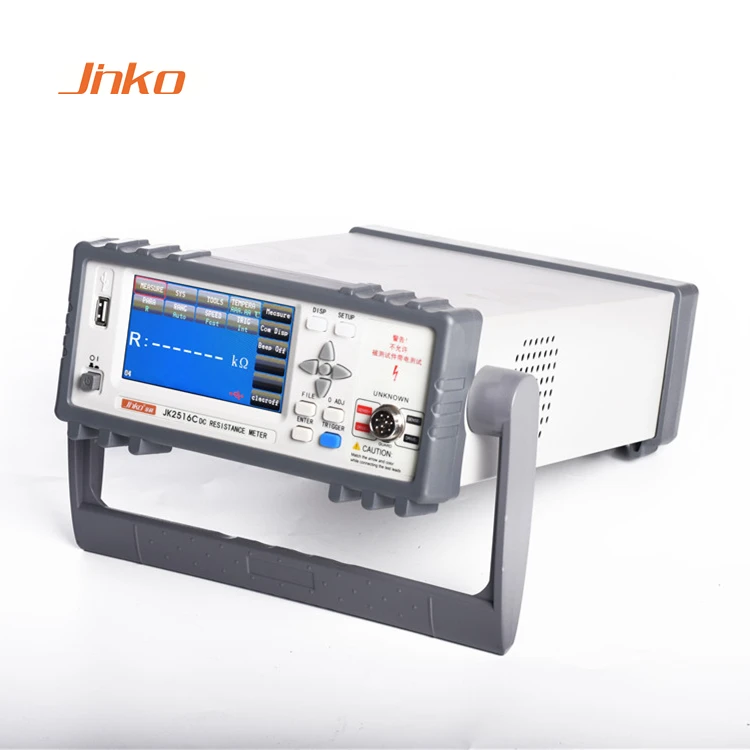

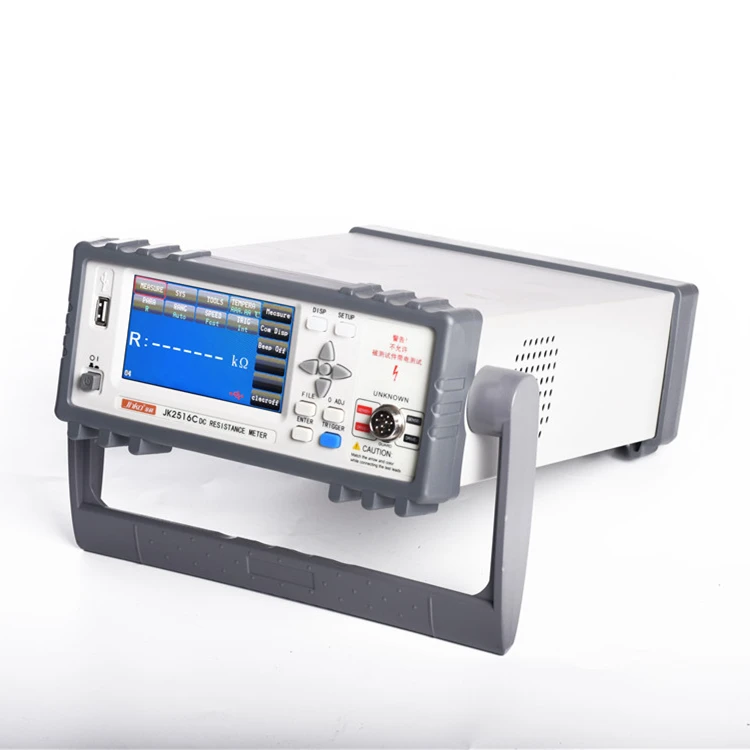

JK2516 series are high precision DC resistance testers.It can be used to detect coil, inductance, transformer, motor, relay contact resistance, connector resistance, fuse, cable resistance, printed circuit resistance, welding hole resistance, conductive film, metal flaw detection and so on.It is a low resistance tester with high speed, high precision and high performance. It can meet the quality assurance of production line, import inspection and laboratory measurement, and also can be applied to the test of automatic equipment.
Features
* The new 32 bit core processor, the data is better than foreign first-class equipment.
* 4.3 inch (LCD resolution 480*272) true color TFT display *Built-in comparator, HI, LO, IN
*U disk directly saves test results, and saves more conveniently. *U disk support format FAT16, FAT32 file system
*The basic measurement accuracy of the maximum 0.05%
*The more than 100 sets of internal files are saved or invoked, and the U disk can extend more than 500 sets of test files to save or call. *Through USB HOST, we can upgrade and update the software version
*It is equipped with HANDLER, USB HOST, USB DEVICE, RS232C and GPIB interface.
Parameters
Model | JK2516 | JK2516C | JK2516A | JK2516B |
Meas. Range | 0.1μΩ-1.0GΩ | 0.1μΩ-100MΩ | 1μΩ-2MΩ | 1μΩ-20kΩ |
Basic accuracy | 0.1μΩ - 110M 0.05% 110M - 1.0GΩ 0.5% | 0.05% | 0.05% | 0.05% |
Reading | 5 1/2 digit Maximum 1150000 Number display digits |
| ||
Meas. speed | 4-35 time/second |
| ||
Meas. Mode | Temp. compensation/ Standard/ Criterion | Temp. compensation/ Standard | Standard | |
Range mode | Automatic/Hold/Manual selection | |||
Trigger mode | Internal/ Manual/External | Internal/ External | ||
Delay time | 0—9999ms, step by 1ms | |||
Calibration FCN. | Short circuit reset/ Reset/ Load correction | |||
Temp. Meas. | -10.0℃~-99.9℃, Sensor:PT100, Accuracy:0.2℃ | No | ||
Temp. Comp. FCN. | Yes (resistance measured value converted to resistance value at set temp.) | No | ||
Test terminal configuration | Four terminals (2 detection terminals + 2 drive terminals) and external shield ground | |||
Display mode | Direct reading,Δ% | |||
Range Test Range | 10mΩ~1000MΩ 12 ranges | 10mΩ~1MΩ 11 ranges | 10mΩ~1MΩ 8 ranges | 20mΩ~20kΩ 7 ranges |
Sorting | 3 ranges, absolute value/percentage | |||
Display | 24 true color,resolution of 480×272 TFT LCD | |||
Storage | U disk more than 500 groups | |||
Interface | Standard RS232C HANDLER, USB HOST | |||
Standard accessories | JK26050S Test cable, power cord, warranty card, communication software | |||
Optional accessories | 26009BSMD test clamp, 26008ASMD test box, communication software customized | |||
Size | Upper frame size:215mm×87mm×335mm | |||
Packaging & Shipping
Company Information
Changzhou Jinailian Electronic Technology Co., Ltd. , established in 2000, is a private hi-tech enterprise integrating R&D, manufacturing and marketing. After 20 years of development, Jinko has developed 30 varieties, including: LCR Digital Bridge series; capacitance and inductance measurement (sorting) series; leakage current tester series; DC low resistance tester, MOS tube tester, transistor tester, multiplex temperature tester, paperless recorder, electrical parameter measuring instrument, and other high-precision measuring instruments and testers. Other active products such as: DC stabilized voltage supply and high power switching power supply.
