Характеристики

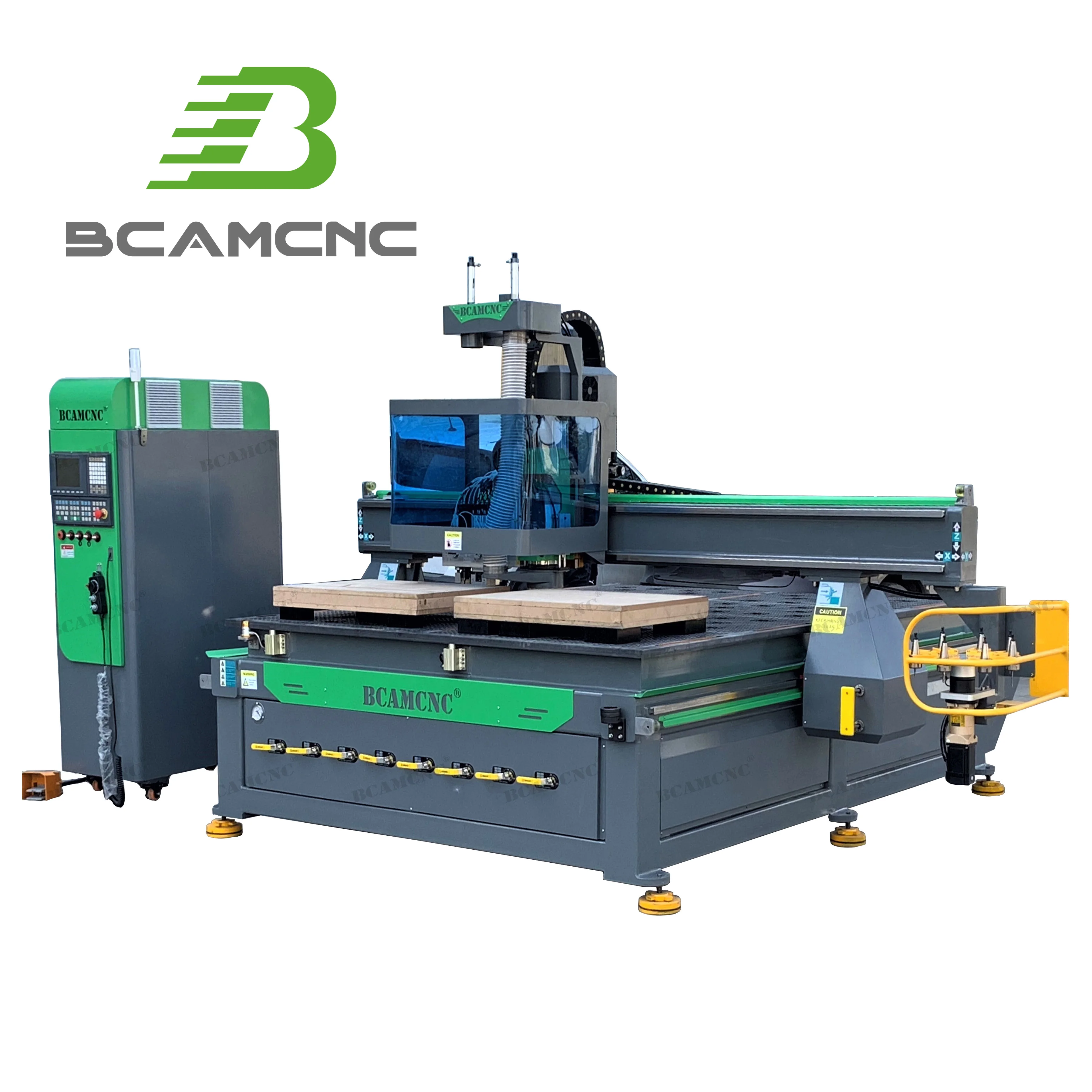

This 3d cnc router machine is customized for our Europe client, equipped with Italian 9.6kw atc air cooling spindle and drilling bank, this drilling bank with 9 tool on vertical, 3 tools on horizontal and 1 saw. So this cnc router can cutting, carving, milling, drilling, milling, boring,...
Italy drilling bank (9 vertical +3 horizontal+1 saw.)
![]()
![]()
![]()
Standard configuration List | ||||||
Machine model | BCM2030D | |||||
Working area | 2000*3000*200mm | |||||
Working table | Vacuum table + T-solts + Vacuum Suction Cup | |||||
Control system | Syntec control system with hand wheel | |||||
Spindle | Italy 9.6KW Air cooling spindle with protect shell | |||||
Spindle speed | 6000-24000RPM | |||||
Drilling head | Italy drilling head 9(vertical)+3(horizontal)+1(saw) | |||||
Max. Rapid Travel Rate | 80m/min | |||||
Max. working speed | 60m/min | |||||
Driver motor | Japan servo motor and driver | |||||
Reducer | Shimpo reducer from Japan | |||||
Guide rail | TBI/CSK/Hiwin square rail | |||||
Z Axis trasmission | Z axis TBI ball scew transmission. | |||||
X ,Y Axis transmission | X and Y Axis helical rack transmission. | |||||
Inverter | Delta Inverter | |||||
Tool Holder | Auto Carousel Tool Changer/ ISO30/ 10-12 Pieces | |||||
Dust collect | 3.0KW double bags dust collect | |||||

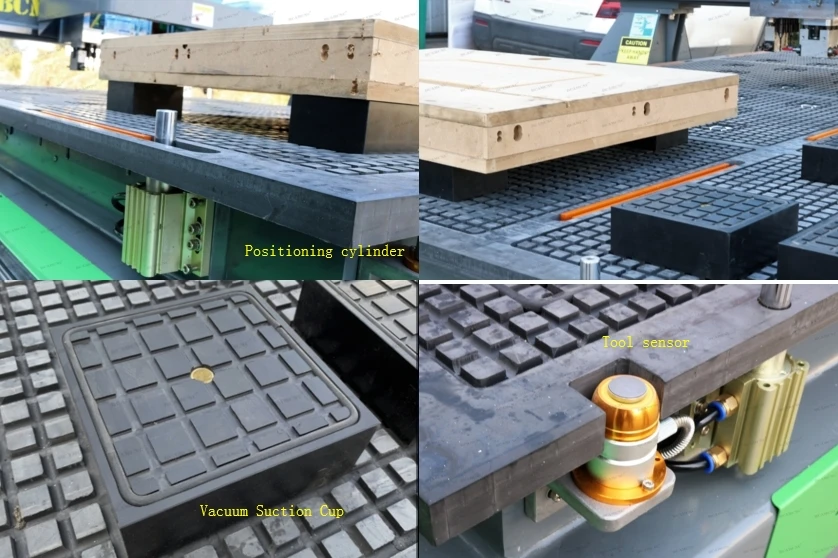

Other machine parts | Positioning cylinder, protect sheel, tool sensor, tool box | |||||
Active safety system | CNC Router machine will stop working immediately when person teach it. | |||||
Voltage | 380V/ 50HZ/ 3 Phase | |||||
Detailed Images
![]()

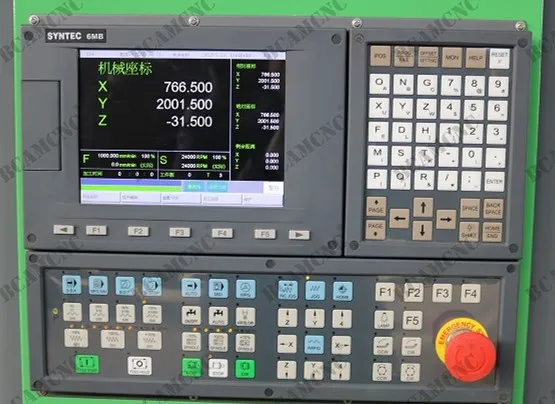

Syntec 60W-E controller
Machine controller adopts latest version Syntec 60W-E controller. The 60W-E control system is an upgrade from Syntec 6MA/6MB. It support 3 axis, 3 axis+drilling, 4 axis, 5 axis. You can set the toolpath by software(Vcarve, Alphacam, ArtCAM, Powermill,...), and copy it to U-disk, then insert to the USB interface of controller, the cutting toolpath will show on the control panel.
![]()

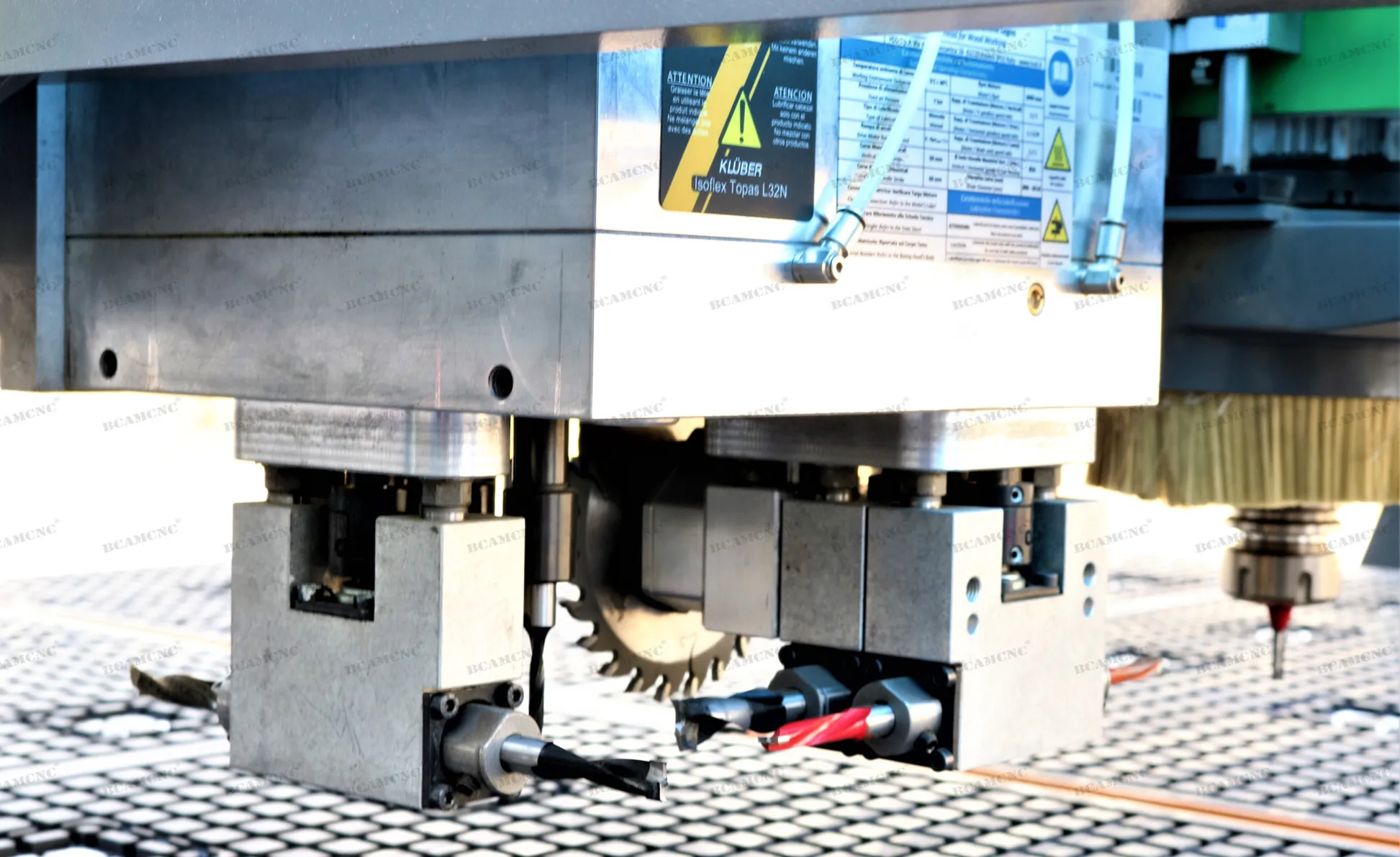

Italy 9.6kw Electric Spindle + Italy Drilling head
CNC Router machine is equipped with a Italy 9.6kw electric spindle and a Italy boring unit.
The type of boring unit can be equipped according to customer needs, such as 9 pieces vertical boring unit,9 vertical +3 horizontal +1 saw boring unit, full horizontal boring unit,......
![]()

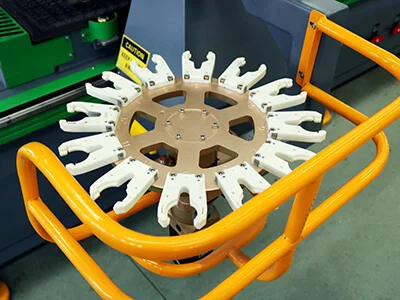

Carousel Tool Changer
ATC cnc router machine adopts 12 position carousel tool changer, can change tool within five seconds. And will equip with 12 pieces ISO 30 tool holders and ER collect.
And the number of tools can be customized according to customer needs, 8/10/12/14,....
Machine driver system is Japan servo motor and driver, and the machine is equipped with Japan Shimpo reducer. Japan servo motor and driver is the world's highest selling servo motor brand with high quality and long life.
![]()
![]()
![]()
Z axis uses China TBI ball screw transmission, with advantage of high accuracy and less wear.
X and Y axis uses Helical gear and rack transmission, with advantage of high coincidence, uniform force, and long service life.
![]()
Features
1. CNC Router machine adopt Italy spindle and drilling bank. It can cut, engrave, milling, drilling,... If you have some material need horizontal and vertical drilling, milling, ect. One set cnc router machine can be finished.
2.This wood cnc router machine uses automatic tool change by machine, Its tool magazine is a carousel, placed on the gantry, so that router cnc machines' spindle only needs to move the length of the X-axis to complete the tool change, very suitable for big size cnc router machine, for example 2000*4000mm, 2000*5000mm, 2000*6000mm,...
3. The carousel auto tool changer system have 12 pieces ISO30 tool holders, Its driver system uses servo motor and driver, have memory function, can change tools faster, improve work efficiency.
4.The X , Y and Z axis of cnc engraving machine are all servo motors, there have Japan Shimp reducer system to keep machine have a good quality.
5. Italy original spindle from Italy, It enjoy international warranty.
6.Its extraction uses dust extraction hood Airtech Pro, It can achieve dust-free during working, can connect with lower power dust collect easy to make it clean(Protect health and protect the environment) Also it can pre-pressed the materials, so it can be cut the very small pieces plates.
7.European design makes the cnc router look beautiful and refined; 8mm thickness steel heavy duty make the machine stable and durable; Professional car-painting make machine have a longer life.
![]()
Application
The 3d cnc router machine suitable used for furniture industry, advertising industry, decoration industry, packing industry,..
* (Woodworking)Furniture industry: suitable panel cabinet, wardroble, office furniture, custom furniture, wooden doors, solid wooden furniture, tables and charis, doors and windows, painet-free doors,composite doors, wood products,...
*Advertising industry: 3D advertising, road signs, public service ads, company logo, letter, logo, font, badge, acrylic, double swatch, PVC, ABS, aluminum, ...
* Decoration industry: Art mold, mural, screen, emboss, gift wrap, wave board, sporting goods,....
Main material : Wood, Acrylic, Plywood, Solid wood, MDF, PVC, Alumonium, foam, ABS, Corrugate board, Cardboard,......
