Bonovo хит продаж Мини экскаватор 1 тонна дешевый мини гидравлический микро
- Категория: Excavators >>>
- Поставщик: Xuzhou,Bonovo,Machinery,&,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.3 $* |
| Aug-16-2025 | 0.97 $* | 0.6 $* |
| Jul-16-2025 | 0.60 $* | 0.0 $* |
| Jun-16-2025 | 0.59 $* | 0.34 $* |
| May-16-2025 | 0.27 $* | 0.50 $* |
| Apr-16-2025 | 0.15 $* | 0.63 $* |
| Mar-16-2025 | 0.14 $* | 0.57 $* |
| Feb-16-2025 | 0.81 $* | 0.85 $* |
| Jan-16-2025 | 0.1 $* | 0.71 $* |
Характеристики
Bonovo © 2021 All Rights Reserved

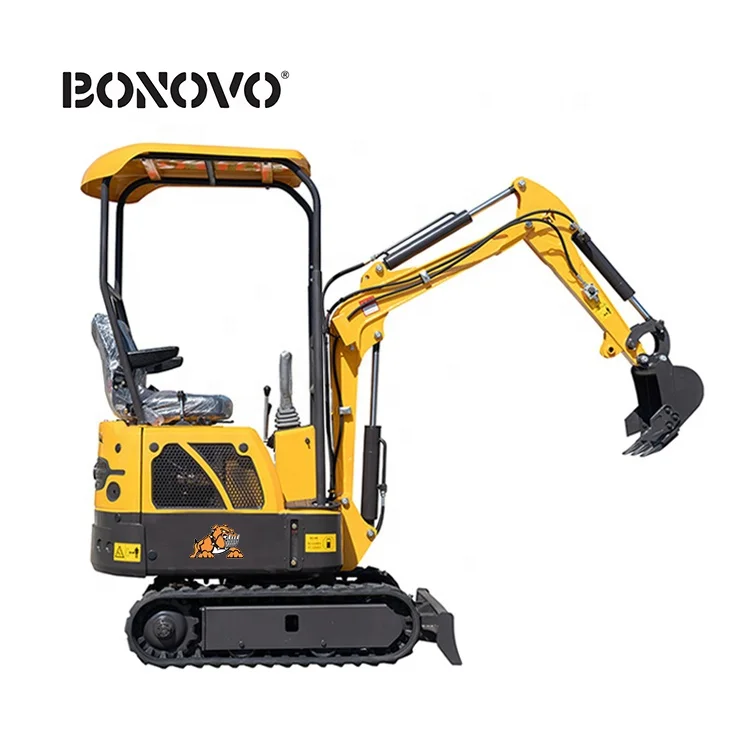

MINI EXCAVATOR DG10
Application Range:
DG10 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, retractable chassis,deflective boom, first-class configuration, load sensitive system,
changeable rubber track, environmental protection standard.
Full Arange
MINI EXCAVATOR DG10
Fuit-land Nurseries. concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on. Use the quick hitch can add the attachment tools like auger,hydraulic hammer,ditching bucket,grapple,thumb,tilt bucket,ripper,rake and so on. It can reduce maintenance and operating costs, iberate the workforce improve the mechanization, low investment, high return. Bonovo is willing to provide you with construction plans and
procurement plans.
Details
Specification
Engine | Model | CHANGCHAI/KOOP |
Displacement | 0.499L | |
Type | single-cylinder diesel | |
Max. Power | 7kW/1800r/min | |
Max. Torque | 26.8N.m | |
Overall Dimensions | Overall Length | 2120mm |
Overall Width | 930mm | |
Overall height | 2210mm | |
Chassis width | 930mm | |
Upper chassis ground clearance | 410mm | |
Cabin height | 2210mm | |
Blade | Width | 930mm |
Height | 235mm | |
Max.lift of dozer blade | 325mm | |
Max.depth of dozer blade | 175mm | |
Hydraulic system | Pump type | Gear pump |
Pump capacity | 22L/Min | |
Motor | Traveling motor | Eaton 310 |
Swing motor | KERSEN | |
Working range | Max.Digging Height | 2490mm |
Max.Dumping Height | 1750mm | |
Max.Digging Depth | 1400mm | |
Max.Vertical Digging Depth | 1320mm | |
Max.Digging Radius | 2400mm | |
Min.Swing Radius | 1190mm | |
Tail Swing Radius | 795mm |
