Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер
Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер
Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер
Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер
Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер
Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер
Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер

Пневматические инструменты Yueqing строительный пистолет гвоздезабивной станок степлер


Поделиться:


Цена:753,38 ₽ - 1 506,76 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 956.90 $* 975.44 $*
Jul-19-2025 776.84 $* 792.99 $*
Jun-19-2025 941.9 $* 960.65 $*
May-19-2025 934.78 $* 953.96 $*
Apr-19-2025 745.14 $* 760.49 $*
Mar-19-2025 919.44 $* 937.50 $*
Feb-19-2025 911.14 $* 929.8 $*
Jan-19-2025 904.3 $* 922.79 $*

Характеристики

Pneumatic Tools Yueqing Staple Gun Nailer Machine Staple Machine Hot Stapler

Product Description

Pneumatic Tools Yueqing Staple Gun Nailer Machine Staple Machine Hot Stapler

30 Year Production Experience

Industry's Leading Factory

Taiwan Engineer With 30 Years Experiences In Nail Gun Industry

Taiwan Spare Parts



  FEATURE

 • 360° exhaust direction

 • Light die cast body of aluminum alloy

 • Bottom loading design

 • Safety lock in the trigger available

 • Extremely easy jam clearing design

nail gun,furniture,door

furniture door wood air compressor tool set pneumatic piston coil woodworking Parameters

Tool Diamensions: 215x50x165mm (8.46x1.97x6.50 in.)
Net Tool Weight: 0.89kgs (1.96lbs)
Operate Pressure: 4~7.0Kg/cm (60~100Psi)
Load Capacity: 100 Staples

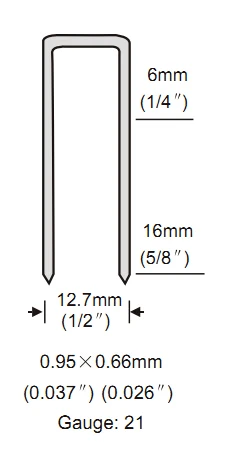

Staple Crown: 12.7mm(1/2 " )
Staple Thickness : 21 Gauge
Staple Thickness :  0.95x0.66mm(0.037 ” x0.026”)

furniture door wood air compressor tool set pneumatic piston coil woodworking tools nail gun



 Advantage

1. 300000 working times

2.  CE and ISO9001 international certificate

3. Easily broken parts are imported from Taiwan

4. 100% Spare parts can be supplied to you.

5. Very powerful for hard wood

Pneumatic Tools Yueqing Staple Gun Nailer Machine Staple Machine Hot Stapler

nail gun,furniture,door





 MAIN APPLICATION

nail gun,furniture,door

Packaging & Shipping

 nail gun,furniture,door





Service and Repars



 SERVICE AND REPAIRS

No.   Symptom Problems Solutions
1.1 Air Leak  Air leak in the cylinder cap when tools don't work  1.Loose head valve piston seal or o-rings . Check and replace the head valve piston set
2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap  Check and replace o-ring or cylinder cap gasket under the cylinder cap
1.2 Air leak in Trigger area  when tools don't work 1.Damaged o-ring in trigger valve  Check and replace  o-ring
2.Damaged o-ring in trigger valve stem  Check and replace o-ring
3.Dirt in the trigger valve Check and clean the trigger valve
1.3 Air leak in cylinder cap when tools are working  1.Damaged head valve piston o-rings Check and replace  o-rings
2.Damaged seal under cylinder cap  Check and replace seal
1.4 Air leak in nose when tools are working  1.Worn or damaged bumper Check and replace bumper
2.Loose driver(piston unit) thread Check and replace driver(piston unit)
1.5 Air leak in Trigger area when tools are working 1.Worn or damaged trigger valve head Check and replace trigger valve head
2.Damaged head valve piston o-rings Check and replace head valve piston o-rings
2 Failed to get driver(piston unit) back to the correct position completely. 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. Straighten the driver(piston unit)  or verify driver guide(nose) and magazine
2.Worn or damaged nozzle   Check and replace nozzle
3.The space between piston o-ring and  cylinder is too tight. Check if the cylinder is adequate lubrication or replace the o-ring on the piston.
3 Work weakly and sluggishly 1. Worn or damaged  piston o-ring  Check and replace piston o-ring
2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings   Place 2 or 6 drops of oil on o-rings or replace  head valve piston o-rings
3.Dirt in the nozzle Check and clean the nozzle
4 Tool jams frequently 1.Damaged or Worn driver (piston unit) Check and replace driver (piston unit)
2.Damaged or Worn driver guide (nose) Check and replace  driver guide (nose)
3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big Check and replace driver guide cover
5 Nail can not be shot 1. Driver (piston unit) can't return to the correct position. Refer to no. 1  Symptom
2.Driver guide(nose) can not match magazine well Check and correct the position between driver guide(nose) and magazine
3.Worn or damaged nail pusher compression spring  Check and replace nail pusher compression spring

furniture door wood air compressor tool set pneumatic piston coil woodworking tools nail gun



Company Information

 nail gun,furniture,door

nail gun,furniture,door
nail gun,furniture,door
 WHY CHOOSE US?

     1) 30 Years Production Experience

     2) 19 Years Alibaba Gold supplier with High Reputation

     3)Alibaba Trade Assurance USD30,000

     4) 100% QC Inspection before Shipment

     5) Engineer Team from Taiwan

     6) Competitive Price

     7) Lifelong After-Sale Service

     8) Advanced Machines

     9) CE Certificate and ISO 9001:2015

    10) OEM Available

    11) Sample Available

21 Ga. Fine Wire Stapler 8010 Staple Gun
