Introduction of 800KGS Double Drum,Piston Motor,Underground Mining Air Scraper Winch with Scraper Pan

Scope of JP Series Explosion-Proof Two Drum Scraper Winch application:
The scraper winch is mainly used to metal, chemical, contribution and the mine etc, and the underground working, such as the transportation etc. Meanwhile, the scrape winch is just suitable to the parallel transportation on ground, or the slopes within 500; Not be the hoisting machines.
Mine Scraper Winch factory / Scraper winch/ mining pulling winch / underground winch/ rake winch/ horizontal pulling scraper winch manufacturer/ mine rake winch for pulling small rocks
1. Scraper winch Feature:
1.scraper winch
2.high quality and excellent performance
3.Widely used in mine
4.Standard packing and short delivery
Remark: The scraper winch cannot be used as the lifting equipment. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.
By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.

Parameter of 800KGS Double Drum,Piston Motor,Underground Mining Air Scraper Winch with Scraper Pan



Item		Unit	Model of winch
			2JP-7.5 3JP-7.5	2JP-15 3JP-15	2JP-30 3JP-30	2JP-55 3JP-55	2JP-75	2JP-90	2JP-110
Volume of scraper pan			0.1	0.25	0.4	0.6	1.0	1.5	1.6
Average puling Force of working drum		KN	8	14	28	50	54	62	78
Average Speed of wire rope		m/s	1.0	1.1	1.2	1.2	1.3	1.3	1.3
Diameter of wire rope		mm	9.3	12.5	15.5	18.5	20	23	24.5
Rope capacity of drum		m	45	80	90	100	180	125	110
Electric power		KW	7.5	15	30	55	75	90	110
Motor speed		m/s	1440 1210	1460 1525	1470 1685	1485 2070	1480	1480	1480
Overall dimension	length	mm	1210	1525	1685	2070	2350	2400	2600
	width	mm	565	660	380	1010	1515	1515	1515
	height	mm	490	620	735	890	1300	1300	1300

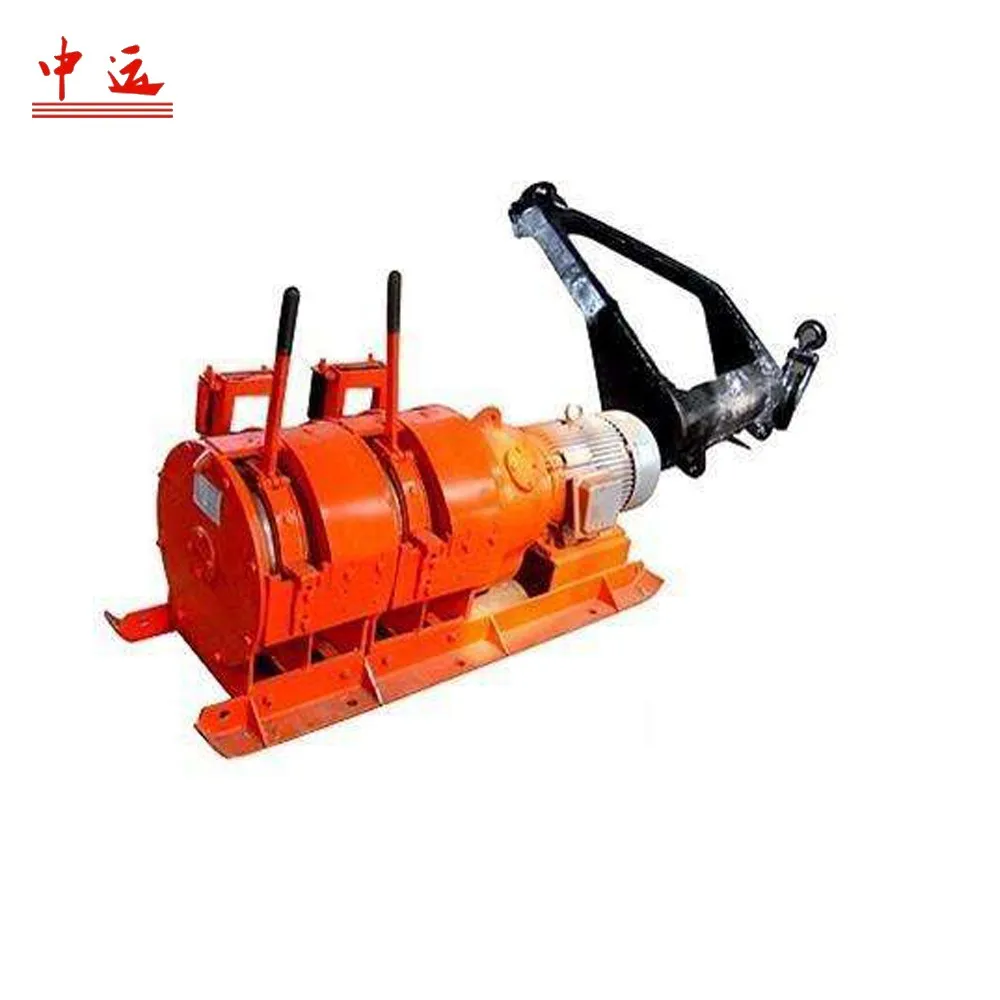

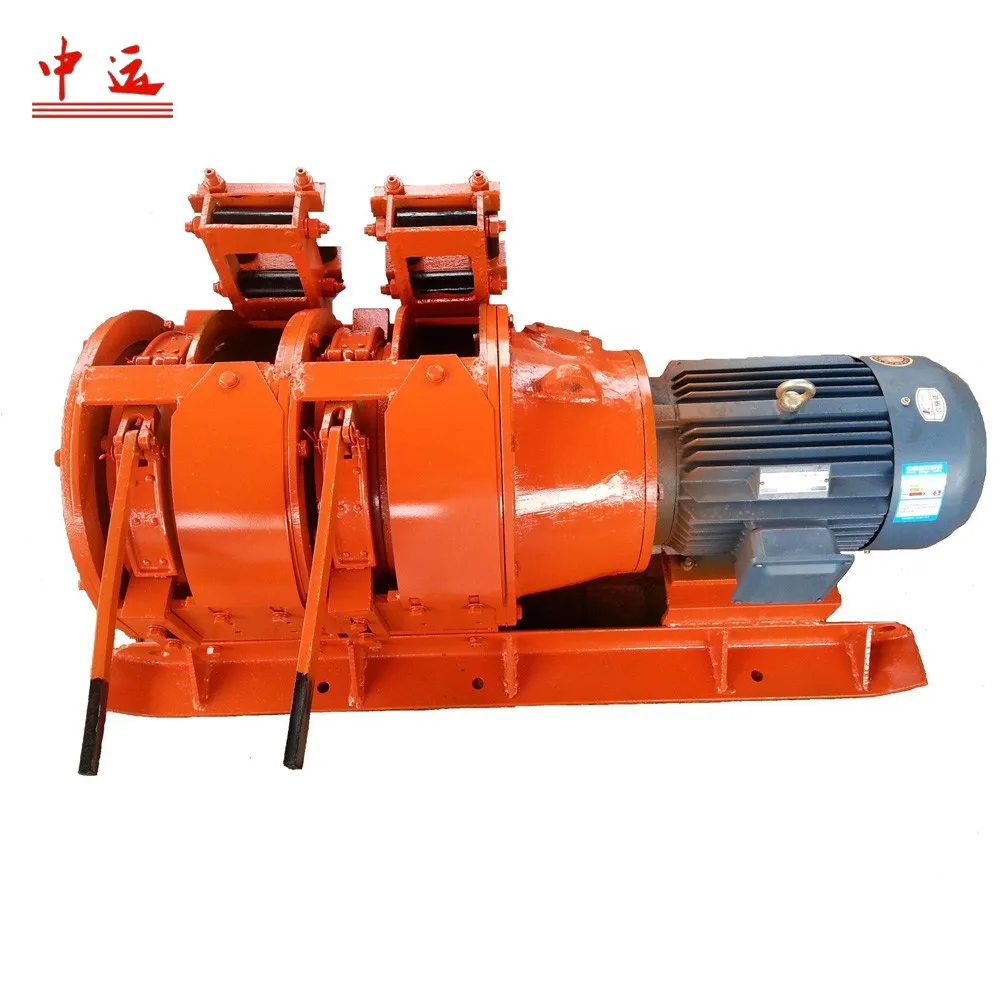

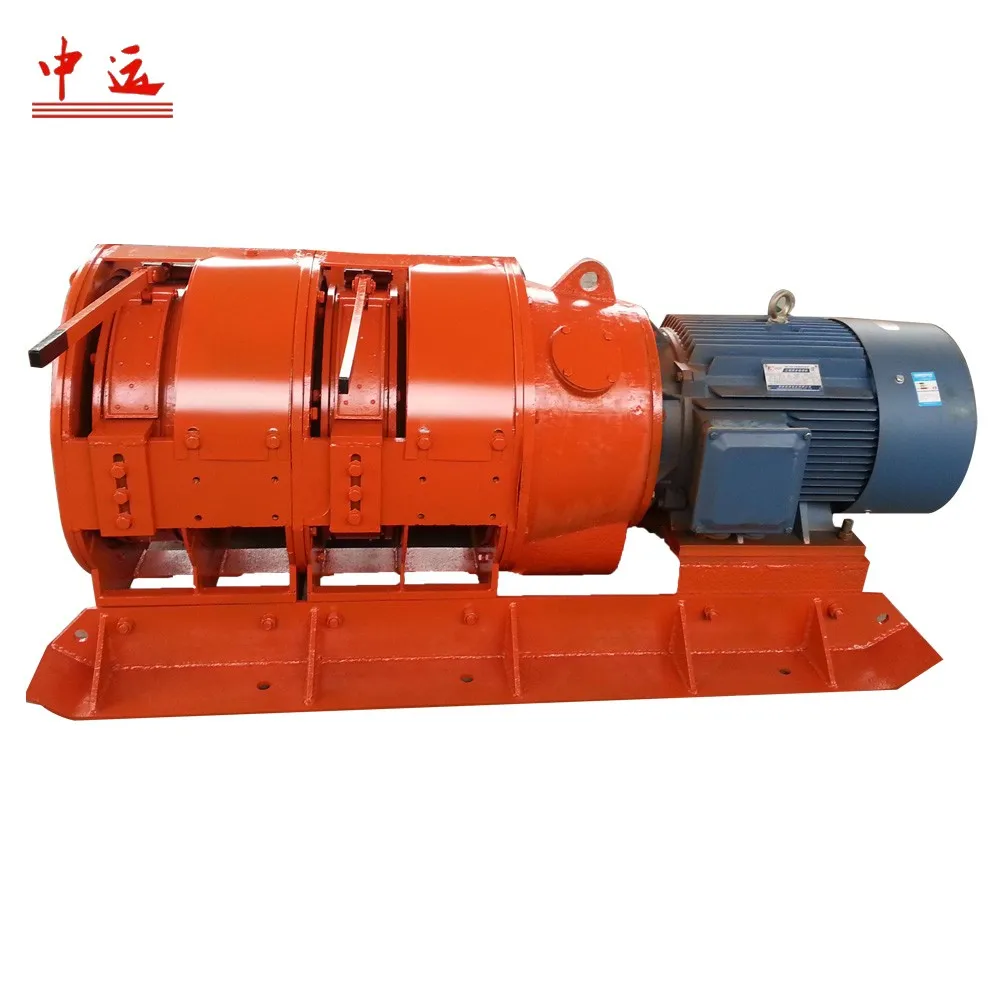

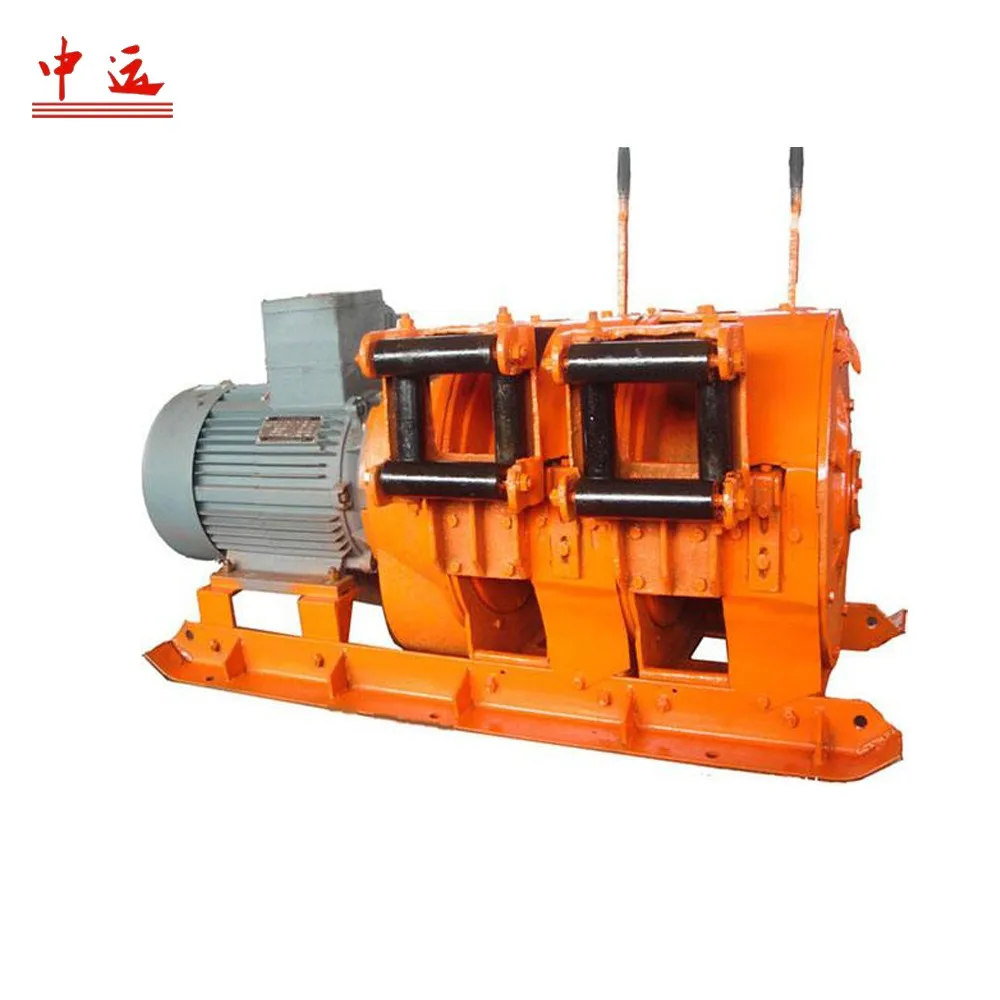

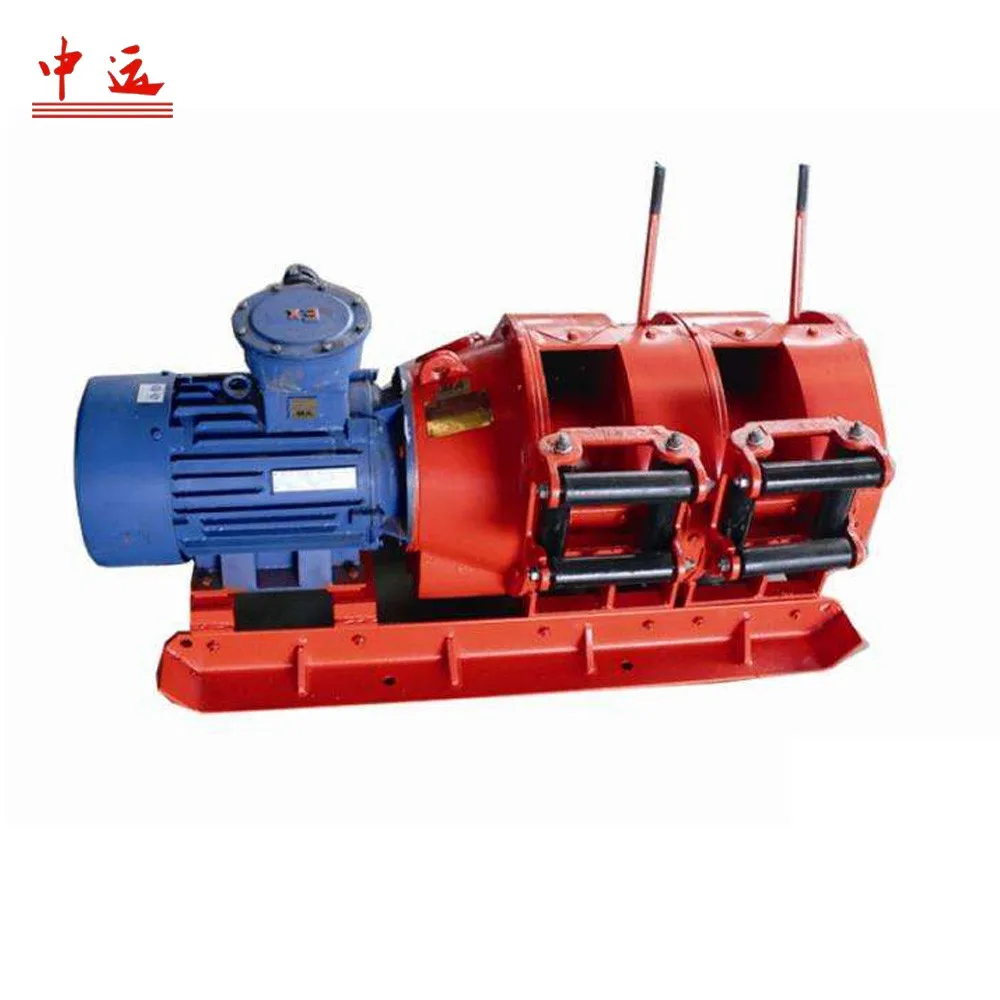

Pictures of 800KGS Double Drum,Piston Motor,Underground Mining Air Scraper Winch with Scraper Pan
