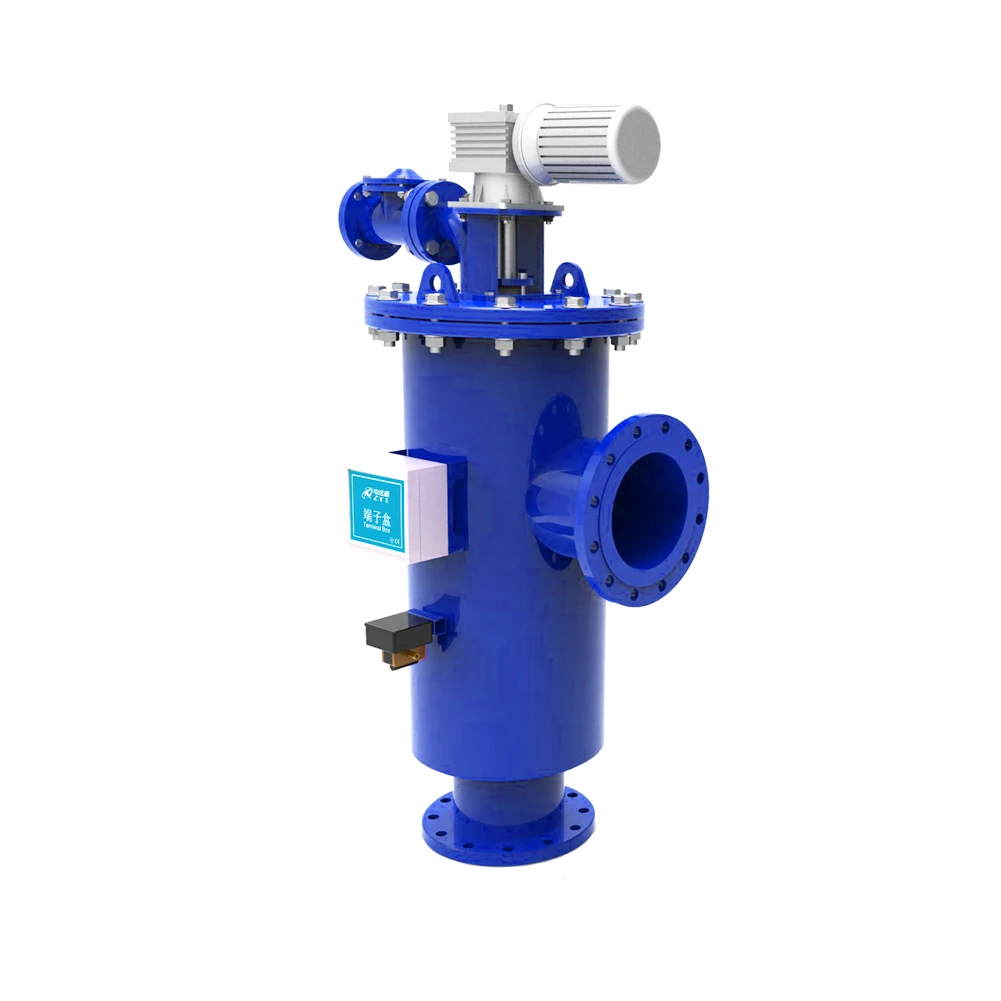

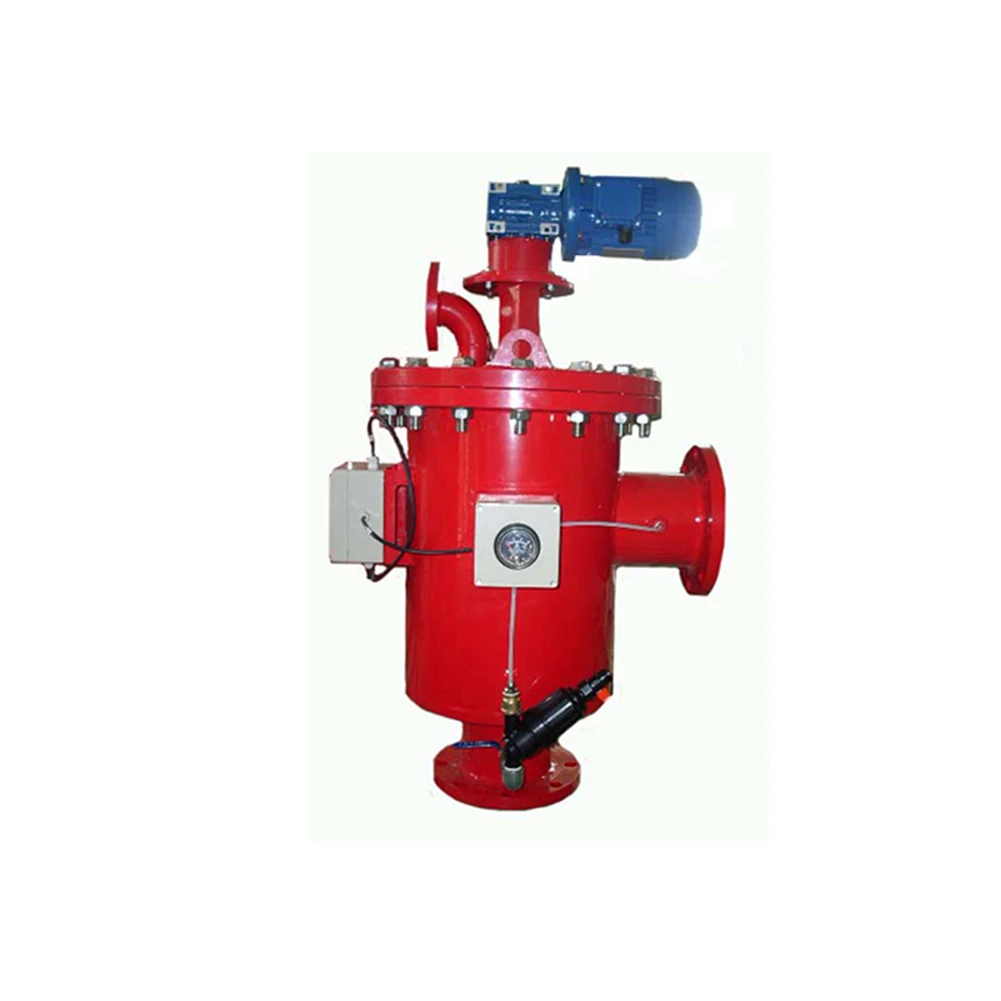

Заводская цена автоматический самоочищающийся фильтр капельного орошения для тонкой

How it works?

The Filtering Process

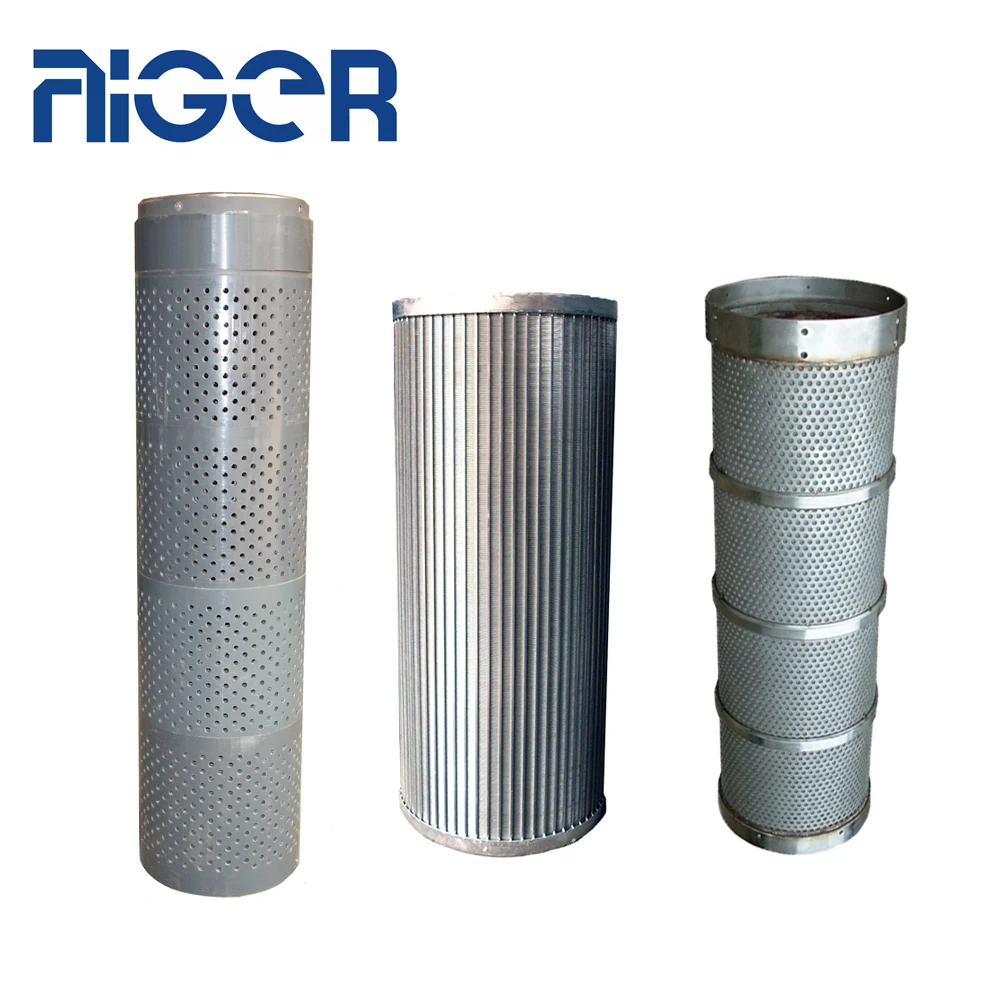

Raw water enters the filter inlet through the coarse screen which protects the cleaning mechanism from large particles. Then water passes through the fine screen, trapping dirt particles which accumulate inside the filter. Clean water flows through the outlet.
The gradual dirt buildup on the inner screen surface causes a filtration cake, with a corresponding increase in the pressure differential across the fine screen. A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process begins.

Back-flushing process

Cleaning of the filter is carried out by the brush which spirals across the screen; The Drain Valve opens and the Motor rotates the stainless steel brushes which sweep the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.

During the self cleaning process, which takes between 12 to 18 seconds, filtered water continues to flow downstream.

Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 25 days, and it is also according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Sorry, we could not offer the sample for free charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
