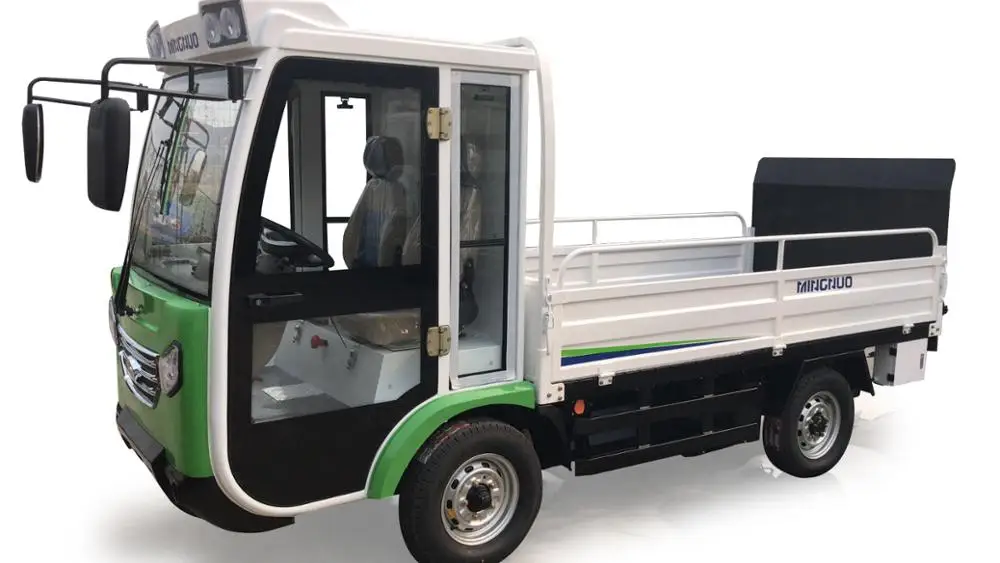

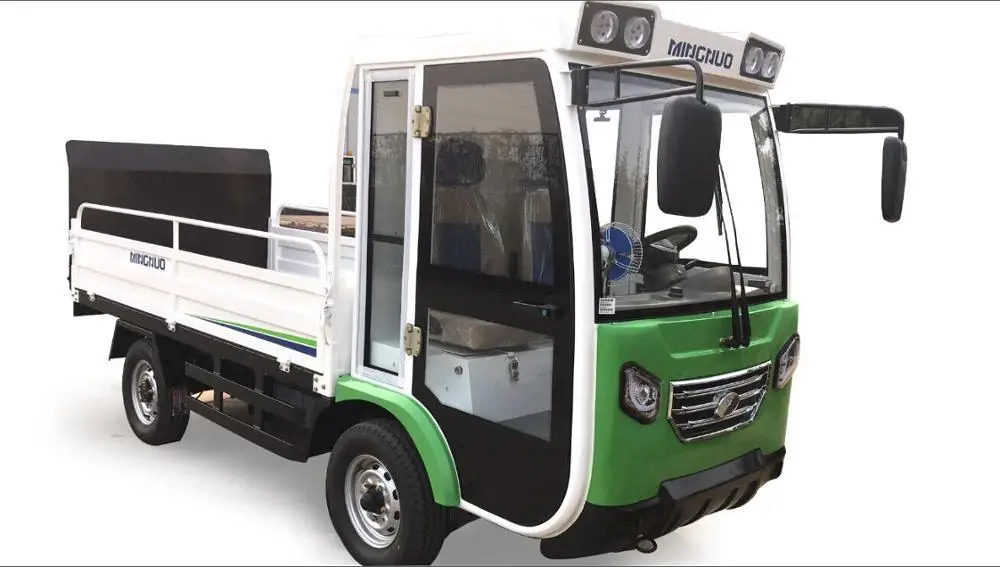

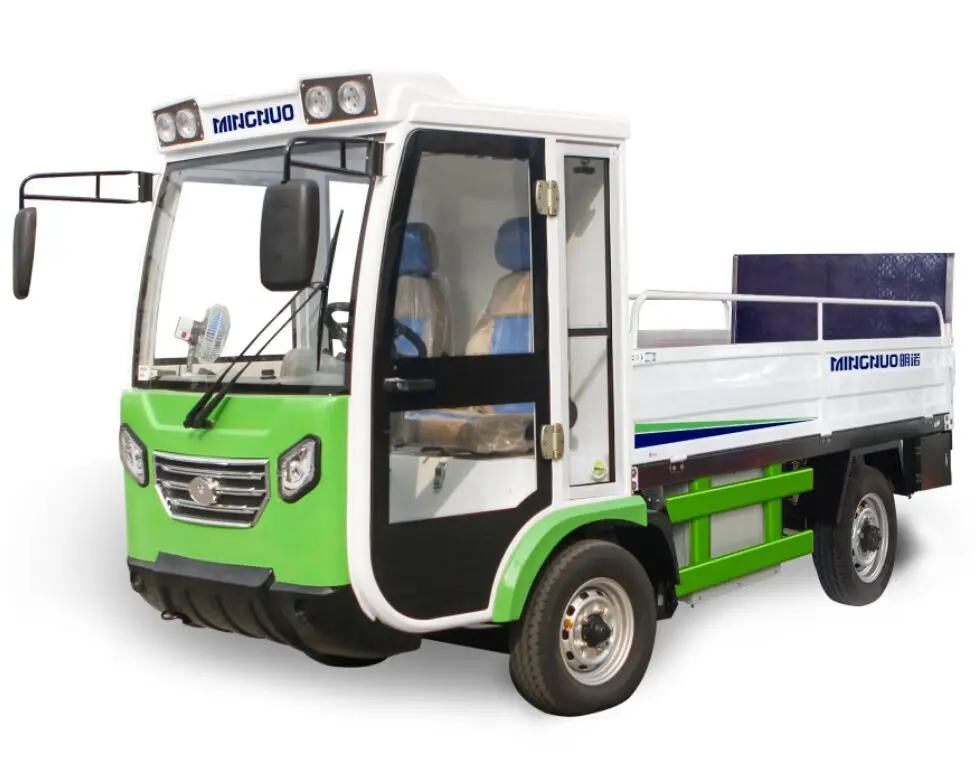

MN-H80 is the electric four-wheel eight-barrel vehicle featured with MINGNUO’s characteristic manufacturing process. It is suitablefor the collection and transport of small-scale andscattered waste hoppers. It can be loaded with eight 240L standard wastehoppers.

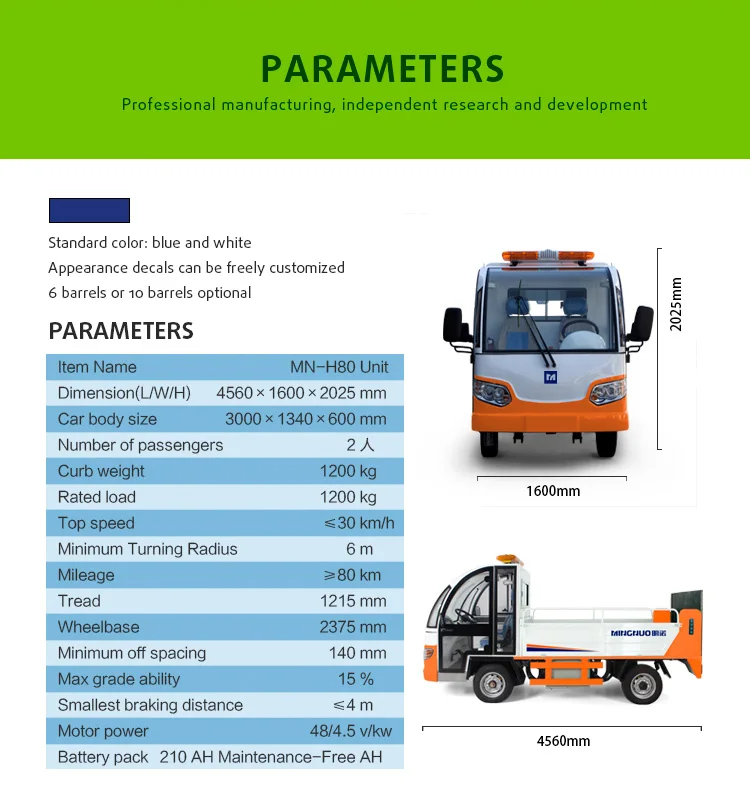

PARAMETERS
NO
Item Name
Unit
Specification
1
Dimensions(L/W/H)
mm
4560×1600×2025
2
Car body size)
mm
3000×1325×580
3
Number of passengers
staff/person
2
4
Curb Weight
kg
1200
5
Rated load
kg
1200
6
Top speed
km/h
≤30
7
Minimum turning radius
m
6
8
Mileage
km
≥80
9
Tread
mm
1215
10
Wheelbase
mm
2375
11
Minimum off spacing
mm
140
12
Maximum Gradeability
%
15
13
Smallest braking distance
m
≤4
14
Motor Power
v/kw
72/7.5 ( 48/5.5 optional )
15
Battery pack
AH
210 (Free mainten ance batteries)
Hydraulic tail plate technology parameters
1
Reprint
mm
50/30~89
2
Lift
mm
50/39~106
3
Power
kw
2
4
System pressure
Mpa
12
5
Maximum pressure
Mpa
16
6
Movement speed
S
5
7
Weight-bearing
kg
650
PERFORMANCE FEATURES
lThe chassis structure is featured with micro-car chassis technology, and front and rear hydraulic brake.
lThe hydraulic tailgate is featured with fully automated operation, which controls the lifting of waste hoppers with full load or noload.
lIt is easy and efficient for operation.
lIndependently-researched controller, which is featured by downhill anti-speeding, anti-slipping on ramps, energy feedback,failure error reporting, CAN communications, etc.
lThe windshield is featured with lined adhesive double curved surface material,and the tires are radial vacuum tires.
lThe vehicle head is featured with sightseeing vehicle style, and the compartment floor is made of steel antiskid plate, which canprevent slippage of the waste hopper in the transport and transfer processes.
