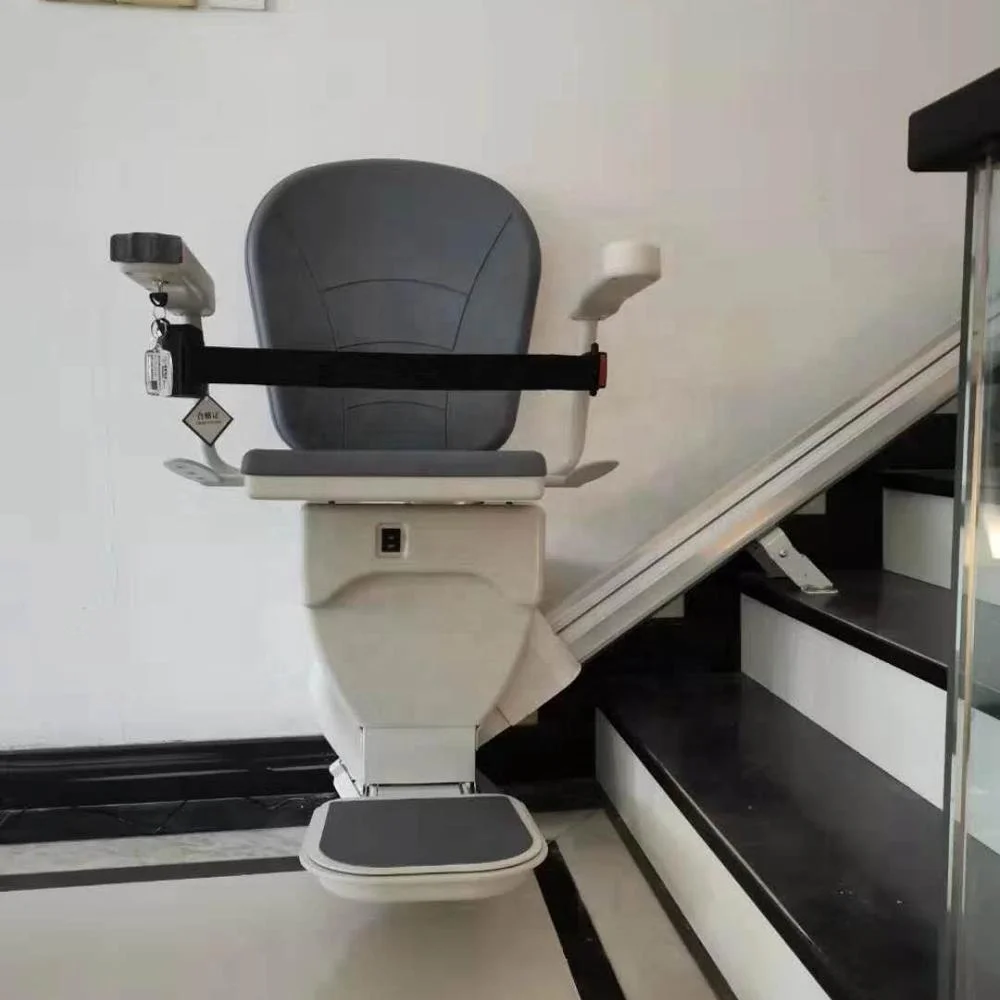

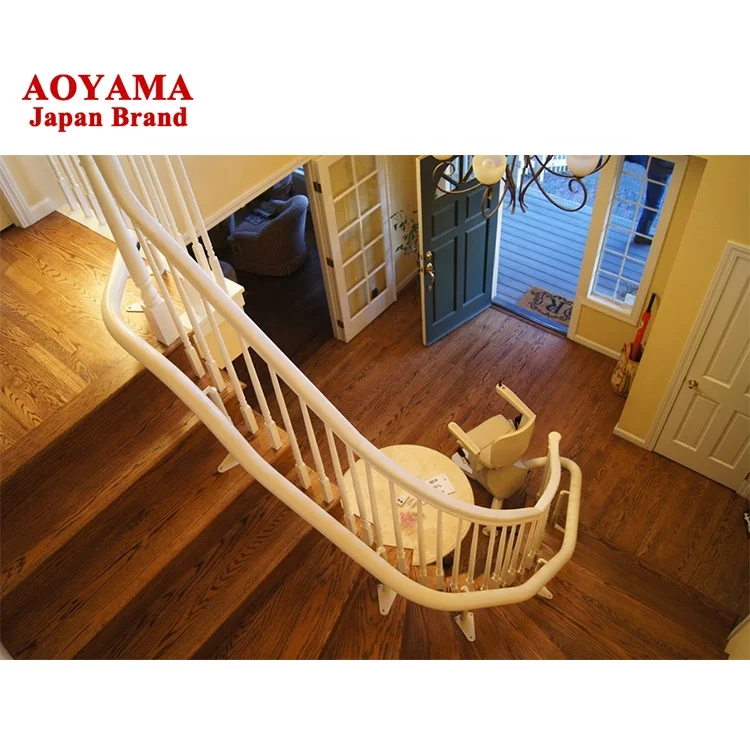

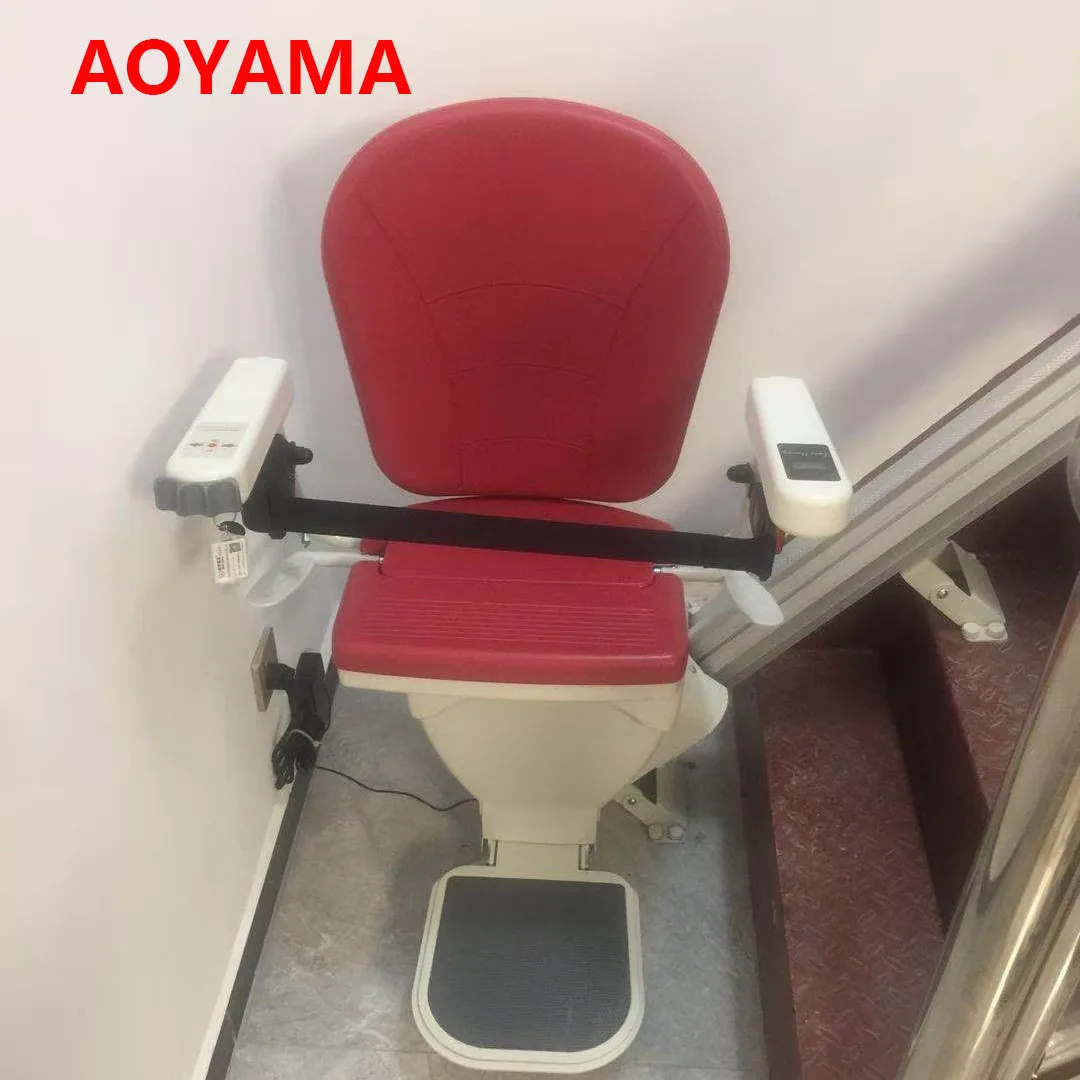

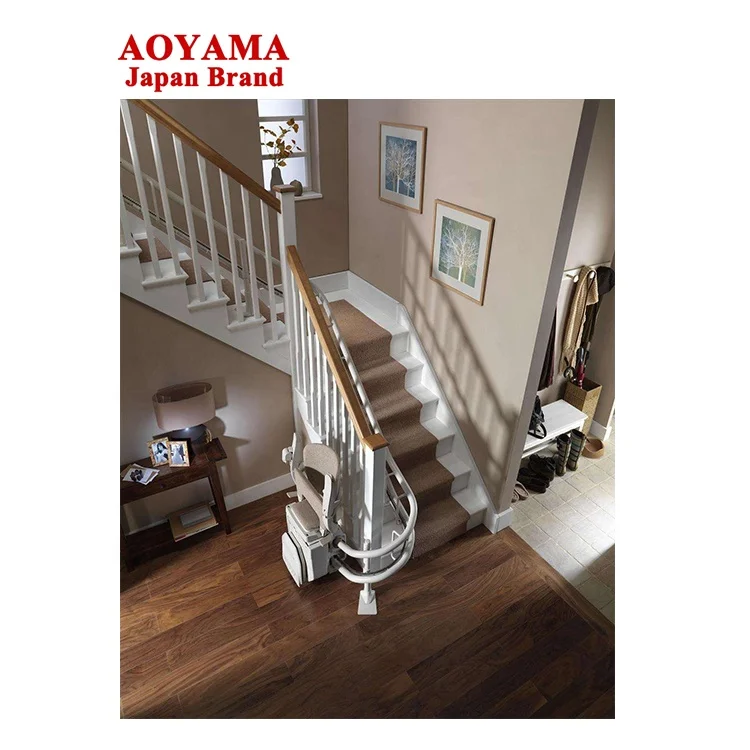

Домашний подъемник путь кресло с подъемным механизмом

Домашний подъемник путь кресло с подъемным механизмом

Категория: Подъемные платформы >>>
Поставщик: Jiaxing,Aoyama,Elevator,Co.,Ltd.

Цена:2 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	3332.77 $*	3499.79 $*
Aug-19-2025	3304.78 $*	3469.81 $*
Jul-19-2025	2772.88 $*	2911.20 $*
Jun-19-2025	3248.38 $*	3410.42 $*
May-19-2025	2828.70 $*	2969.98 $*
Apr-19-2025	3192.8 $*	3352.87 $*
Mar-19-2025	3164.98 $*	3322.39 $*
Feb-19-2025	3136.78 $*	3293.40 $*
Jan-19-2025	3108.47 $*	3263.86 $*

Характеристики

Company Information

AOYAMA ELEVATOR GLOBAL LTD.

every year is a safe year

every day is a comfortable day

ELEVATORS are made by man

no matter what you do

AOYAMA ELEVATOR always sticks to a basic principle

secruity and comfort

now it is , and it will always be, and always will be

About AOYAMA

We are an original Japanese elevator company, we have factories in both Japan and China.

We are professional in manufacturing passenger elevator, panoramic/villa/hospital/cargo/car elevator, dumbwaiter, escalator, moving walk.

Factory pictures

Product Description

High quality wheelchair platform lift for disabled people

Wheelchair lift platform consists of lifting platform, guide and drive box: the lifting platform is composed of C steel as the main component, the “Alice bridge self reset switch operation, no pit installation, directly fixed on the concrete floor (under the bottomless pit outside circumstances, the concrete ground under the platform shall not be lower than the surrounding ground), the base plate can go down manually when the hydraulic valve is manually opened; the hydraulic drive, stable and safe lifting, external interface uses stainless steel material and aluminum plate electrostatic spray / chassis panel, small and beautiful appearance, does not hinder the surrounding environment. The lift is installed directly on the ground without construction supporting pit, the construction is simple, not easy to accumulate water, not easy to rust, easy maintenance, lifting height is 1-6 meters.

Safety Devices

Name	Description
Power	220V/50HZ/25A
Platform size	1400mm*1000mm
Self-height	65mm
Max lifted height	1.8m
Lifting speed	0.06-0.1m/s
Load capacity	120kg
Type of entrance & exit	90° or 180°
Platform	Checkered plate
Auto-flap working angle	75° turn up after lifting, it can protect the wheelchair lift slip out platform.
Weight	<400kg
Driving system	Hydraulic or screw
Control voltage	24V/DC
Power	0.75kw 220V/AC or 110V/AC or according to your voltage
Lift control	Self-resetting system
Overload protection	Over-current relay control
Working temperature	-20℃-60℃
Install type	Non-pit installation, directly fixed to concrete floor.
Emergency stop	The lifting and lowering process can be controlled by pressing the emergency button.
Manual control	Press the manual valve or turning screw.
Safety fence	The lift will stop when the safety fence meets obstacle.

Optional Devices

Name	Purpose
Safe shaft	Aluminum alloy, glass shaft
Door protection device	The safety door and the platform are equipped with an electronic lock linkage circuit to ensure safety.
DC model	Built-in battery automatic power supply system to ensure the normal use of machine after power off.
Auxiliary control	The wired control box can be installed in the client’s location and the operation of the machine circuit linkage operation.
Case panel	304 stainless steel wire drawing board
Platform guard	304 stainless steel wire drawing board
Lifting height	Can provide 8000mm (platform from the ground) models based on customer’s needs.

FAQ

Why do you choose AOYAMA?

1. We have the brand advantages, AOYAMA established in Nagoya since 1986.
We are the most professional elevator supplier in Japan.
2. The top quality & Good service world-wide network
3. Well-trained engineering staff provides the customers with perfect services.

Your inquiry will be highly appreciated!
