Топ бренд Горячая продажа Shantui SD16
- Категория: Bulldozers >>>
- Поставщик: Shandong,Infront,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1283984.6 $* | 1348183.56 $* |
| Aug-16-2025 | 1273194.49 $* | 1336854.9 $* |
| Jul-16-2025 | 1068188.41 $* | 1121597.10 $* |
| Jun-16-2025 | 1251614.43 $* | 1314195.82 $* |
| May-16-2025 | 1089768.57 $* | 1144256.53 $* |
| Apr-16-2025 | 1230035.31 $* | 1291537.73 $* |
| Mar-16-2025 | 1219245.34 $* | 1280207.63 $* |
| Feb-16-2025 | 1208455.82 $* | 1268878.34 $* |
| Jan-16-2025 | 1197666.45 $* | 1257549.6 $* |
Характеристики

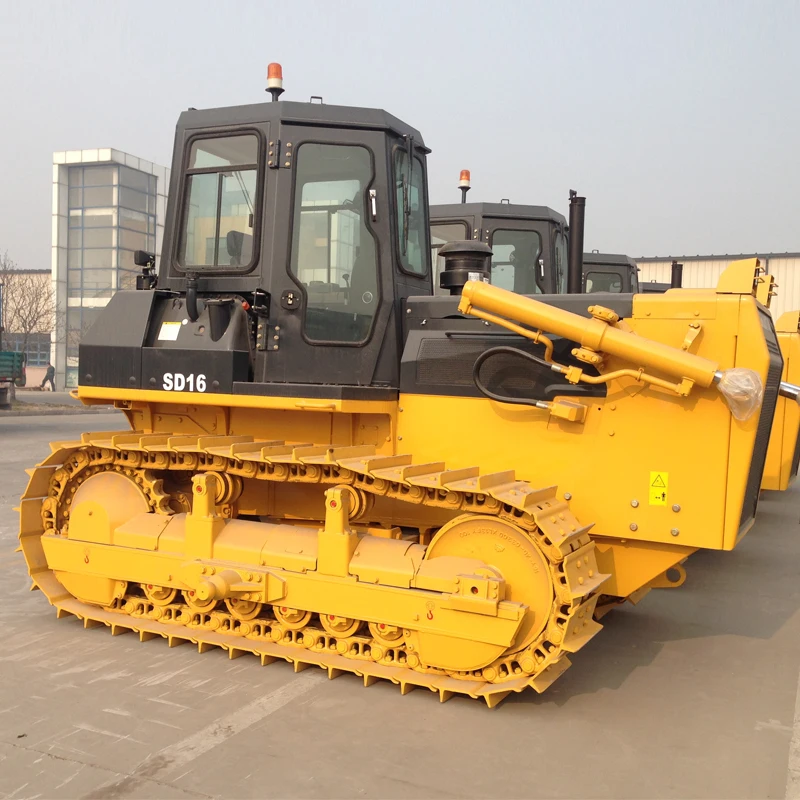

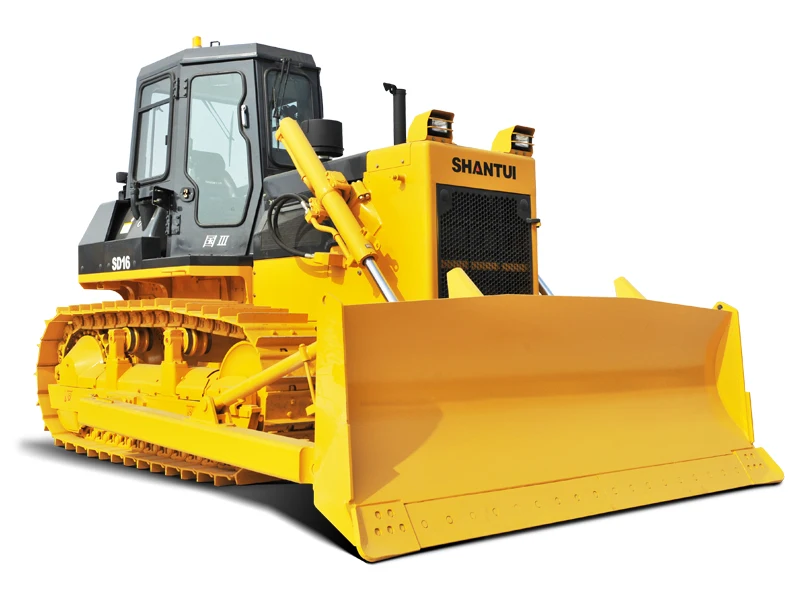

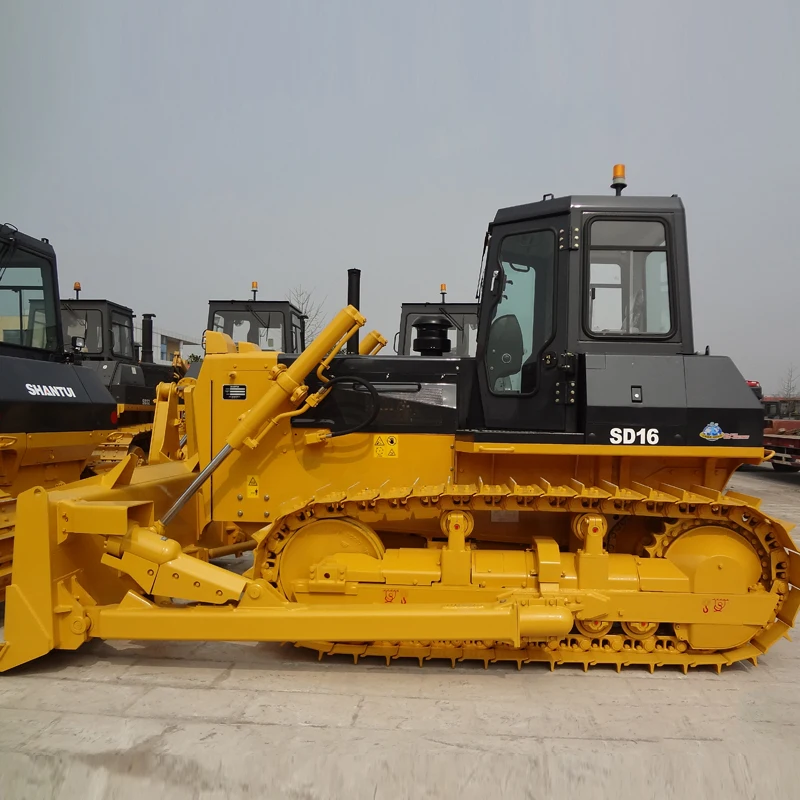

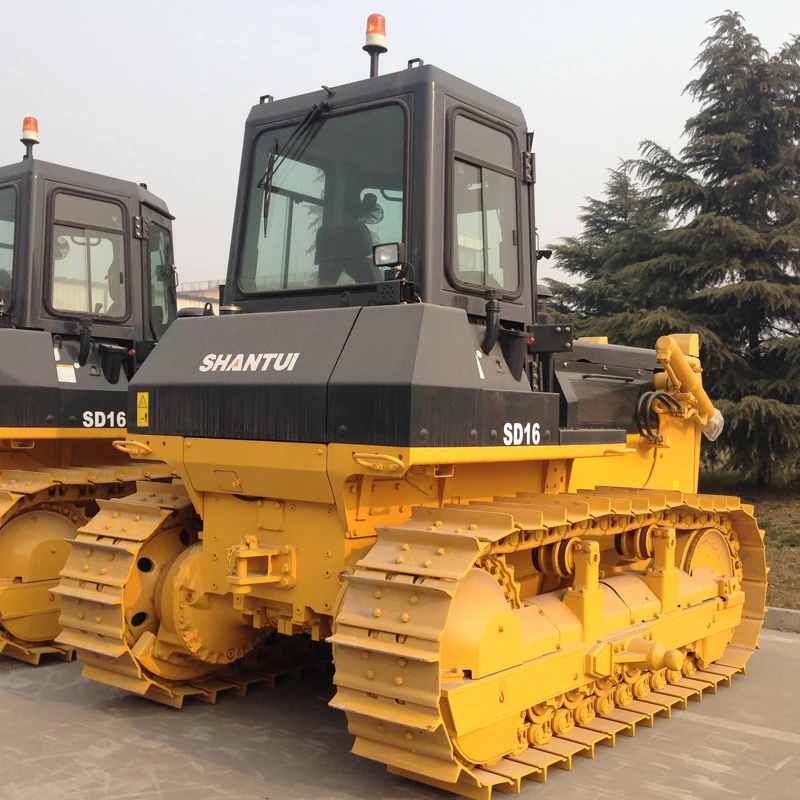

Chinese top brand Shantui bulldozer All series
SD16,SD22,SD23,SD32......for earthmoving, for forest,for mining,for desert....
Shantui’s best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier IIIb Brand engine for European markets and optional engines (Weichai and Shangchai) for other markets. The SD16 provides high performance with strong reliability, with Shantui’s trademark value.
Performance Paramete
160 HP specifications: | Blade Type | Straight-tilt | Angle | U-Blade |
| Min. ground clearance: | 400 mm | 400 mm | 400 mm | |
| Ground pressure: | 0.072 MPa | 0.074 MPa | 0.074 MPa | |
| Min. turning radius: | 4.466 m | 4.513 m | 4.545 m | |
| Gradeability: | 30° | 30° | 30° | |
| Track gauge: | 1880 mm | 1880 mm | 1880 mm | |
| ENGINE | Model & type | Shangchai SC11CB184G2B1/Weichai WD10G178E25; water-cooled, in-line, 4-stroke injection direct | ||
| Rated power | 120 kW | |||
| Number of cylinders | 6—126 x 130 mm (bore x stroke) | |||
| Piston displacement | 9.726 L | |||
| Min. fuel consumption | 214 g/kW·h | |||
| Maximum torque | 765 N·m@1300 rpm | |||
| POWER TRANSMISSION SYSTEM | Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Main drive | Spiral bevel gear, single stage speed reduction, splash lubrication | |||
| Steering clutch | Lubricated, multidisc, spring loaded, hand hydraulically separated, inter-linking with steering brake | |||
| Steering brake | Lubricated, floating band structure, foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| TRAVEL SPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |
| Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |
| UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||
| Carrier rollers | 2 each side | |||
| Track rollers | 6 each side | |||
| Track type | Assembled, single-grouser | |||
| Width of track shoes | 510 mm | |||
| Pitch | 203.2 mm | |||
| HYDRAULIC SYSTEM | Maximum pressure | 14 MPa | ||
| Pump type | Gear pump | |||
| Discharge | 243 L/min | |||
| Bore of working cylinder × no. | 110 mm × 2 | |||
| BLADE | Blade type | Straight-tilt | Angle | U-blade |
| Dozing capacity | 4.5 m3 | 4.3 m3 | 5.0 m3 | |
Efficiency (Theoretical value 40 m) | 225 m3/h | 225 m3/h | 250 m3/h | |
| Blade width | 3388 mm | 3970 mm | 3556 mm | |
| Blade height | 1149 mm | 1040 mm | 1120 mm | |
| Maximum drop below ground | 540 mm | 540 mm | 530 mm | |
| Maximum tilt adjustment | 400 mm | – | 400 mm | |
RIPPER (OPTIONAL) | Maximum digging depth of 3-shank ripper | 572 mm | ||
| Weight of 3-shank ripper | 1667 kg | |||
| Maximum lift above ground | 592 mm | |||
Product Description
Optaional Equipment
Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.
Application
Pushing, backfilling and other earthworks.
Payment
T/T WESTERN UNION L/C Trade Assurance
Trade Assurance which granted by Aliababa.com.
Protect your payment to make sure that we deliver on time and manufacture quality products as
required.
Packaging & Shipping
Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
Company Information
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
Contact us
Contact person: Grace
Email: sales17(at)chinaift.com
Skype: jkmachinery806
QQ: 3087563617
Mobile/WhatsApp: +86 18369815877
WeChat: 18369815877
We will support you by a most competitive price and best service.Welcome to send inquiry!
