Характеристики

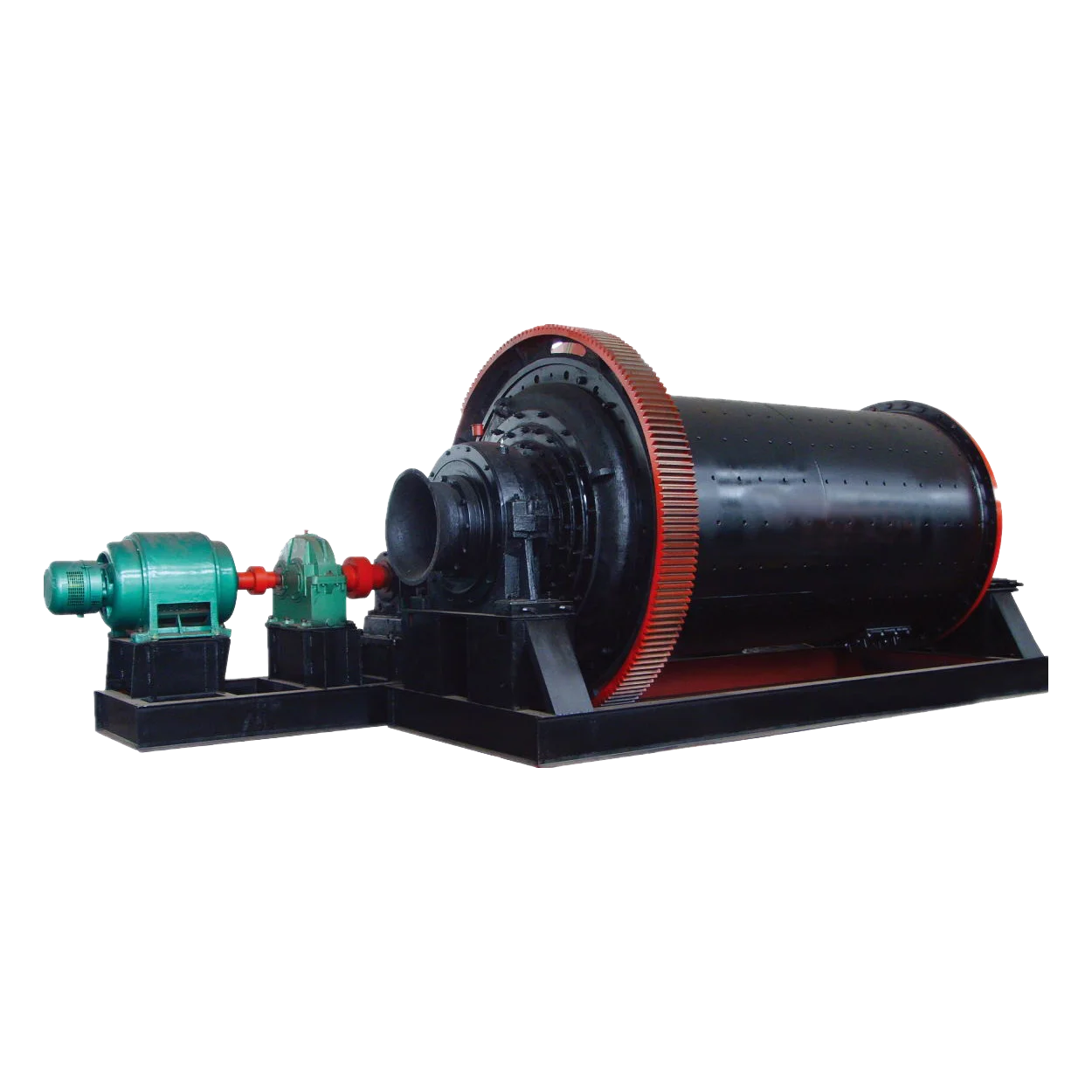

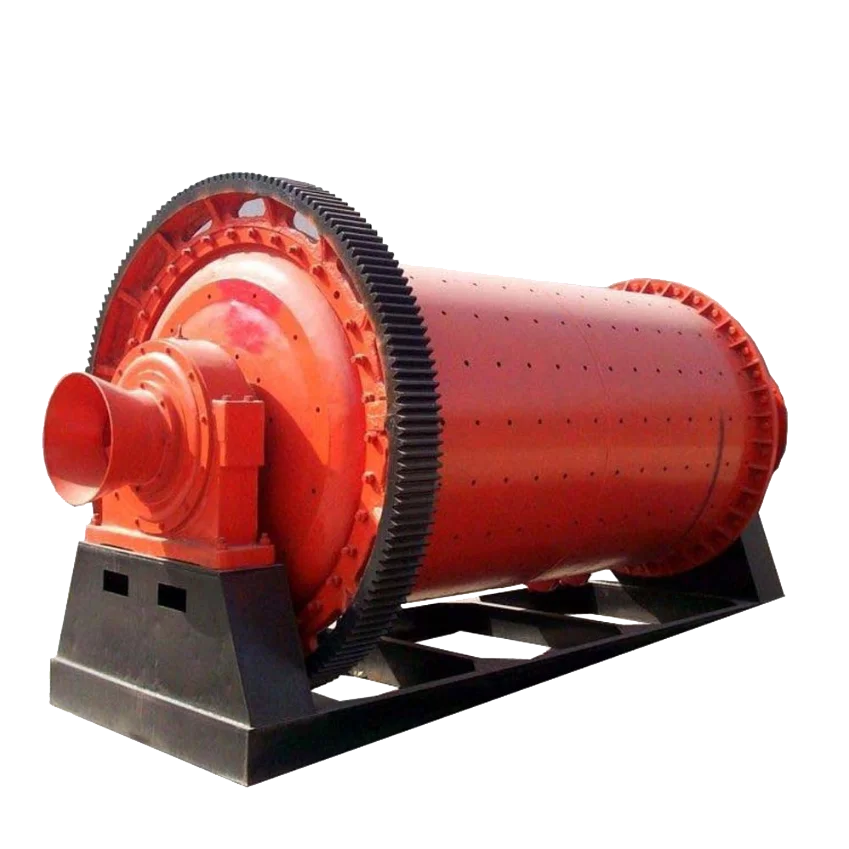

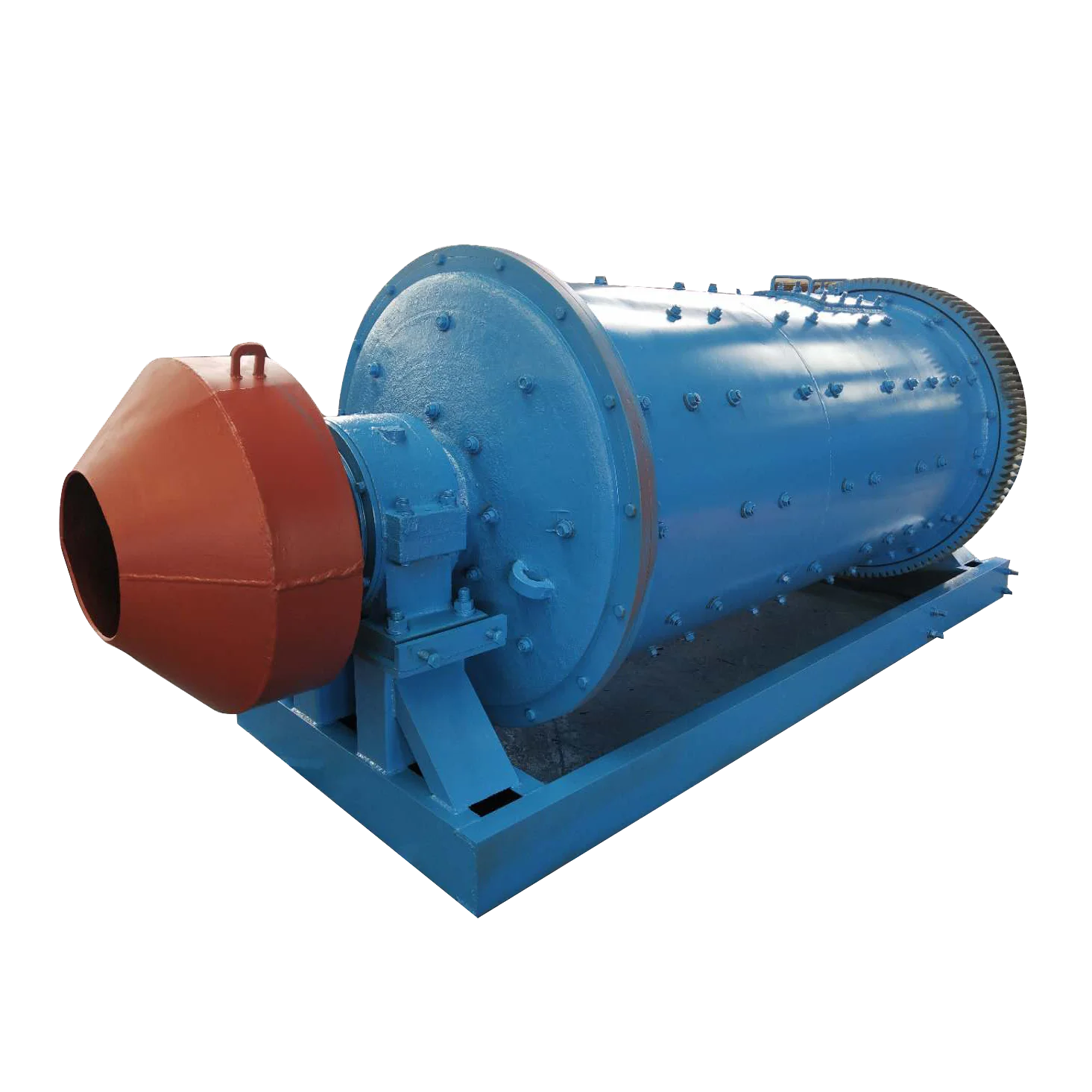

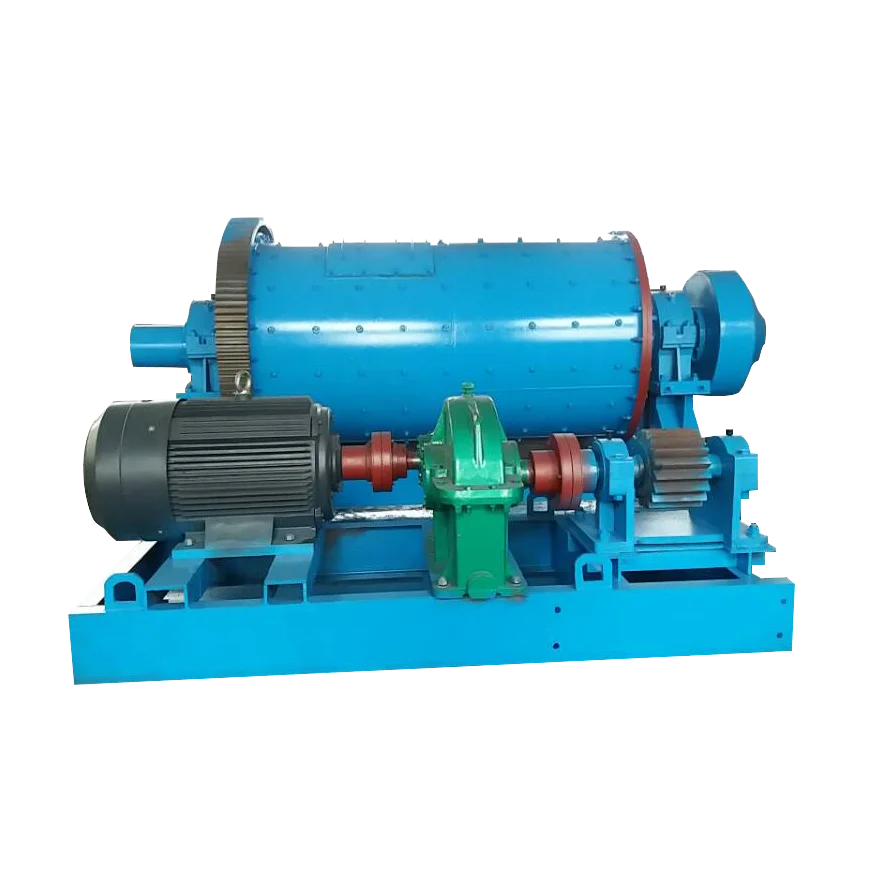

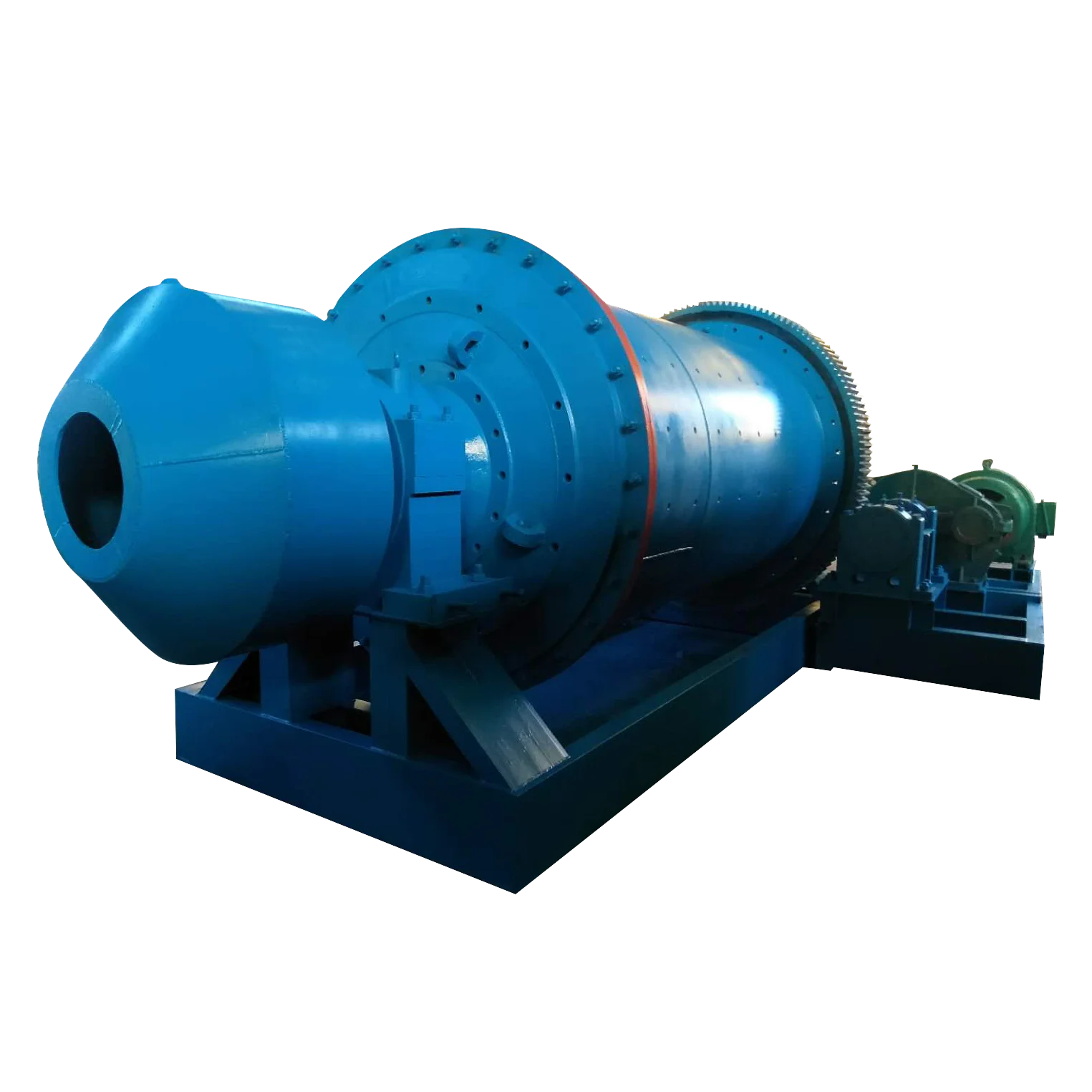

Cone Ball Mill
Product Description
This series of cone ball mill is a new type of energy-saving ball mill invented in Zhaoyuan, gold capital of China. After nearly 20 years of development, it has occupied a leading position in the grinding field. Its production has been expanded to Yantai, northeast China, central plains and Yangtze River Delta, accounting for 20% of the total output of the mill in China.
Characteristics:
1. The large-diameter double-row aligning bearing is adopted to replace the plain bearing of the ordinary mill, with long service life and no maintenance, greatly reducing the friction, reducing the actual energy consumption by 15-30%, and easy to start.
2, near the discharge end adopts the cone structure, so that the mill reinforcement, more important is to make the natural grading of the steel ball, near the outlet the steel ball diameter is small, the grinding material particle size is fine.
3. The whole steel base frame can be used for high installation accuracy, simple installation and short period.
4. Cancel the combined feeder and adopt the drum-shaped feeder, which has no inertial impact and stable operation of the equipment, and reduces the downtime and maintenance time and improves the efficiency. 5. The large mill is also driven by motor and reducer, with low cost.
Model | Specification Dia.*L (mm) | Feed Size (mm) | Discharge Size (mm) | Output (t/h) | Motor Power (kw) | Dimesion (L*W*H) (mm) | Weight (kg) |
GZM0912 | 900*1200 | 0-15 | 0.074-0.3 | 0.3-0.8 | 11 | 3355*1800*1400 | 3900 |
GZM0918 | 900*1800 | 0-15 | 0.074-0.3 | 0.4-1.1 | 15 | 3955*1800*1400 | 5430 |
GZM0921 | 900*2100 | 0-15 | 0.074-0.3 | 0.5-1.3 | 15 | 4255*1800*1400 | 5660 |
GZM1220 | 1200*2000 | 0-25 | 0.074-0.3 | 1.3-3.3 | 22 | 4085*2140*1760 | 8202 |
GZM1224 | 1200*2400 | 0-25 | 0.074-0.3 | 1.6-4.1 | 30 | 4485*2140*1760 | 9103 |
GZM1228 | 1200*2800 | 0-25 | 0.074-0.3 | 2.2-5.6 | 37 | 4885*2140*1760 | 9481 |
GZM1232 | 1200*3200 | 0-25 | 0.074-0.3 | 2.0-5.2 | 45 | 5285*2140*1760 | 10586 |
GZM1238 | 1200*3800 | 0-25 | 0.074-0.3 | 2.2-5.6 | 45 | 5885*2140*1760 | 11336 |
GZM1244 | 1200*4400 | 0-25 | 0.074-0.3 | 3.0-7.5 | 55 | 6485*2140*1760 | 12420 |
GZM1324 | 1300*2400 | 0-25 | 0.074-0.3 | 1.3-3.3 | 30 | 5035*2370*1880 | 9782 |
GZM1328 | 1300*2800 | 0-25 | 0.074-0.3 | 1.6-4.0 | 45 | 5435*2370*1880 | 10838 |
GZM1334 | 1300*3400 | 0-25 | 0.074-0.3 | 1.9-4.8 | 55 | 6035*2370*1880 | 12156 |
GZM1520 | 1500*2000 | 0-25 | 0.074-0.3 | 1.8-4.5 | 45 | 5650*2930*2060 | 11037 |
GZM1523 | 1500*2300 | 0-25 | 0.074-0.3 | 2.1-5.2 | 55 | 5950*2930*2060 | 12600 |
GZM1526 | 1500*2600 | 0-25 | 0.074-0.3 | 2.6-6.0 | 55 | 6250*2930*2060 | 13223 |
GZM1529 | 1500*2900 | 0-25 | 0.074-0.3 | 2.9-6.7 | 75 | 6850*2930*2060 | 13968 |
GZM1535 | 1500*3500 | 0-25 | 0.074-0.3 | 3.5-8.0 | 80 | 7450*2930*2060 | 16137 |
GZM1538 | 1500*3800 | 0-25 | 0.074-0.3 | 3.8-8.6 | 95 | 7750*2930*2060 | 17420 |
GZM1544 | 1500*4400 | 0-25 | 0.074-0.3 | 4.4-9.9 | 110 | 8350*2930*2060 | 18500 |
GZM1556 | 1500*5600 | 0-25 | 0.074-0.3 | 5.6-13 | 110 | 9550*2930*2060 | 20833 |
GZM1565 | 1500*6500 | 0-25 | 0.074-0.3 | 6.5-15 | 130 | 10450*2930*2060 | 21950 |
GZM1836 | 1830*3600 | 0-25 | 0.074-0.3 | 2.5-11 | 155 | 8400*3800*2330 | 33940 |
GZM1840 | 1830*4000 | 0-25 | 0.074-0.3 | 2.8-13 | 155 | 8800*3800*2330 | 34990 |
GZM1842 | 1830*4200 | 0-25 | 0.074-0.3 | 3.0-14 | 155 | 9000*3800*2330 | 35840 |
GZM1848 | 1830*4800 | 0-25 | 0.074-0.3 | 3.5-16 | 180 | 9600*3800*2330 | 37260 |
GZM1856 | 1830*5600 | 0-25 | 0.074-0.3 | 4.0-18 | 180 | 10400*3800*2330 | 39280 |
GZM1864 | 1830*6400 | 0-25 | 0.074-0.3 | 4.6-21 | 245 | 11200*3800*2330 | 41840 |
GZM2127 | 2100*2700 | 0-25 | 0.074-0.5 | 3.5-25 | 155 | 7455*3920*2485 | 32871 |
GZM2130 | 2100*3000 | 0-25 | 0.074-0.5 | 3.9-27.5 | 155 | 7776*3920*2485 | 34859 |
GZM2135 | 2100*3500 | 0-25 | 0.074-0.5 | 4.5-33 | 180 | 8200*3920*2485 | 37138 |
GZM2140 | 2100*4000 | 0-25 | 0.074-0.5 | 5.0-38 | 210 | 8793*3920*2485 | 39000 |
GZM2145 | 2100*4500 | 0-25 | 0.074-0.5 | 6.5-43 | 210 | 9306*3920*2485 | 43875 |
GZM2150 | 2100*5000 | 0-25 | 0.074-0.5 | 7.0-45 | 245 | 9901*3920*2485 | 46117 |
GZM2158 | 2100*5800 | 0-25 | 0.074-0.5 | 8.0-50 | 280 | 10099*3920*2485 | 55486 |
GZM2430 | 2400*3000 | 0-25 | 0.074-0.5 | 8.0-50 | 320 | 10110*5000*3970 | 54900 |
GZM2445 | 2400*4500 | 0-25 | 0.074-0.5 | 8.0-95 | 380 | 10610*5000*3970 | 57850 |
GZM2460 | 2400*6000 | 0-25 | 0.074-0.5 | 8.0-70 | 380 | 11110*5000*3970 | 75800 |
GZM2733 | 2700*3300 | 0-25 | 0.074-0.5 | 12-92 | 320 | 9010*5410*3150 | 73315 |
GZM2736 | 2700*3600 | 0-25 | 0.074-0.5 | 12.5-98 | 380 | 9314*5410*3150 | 75410 |
GZM2742 | 2700*4200 | 0-25 | 0.074-0.5 | 15-118 | 475 | 10035*5410*3150 | 80647 |
