QX 24ft промышленный HVLS большой потолочный вентилятор Технические
- Категория: Другие вентиляторы >>>
- Поставщик: Guangzhou,Qixiang,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.94 $* | 0.29 $* |
| Aug-16-2025 | 0.35 $* | 0.28 $* |
| Jul-16-2025 | 0.28 $* | 0.4 $* |
| Jun-16-2025 | 0.64 $* | 0.88 $* |
| May-16-2025 | 0.82 $* | 0.2 $* |
| Apr-16-2025 | 0.44 $* | 0.45 $* |
| Mar-16-2025 | 0.84 $* | 0.56 $* |
| Feb-16-2025 | 0.9 $* | 0.60 $* |
| Jan-16-2025 | 0.62 $* | 0.13 $* |
Характеристики
Product Description

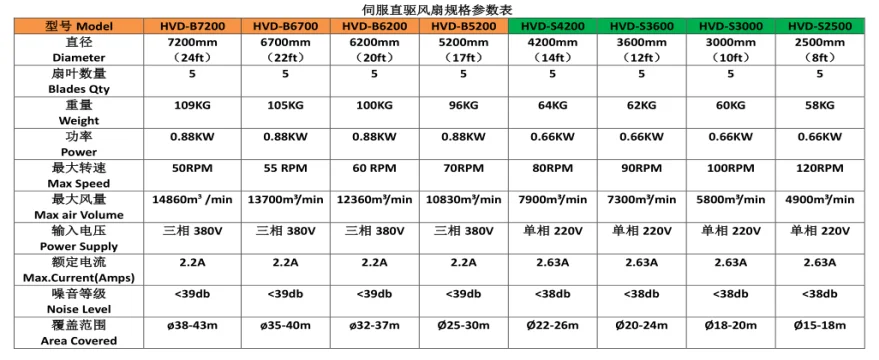

QX 24ft Industrial HVLS Big Ceiling Fan Specifications
Direct drive ceiling fan specially dedicated for large scale space. The streamlined fan blade adopts aaerodynamics principles and advanced process , the diameter is from 2.4-7.2 meters, with coverage 100SQM-1350SQM. Only using the efficient direct drive motor, it can creat plenty of comfortable natural wind.
It's only 880W/660W. 16Hours will spend only 14 kwh, and because it's no gearbox reducer, there is no need to maintaince , it's servo and can used more tha 15 years.
It's only 880W/660W. 16Hours will spend only 14 kwh, and because it's no gearbox reducer, there is no need to maintaince , it's servo and can used more tha 15 years.
Detailed Images
Motor
1.IP64,small volume, no lubrication oil, low energy consumption with no maintenance, it can work for almost 15 years, beautiful appearance, specially for villa, church, cafe shop, restaurants etc.
2.Motor design with high heat pyrolysis technics, the running temperature is around 38℃.
3.The digital closed control with inner precision Hall induction can control on-off station correctly and continuously variable.
Control box
1.Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm.
2.In addition, it has continuously variable, precise localization and the protection system with over voltage,over currents.
High strength bolts and fasten glue
High strength bolt in level 12.9, made of 30 CrMnSi, with 271 screw fastening glue to prevent loosening.
SKF bearing
(deep groove ball bearing + thrust ball bearing)
Bearing transmission adopts high strength low alloy steel construction.
Strong mechanical properties, precision measurement to ensure longer life.
Fan blade with 5 strength ribs
It's made of aero alunimum magnesium alloy, accordant with CFD and tunnel testing.It can be used for more than 20 years, with high toughness, high stress,antioxidant surface treatment.
The tail is made of PU, it's lighter and stable.
Connection with chassis using 45 steel plate, which has a hardness 197hb, yield strength 355 mpa, and tensile strength 600mpa.
Related Products
Exhibition
Certifications
Company information
Guangzhou Qixiang Industry Co., Ltd
Our company is established in 2006, and now has 3 business line.
1.Ventilation equipment, HVLS fans, Servo distric fans.
2. Industrial doors, including fast rolling door, hard material rolling door,transparant doors, etc.
3. Dock platforms, mainly include hystraulic and airbag dock platforms, door seal and door cover.

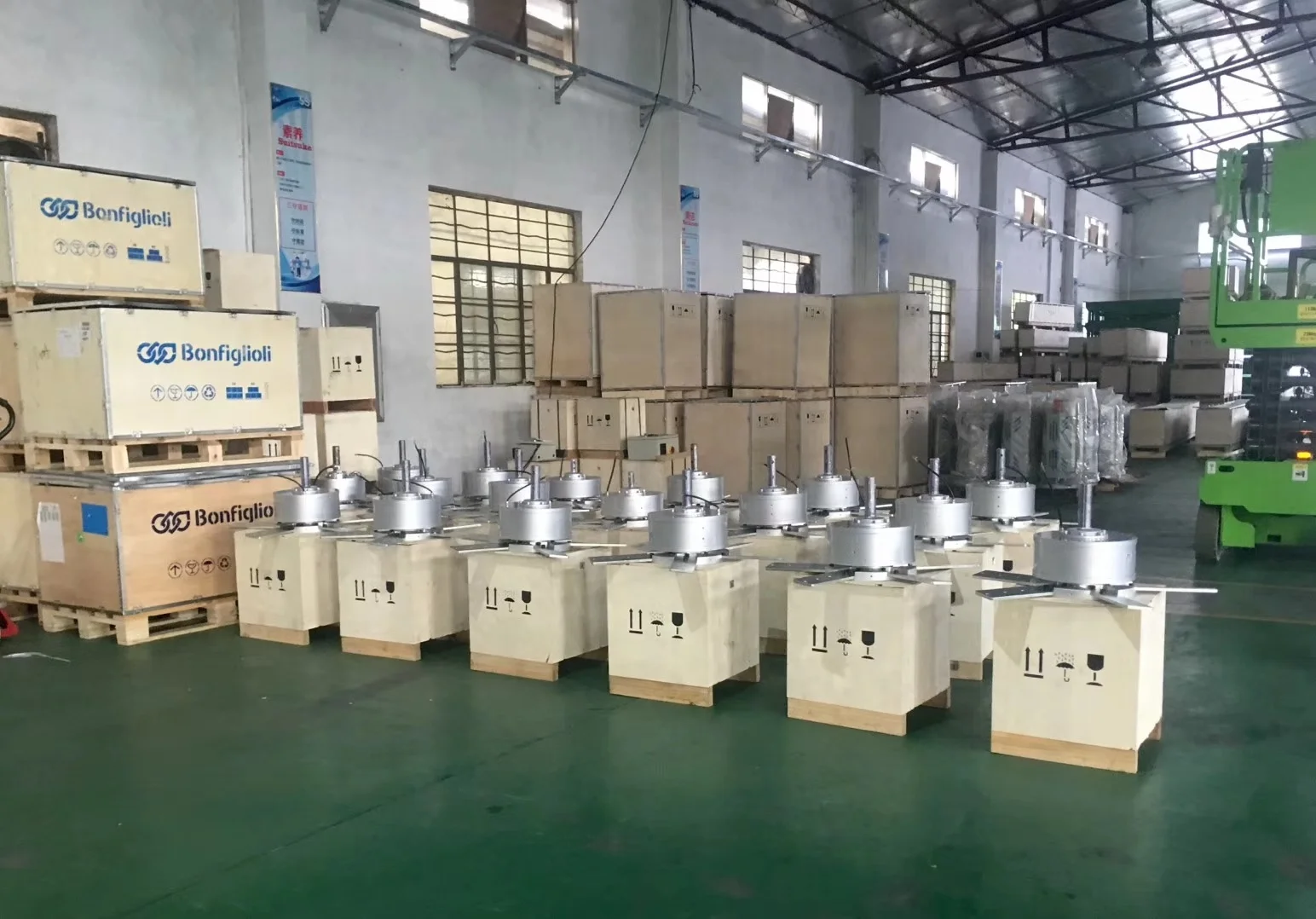

Packing & Delivery
Standard package:Wooden case
1.One for Blade and other spare parts
2.One for Motor and Control Box
Port: Guangzhou, Shenzhen
FAQ
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. Material checking, producing progress inspect, and finished testing.
Q: How do you make our business long-term and good relationship?
A: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q: How about your delivery time?
A: Regual fan will be finished with in 7 days to delivery.
Q: What certificate are you passed?
A: CE , ROSH.
