Характеристики


Product Description

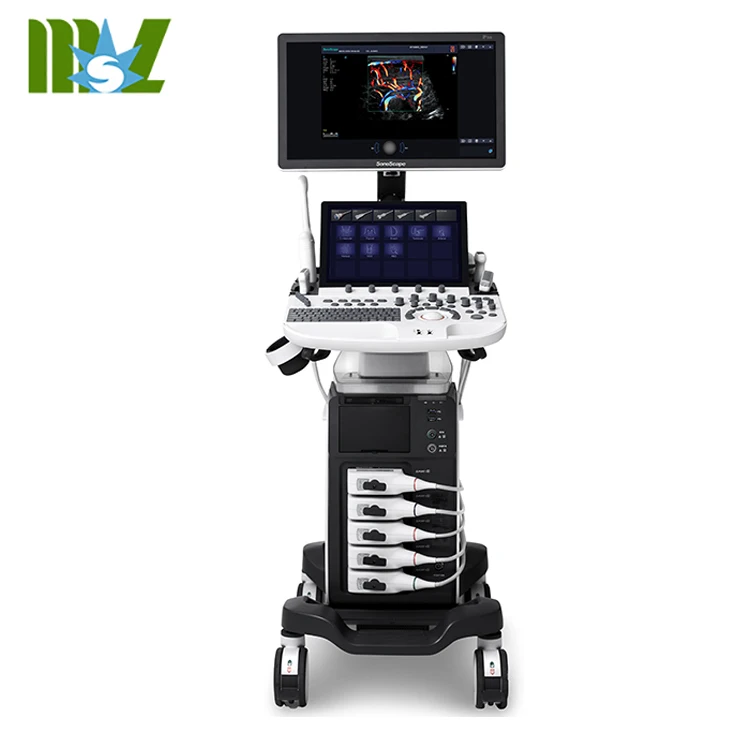

Sonoscape Trolley Doppler ultrasound ultrasound 3D 4D with factory price


General Specification

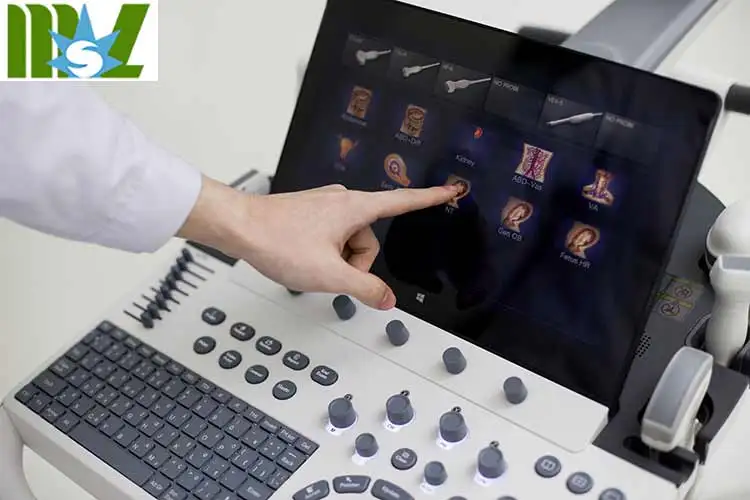

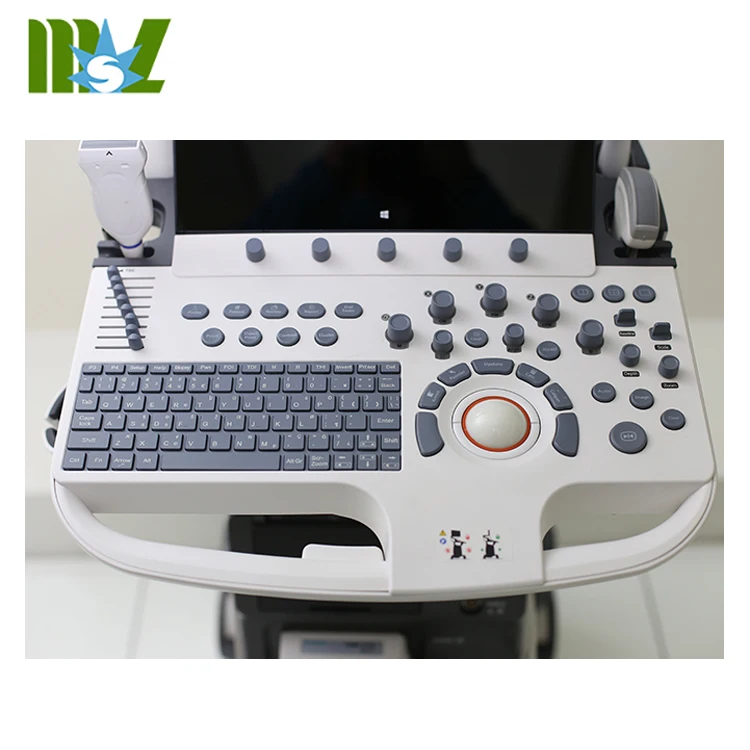

P50 is a color Doppler ultrasound system of flexibility, stability and safety. P50 achieves international standard of excellence and meets multi-purpose clinical applications. It is integrated with vast advanced ultrasonic technologies, including but not limited to Full Digital Super-wide Band Beam Former, Digital Dynamic Focusing, Variable Aperture and Dynamic Tracing, Wide Band Dynamic Range, Multi-beam Processing, and USB 3.0 High-speed Transmission. Moreover, the slim, compact and ergonomic design, the user-defined multi-language graphic interface and touch-screen-based human interaction promise the intuitive and efficient operation of P50 in clinic. P50 operation system is based on industrial Personal Computer platform as well as the stable and open-source Linux, and is proven with the power to output high-quality image and reliable measurement with consistent performance. Software updating is supported for system maintenance and function update, which improves P50 product value and keeps P50 technological  advancement.

\t
Application
\t
Function
\t
 Abdomen
 Vascular
 Cardiology
 Obstetrics
 Gynecology
 Urology
 Musculoskeletal
 Small parts
 Anesthesia
 Interventional ultrasound
 Pediatrics
 Orthopedics
 Cephalic
 Pelvic Floor
 Others
\t
 Multi-beams
 Front-end Technology
 2D Speckle Reduction & Edge Enhanced
    (μ-scan, 2D μ-scan)
 3D Speckle Reduction & Edge Enhanced (3D
    μ-scan)
 Compound Imaging (Spatial/ Frequency)
 Dual Live
 S-Guide
 Auto (One-button parameter optimization of
    2D/ Color/ PW)
 Rotate (3D)
 Adaptive Image Fusion
 Biopsy Guide
 VIS-Needle (Needle Visualization Enhancement)
 Stress Echo
 Auto IMT
 Auto NT
 Auto EF
 Auto Trace
 DICOM 3.0: Store/ C-Store/ Work List/ MPPS/
    Print/ SR/ Q&R
 Wireless Network
 USB 3.0 High-speed Transmission

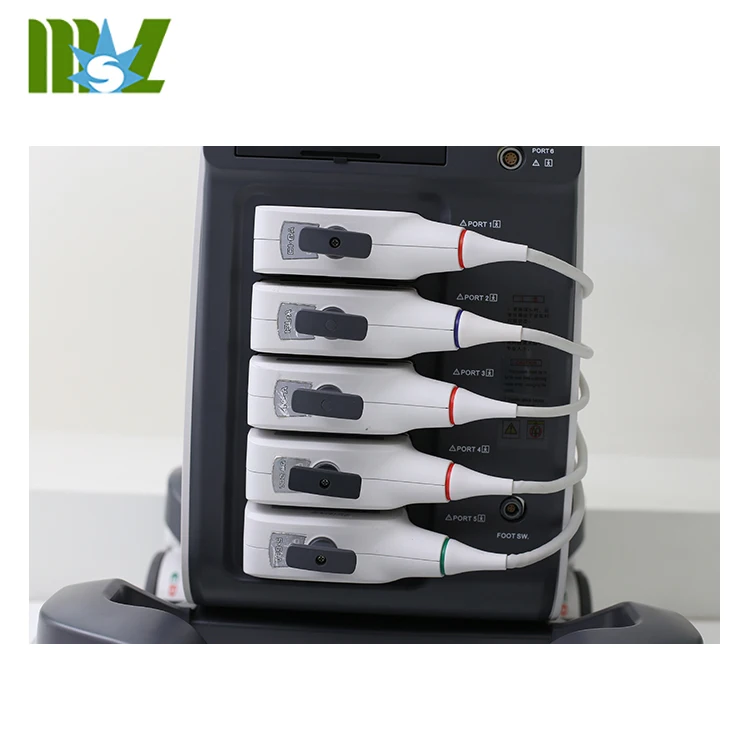

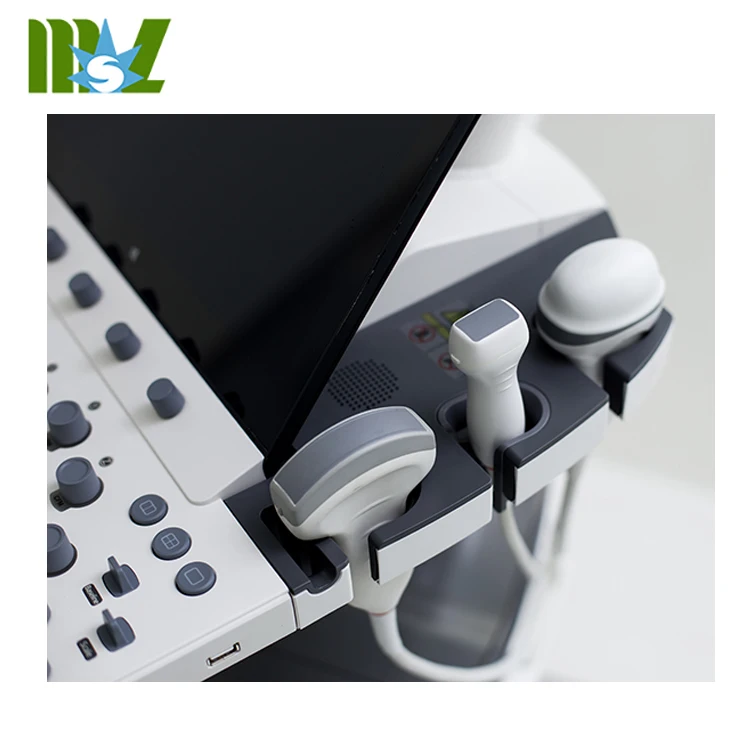

Optional Transducers

1. Phased Array Probe
 S1-5
  Single Crystal
  Application : Cardiac,Abdominal
  Frequency bandwidth: 1.0-7.0 MHz
  Lens size:25mm*16mm
  Biopsy: NGBS1-5
 4P-A:
  Application: Cardiac, Abdominal
 Frequency bandwidth: 1.0-6.0 MHz
 Lens size:25mm*16mm
 Biopsy: NGB4P-A
 7P-A:
 Application: Cardiac
 Frequency bandwidth: 2.0-9.0 MHz
 Lens size:21mm*11mm

 MPTEE:
 Application: Cardiac
 Frequency bandwidth: 4.0-13.0 MHz


2. Linear Probe
 12L-A:
 Application: Vascular, Small parts,
MSK and Breast
 Frequency bandwidth: 3.0-17.0 MHz
 Lens size:55mm*8mm
 Biopsy: NGB12L-A
 12L-B:
 Application: Vascular, Small parts,
MSK etc.
 Frequency bandwidth: 3.0-17.0 MHz
 L742:
 Application: Vascular, Small parts,
MSK etc.
 Frequency bandwidth: 4.0-16.0 MHz
 Lens size:40mm*10mm
 Biopsy: NGBL742-2
 10I2:
 Application: Vascular, Small parts,
MSK
 Frequency bandwidth: 4.0-16.0 MHz
 Lens size:29mm*10mm


3. Convex Probe
 C1-6
 Single Crystal
 Application: Abdominal, Obstetrics,
Gynecology



 Frequency bandwidth: 1.0-8.0 MHz
 Radius of Lens:50mm
 Lens size:59mm*16mm
 Biopsy: NGBC1-6
 3C-A
 Application: Abdominal, Obstetrics,
Gynecology
 Frequency bandwidth: 1.0-7.0 MHz
 Radius of Lens:50mm
 Lens size:59mm*18mm
 Biopsy:NGB3C-A
 6V3
 Application: Gynecology, Obstetrics, Urology

 Frequency bandwidth: 3.0-15.0 MHz

 Radius of Lens:10mm
 Lens size:25mm*10mm
 Biopsy: NGB6V3-2
 6V7
 Application: Gynecology, Obstetrics
 Frequency bandwidth: 3.0-15.0 MHz
 Radius of Lens:10mm
 Lens size:41mm*10mm
 Biopsy: NGB6V7

4. Micro-convex Probe
 C613
 Application: Pediatric Cardiology
 Frequency bandwidth: 4.0-13.0 MHz
 Radius of Lens:14mm
 Lens size:29mm*9mm
 Biopsy: NGBC613
 6V3A
 Application:
 Frequency bandwidth: 3.0-15.0 MHz
 Radius of Lens:8mm
 Lens size:25mm*10mm

5. Volume Probe
 VC6-2
 Application: Obstetrics, Abdominal,
Gynecology
 Frequency bandwidth: 2.0-7.0 MHz
 Lens size:16mm*9mm





 VE9-5
 Application: Obstetrics, Gynecology, Pelvic Floor, Prostate
 Frequency bandwidth: 3.0-13.0 MHz
 Radius of Lens:10mm
 Lens size:37mm*8mm

6. Intra-operative Probe
 6CT-A
 Application: Small parts, Vascular,

Pediatrics, Superficial, Musculoskeletal, Nerve

 Frequency bandwidth: 3.0-15.0 MHz
 Radius of Lens:40mm
 Lens size:34mm*8mm
 6CI-A
 Application: Small parts, Vascular,
Pediatrics, Superficial, Musculoskeletal, Nerve
 Frequency bandwidth: 3.0-15.0 MHz
 Radius of Lens:40mm
 Lens size:34mm*8mm
 12LT-A
 Application: Small parts, Vascular,
Pediatrics, Superficial, Musculoskeletal, Nerve
 Frequency bandwidth: 4.0-16.0 MHz
 Lens size:37mm*7mm
 12LI-A
 Application: Small parts, Vascular,
Pediatrics, Superficial, Musculoskeletal, Nerve
 Frequency bandwidth: 4.0-16.0 MHz
 Lens size:37mm*7mm

7. Bi-plane Probe
 BCL10-5
 Application: Urology
 Frequency bandwidth: 4.0-16.0 MHz
 Radius of Lens:10mm(Convex)
 Lens size:64mm*4mm(Convex)/
94mm*10mm(Linear)
 Biopsy:NGBBCL10-5

Related Products

Sony ultrasound thermal paper UPP-110HG with high quality

USB ultrasound probe USB Convex/Linear MSLPU39


Waterproof pocket wireless ultrasound linear probe color doppler for ipad mobile
Packing & Delivery
\t
Packing
\t
Size
\t
96*79*141cm
\t
Weight
\t
128kg
