Programmable Smart Bracelet RFID Wristband NFC216 HF Chip High
- Категория: Other Access Control Products >>>
- Поставщик: Newbega,(Shenzhen),RFID,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.38 $* | 0.3 $* |
| Aug-18-2025 | 0.50 $* | 0.71 $* |
| Jul-18-2025 | 0.50 $* | 0.60 $* |
| Jun-18-2025 | 0.79 $* | 0.90 $* |
| May-18-2025 | 0.29 $* | 0.70 $* |
| Apr-18-2025 | 0.45 $* | 0.29 $* |
| Mar-18-2025 | 0.99 $* | 0.23 $* |
| Feb-18-2025 | 0.84 $* | 0.31 $* |
| Jan-18-2025 | 0.76 $* | 0.29 $* |
Характеристики
Chip Details
Ultralight C - Contactless ticket IC MF0ICU2 to be used in a contactless smart ticket or smart card in combination with Proximity Coupling Devices (PCD). The communication layer complies to parts 2 and
3 of the ISO/IEC 14443 Type A standard. The MF0ICU2 is primarily designed for limited use applications such as public transportation, event ticketing and loyalty applications.The MF0ICU2 is connected to a coil with a few turns. The MF0ICU2 fits for the TFC.0 (Edmonson) and TFC.1 ticket formats as defined in EN 753-2. TFC.1 ticket formats are supported by the MF0xxU20 chip featuring an on-chip resonance capacitor of 16 pF. The smaller TFC.0 tickets are supported by the MFxxU21 chip holding an on-chip resonance capacitor of 50 pF.When the ticket is positioned in the proximity of the coupling device (PCD) antenna,
the high speed RF communication interface allows the transmission of the data with a baud rate of 106 kbit/s.
Technical Parameters
Item: | Silicone wristband | ||||||
Material: | ECO Silicone, Waterproof Silicone | ||||||
Protection: | Waterproof,against heat ,shock ,moisture | ||||||
Operating Temperature: | -10℃ to 60℃ | ||||||
Storage Temperature: | -30℃ to 85℃ | ||||||
Humidity: | 40% to 80% RH | ||||||
Color Option : | Red, Blue, Yellow, Orange, White, Green, Purple or any pantone color or customized | ||||||
Antennas : | LF/HF: copper antenna, UHF: AL etching antenna | ||||||
Available Crafts : | Silkscreen, Laser, Debossing, Embossing, QR Code, etc. | ||||||
Lead time： | 7 Working Days | ||||||
Data retention: | ≥10 years | ||||||

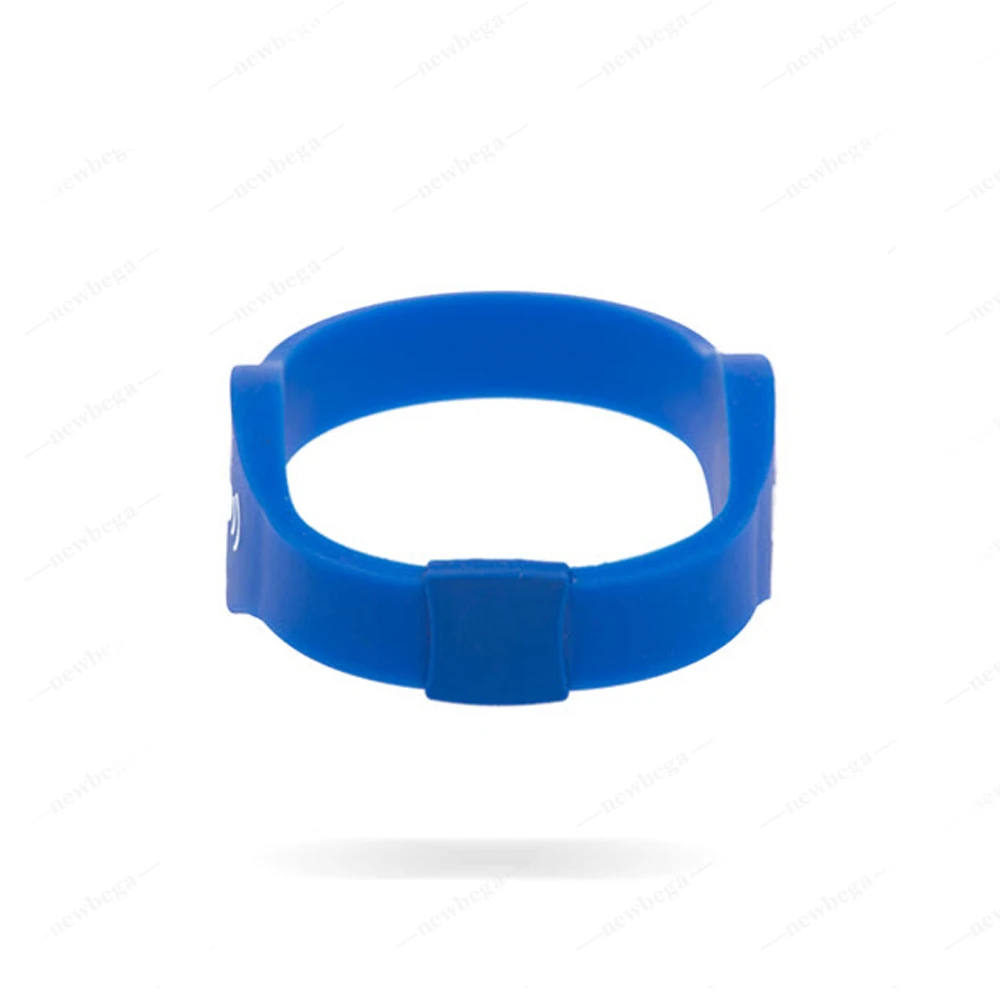

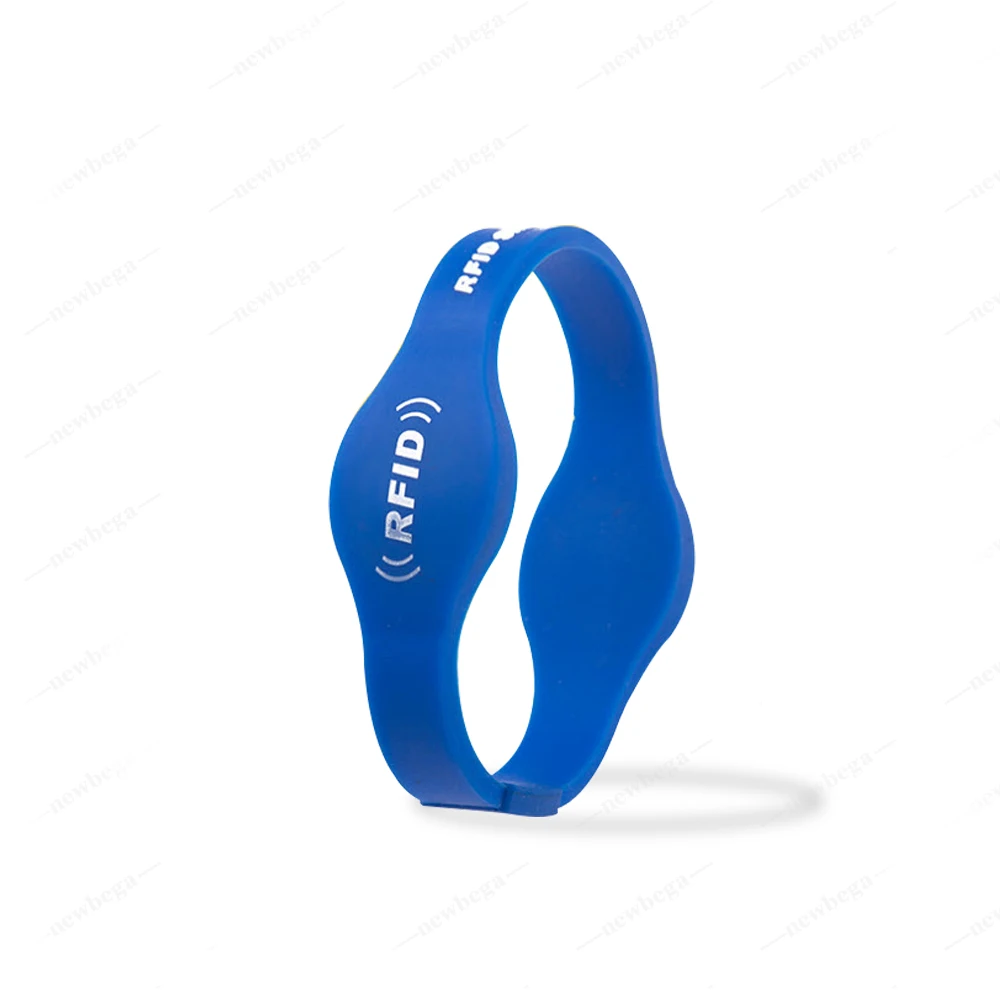

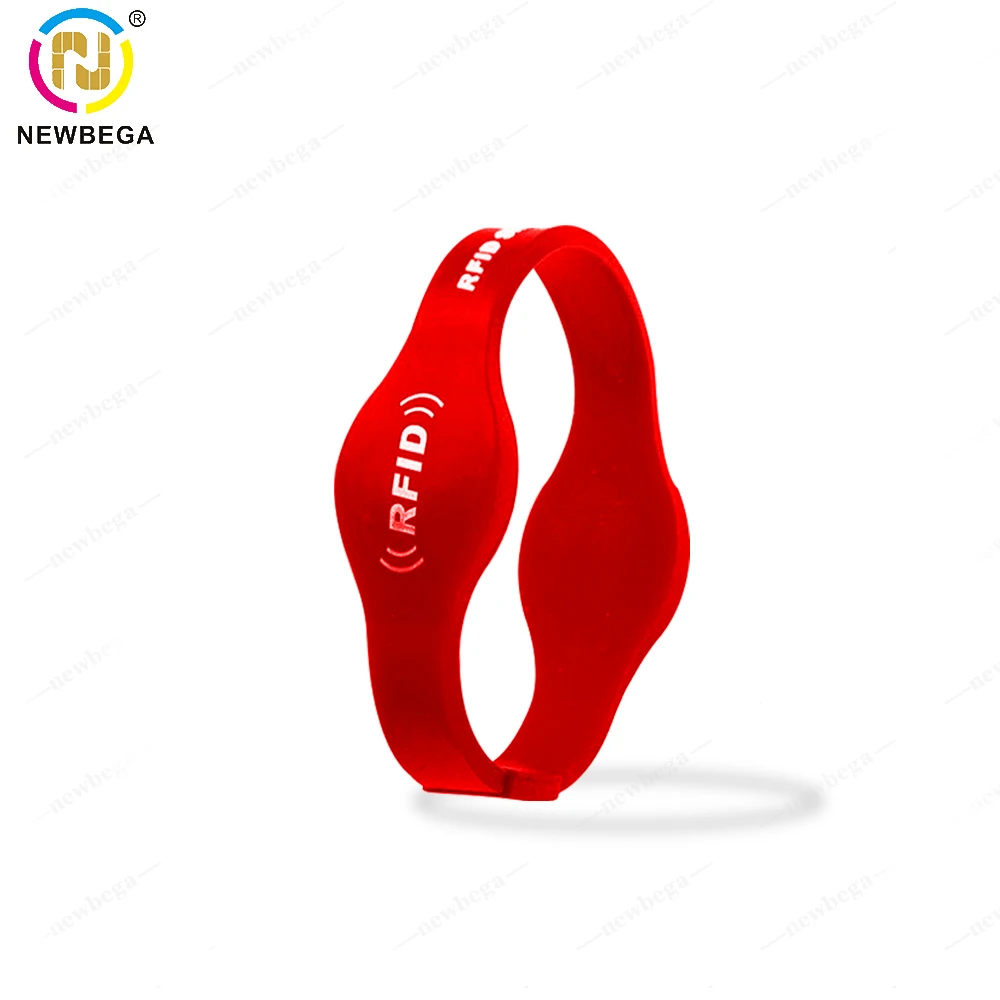

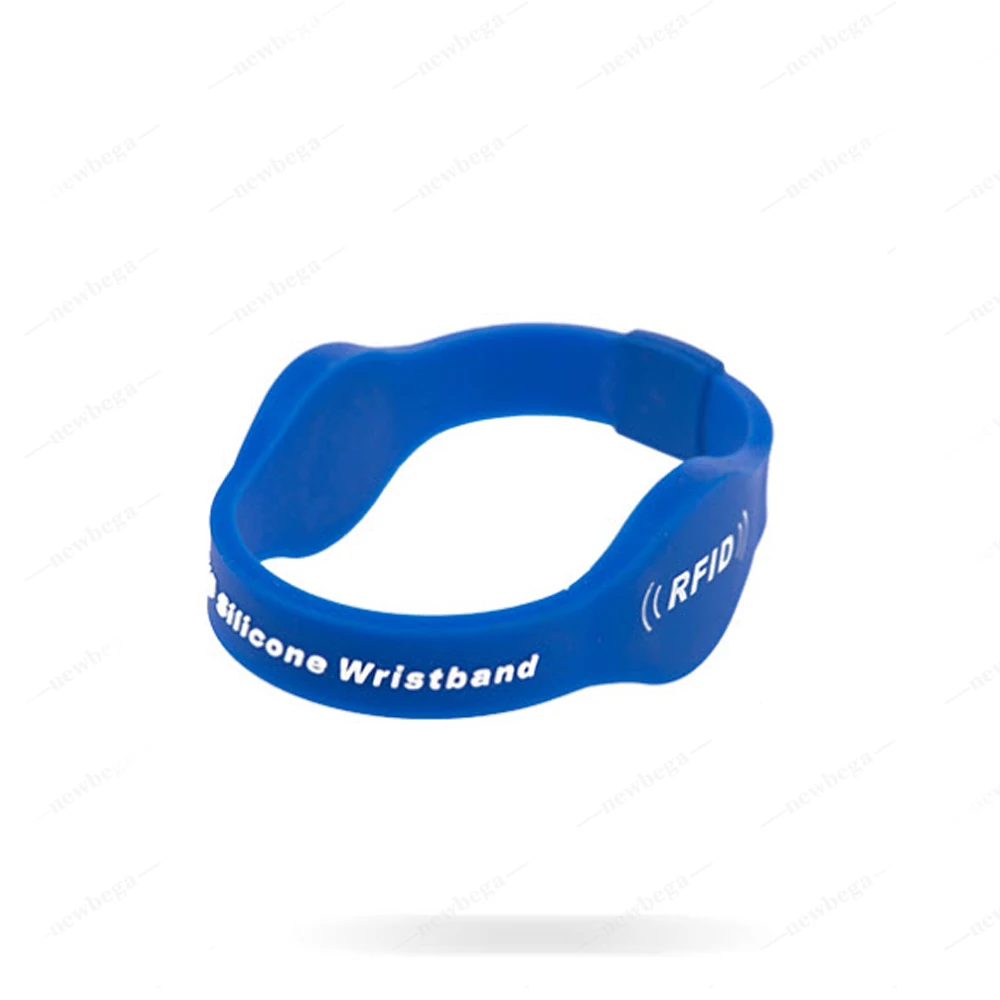

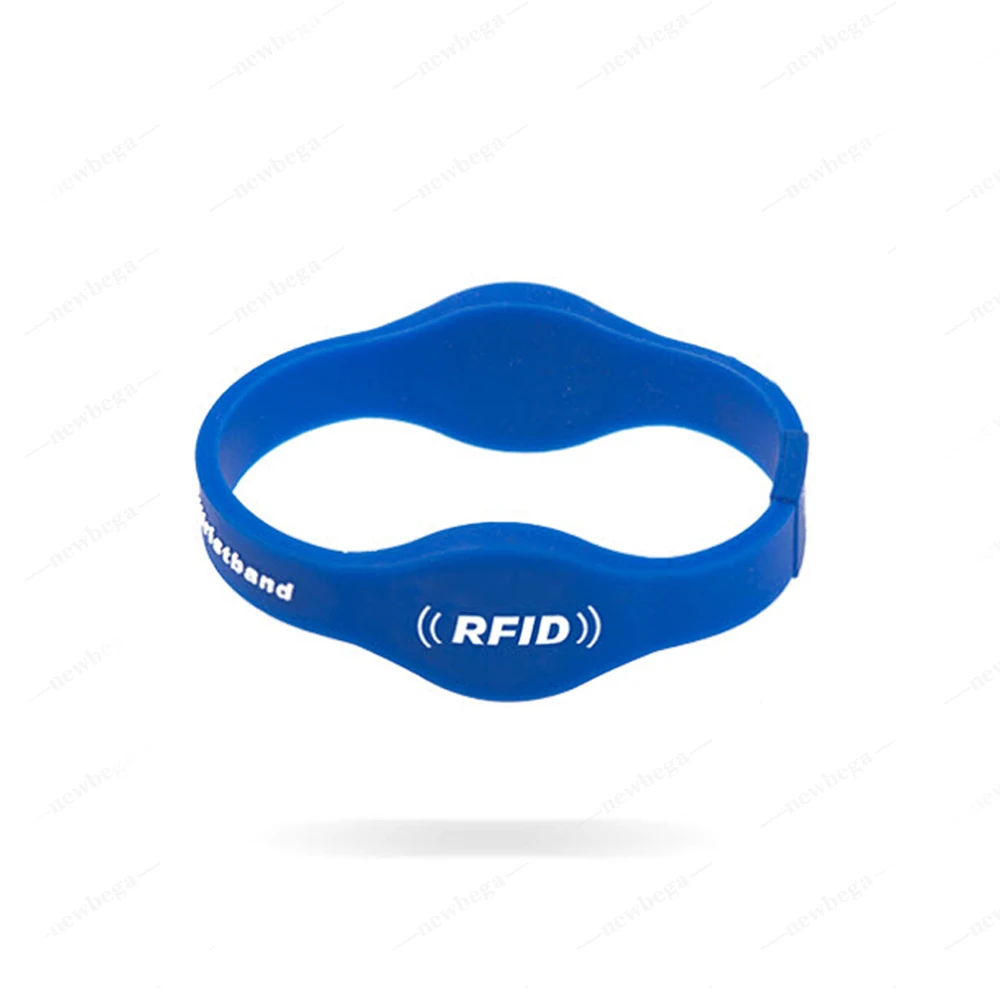

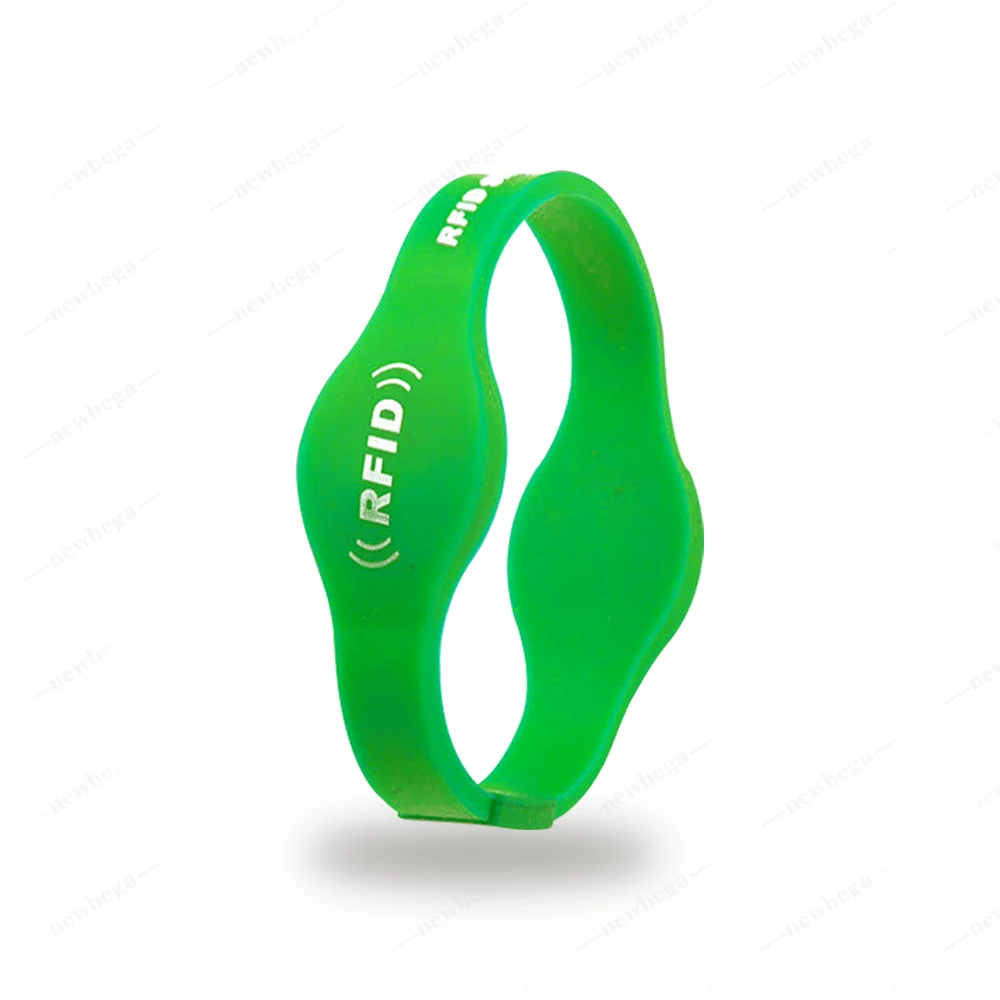

Products Display
1 .Each wristband with a global unique ID number .
2.Whereever you go , only take wristband , you are VIP
Product Application
RFID Pocket Silicone Wristband (Bracelet) is a new way to pay without a plastic card . It can enhance and expand your contactless offering by targeting new customer segments, It is widely used By young people for example payment ,sports fans, capitalizing on business opportunities in emerging sectors including stadiums and corporate events.
Crafts:
All Rfid Wristband can be customized. Please confirm design before order. Welcome to custom all kinds of crafts and style ,Below are some crafts as reference.
Production Workshop
Shipping
How Do I Deal With Shipping ?
1. Before Delivery ,We will check each carton, ensure each carton is intact .
2. We have Professional Shipping Team choose Economical, efficient, and responsible logistics company
for you.
3. After Ship out , We track logistics information in real time, ensure the cargo is safe and in good condition
to reach at destination.
4. We will offer the best after-sell service for you , if you have any question, welcome to consult at any time.
Quantity | Carton Size | Weight | ||||
500 | 245*200*115mm | 3.5kg | ||||
1,000 | 500*250*275mm | 6.6kg | ||||
2,000 | 490*245*125mm | 14kg | ||||
FAQ
Yeah , we are professional factory in ShenZhen,which produce all kinds of RFID Sticker, Lable, RFID Card, RFID Wristband, RFID Inlay etc Smart products .
2. If can be customized ?
All of our products can be customized,including the material, size, thickness and Logo.We can service ODM&OEM.in order to avoid mistake , we advise customer can offer design file ,like AI or PDF etc format .
3. How many leading Time ?
if order sample ,usually is 5-7 days , if place a largest number of order , depend product quantity , usually is 10-15 days.
4. Can I have samples before place the order?
Of Course ,If you make a large order, then we are pleasure to send the stock samples for your reference, or make samples according to your design.
5. If the products appear quality probelm , how to solve ?
Please don't worry , Before ship out we will check one by one , to ensure quality before you receive; if appear mass products can't use , we will solve the problem with you forever .
