 GUANGZHOU LEJIN WASHING AND DYEING EQUIPMENT LTD.

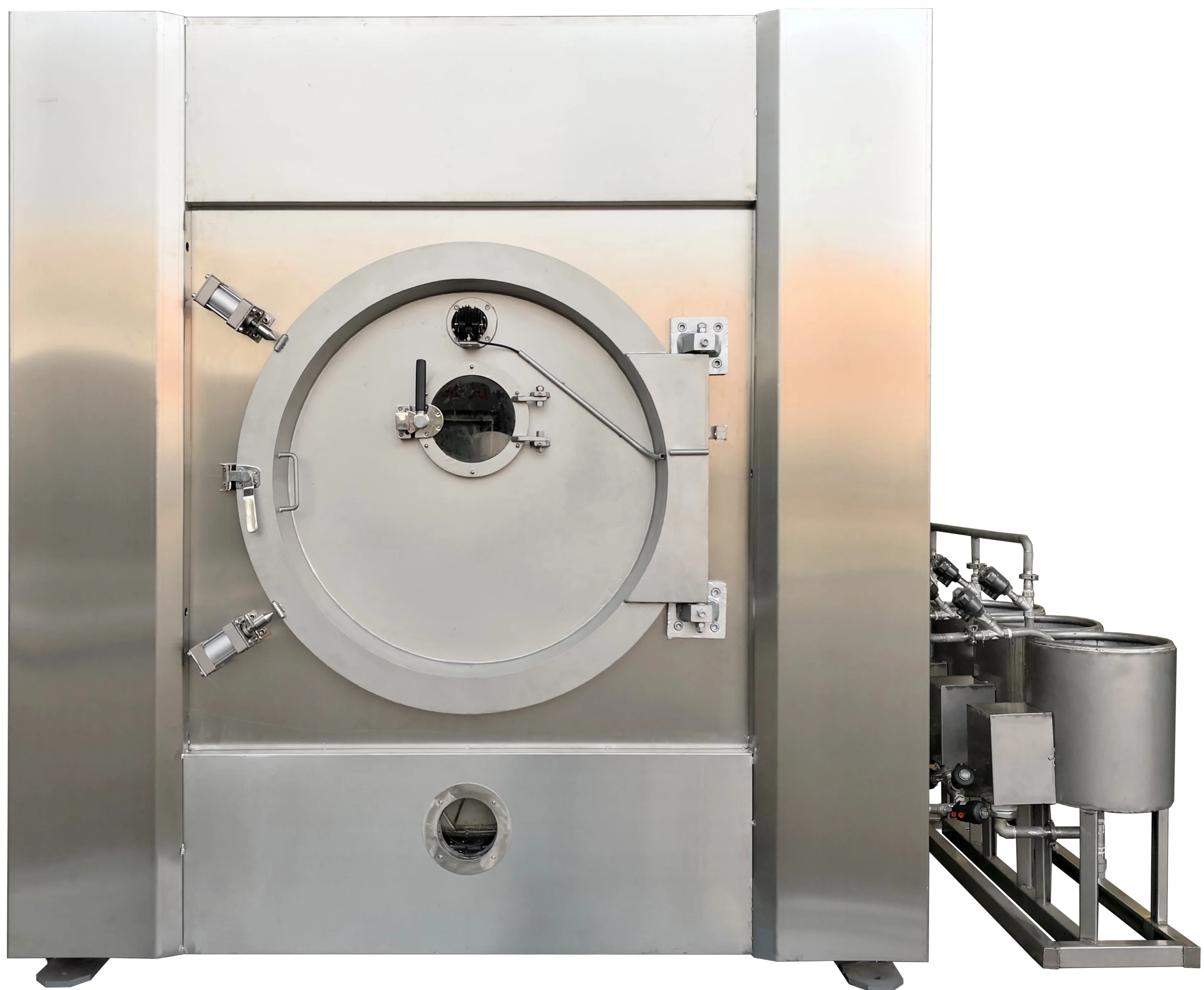

700 POUND FRONT LOADING WHOLE STAINLESS STEEL WASHING & DYEINT MACHINE (350KG WASHING MACHINE)

Lejin Machine Features:
1. Compact drum design and reasonable structure;
2. Large capacity range from 50kgs to 2800kgs;
3. Automatic positive and negative rotation control;
4. Easy to operate, the running automatically controlled;
5. High quality stainless steel, corrosion-resistant, durable;
6. Multi-stage rotating belt, low noise, safe and stable, easy maintenance.
700 Pound Details:
Dimension: 2200mm×2300mm×2400mm;
a) Inner drum size: Φ1800 mm×1100 mm, made by 6mm thickness stainless steel board;
b) Outer drum size: Φ1900 mm×13 mm, made by 10mm thickness stainless steel board;
c) Power: 14KW Inverter motor;
d) Transmission: three-axis drive pulley.

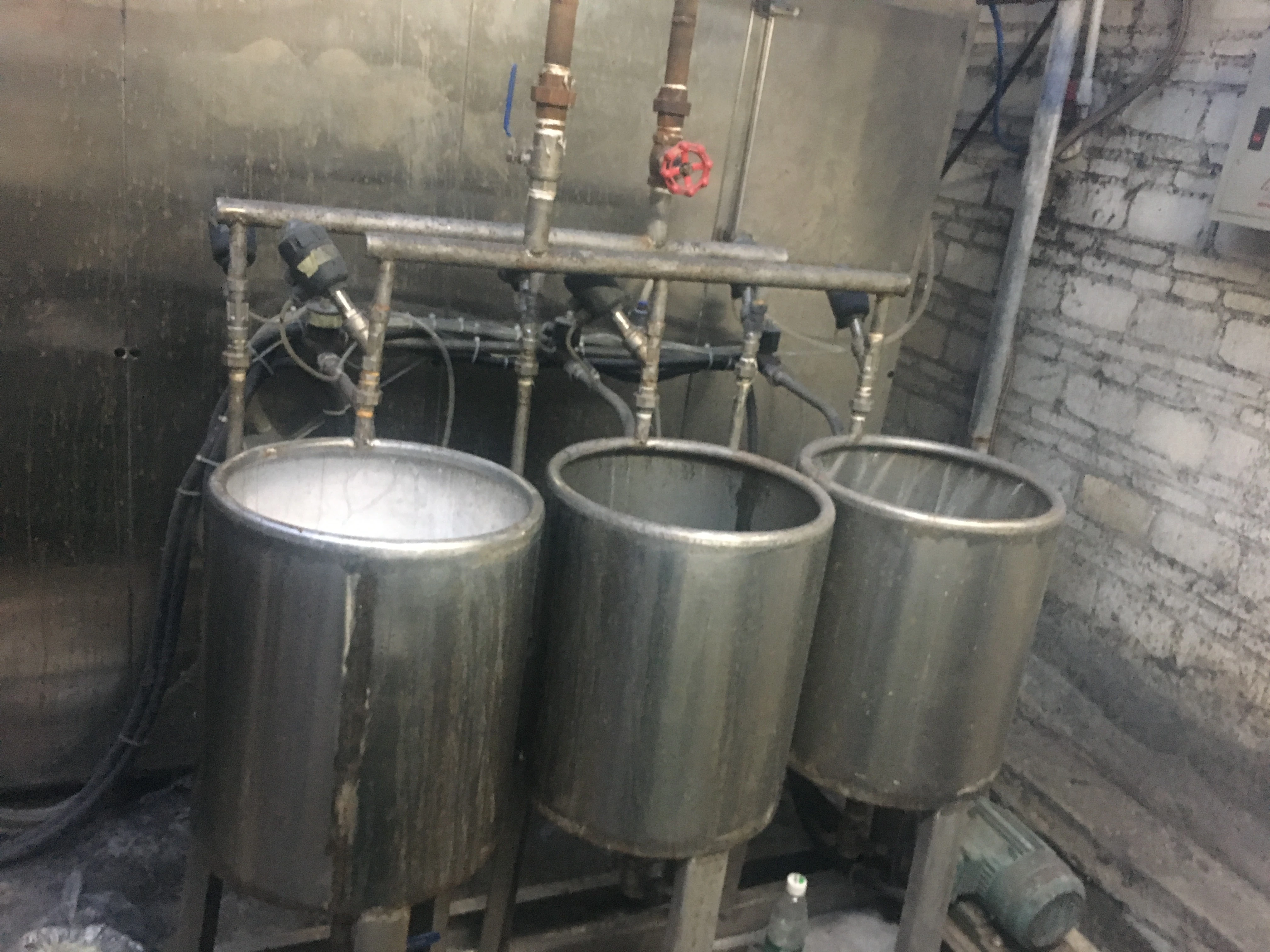

e) Automatic feeding system 3 tanks.
Inner drum size:
 1. inner baffle board Φ1800, 6mm+12mm thickness 600×600 square board, and with steel tank for strengthening;
 2. inner drum main shaft Φ500mm×375 stainless steel casting;
 3. inner drum main bone heigh 1700mm, thickness 6mm steel board;

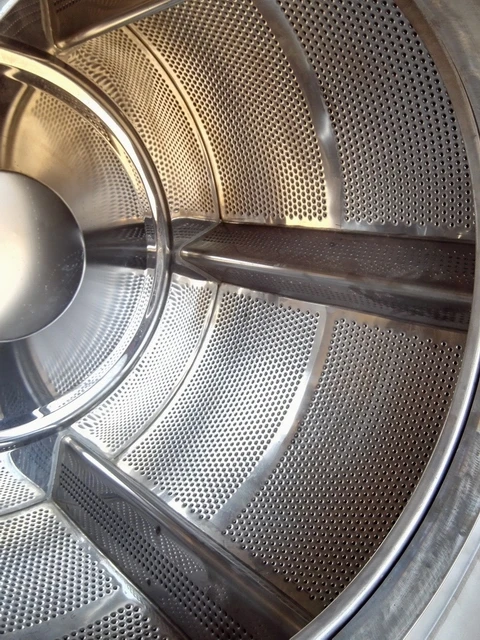

 4. inner drum punching concave holeΦ9mm, rotation speed 28~200r/m.
Outer drum size:
 1. outer baffle board Φ1900mm, 10mm thickness metal board, side board strengthened by steel tank;
 2. sides equipped with 1 pieces 6" water drainage;
 3. on top of machine  equipped with 1 pieces 3" steel water intake;
 4. In back side one 1" stainless steel muffler.
Electrical components: including production reversible controller, Schneider AC contactor, Taiwan production timer, Schneider main switch, overload protection device.


Specifications:

Model No.	Capacity(kg/pound)	Power(kw)	Speed(rpm)	Weight(kg)	Overall Dimensions/LxWxH(mm))
XGQ-600	350/700	15	28~200	4000	2200*2300*2400



Our Advantages:
1. We are manufacturer with over 20 years experience, and about 70% of our products are for export, so we know how to serve customers from all over the world.
2. As sales directly from our factory, we are able to provide competitive price, quality products and good rapid after-sales service.
3. With so rich experience in the industry, we are capable of proposing a perfect package of machines according to customers' daily production target, as well as the layout of the workshops.
4. As a machine manufacturer, in many ways we can help our customers to grow and deliver maximum values to them.
