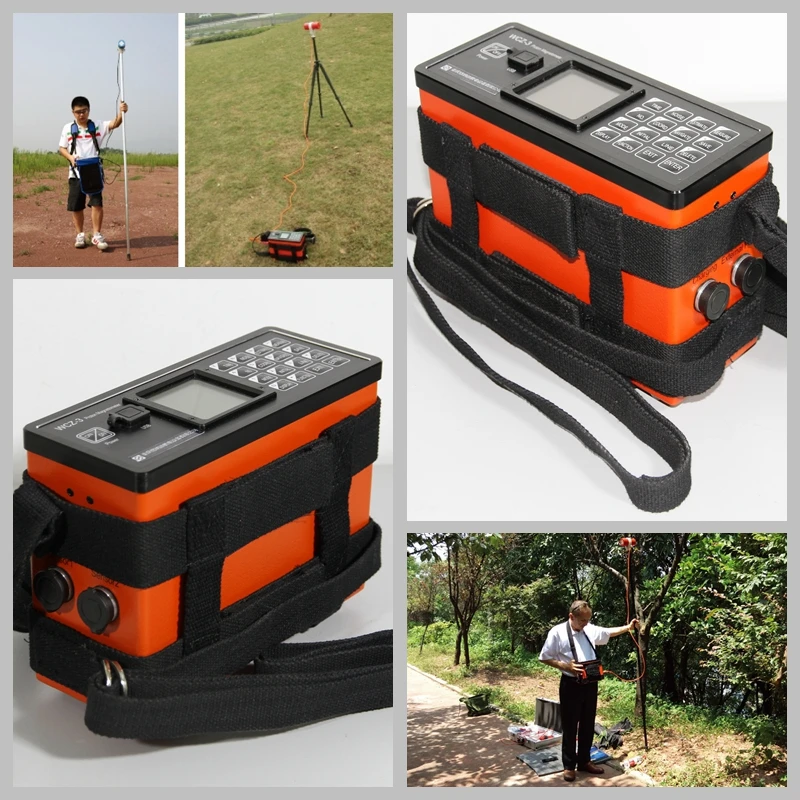

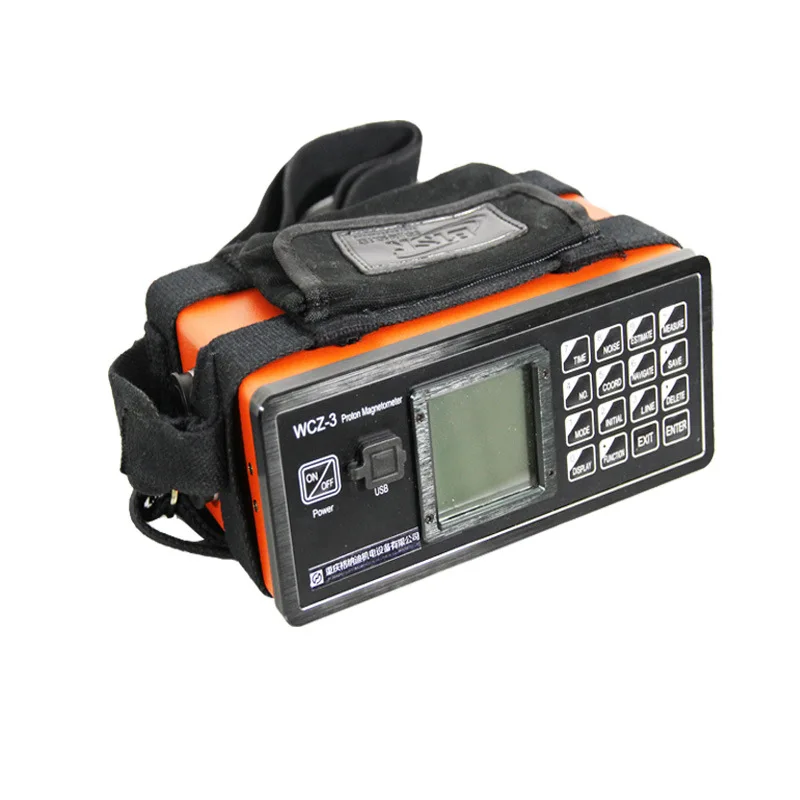

WCZ-3 Portable Proton Precession Magnetometer Gold

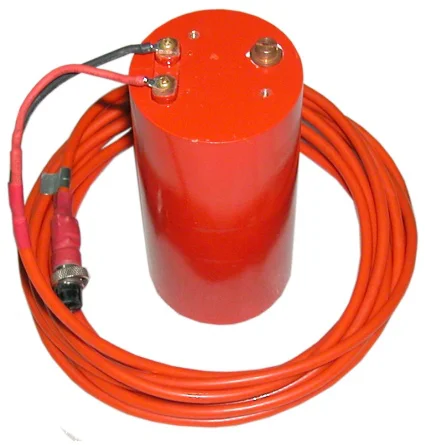

The principle of WCZ-3 proton magnetometer is to measure the precession of hydrogen protons in magnetic field. The sensor is filled with hydrogen-containing liquids, and these hydrogen protons are in an irregular arrangement before being forced to polarize by the instrument. When a polarization signal is added to it, the proton will spin forward. After the polarization signal disappears, the proton precession will gradually disappear under the influence of the external magnetic field. The magnitude of the external magnetic field can be measured by measuring the frequency of the signal transmitter affected by the precession. Continuous cycling of this action will allow continuous measurement. WCZ-3 proton magnetometer is a new generation proton magnetometer developed on the basis of foreign advanced magnetometers and advanced technology according to the actual situation of our country. Its magnetic field measurement accuracy is 0.5nT and resolution is as high as 0.05nT.





Its application range is as follows:

1 mineral exploration, based on the useful minerals in the ore Or have the characteristics of symbiosis with magnetic minerals for direct prospecting;
According to the ore body, there are some magnetic geologic structures in the cause or space.
The characteristics of Guan, indirect prospecting. Including iron ore, lead-zinc ore,
Copper mines, etc. Cooperate with the exploration of the mining area to study the depth, occurrence and connection of the ore body
Continuation, study the shape and size of the ore body, and estimate the size of the deposit.
2 Oil and gas exploration, research and oil-related geology
Problems such as structure and earth structure.
3 Coordinate with basic geological survey to carry out geological mapping.
4 Detection of magnetic structures related to magnetism.
5 Fault section location.
6 environmental exploration, archaeology, hydrology.

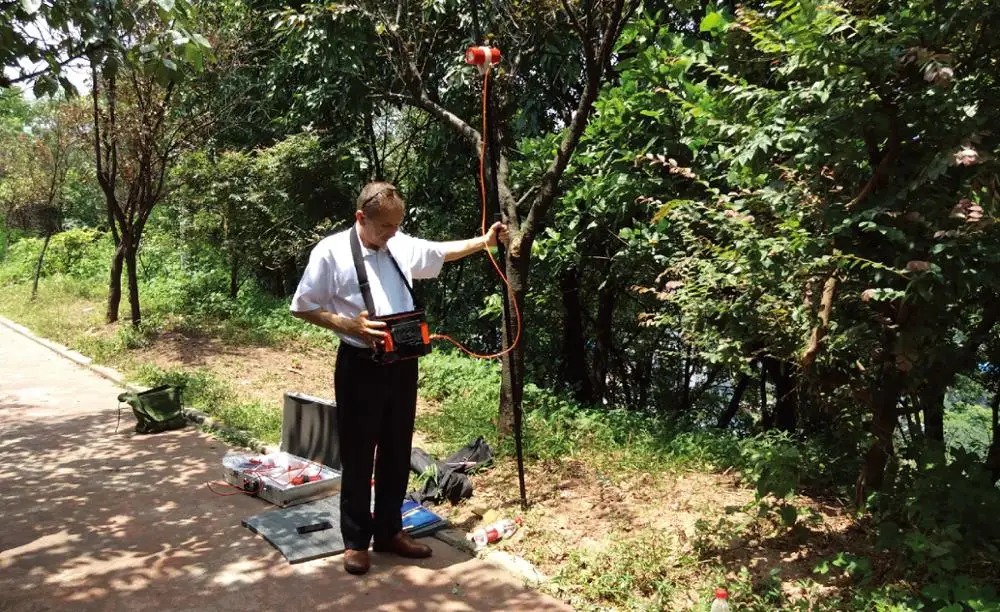

Scope of application: It can be used for total field measurement and gradient measurement of geomagnetic field (horizontal or vertical gradient, special probe and probe stand need to be added); it can be used for field operation, and it can also be used for base station measurement with built-in real-time clock. The measurement results can be stored together with the measurement time, and can also be measured and stored regularly; it can be automatically tuned or manually tuned in full range.



Channel Number: 1 Channel (Standard, Time-Sharing Gradient)

2 channels (optional, gradient can be measured at the same time)



Measurement range: 20,000 nT-100,000 nT



Measurement accuracy: +0.5nT (fine mode), +1nT (normal mode)



Resolution: 0.05nT (fine mode), +0.1nT (normal mode)



Permissible gradient: <8,000nT/m



Measuring speed: <3 seconds/readings (fine mode); <2 seconds/readings (normal mode)



Base station measurement interval: 2-60 seconds, can be set



GPS positioning accuracy: <2.5 m CEP



Storage data: more than 2 million point readings, power-down protection function
