Lanboo 16 мм водонепроницаемый высокий ток металлическая кнопка switchtoggle коммутатор с л в синюю волнистую прямые продажи фабрики со светодиодным


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.78 $* 0.68 $*
Aug-16-2025 0.2 $* 0.93 $*
Jul-16-2025 0.5 $* 0.80 $*
Jun-16-2025 0.22 $* 0.8 $*
May-16-2025 0.65 $* 0.71 $*
Apr-16-2025 0.72 $* 0.51 $*
Mar-16-2025 0.63 $* 0.38 $*
Feb-16-2025 0.7 $* 0.61 $*
Jan-16-2025 0.47 $* 0.80 $*

Характеристики



Product Description





1. Install Diameter of 16mm, ;


2.Operation type:Latching /Momentary


3. The shell material has copper degree chromium, aluminum oxide black, stainless steel can be customized;

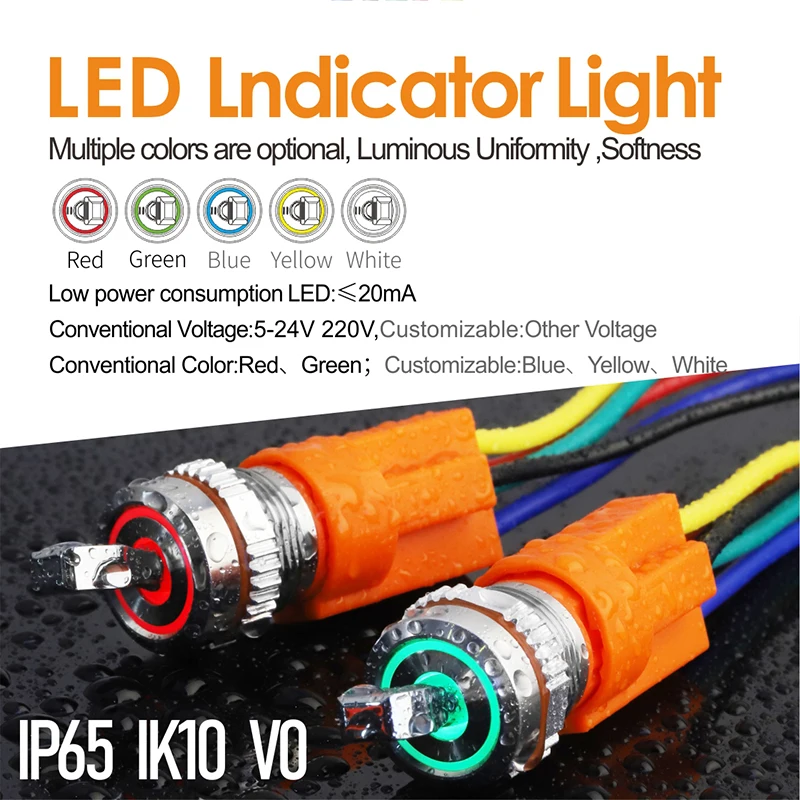

4. Ring light, color of light: Red, Green, Blue (customized), Yellow (customized), white (customized)


5. LED Rated Voltage : 5-24V,220V, other voltages can be customized;


6. There are 2 gears, the turning angle is 12° on both sides;

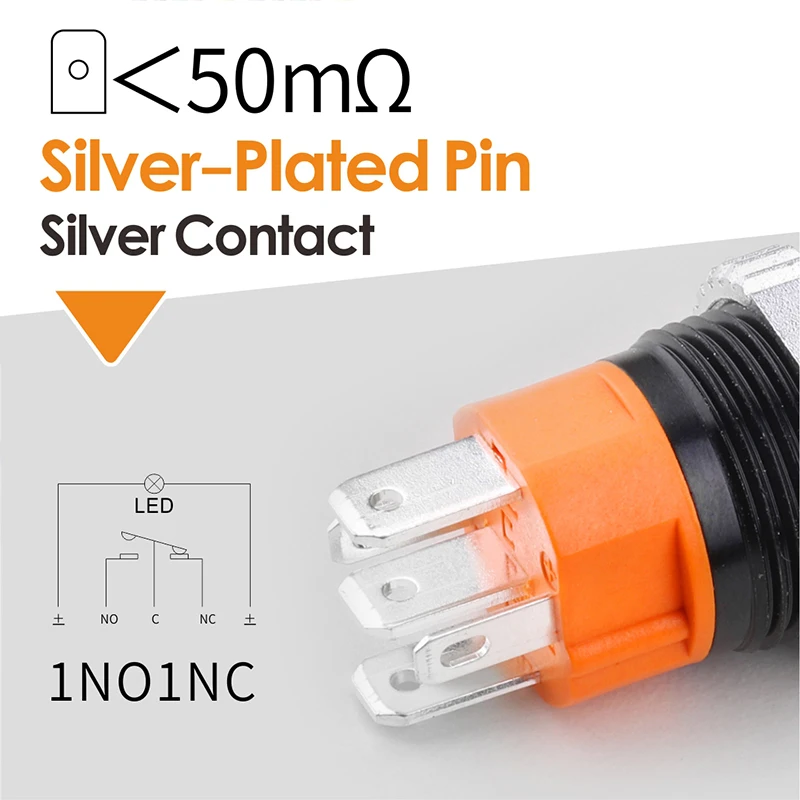

7. Silver-plated pins to ensure good contact performance;


8. Special attention: customized products are not refundable or exchangeable, and RoHs needs to be customized separately.








-(1) (2) (3)16NZ (1)16NZ (2)16NZ (3)16NZ (4)16NZ (5)16NZ (6)16NZ (7)16NZ (8)16NZ (9)


















































                               Model Description

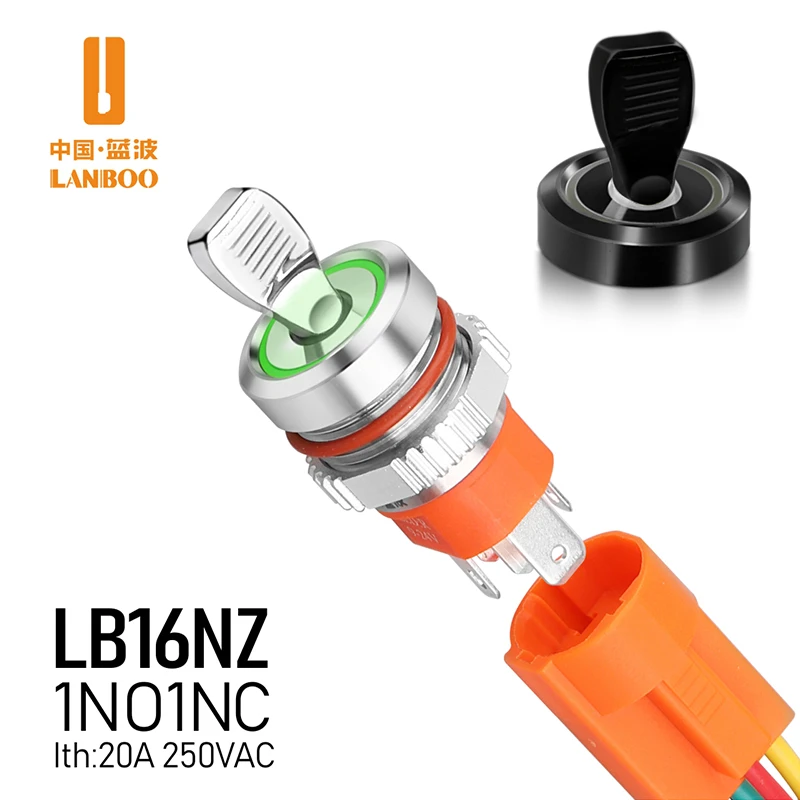

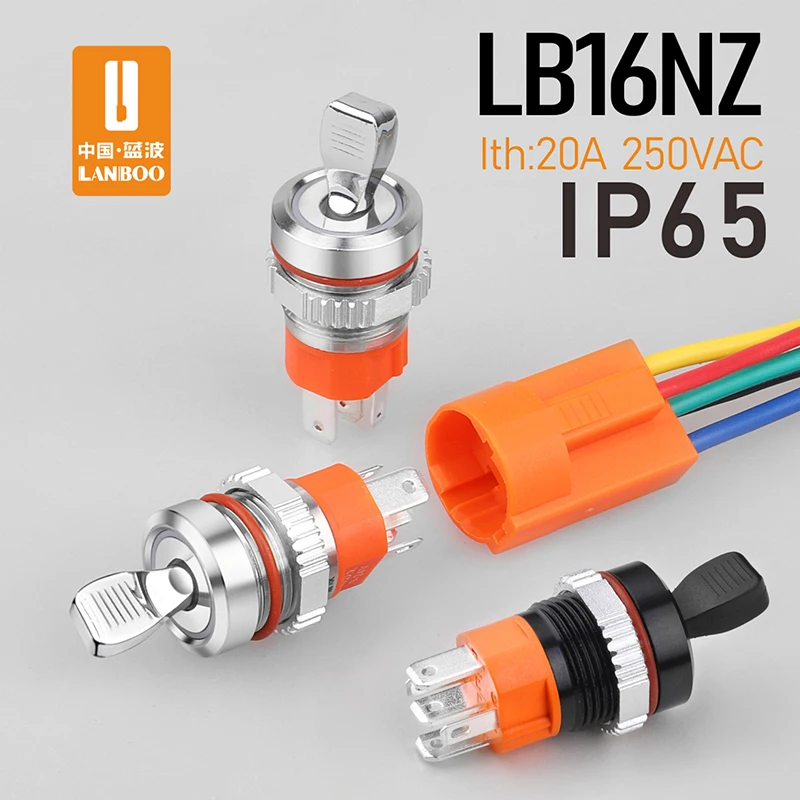

  Model NO.                        LB16NZ
  Mounting diameter            16mm
  Head shape                      Toggle
  Switch Combination          1NO1NC /2NO2NC
  Operation type                 Latching
  Illuminating type               Point LED
  Illuminating color              Red,Green,(Customized) Blue,(Customized) Yellow,(Customized) White
  Lamp voltage                    2V/3V/6V/12V/24V/36V/110V/220V/250V
  Shell material                    Chrcmium plated  brass/Aluminum oxide/Stainless Steel












































Switch Rated Load

 Project


 Parameter
 Reated Insulation Voltage AC220V
 Fusing Current 5A
 Rated VoltageDC12VDC24VAC110VAC220V
 Rated Current Nonreactive Load15A15A15A15A
 Inductive Load4A4A4A4A


































Led Lamp Parameters
ProjectParameter
 Led type High Brightness LED lamp,cool
 Luminous color Red,Green,Blue,Yellow,White,
 Rated Voltage AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
 Rated Current ≤24V,≤20mA;>24V,≤10mA
 Reference Life 50,000hours
