Gps-антенна 1575,42 МГц для автомобиля
US $2.30-$2.70

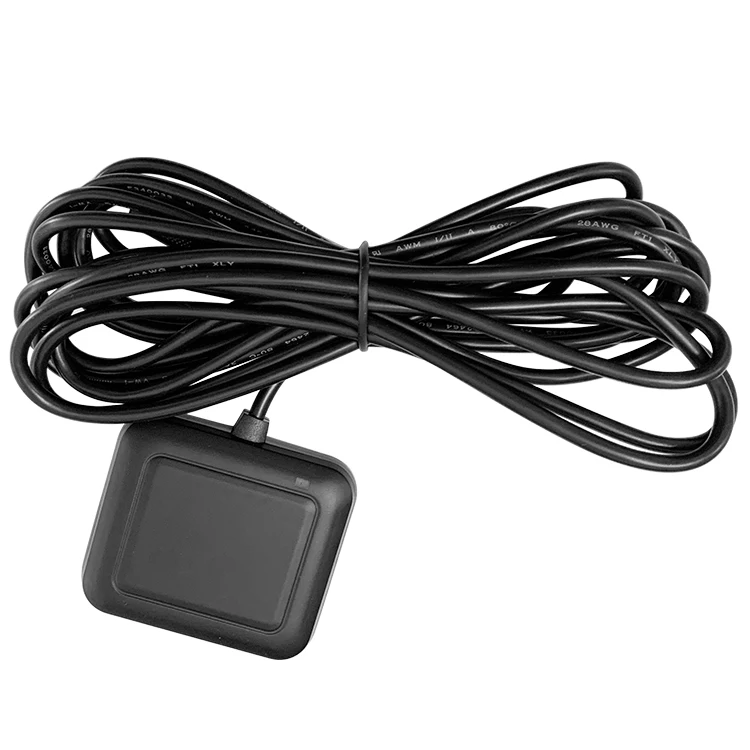

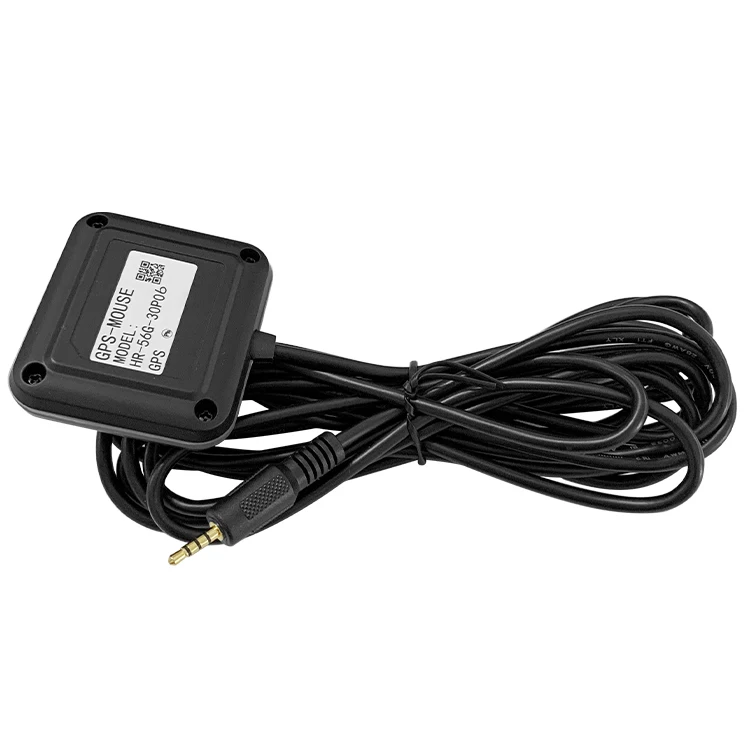

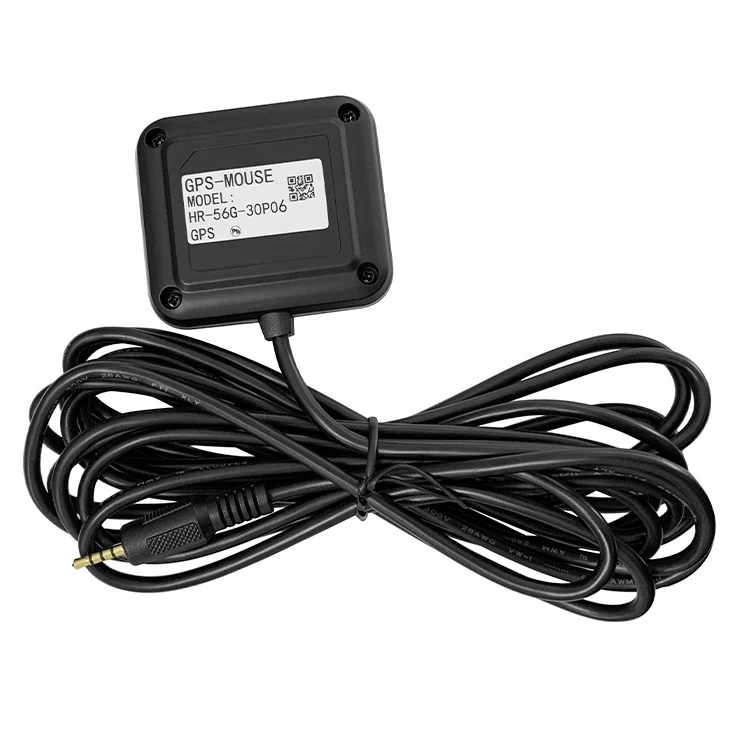

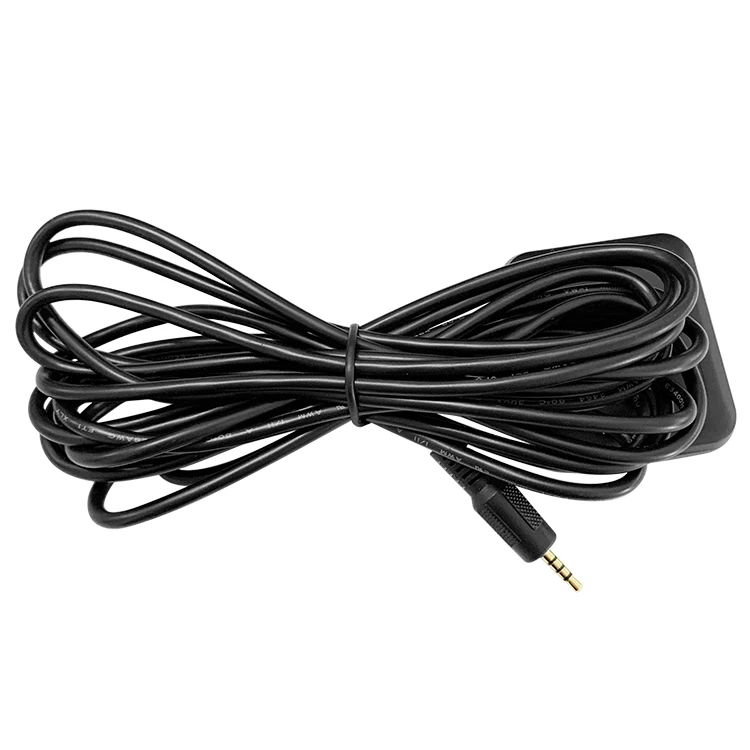

Огнеупорная морская GPS-мышь NMEA 0183 RS232 TTL UART
- Категория: GNSS и GPS антенна >>>
- Поставщик: Shenzhen,Hurryup,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 12.35 $* | 13.25 $* |
| Aug-18-2025 | 12.96 $* | 13.23 $* |
| Jul-18-2025 | 10.99 $* | 11.23 $* |
| Jun-18-2025 | 12.80 $* | 13.19 $* |
| May-18-2025 | 10.12 $* | 11.45 $* |
| Apr-18-2025 | 11.40 $* | 12.65 $* |
| Mar-18-2025 | 11.93 $* | 12.67 $* |
| Feb-18-2025 | 11.39 $* | 12.80 $* |
| Jan-18-2025 | 11.10 $* | 12.49 $* |
Характеристики
Description
Details of the antenna, such as frequency band, cable length, connector type, logo, and appearance can be customized.
The HR-56R-MT is a complete GPS & Beidou engine module that features super sensitivity, ultra low power and small form factor. The GPS&Beidou signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.
Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS&Beidou was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, UVA, DVR,Car Tracker and vehicl navigation systems.
Applications
( 1 ) UVA(unmanned aerial vehicle)
( 2 ) DVR(Digital Video Recording)
( 3 ) Rearview mirror DVR
( 4 ) Car Tracker
Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS&Beidou was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, UVA, DVR,Car Tracker and vehicl navigation systems.
Applications
( 1 ) UVA(unmanned aerial vehicle)
( 2 ) DVR(Digital Video Recording)
( 3 ) Rearview mirror DVR
( 4 ) Car Tracker
Main chip | MTK GPS Chipest |
Track sensitivity | -165dBm |
Time to First Fix | Extremely fast at low signal level |
Built in high LNA | YES |
Power consumption | Max 45mA@5.0V |
Protocol | NMEA-0183 compliant protocol or custom protocol |
Operating temperature | -40 to 85℃ |
Operating voltage | 3.0V to 5.0V |
Module type | UART /TTL /USB /RS232 |
Size | 55x46x14.5mm |
Certification | RoHS compliant(Lead-free),CE Certificate |
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
