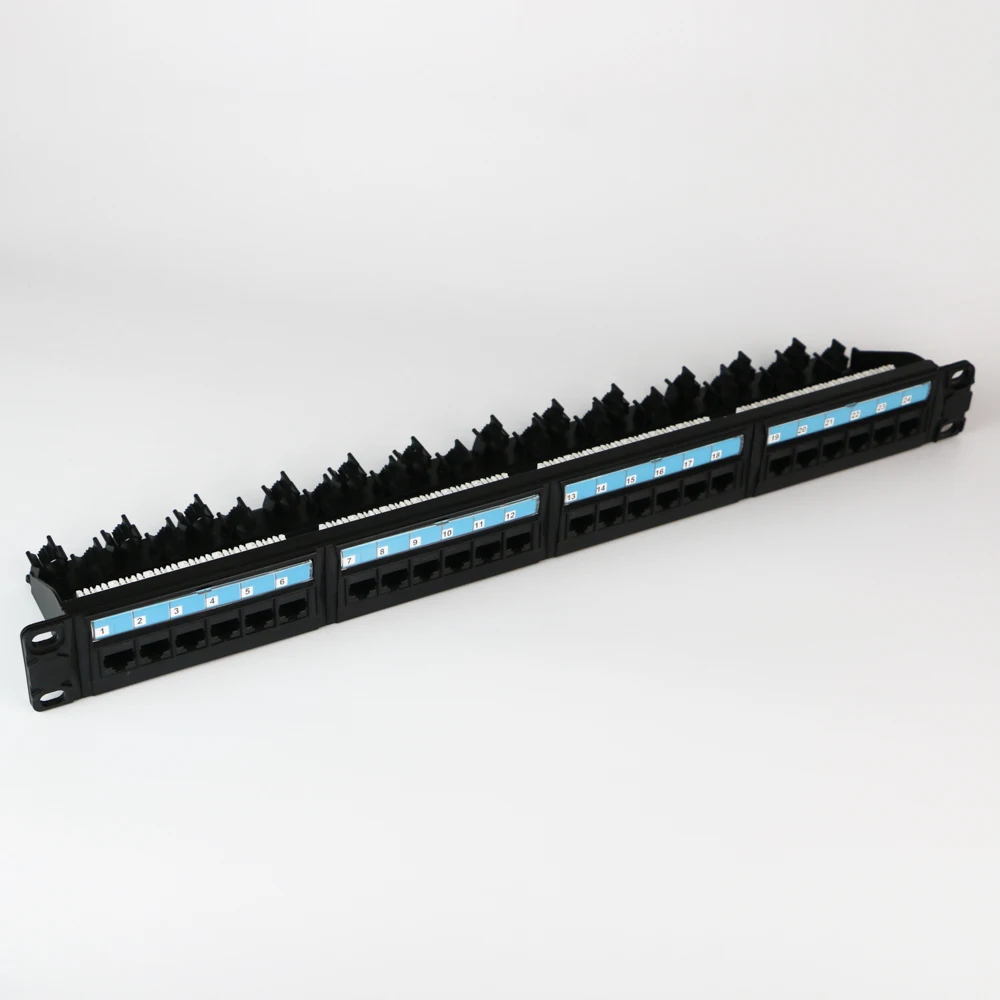

Новая сетевая коммутационная панель UTP Cat6 24 порта

Описание и отзывы

Трекер стоимости

Характеристики



Product Name	Network Removable UTP Cat6 24 Port  Patch Panel
Material	SPCC
Specification	24 port
Color	Black
Used	Data center, working area, managing room , equipment room , etc



1. Technique Characteristics

• Brass housing with nickel-plated, phosphor bronze with golden plated avoid oxidation

• Front panel with port number and category

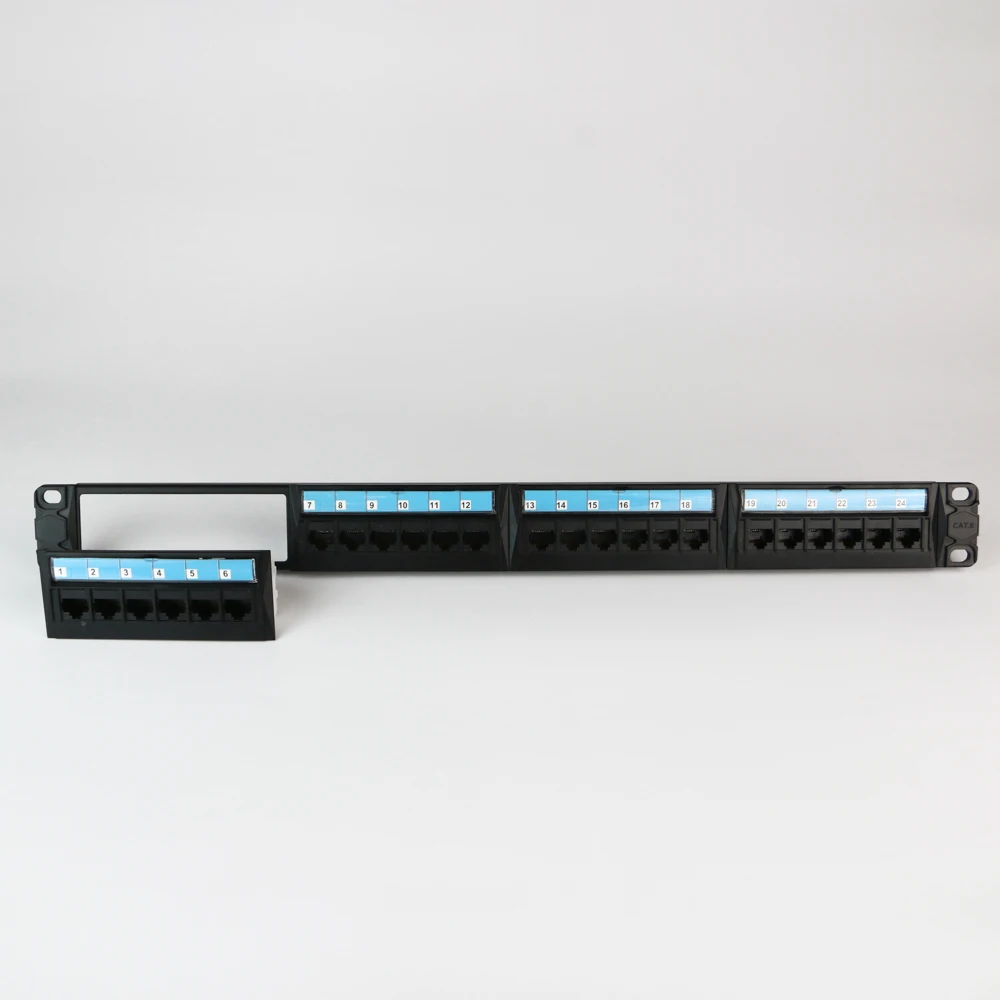

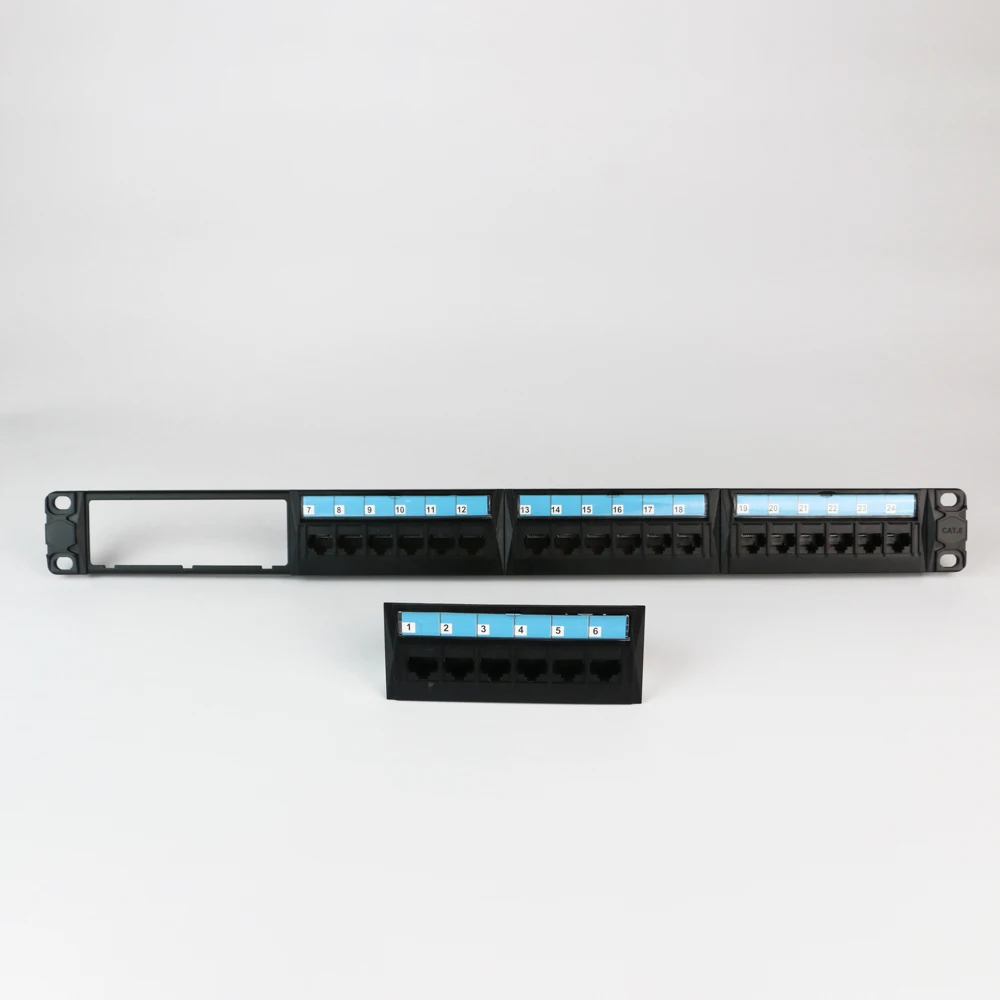

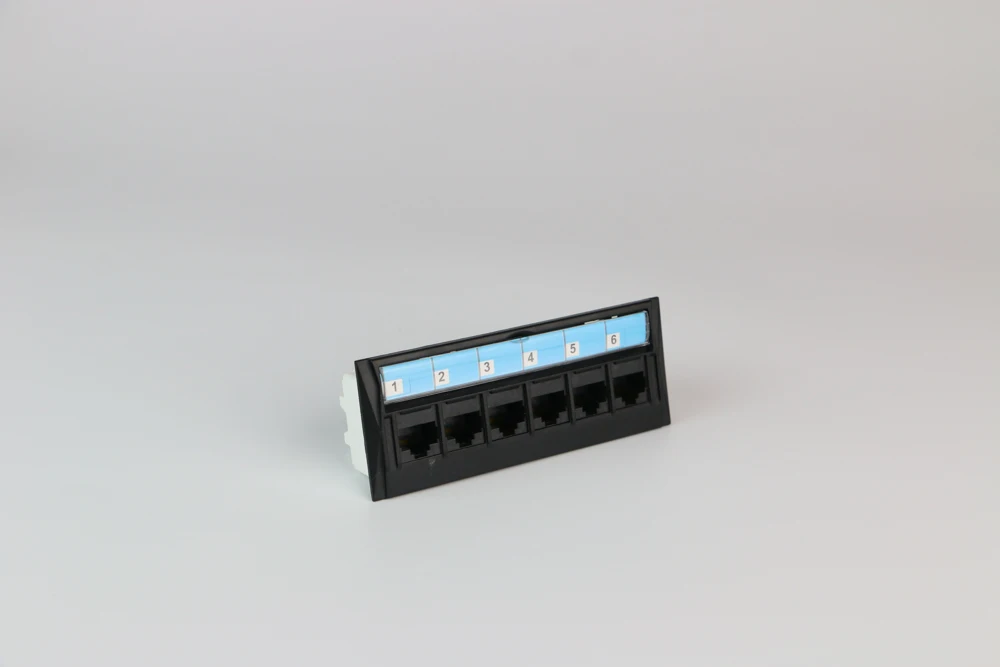

• Front module can be removable out from the whole frame

• Integrated back bar provide good cable management, relieving the cable tension and make the wiring system more stable and clear

• Metal structure ensure the product with higher mechanical strength and outstanding profile

• Standard 1U height 24 port panel support T568A/B cabling sequence

• Standard 19” wide range application make assembling, maintenance and upgrade faster



2.  Electrical Characteristics

• Voltage Rating: 125 VAC RMS

• Current Rating: 1.5AMP

• Contact Resistance: 100 MΩ Max

• Insulation Resistance: 1000MΩ@ 500 VDC

• Dielectric Strength: 750 VAC RMS 60Hz, 1MIN



3.  Environmental

• Storage: -40℃ TO +75℃

• Operation: -10℃ TO +60℃

• Conform to TIA/EIA 568B Category 6



4.  Mechanical

• Housing Material: PBT

• Panel Frame: ST12, Powder coating in black color

• IDC Material: PC, Terminal: Phosphor bronze, TIN Plating

• RJ45 Jack life: 750 times Min

• IDC life: 200 times Min

• Wire: AWG23-26

• TIA Cat6 Perm .Link Test: Worst pair NEXT margin≥3.0dB

• Retentiveness of insertion structure: 50N 60±5s



5.  Application

• Structured cabling transmitting data, voice , video

• Applied for Cat.6



                                                                     Product Size











FAQ

Q.1: Are you manufactory or trading company?

We are the manufactory specialize in structured cabling network products and accessories. Our factory had been verified by ISO9001:2005, and we are AAA grade credit enterprise.

Q.2: Can we pay the visit to your factory?

Welcome to our factory, we will confirm the schedule with clients, and arrange pick up service and accompany with you during the whole visit

Q.3: How long to get the samples? How to pay sample and freight charge?

Samples can be ready within 2-3days.Sample charge can be paid by TT, PAYPAL, etc. We will also consider sending sample free of charge with freight collected by customer

Q.4: How to assure of your quality control

Firstly, all the raw material by IQC before production process; Secondly, during production by IPQC; Thirdly, QC check before packing; Finally, full inspection before shipment.

Q.5: Can we have our logo or company name to be printed on the product or packing?

Most of our business is OEM, we can silk printing your logo on product, or work out your own packing design.

Q.6: How to make orders?

Please send your P.O to us by Email, we will make Proforma invoice under your request. After get your confirmation for the PI, we will reply the lead time and arrange production accordingly.

Q.7: What's your shipment suggest?

We suggest small or trial order by Air, or courier like DHL, FedEx, UPS, etc. For large order, we suggest by Sea, if you have own forwarder, you can send the contact information, if you need us to quote freight, we can check the best price for you.

Q.8: What's lead time for shipment? Do you have stock?

Normally we have stock for hot items. We will quote the delivery time based on your quantity.7-15days for regular orders.
