Нержавеющая сталь пищевая машина катушечная трубка UHT

Нержавеющая сталь пищевая машина катушечная трубка UHT

Категория: Food Sterilizer >>>
Поставщик: Wenzhou,Leno,Machinery,Co.,Ltd.Wenzhou,Ltd.

Цена:339 376,80 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	403857.50 $*	424050.15 $*
Aug-20-2025	400464.58 $*	420487.56 $*
Jul-20-2025	335982.83 $*	352781.74 $*
Jun-20-2025	393676.30 $*	413360.77 $*
May-20-2025	342770.89 $*	359909.96 $*
Apr-20-2025	386889.39 $*	406233.58 $*
Mar-20-2025	383495.98 $*	402670.52 $*
Feb-20-2025	380101.58 $*	399106.13 $*
Jan-20-2025	376707.25 $*	395542.27 $*

Характеристики

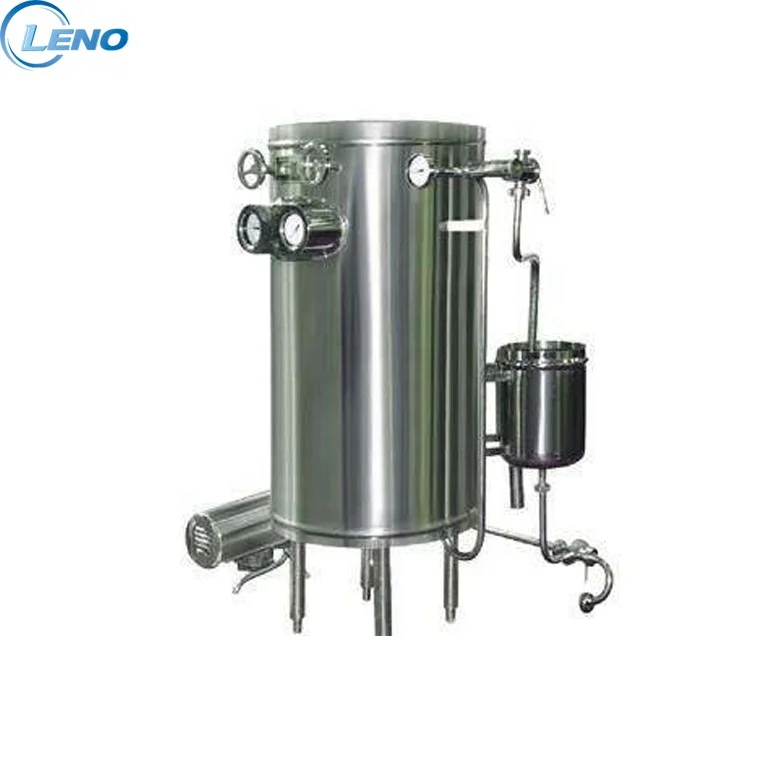

Stainless stseel food machine Coil tube UHT sterilizer

Stainless stseel food machine Coil tube UHT sterilizer
Profile/type	Coil sterilizer
Material	SS304 or SS316L
Capacity	1T/H-6T/H (Customized)
Heater type	Electric heating / Steam heating
The Working Temperature	115-135℃ (According to customer requirements)
The Working Pressure	≤0.8Mpa
Holding time	4~6S
Outlet Temperature	≤65℃
PARTS DETAILS	1.Snaitary PUMP
	2.Control Valve
	3.Backflow tanks
	4.Adjustable Legs
	5.Inlet and Outlet sanitary valve.
	6.Thermometer (According to customer requirements ).

Drawing

Model	Product capacity(T/H)	Sterilizing temperature (℃)	Motor power(KW)	Warmkeeping time(S)	Outlet temperature(℃)	Extermal dimensions(MM)	Weight(KG)

LNY1000	1000	115-135℃ (According to customer requirements	2.2	4~6S (According to customer requirements)	≤65℃	920x920x1400	280
LNY2000	2000		2.2			1100x1100x1700	380
LNY4000	4000		4.0			1200x1200x1800	550
LNY6000	6000		5.5			1400x1400x2000	700
we can design drawing according to your requirement.

Application:Stainless stseel food machine Coil tube UHT sterilizer

1.Coil sterilizer for milk sterilization, juice sterilization, beverages sterilization and other liquid food sterilization.Capacity various from 0.5T-20T

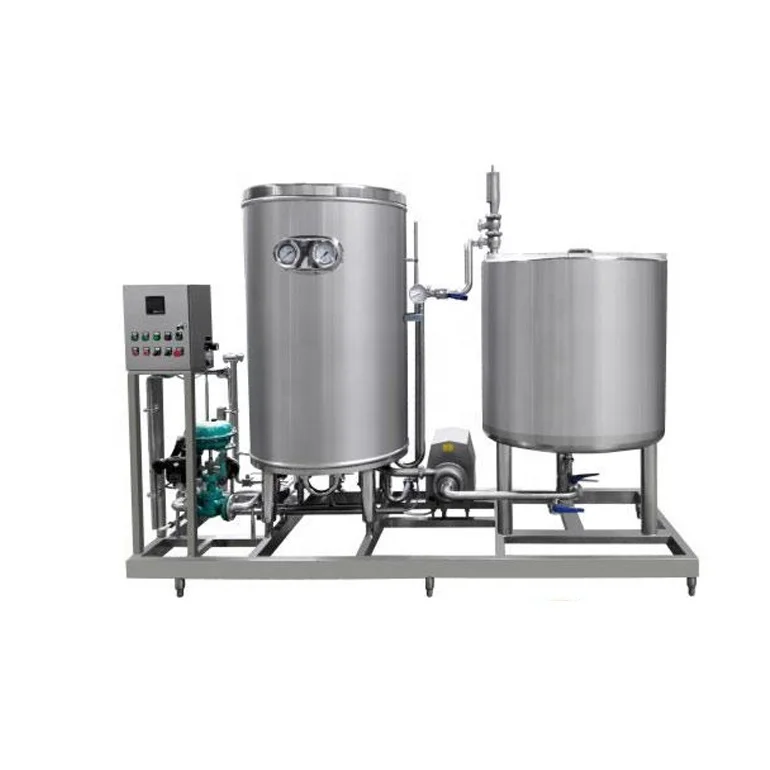

2.Coil sterilizer complete sets of equipment is designed for milk, dairy products, fruit juices, drinks, beer and other liquid materials designed for sterilization equipment. Using manual, semi-automatic, fully automatic three control systems, control components are brand-name products, including industrial PLC programmable controller and screen, the steam valve, control valve, diverter valve, pump and heat pump materials. Other valves and pipe fittings and other fluid accessories selected high quality standards for all products. According to technical requirements of different users, the combination of different process design.

Certifications

(3)

Buyer Feedback

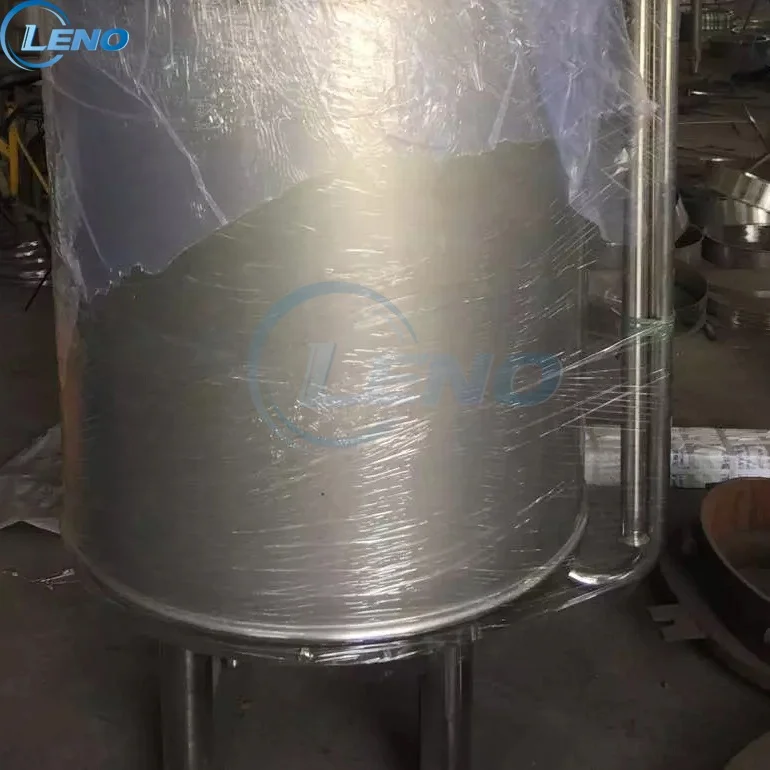

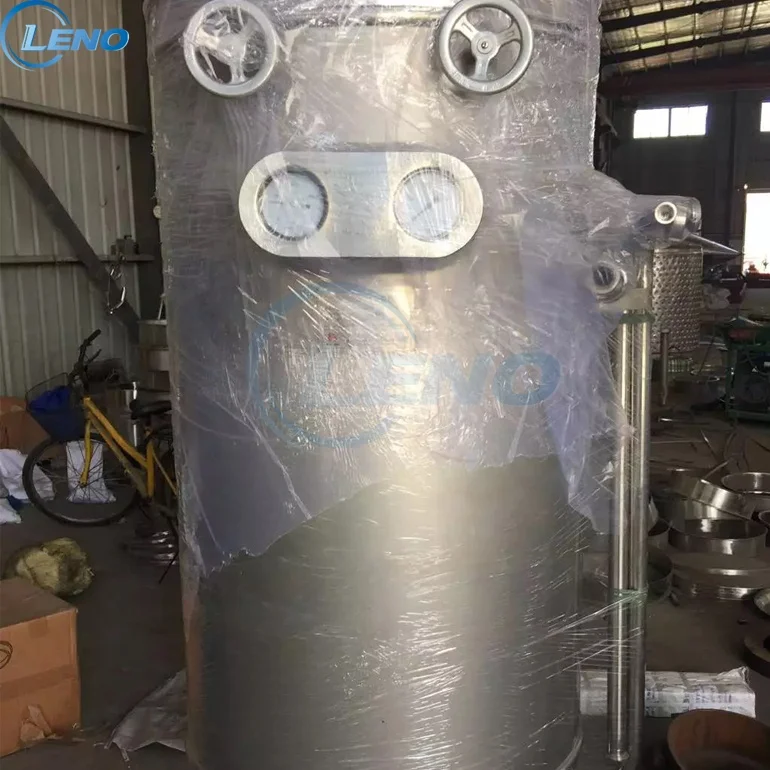

Packaging & Shipping

_20191125143826

FAQ

Q1	Are you trade or manufacturer?
A	We are a factory with an international sales company specialized in support for global distributors.
Q2	Can you provide instant technical consulting services?
A	We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days.
Q3	What's the difference between Ready-To-Ship and Customized products?
A	Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production.
Q4	What is the payment terms?
A	We accept Alibaba Trade Assurance Order, also can T/T and L/C.
Q5	How to choose the shipment way?
A	It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
Q6	How about the after-sales service?
A	Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.
