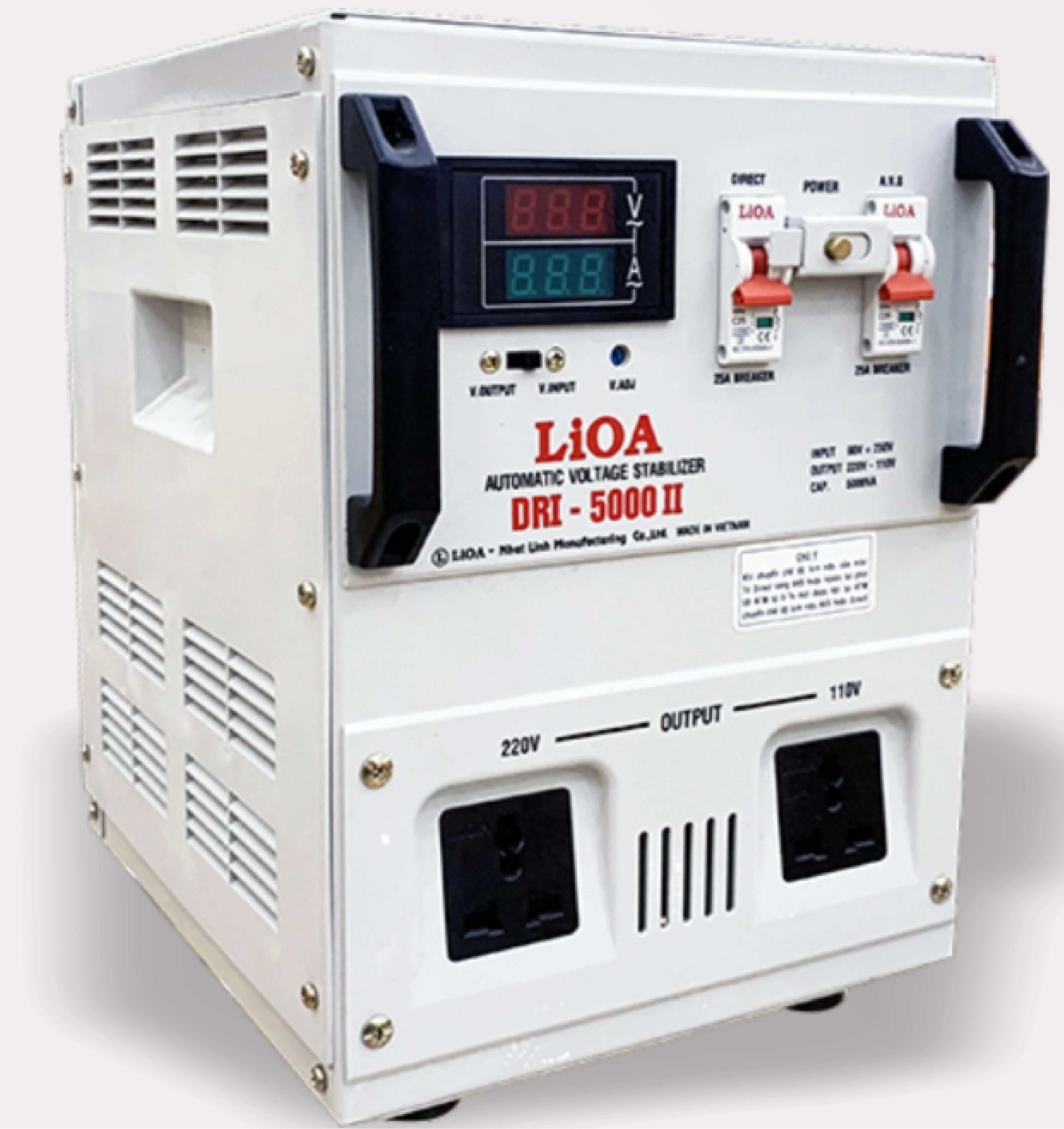

Code: DRII

FEATURES

Servo Motor regulating system ensures the continuous and stable power supply

Three times safety with 3 in 1 protection over voltage, over load, power on-off switch

Industrial Design

Quality is proven though out recent decades

Noiseless, Low power self-consumption, ensuring electrical equipment to run at right capacity in order to maximize the equipment usage, make it durable while saving power

Overload protection CB



PECIFICATIONS



Input Voltage	50V ~ 250V
Output Volatge	100V - 120V - 220V ± 1,5 ~ 2%
Frequency	49 ~ 62Hz
Response time for each 10% input voltage deviation	0,4s ÷ 1s 500VA - 10.000 VA	0,8s ÷ 2s 15.000VA - 50.000 VA
Ambient Temperature	-5°C ~ +40°C
Control System	DC Servo Motor
Design	Can be changed without prior notice
Insulation Resistance	More than 3MΩ at DC 500V
Dielectric Strength	Tested at AC 2000V for 1 minute



PRODUCT PORTFOLIO



Code	Description			Price
	Capacity (kVA)	Size (LxWxH) (mm)	Weight (kg)
DRII-2000	1	285 x 208 x 218	10.5
