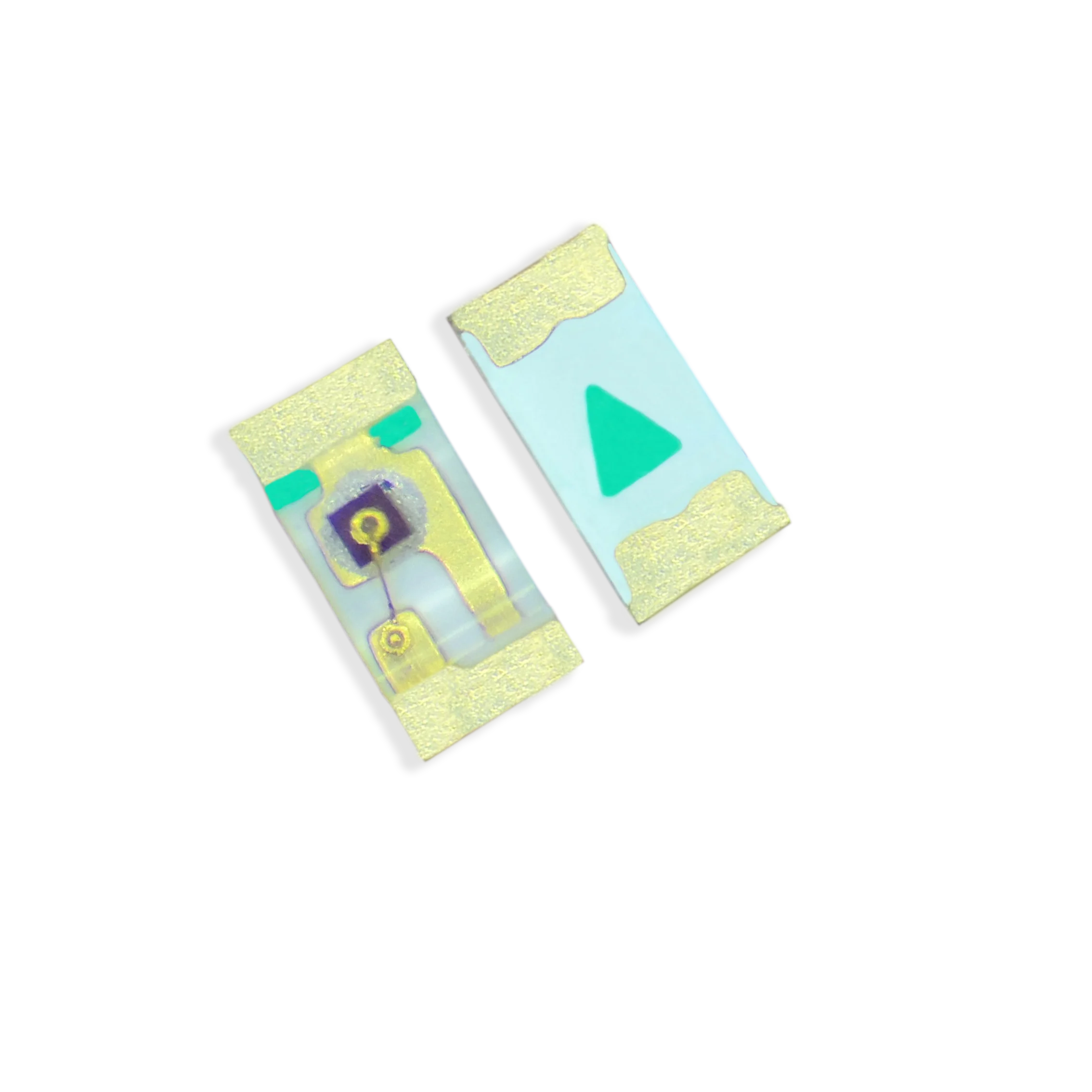

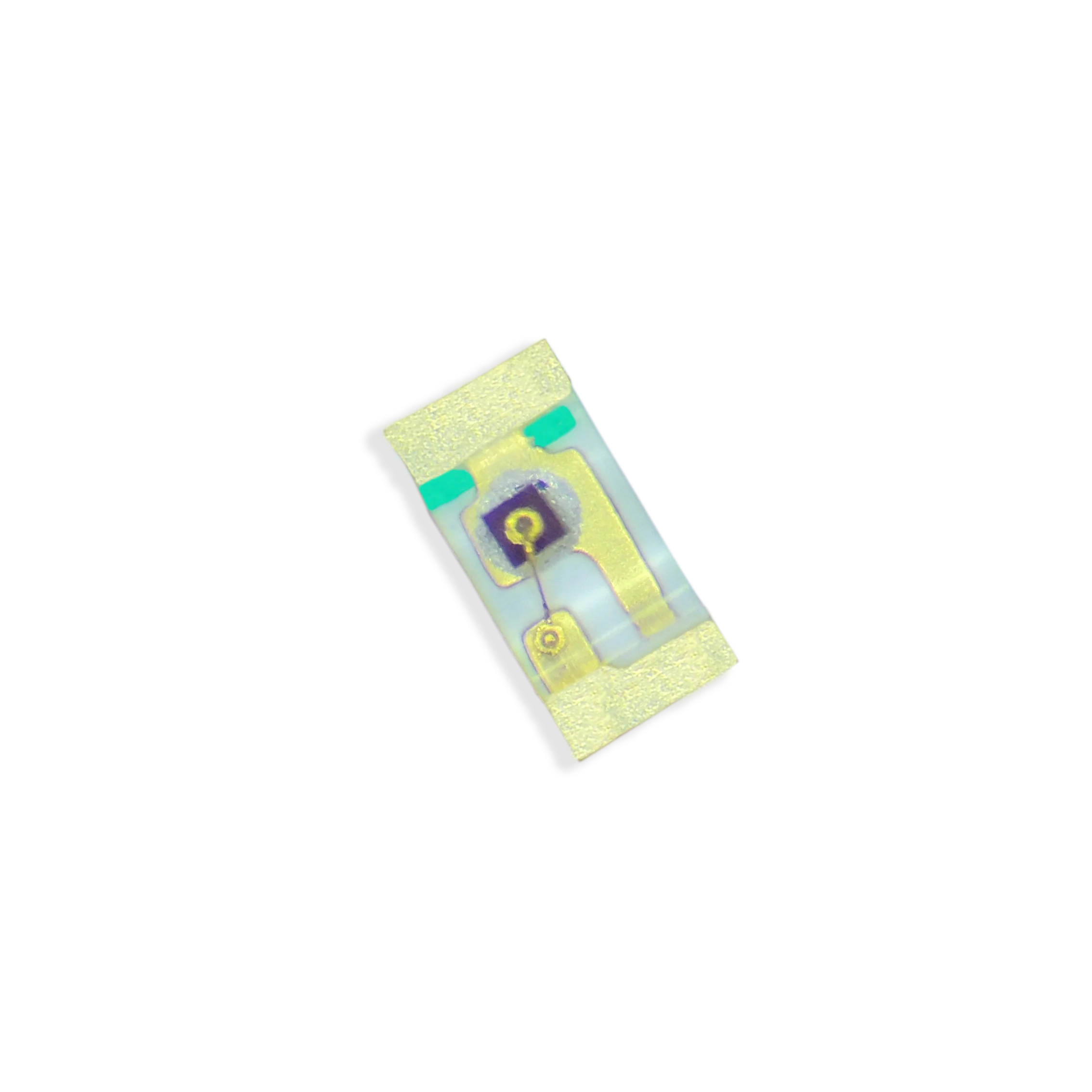

Чип 0805 1 чип серии высокой яркости T0.8mm типа SMD LED
US $0.02-$0.05
0402 светодиодов
- Категория: Светодиод SMD >>>
- Поставщик: Shenzhen,Xinminghong,Electronic,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.85 $* | 0.83 $* |
| Aug-17-2025 | 0.54 $* | 0.85 $* |
| Jul-17-2025 | 0.85 $* | 0.13 $* |
| Jun-17-2025 | 0.8 $* | 0.17 $* |
| May-17-2025 | 0.14 $* | 0.77 $* |
| Apr-17-2025 | 0.46 $* | 0.1 $* |
| Mar-17-2025 | 0.4 $* | 0.45 $* |
| Feb-17-2025 | 0.56 $* | 0.94 $* |
| Jan-17-2025 | 0.98 $* | 0.69 $* |
Характеристики
Product Category
Product Description
Outline dimension:
Feature:
1.0x0.5x0.4mmmm SMD LED
Avaliable color:red yellow blue green RGB etc.
Low power consumption
Wide view angle
Long lifespan

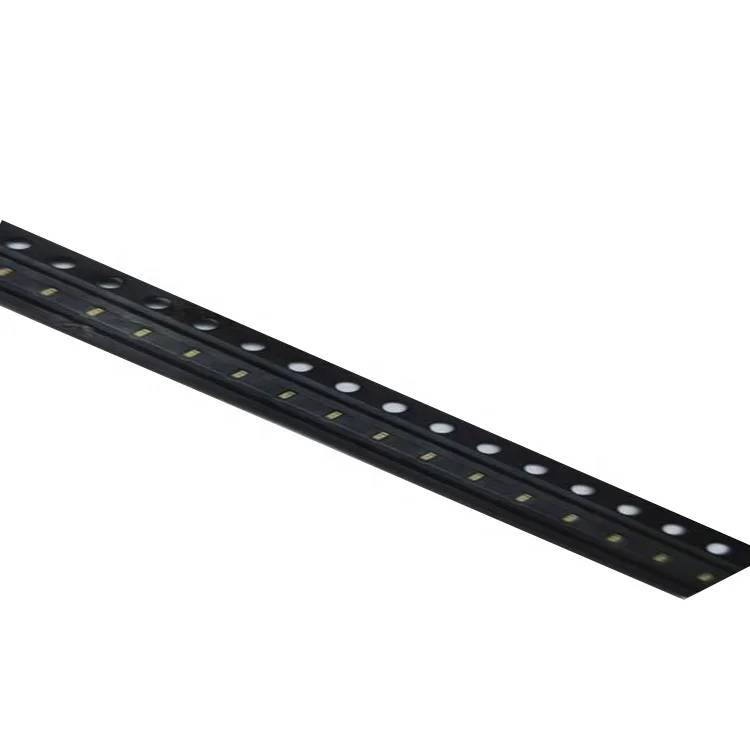

Package:3000pcs/reel
ROHS Compliant
Application:
Ideal for backlight and indicator
Various colors and lens types available
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | ||
| Min | Typ | Max | ||||
| Dominant wavelength | If=20mA | λd | 584 | --- | 594 | nm |
| Forward voltage | If=20mA | Vf | 1.8 | --- | 2.4 | v |
| Luminous intensity | If=20mA | Iv | 80 | --- | 200 | mcd |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | 140 | Deg | ||
| Resverse current | Vr=5v | Ir | 10 | mA | ||
Related Products
Certifications
Packaging & Shipping
PACKAGE:
0402 led smd Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
