Двойной капиллярный

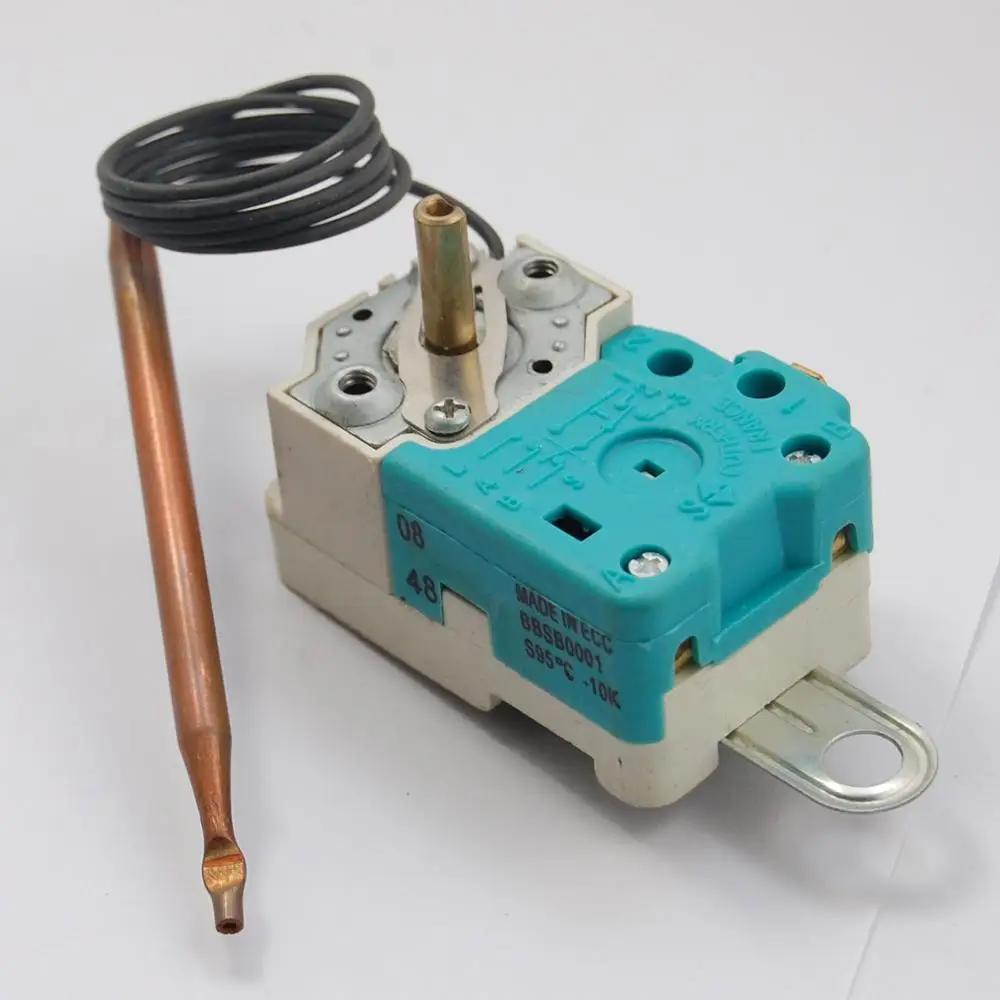

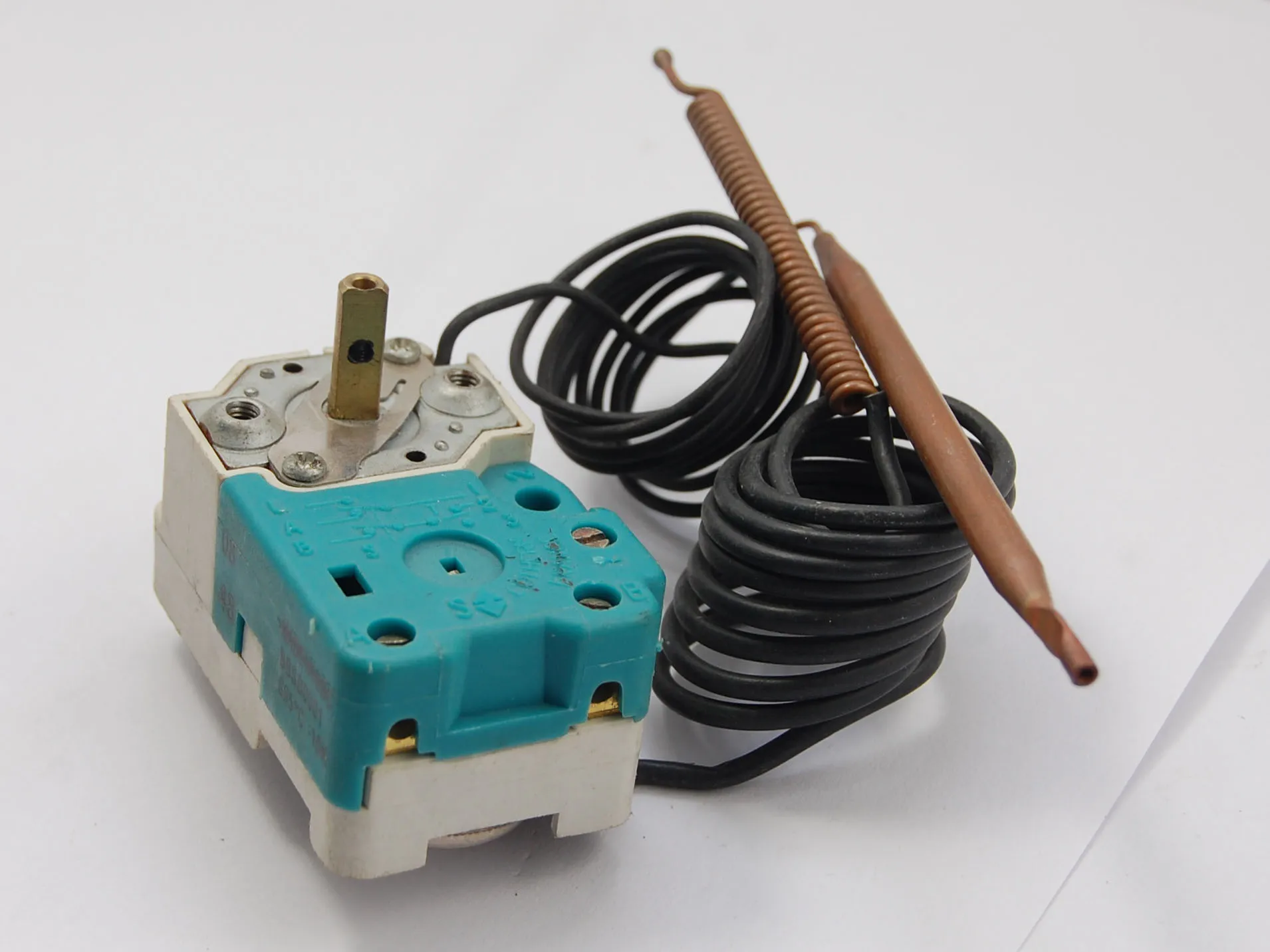

 Thermostat, WK series, utilizes the ceramic switch box, has the advantages of accurate temperature controlling, wide control range, great contact capacity, high reliabilities and thin thickness. It is suited for electric heater, electric boiler, drum washing machine, electric oven and so on, as electric-thermal control. It is also suited for room temperature control and refrigeration control.

1)Designed temperature range: 30°C ~ 380 °C

2)Capillary Length: 300-3000mm

3)On-off temperature difference: 2°C- 10°C

4)Rated at 16A/250V 50/60Hz

5)Max.heat resistance of the body: 150°C

6)Electric strength: 800v/s between two pin.

7)Electrical properties:insulation≥100MÙ(normal)

8)Control type: mechanical temperature controller

9)Operating life: ≥ 100,000times

10)Used for electric water heater, washer, electric oven, fried pan and refrigeration industryetc.

11)Manufactured on customers' request,we can do the drawing according to customers’ demand.

 100PCS/TCN

G.W:10KGS

Carton size: 37X32X21CM
