Соединитель предохранителя типа K 11 кВ из сплава с гибкой
- Категория: Предохранители >>>
- Поставщик: RongZhao,(Fuzhou),Imp,&,Exp,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.71 $* | 0.46 $* |
| Aug-16-2025 | 0.89 $* | 0.36 $* |
| Jul-16-2025 | 0.66 $* | 0.3 $* |
| Jun-16-2025 | 0.60 $* | 0.46 $* |
| May-16-2025 | 0.91 $* | 0.10 $* |
| Apr-16-2025 | 0.24 $* | 0.65 $* |
| Mar-16-2025 | 0.36 $* | 0.59 $* |
| Feb-16-2025 | 0.75 $* | 0.33 $* |
| Jan-16-2025 | 0.9 $* | 0.23 $* |
Характеристики

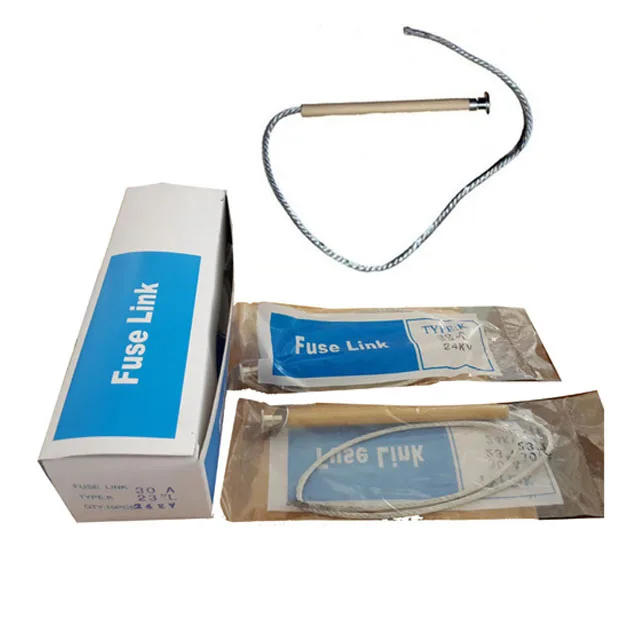

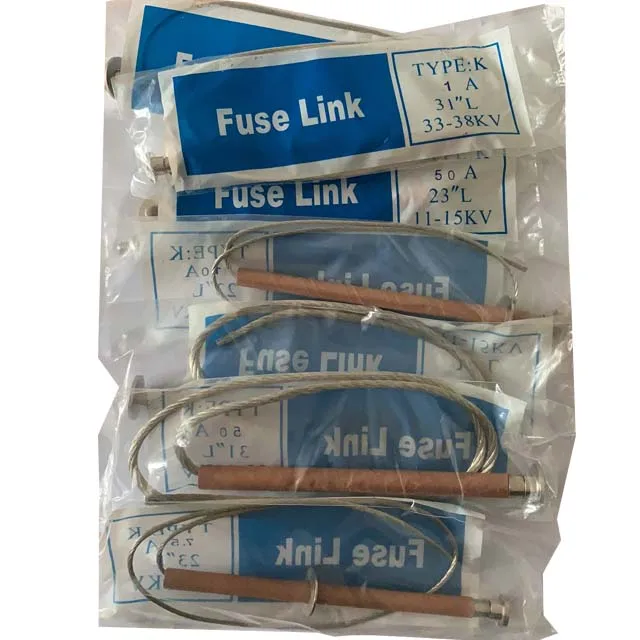

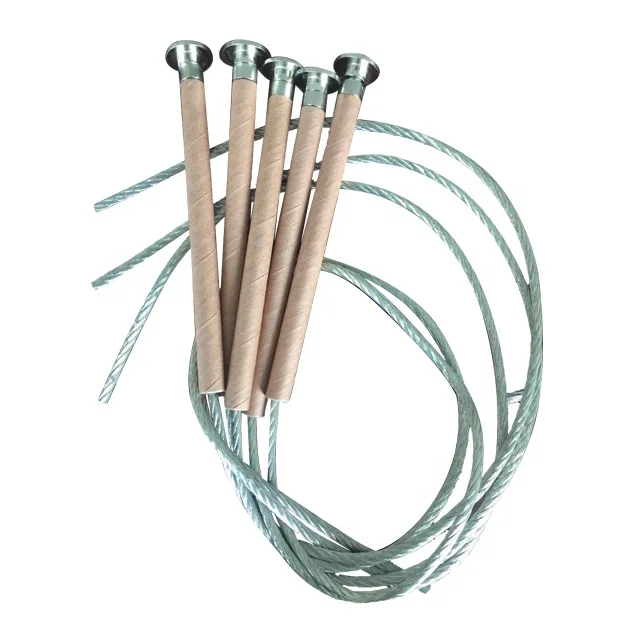

Alloyed K type 11KV fuse link with flexible button
Rated current (A) | Dimensions (mm) | |||
A | B | C | D | |
1-25 | 12.5±0.2 | 19.0 ± 0.2 | 12/24KV: 530-570 38KV: 780 | 2 |
30-80 | 12.5±0.2 | 19.0 ± 0.2 | 3 | |
90-175 | 19.0±0.3 | not applicable | 5 | |
200~300 | 19.0±0.3 | not applicable | 7 | |
Expulsion Fuse Link Specifications:
The Fuse Link are used for 11-38KV drop out fuse cutout.
The Fuse Element adopts accurately tested material, high purity silver, or silver-copper eutectic or nickle-chrome eutectic, based on different rated current. The fuse element wire is extruded by mold of high accuracy. The cross section is inspected by laser micrometer to ensure the accuracy, while careful assembly guarantees no crack, shrinkage or twist which affects the time-current accuracy.
