Импульсный источник питания dc 12v 5a камера видеонаблюдения
- Категория: Switching Power Supply >>>
- Поставщик: Guangzhou,Hedy,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 4.59 $* | 4.55 $* |
| Jul-18-2025 | 3.21 $* | 3.10 $* |
| Jun-18-2025 | 4.75 $* | 4.89 $* |
| May-18-2025 | 4.24 $* | 4.87 $* |
| Apr-18-2025 | 3.20 $* | 3.21 $* |
| Mar-18-2025 | 4.30 $* | 4.23 $* |
| Feb-18-2025 | 4.98 $* | 4.44 $* |
| Jan-18-2025 | 4.88 $* | 4.52 $* |
Характеристики
Welcome
Product Description

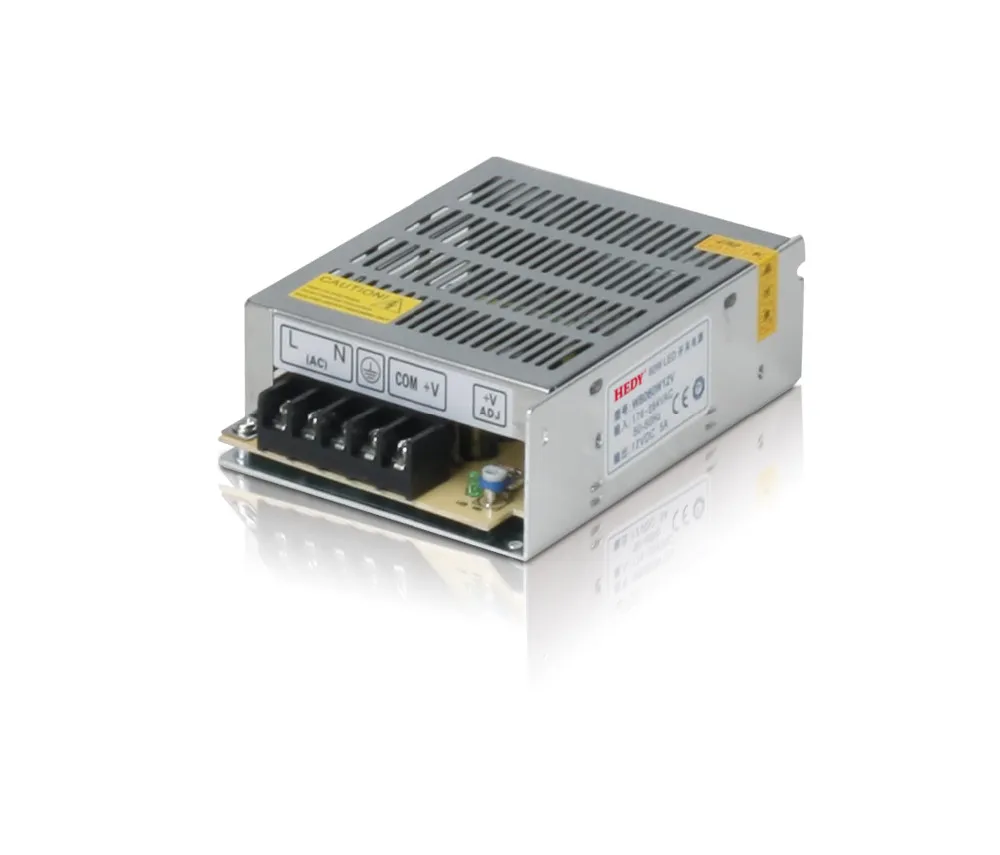

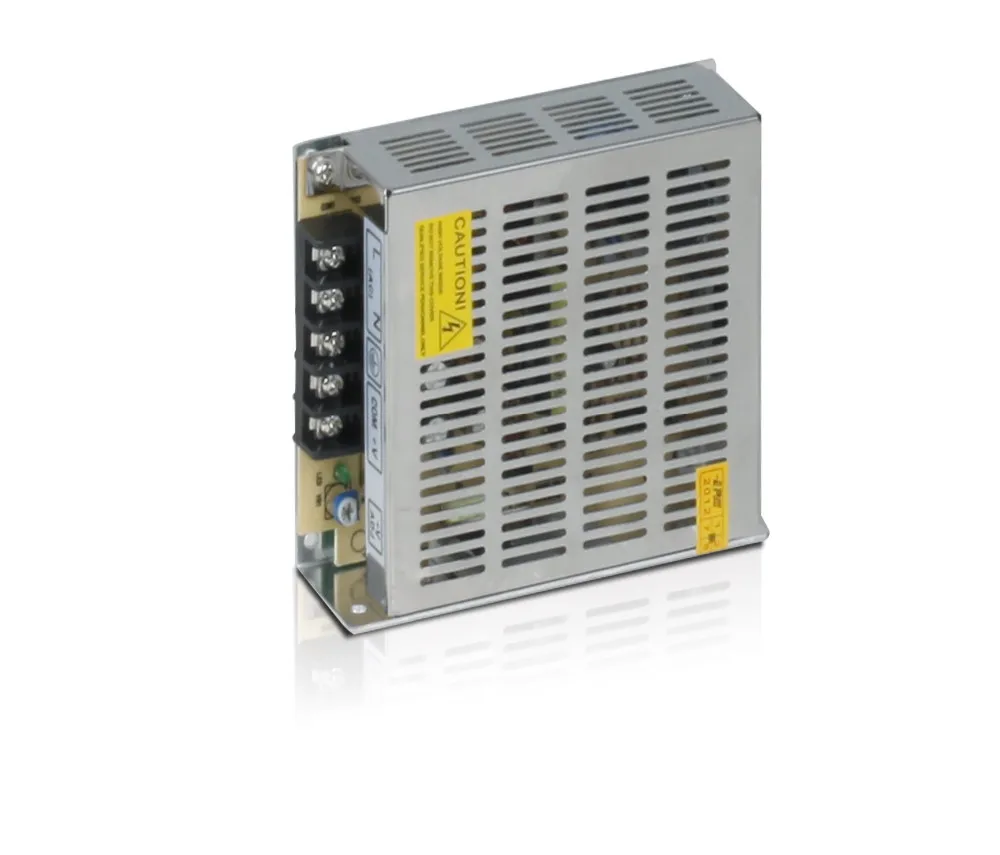

Switching power supply dc 12v 5a cctv camera PSU descriptions:
Product name: Switching power supply dc 12v 5a cctv camera PSU
Rated power: 100W
Output voltage: DC12V
Ripple & Noise (max.): 100mVp-p
Over load protection: 110~200% rated output power
Over current protection: 100~200% rated output current
Business type: Manufacturer/Factory
Switching power supply dc 12v 5a cctv camera PSU features:
v Protection: Short circuit/Overload /Over current
v Cooling by free air convection
v Bult-in constant current limiting circuit
v LED indicator for power on
v 100% full load bult-in test
Switching power supply dc 12v 5a cctv camera PSU applications:
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation
5.LED display, led strip, nixie tube, street light, lamp;
6. Building lighting decoration.
Switching power supply dc 12v 5a cctv camera PSU sheet:
100w led driver Series, include output 3.3v, 5v, 12v, 15v, 24v and 36v.
| Model | HB-100W-3.3V | HB-100W-5V | HB-100W-12V | HB-100W-15V | HB-100W-24V | HB-100W-36V | |
| Output | DC Voltage | 3.3V | 5V | 12V | 15V | 24V | 36V |
| Rated Current | 30A | 20A | 8A | 6.5A | 4A | 2.5A | |
| Current Range | 0~30A | 0~20A | 0~8A | 0~6.5A | 0~4A | 0~2.5A | |
| Rated Power | 99W | 100W | 96W | 97.5W | 96W | 90W | |
| Ripple & Noise (max.) | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 3.14~3.63V | 4.75~5.5V | 11.4~13.2V | 14.3~16.5V | 22.8~26.4V | 34.2~39.6V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| Load Regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Setup,Rise time | 600ms,30ms at full load | ||||||
| Hold Up Time(Typ.) | 13ms at full load | ||||||
| Input | Voltage Range | 90~132VAC/180~264VAC | |||||
| Frequency Range | 47~63HZ | ||||||
| Efficiency(Typ.) | 81% | 82% | 82% | 85% | 87% | 90% | |
| AC Current (Typ.) | 5A/115VAC 3A/230VAC | ||||||
| Inrush Current (Typ.) | 20A/115VAC 40A/230VAC | ||||||
| Leakage Current | <2mA / 240VAC | ||||||
| Protection | Over Load | 110~200% rated output power | |||||
| Protection type: Shut down O/P,recovers automatically | |||||||
| Over Current | 110~200% rated output current | ||||||
| Protection type: Shut down O/P,re-power on to recover | |||||||
| Short circuit | Protection type: Shut down O/P,recovers automatically after fault removed | ||||||
| Environment | Working Temperature | -20~+60°C | |||||
| Working Humidity | 20~90% RH Non-condensing | ||||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | ||||||
| Safety & EMC | Safety Standards | UL60950-1 standard | |||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||||||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | |||||
| Dimension | 159*97*39mm (L*W*H) | ||||||
| Packing | 0.36Kg; 48pcs/19.5Kg/1.85CUFT | ||||||
| Note | 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. | ||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor. | |||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||
| 4. Derating may be needed under low input voltages. | |||||||
Our Advantage:
v ODM: Design & Manufacturing based on your request
v OEM: can use your customized sticker, manual, inner box/color box, master carton
v After-Sales Service: Simple procedure for warranty; Flexible warranty machanism
v 22 years experience, provide stable quality and reasonable price
v Professional sales team, greatly enhance communication efficiency
FAQ:
v Q:Is sample free?
A: Yes, sample is free, but you should bear shipping freight by yourself
v Q:How many days does it take for sample?
A: Normally 1 days, but if no the sample you need in stock, then it takes arround 1 week to prepare sample.
v Q:What kind of certificate do you have for your product?
A: TUV MARK, GS, CB, EMC, LVD for power adapter & LED Driver;
UL for Variable Frequency Drive;
CE & RoHS for power supply.
v Q:What's the lead time for order?
A: 20-25 days
v Q:What's your payment term?
A: Normally, T/T: 30% advance before production, 70% balance before delivery;
For small amount, Western Union/Paypal/Moneygram are acceptable;
For order with large amount, Irrevocable L/C is acceptable.
v Q:What's MOQ?
A: Normally, our MOQ is 500pcs/model, but if we have the model you need in stock, then no MOQ, please contact with our sales for inventory status.
