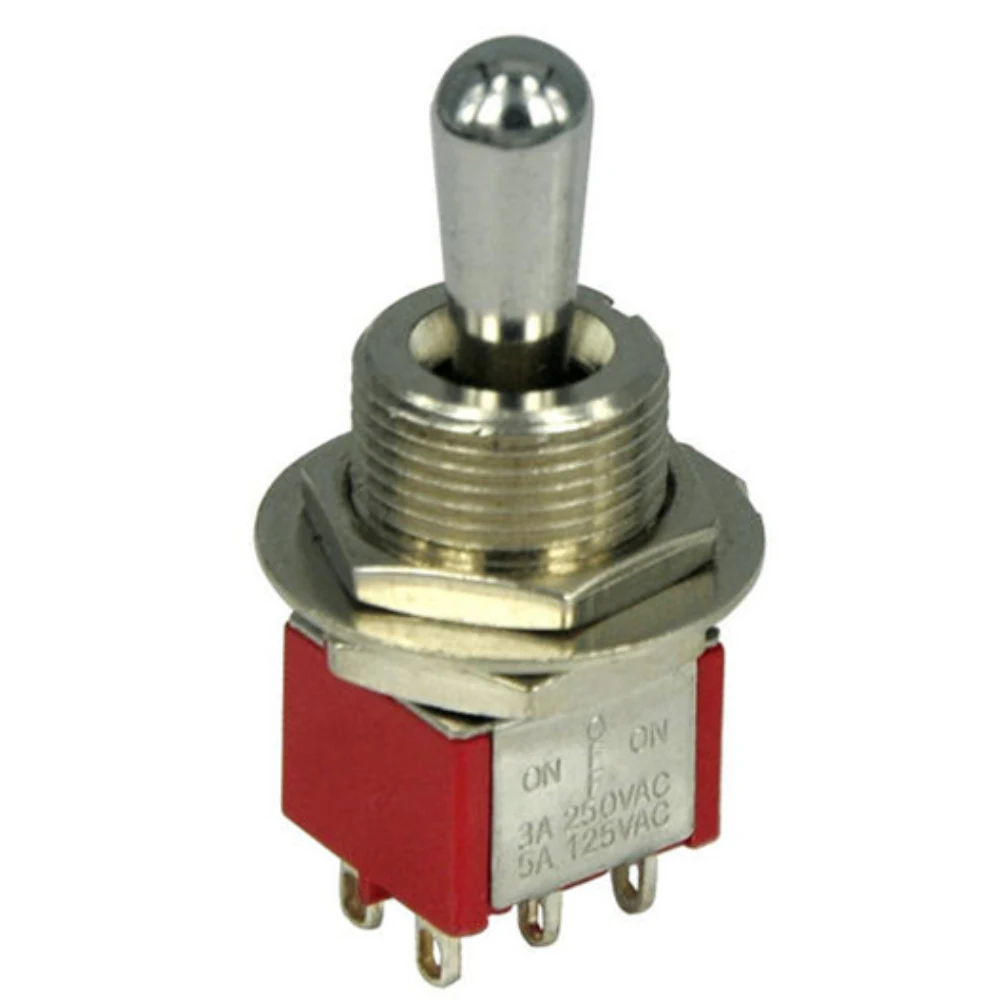

Медицинское оборудование переключатели 5A 125VAC ON-ON 6PIN DPDT
- Категория: Переключатели рычажные >>>
- Поставщик: Shenzhen,Hongju,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.89 $* | 0.87 $* |
| Aug-15-2025 | 0.14 $* | 0.18 $* |
| Jul-15-2025 | 0.63 $* | 0.99 $* |
| Jun-15-2025 | 0.99 $* | 0.57 $* |
| May-15-2025 | 0.75 $* | 0.92 $* |
| Apr-15-2025 | 0.8 $* | 0.30 $* |
| Mar-15-2025 | 0.10 $* | 0.75 $* |
| Feb-15-2025 | 0.49 $* | 0.98 $* |
| Jan-15-2025 | 0.48 $* | 0.81 $* |
Характеристики
Product Description
· Related products for Medical Equipment Toggle Switches,5A 125VAC ON-ON 6PIN DPDT Miniature Toggle Switches
· Product Specification for Medical Equipment Toggle Switches,5A 125VAC ON-ON 6PIN DPDT Miniature Toggle Switches
Features | Straight type |
Configuration | Up to 4 poles available |

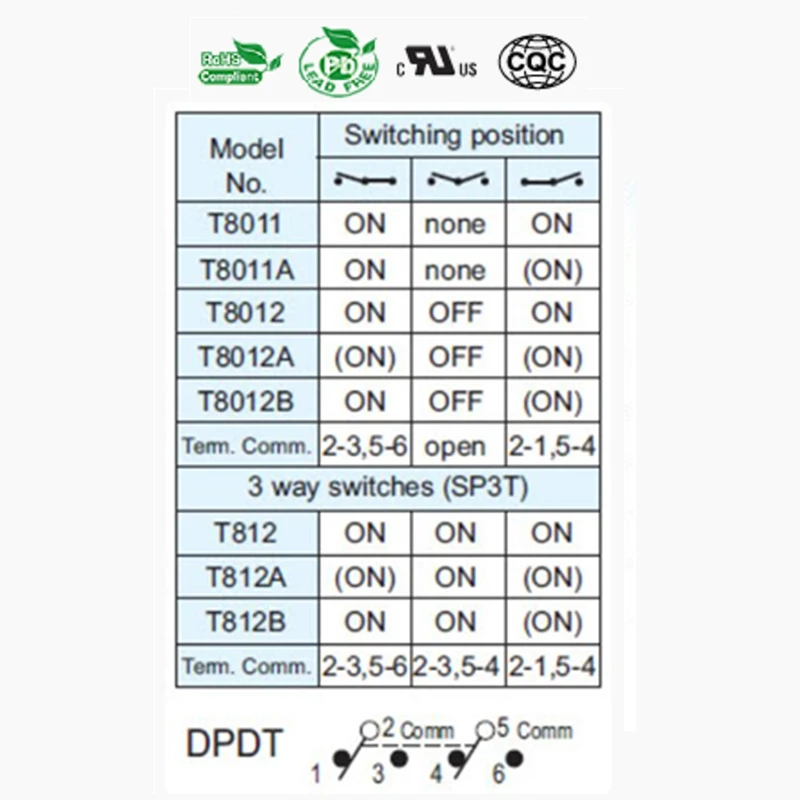

Function | On-On/On-Mom/On-Off-On, ect. |
Contact Rating | 5A @125 VAC or 28 VDC (Q contact) |
Electrical Life | 50,000 make & break cycles at full load |
Contact Resistance | 10 m Ω max. initial @2-4 VDC,100 mA |
Insulation Resistance | 1,000 M Ω min. |
Dielectric Strength | 1,500 V RMS @ sea level. |
Operating Temperature | -30°C to 85°C |
CASE Materials | Diallyl Phthalate ( DAP ) |
HANDLE Materials | Copper alloy, chrome plated |
BUSHING Materials | Copper alloy, nickel plated |
HOUSING Materials | Stainless Steel |
TERMINAL Materials | copper alloy/silver-plated/ gold-plated |
Terminal Option | Solder Lug/Printed Circuit, ect. |
Terminal Seal | None/Epoxy Seal |
* A toggle switch is actuated by a moving a lever back and forth to open or close an electrical circuit. Toggle switches offer a variety of switching functions - SPDT, SPST, DPDT, DPST and multiple actuator and bushing options. Our toggle switches also come in different sizes, from miniature PCB mount up to power rated panel mounted switches.
* The T80-T Series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount. These toggle switches offer up to 4 poles. They are PCB mounted and are available in through whole or right angle termination. NOW available with a locking toggle!
* Applications include telecommunications, instrumentation, networking and medical equipment.
· The Hardware of T80-T series mini Toggle switch
· Terminal Option for T80-T series mini Toggle switch
· Actuator Option for T80-T series mini Toggle switch
· Bushing Option for T80-T series mini Toggle switch
