Датчик давления DANFOSS KP KPI 060-001366 44 поставщик европейского стандарта все модели в наличии оригинал готовый к
- Категория: Детали для охлаждения и теплообмена >>>
- Поставщик: Wigmors,Wincenty,Szerszen
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 10428.38 $* | 10637.31 $* |
| Jul-19-2025 | 8457.73 $* | 8626.66 $* |
| Jun-19-2025 | 10264.68 $* | 10469.79 $* |
| May-19-2025 | 10182.35 $* | 10386.44 $* |
| Apr-19-2025 | 8129.80 $* | 8292.16 $* |
| Mar-19-2025 | 10017.85 $* | 10217.10 $* |
| Feb-19-2025 | 9935.74 $* | 10134.16 $* |
| Jan-19-2025 | 9853.40 $* | 10050.56 $* |
Характеристики

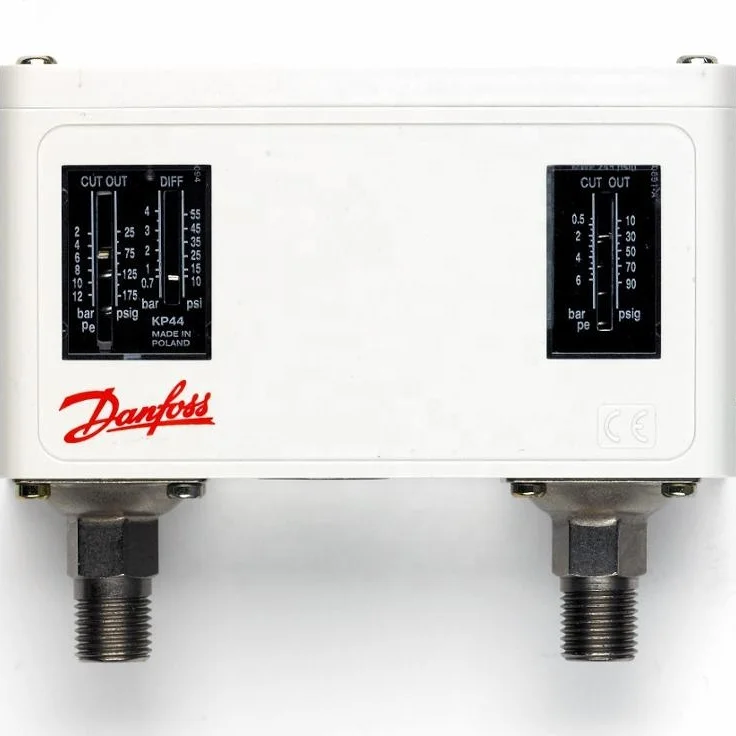

Pressure switch, KP44
060-001366
(more models below)
![0 (1).png]()
![0 (2).png]()
![0 (3).png]()
![0 (4).png]()
![0 (5).png]()
![0 (6).png]()
![0 (7).png]()
![0 (8).png]()
![0 (9).png]()
![0 (10).png]()
![0 (11).png]()
![0 (12).png]()
![0 (13).png]()
![0 (14).png]()
| ross weight | 0.57 kg |
| Net weight | 0.52 kg |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC CE EAC LVD PZH RINA RMRS RoHS China c UL us UL873, CS C22.2 CMIM |
| Contact function | SPST(NO)+SPST(NC) |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Differential left side [bar] [Max] | 4 bar |
| Differential left side [bar] [Min] | 0.7 bar |
| Differential left side [psi] [Max] | 58 psi |
| Differential left side [psi] [Min] | 10 psi |
| Differential right side [bar] | 1 bar |
| Differential right side [psi] | 14.5 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP22 |
| Enclosure rating Nema (~) | 2 |
| Max.test press.left side[bar] | 25 bar |
| Max.test press.right side[bar] | 19 bar |
| MWP left side [bar] Pe | 17 bar |
| MWP left side [psig] Pe | 245 psig |
| MWP right side [bar] Pe | 17 bar |
| MWP right side [psig] Pe | 245 psig |
MORE MODELS In stock :
| 060-001366 | Pressure switch KP 44 |
| 060-216466 | Pressure switch KP34 |
| 060-216366 | Pressure switch KP34 |
| 060-113366 | Pressure switch KP35 |
| 060-216666 | Pressure switch KP35 |
| 060-216566 | Pressure switch KP35 |
| 060-500066 | Pressure switch KP35 |
| 060-504766 | Pressure switch KP35 |
| 060-601666 | Pressure switch KP35 |
| 060-538666 | Pressure switch KP35, IP 55, transparent housing |
| 060-450366 | Pressure switch KP35, stainless steel, IP 55, light grey housing |
| 060-122166 | Pressure switch KP36 |
| 060-113766 | Pressure switch KP36 |
| 060-114466 | Pressure switch KP36 |
| 060-215966 | Pressure switch KP36 |
| 060-216066 | Pressure switch KP36 |
| 060-110866 | Pressure switch KP36 |
| 060-500166 | Pressure switch KP36 |
| 060-538766 | Pressure switch KP36, IP 55, transparent housing |
| 060-450166 | Pressure switch KP36, stainless steel, IP 55, light grey housing |
| 060-216166 | Pressure switch KP37 |
| 060-216266 | Pressure switch KP37 |
| 060-130266 | Pressure switch KPI34 |
| 060-121766 | Pressure switch KPI35 |
| 060-121966 | Pressure switch KPI35 |
| 060-316466 | Pressure switch KPI35 |
| 060-500266 | Pressure switch KPI35 |
| 060-315766 | Pressure switch KPI35, IP 55, transparent housing |
| 060-113866 | Pressure switch KPI36 |
| 060-118966 | Pressure switch KPI36 |
| 060-316966 | Pressure switch KPI36 |
| 060-500366 | Pressure switch KPI36 |
| 060-319566 | Pressure switch KPI36 |
| 060-319366 | Pressure switch KPI36, IP 55, |
| 060-508166 | Pressure switch KPI38 |
| 060-541866 | Pressure switch KPI38, IP 55, transparent housing |
| 060-310966 | Pressure switch KPS31 |
| 060-311066 | Pressure switch KPS31 |
| 060-310366 | Pressure switch KPS33 |
| 060-310466 | Pressure switch KPS33 |
| 060-311766 | Pressure switch KPS33 |
| 060-310066 | Pressure switch KPS35 |
| 060-310566 | Pressure switch KPS35 |
| 060-310866 | Pressure switch KPS35 |
| 060-310166 | Pressure switch KPS37 |
| 060-310666 | Pressure switch KPS37 |
| 060-318866 | Pressure switch KPS37 |
| 060-310266 | Pressure switch KPS39 |
| 060-310766 | Pressure switch KPS39 |
| 060-319266 | Pressure switch KPS39 |
| 060-312066 | Pressure switch KPS43 |
| 060-312166 | Pressure switch KPS45 |
| 060-312266 | Pressure switch KPS47 |
