Характеристики
Product Description

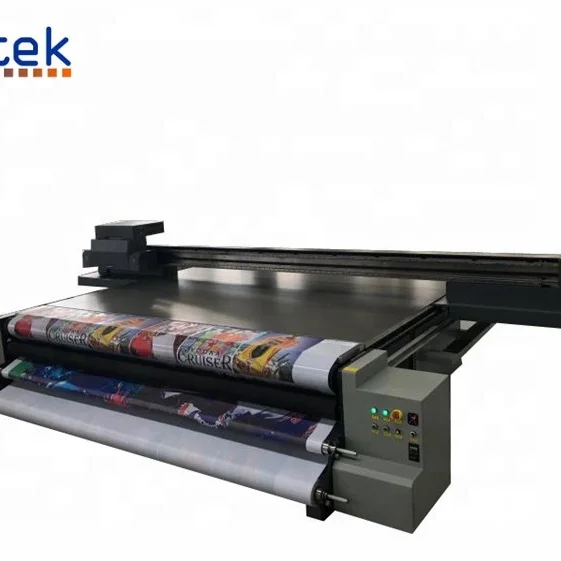

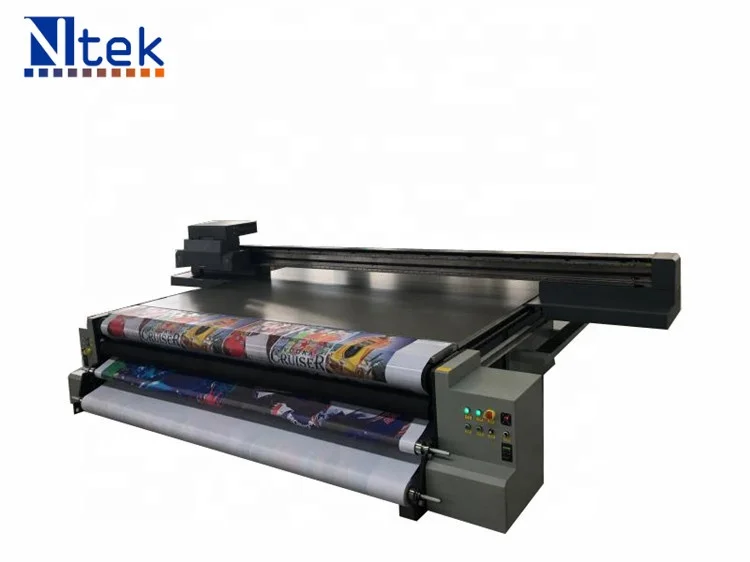

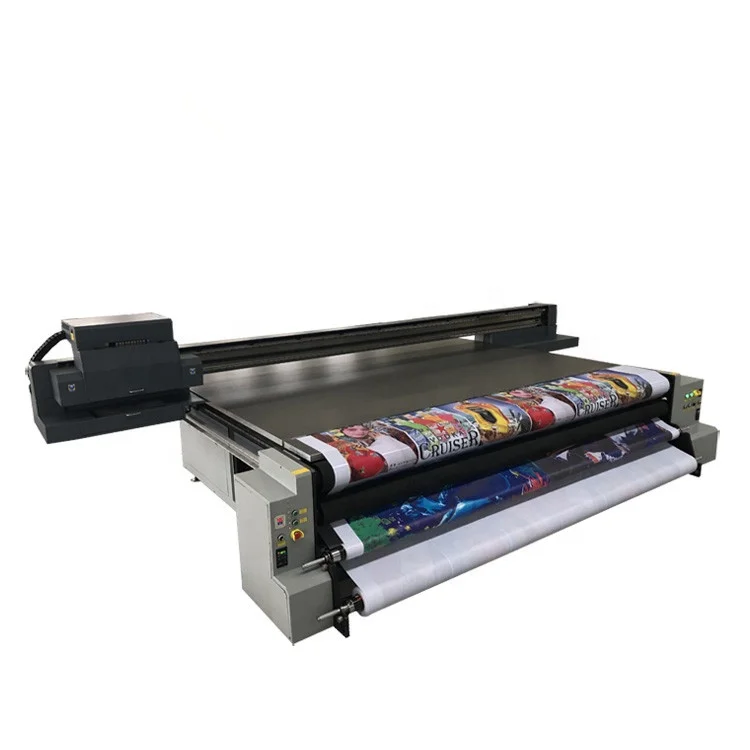

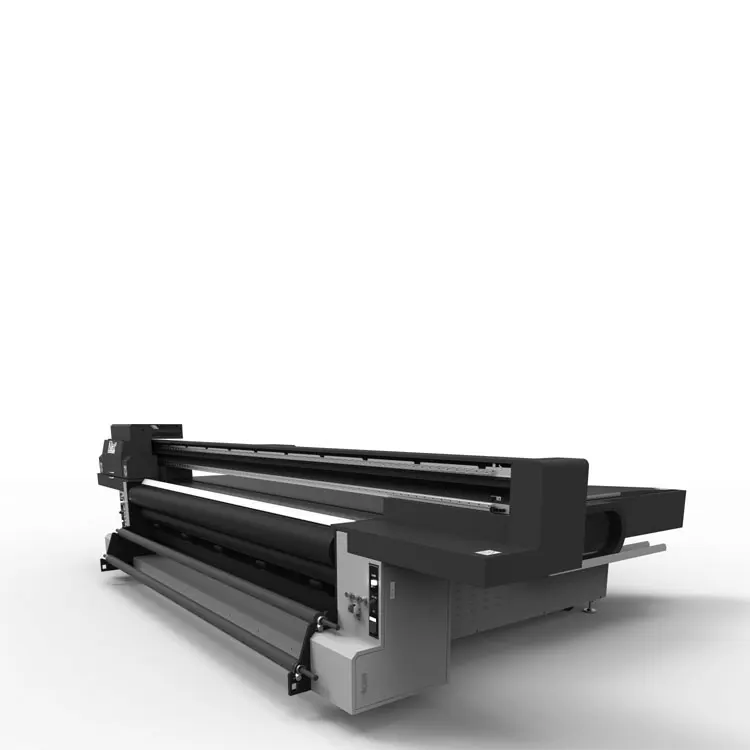

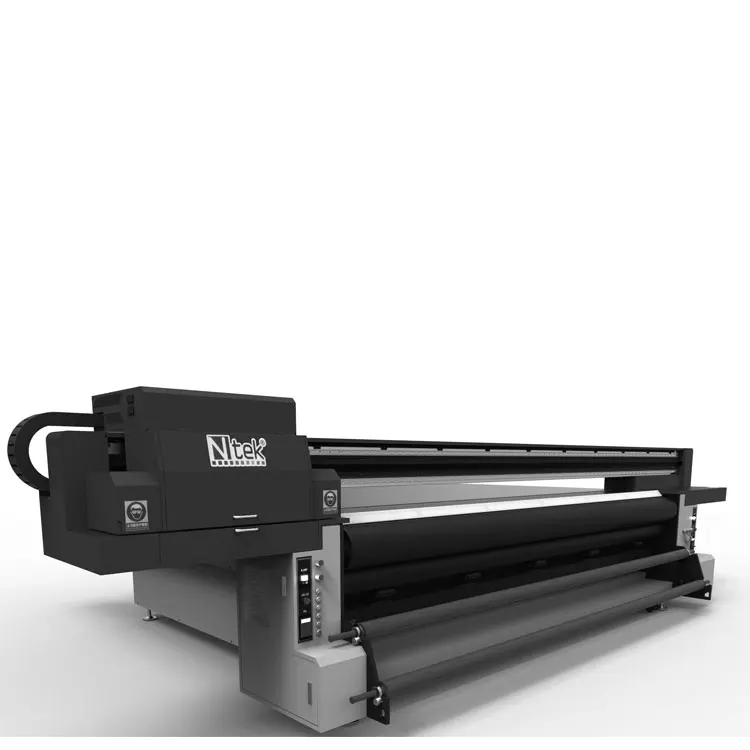

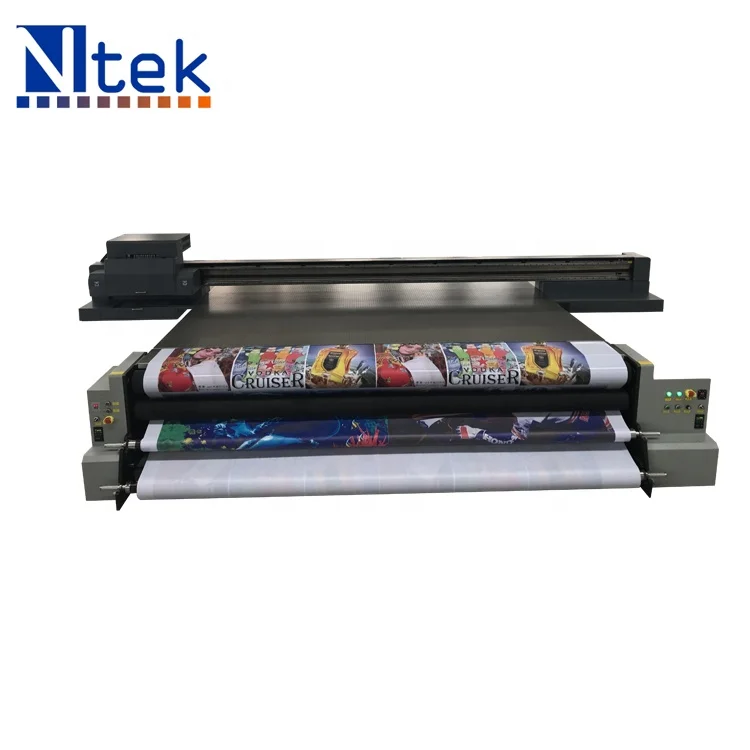

Ntek 2.5m UV Hybrid Flatbed Printer YC2513R
UV flatbed printer is widly used to print on glass, ceramic tile, PVC, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, corrugated cardboard, banner flex, canvas, mesh paper, sticker, wallcoverings, etc; and for flexible materials such as PVC, canvas, leather etc. UV flatbed printer is applied in decoration industry, glass industry, advertising&signs industry, leather, furniture and ceramic industry etc.
Product Specification
Product Name & Model | UV Hybrid Printer YC2513R |
Printhead Technology | Drop-on demand piezo eletric |
Printhead Control | Printhead voltage is software adjustable |
Printhead Type | RICOH GEN5/ SEIKO 1024GS/ KONICA 1024I |
Printhead Number | 2-16 |
Ink Characteristics | UV Curing Ink |
Ink Reservoirs | Refillable on the fly while printing/2500ml per color |
LED UV Lamp | More than 20000-hours life |
Color Control | ICC based color, curves and density adjustment |
Printhead Arrangement | C M Y K LC LM W varnish optional 15sqm/h-80sqm/h |
Printhead Cleaning System | Automatic Cleaning System, Automatic Dry-preventing System |
Guide Rail | Taiwan HIWIN |
Working Table | Vacuum Sucking |
Printing Size | 2500*1300mm |
Print Interface | USB2.0 |
Media Thickness | 0-100mm, higher can be customized |
Print Resolution | 300*900dpi, 600*600dpi, 600*900dpi, 600*1200dpi |
Life of Printed Image | 3 years (outdoor),10years (indoor) |
File Format | TIFF, JPEG, Postscript, EPS, PDF etc. |
RIP Software | UltraPrint/ Photoprint |
Power Supply | 220V 50/ 60Hz (10%) |
Power | 1100W |
Operation Environment | Temperature 20 to 30℃,Humidity40% to 60% |
Weight | 1500kg |
Warranty | 13 months exclude the consumables |
Details Images
Printhead type
Japanese imported Ricoh Gen5, Seiko 1024GS or Toshiba CE4 Printhead optional, suit for different printing resolution and printing speed need
Hard Anodized Vacuuming Platform
Applied brand hard anodized vacuuming platform, it is applied to prevent scratches by hard materials, avoid damaging the platform by rigid materials.
High quality rubber rollers
Adopting high quality rubber roller to print at the same time, which guarantee the material not wrinkled and off-track, realize the quantitative production
The printer automatically measure with senses distance nozzle and media, which eliminate the procedure that we measure thickness by ourselves.
Automatic anti-static design to avoid dusk ink drops flying, which reduce the ink over spray caused by static, improve the print quality on some substrate.
The safety anti-crash sensor can detect the media circumstance beforehand and protect the print heads from a crush hazard. After that, you can resume printer, which will help you save media.
Printing Samples
Company Profile
Linyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong Province, China. is a high-tech machinery
manufacturer, integrated with the R&D, production, sales and maintenance in a whole. We mainly manufacture large
format UV flatbed printers and OEM service is available.
We have 10 years experience in producing and exporting UV flatbed printers. With high quality printers and perfect
We have 10 years experience in producing and exporting UV flatbed printers. With high quality printers and perfect
service, our printers are welcome in Europe and Middle east and American market.
The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber
board etc; and for flexible materials such as PVC, canvas, leather etc. UV flatbed printer is applied in decoration
industry, glass industry,advertising&signs industry, leather, furniture and ceramic industry etc. All our printers are with
CE certificate.
We endeavor to serve the needs of all people, especially to the customers and agents. By continually developing
We endeavor to serve the needs of all people, especially to the customers and agents. By continually developing
innovative technologies centering on the fields of printing machines, we strive to create high-quality products and
perfect services to improve people's life.
Our Team & Exhibition
FAQ
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4.How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer
has to be responsible for the accommodation and transportation costs of the technical staff.
5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,
driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand
the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can
contact our technician or me directly.
8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like
TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4.How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer
has to be responsible for the accommodation and transportation costs of the technical staff.
5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,
driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand
the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can
contact our technician or me directly.
8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like
TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
