Blown Film Production Line
Высокоскоростной роторный станок с двойной намоточной головкой для экструдера HDPE LDPE CaCO

Высокоскоростной роторный станок с двойной намоточной головкой для экструдера HDPE LDPE CaCO

Категория: Blown Film Production Line >>>
Поставщик: Wenzhou,Ruixin,Plastic,Machinery,Trading,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.22 $*	0.90 $*
Aug-17-2025	0.1 $*	0.86 $*
Jul-17-2025	0.26 $*	0.69 $*
Jun-17-2025	0.33 $*	0.81 $*
May-17-2025	0.53 $*	0.89 $*
Apr-17-2025	0.12 $*	0.68 $*
Mar-17-2025	0.58 $*	0.22 $*
Feb-17-2025	0.68 $*	0.76 $*
Jan-17-2025	0.47 $*	0.4 $*

Характеристики

Product Description

1.The ABA Extruder film Machine is Suitable for blowing low density polyethylene (LDPE) high density polyethylene (HDPE) linear low density polyethylene (LLDPE) and biodegradable Corn Starch, widely used in food, clothing, garbage bags, vest bags and other civilian and industrial packaging.

2.The barrel and screw of the extruder are made of high-quality alloy steel, compacted and precision processed, with the best hardness and corrosion resistance. The specially designed screw has high output and good plasticization.

3.Winder power adopts torque motor, which can maintain proper tension, and the winding is neat and easy to change rolls.

\t Model	\t RSJ-50x2-700	\t RSJ-55x2-900	\t RSJ-60x2-1100
\t Roller Width(mm)	\t 700	\t 900	\t 1100
\t Max.Layflat Width(mm)	\t 600	\t 800	\t 1000
\t Thickness(mm)	\t 0.005-0.08	\t 0.005-0.08	\t 0.005-0.08
\t Max.Output(kg/h)	\t 50-60	\t 70-80	\t 80-100
\t Raw Material	\t HDPE LDPE LLDPE MLLDPE /Biodegradable Material
\t Screw Diameter	\t 50mm*2sets	\t 55mm*2 sets	\t 60mm *2 sets
\t Screw Material	\t SACM-645 /38CrMoAlA Polished with Nitrided Treatment
\t Screw L/D	\t 30:1	\t 30:1	\t 30:1
\t Main Power(kw)	\t 11*2sets	\t 15*2 sets	\t 18.5*2sets
\t Air Blower (Kw)	\t 1.5	\t 1.5	\t 2.2
\t Compressor (kw)	\t 1.5	\t 1.5	\t 2.2
\t Take-off speed	\t 10-80m/min	\t 10-80m/min	\t 10-80m/min
\t Take-off Motor(Kw)	\t 1.5	\t 1.5	\t 2.2
\t Total Power(kw)	\t ≈22	\t ≈26	\t ≈35
\t Overall Dimensions(L×W×H)M	\t 3.2×2.5×4.5	\t 4.2×3×5	\t 4.8×3.8×6
\t Weight(T)	\t ≈2.5	\t ≈3	\t ≈4.5

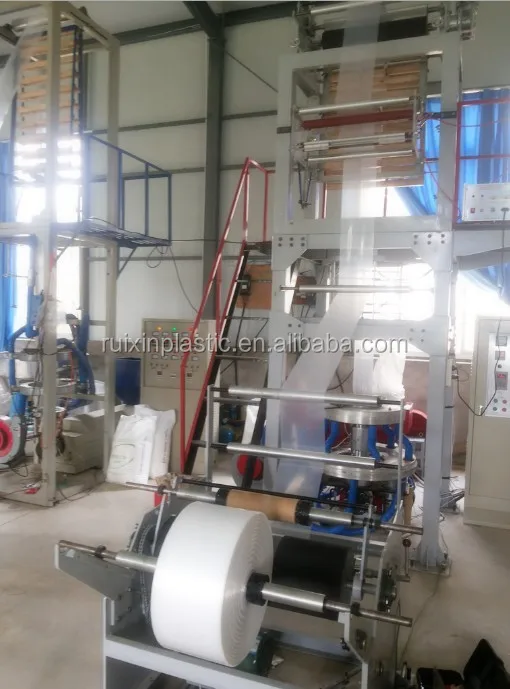

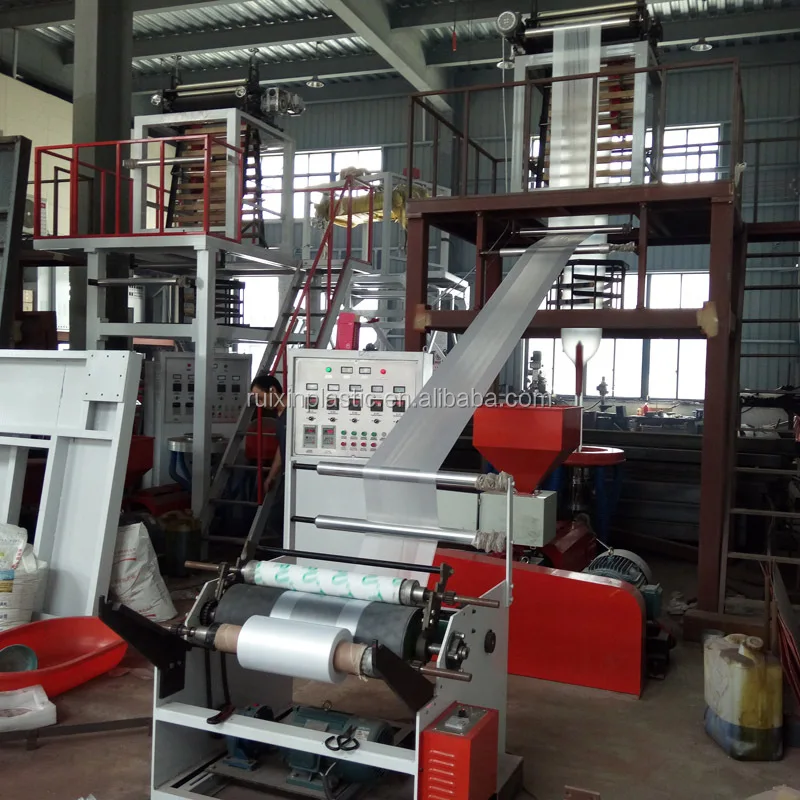

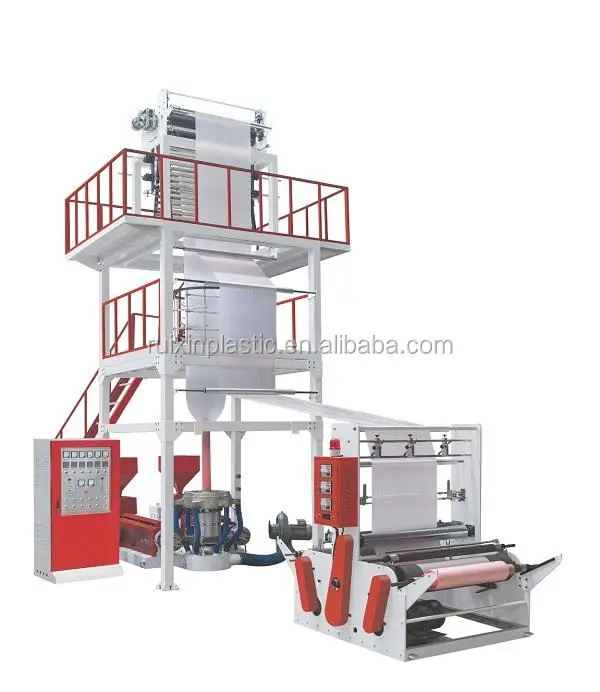

Products Show

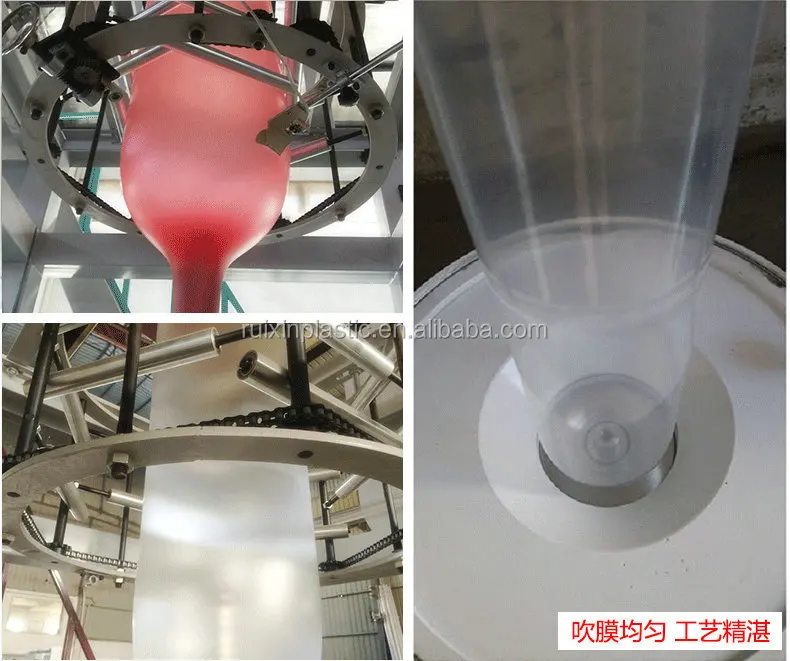

Detaied Pictures

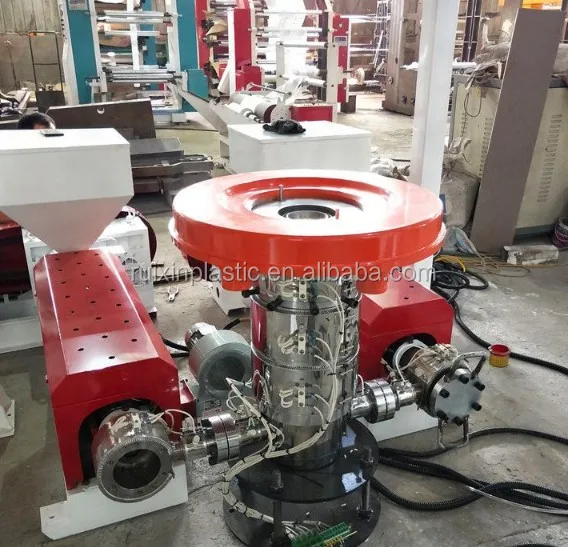

The internal flow path of the die and the external hard chrome plating increase the wear resistance and corrosion resistance of the die and then polish it,

Take-Off Adopt Inverter to adjust speed to keep stable ,Pneumatic cylinder to press the roll to confirm more tighten avoid worker injured.

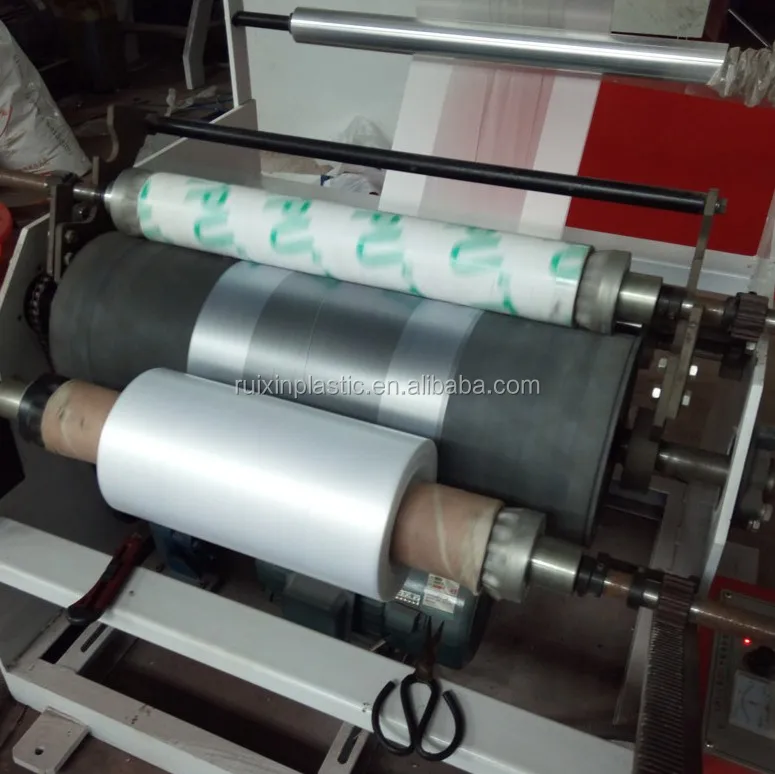

Winder Adopt Torque Motor to adjust the tension to keep film Smooth without wrinkles
