Гидравлический металлообработчик с функциями отверстий при
- Категория: Электро-гидравлический гибочный пресс >>>
- Поставщик: Shanghai,Huantu,Technical,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.17 $* | 0.43 $* |
| Aug-16-2025 | 0.35 $* | 0.69 $* |
| Jul-16-2025 | 0.51 $* | 0.37 $* |
| Jun-16-2025 | 0.0 $* | 0.25 $* |
| May-16-2025 | 0.64 $* | 0.86 $* |
| Apr-16-2025 | 0.61 $* | 0.94 $* |
| Mar-16-2025 | 0.53 $* | 0.94 $* |
| Feb-16-2025 | 0.98 $* | 0.92 $* |
| Jan-16-2025 | 0.55 $* | 0.55 $* |
Характеристики

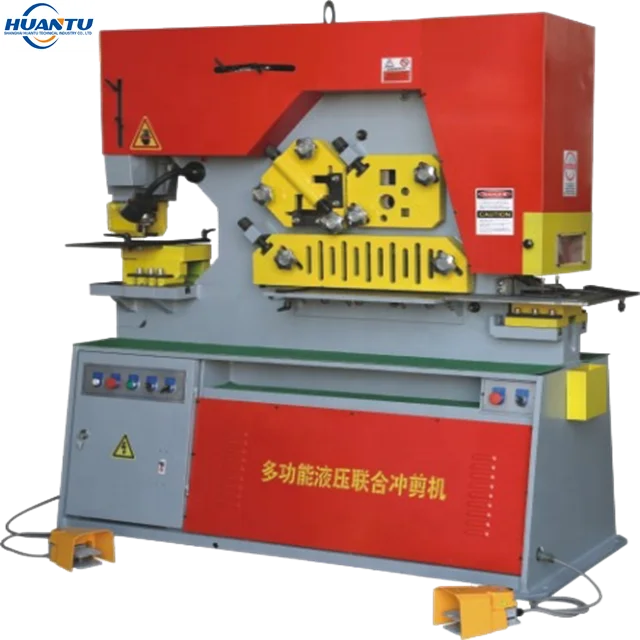

Q35Y Hydraulic Iron Worker , CE Steel Worker , Hydraulic Ironworker
Product Overviews
1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4. 2 independent hydraulic cylinders
5. 2 shielded foot controls
6. 2 Separate Die Openings for oversized punching
7. 5 working stations for wide applications
8. power inching on all 5 work stations
9. plate shear support table and notching table
10. adjustable stroke controls with indicators on both cylinders
11. punching machine: Movable work light
12. overload protection on hydraulic system
13. electric back gauge
14. optional bending attachment
Technology Parameter
Model | Q35Y-16 ( IW-60 ) | Q35Y-20 ( IW-90) | Q35Y-25 (IW-110) | Q35Y-30 ( IW-140) |
Working pressure(KN) | 600 | 900 | 1100 | 1400 |
Maxcutting thickness(mm) | 16 | 20 | 25 | 26 |
Maxcutting length(mm) | 400 | 480 | 600 | 600 |
Tensile strength of sheet metal (N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 |
Shear angle(deg) | 7 | 8 | 8 | 8 |
Stroke of ram(mm) | 80 | 80 | 80 | 80 |
stroke times(min) | 8 | 8 | 8 | 8 |
Depth of throat(mm) | 300 | 355 | 400 | 600 |
Max Capacities(mm) | 25×16 | 30×20 | 35×25 | 38×28 |
Main motor(KW) | 4 | 5.5 | 7.5 | 11 |
Length of tool(mm) | 1650 | 1950 | 2355 | 2680 |
Width of tool(mm) | 800 | 900 | 980 | 1060 |
Height of tool(mm) | 1780 | 1930 | 2100 | 2350 |
Weight of tool(kg) | 1900 | 2600 | 4800 | 6800 |
PUNCHING METRIC(mm) | ||||
Max Capacities | 25×16 | 30×20 | 35×25 | 38×26 |
Max Stroke Length | 80 | 80 | 80 | 80 |
Throat Depth Standard | 305 | 355 | 400 | 600 |
Working Height | 1030 | 1084 | 1142 | 1209 |
SHEARING | ||||
Flat Bar | 250×16 | 330×20 | 300×25 | 355×30 |
Alternative | 400×8 | 480×10 | 600×16 | 600×20 |
Blade Length | 410 | 485 | 620 | 610 |
Working Height | 890 | 894 | 891 | 897 |
ANGEL CUTTING | ||||
At 90°cut | 125x125×12 | 140x140×12 | 160×160x14 | 200x200×12 |
At 45°Mitre | 70×10 | 70×10 | 70×10 | 70×10 |
Working Height | 1130 | 1139 | 1200 | 1220 |
SECTION CUTTING | ||||
Round/Square Bar | 45 | 50 | 60 | 65 |
Channel/I bar | 130×65 | 160×88 | 200x100 | 280×122 |
T bar | 90×12 | 90×12 | 90×12 | 90×12 |
NOTCHING | ||||
Material Thickness | 10 | 13 | 14 | 16 |
Width | 57 | 57 | 57 | 57 |
Depth: Vee -Rect. | 60-90 | 60-90 | 60-90 | 60-90 |
Working Height | 890 | 883 | 886 | 898 |

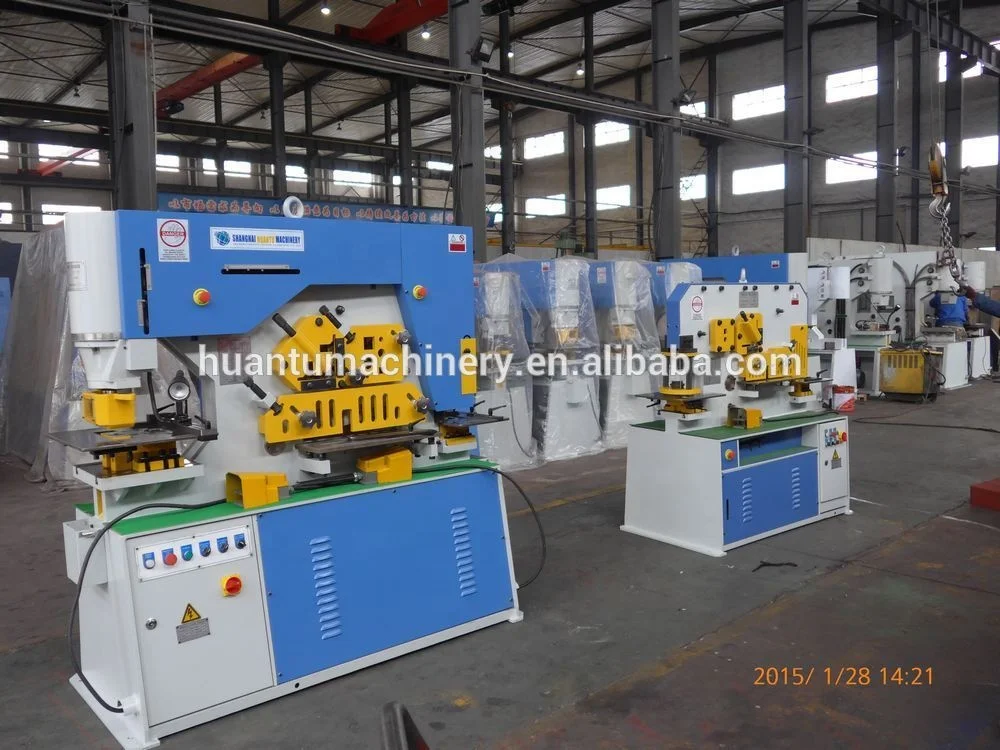

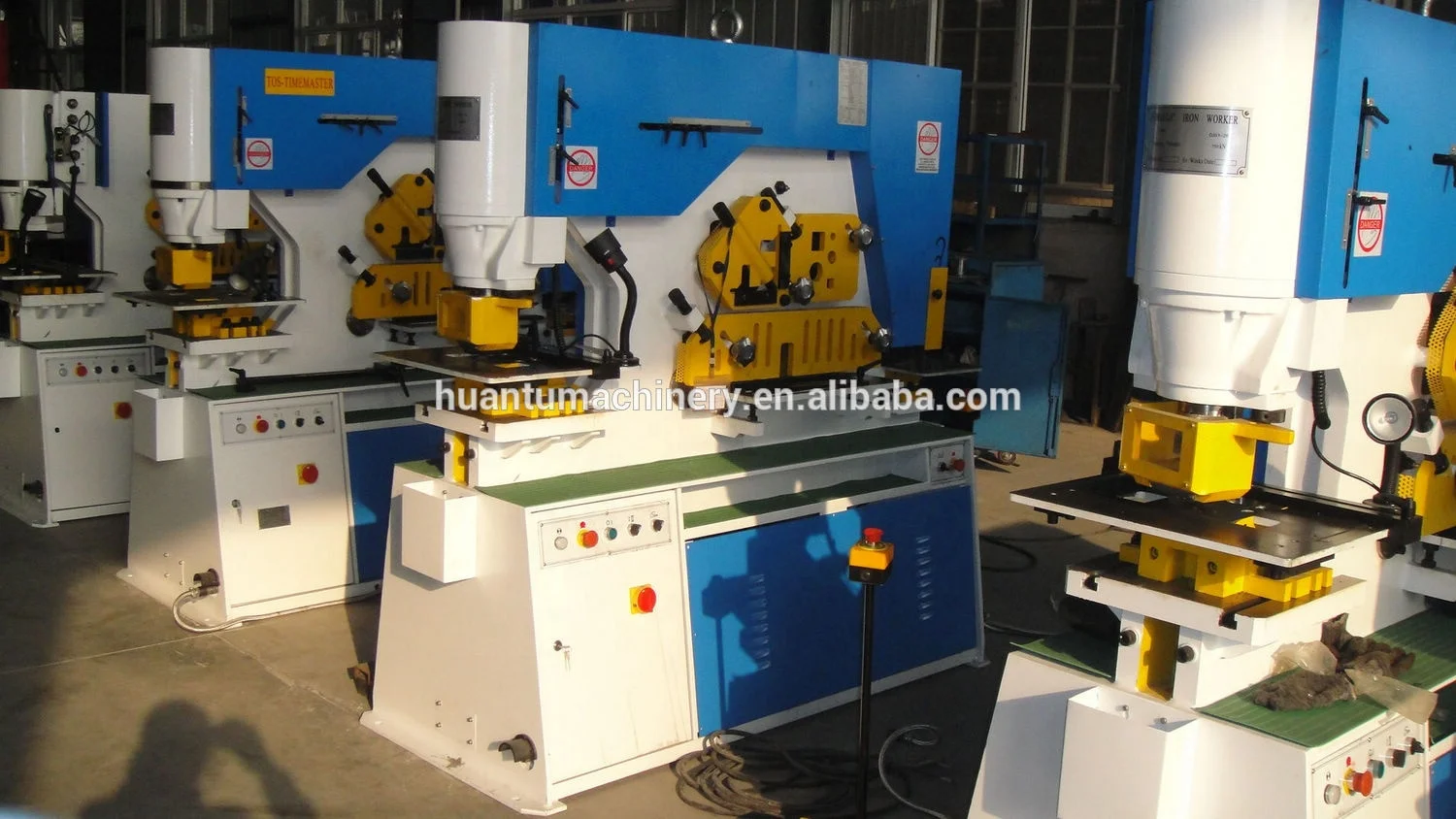

Detailed Images
Packing and Loading
Warranty
- Our guarantee time is 5 years from B/L date. If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
- Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
- Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.
