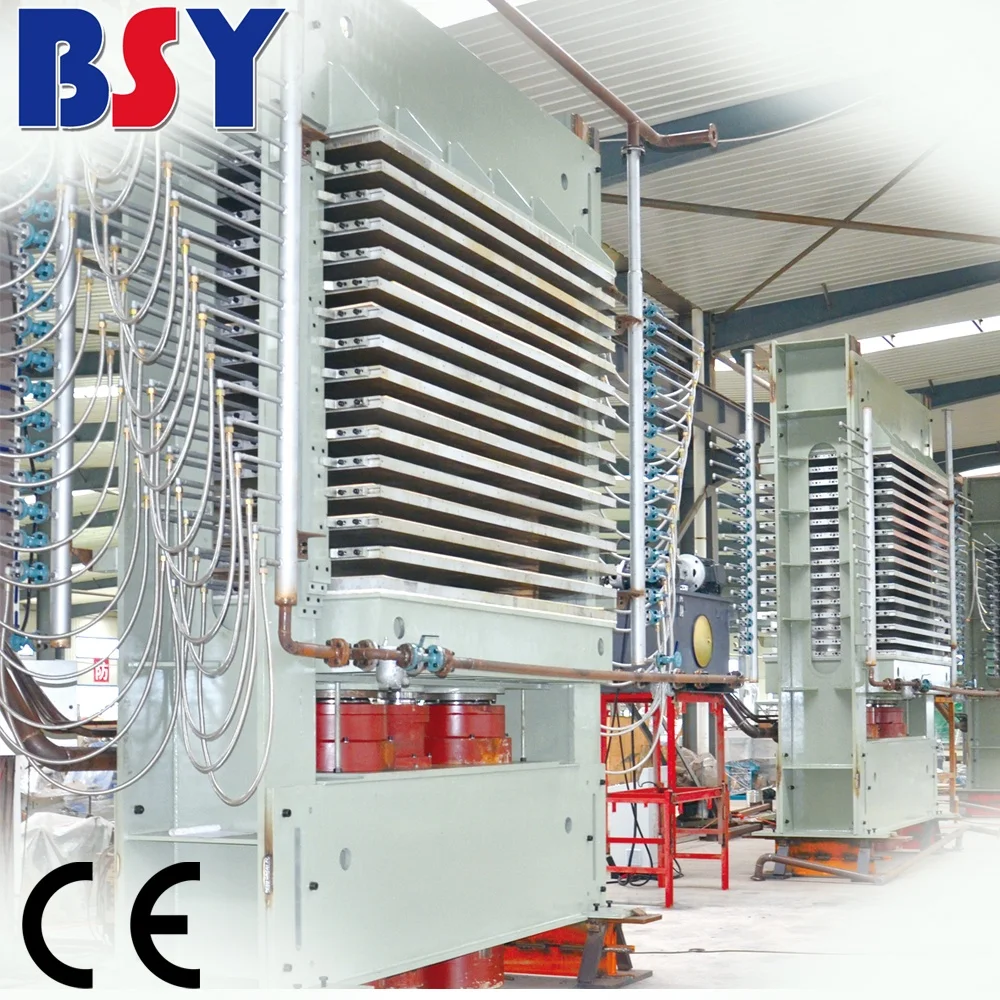

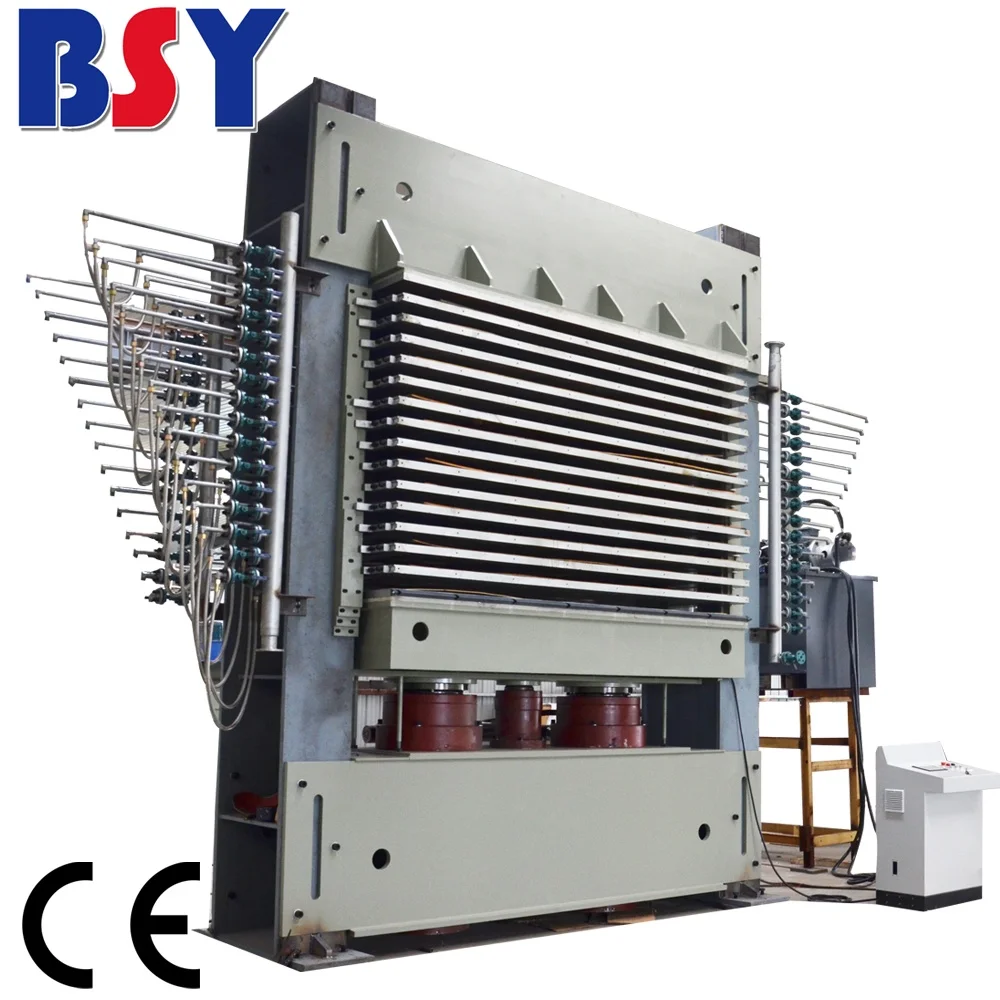

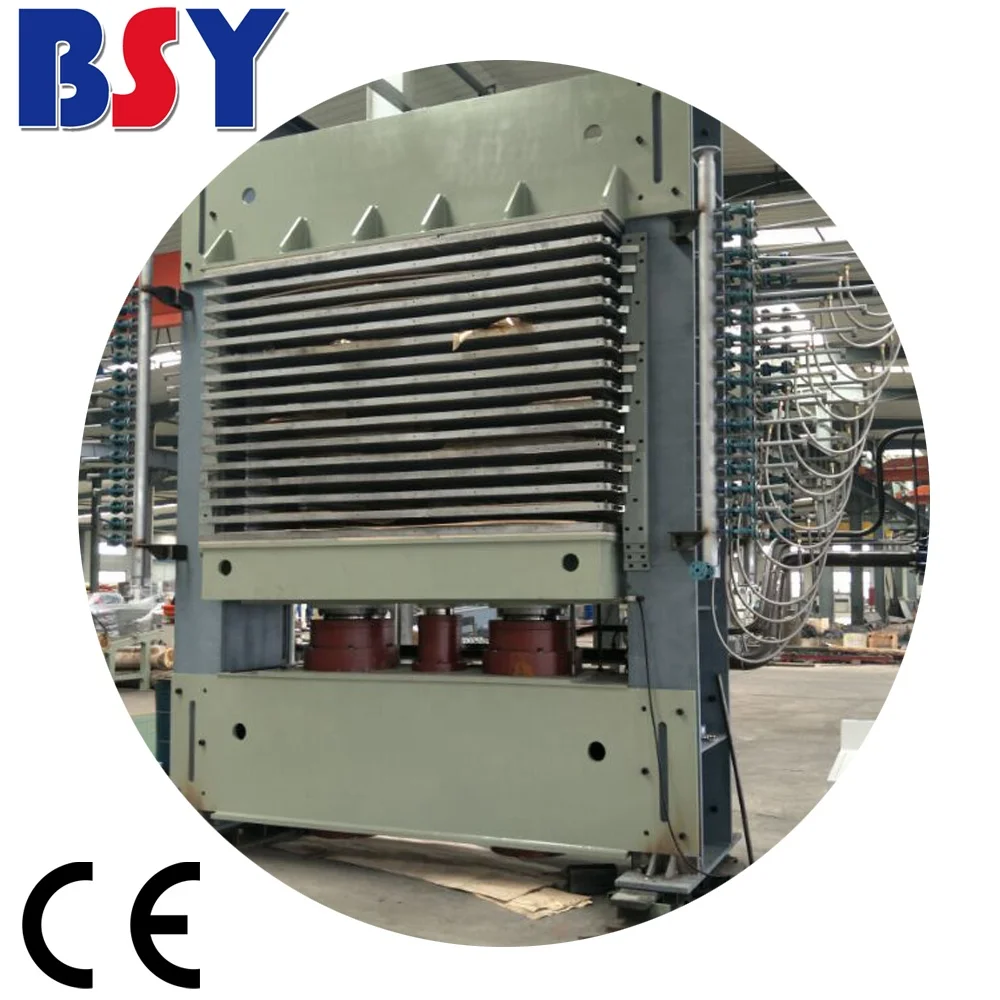

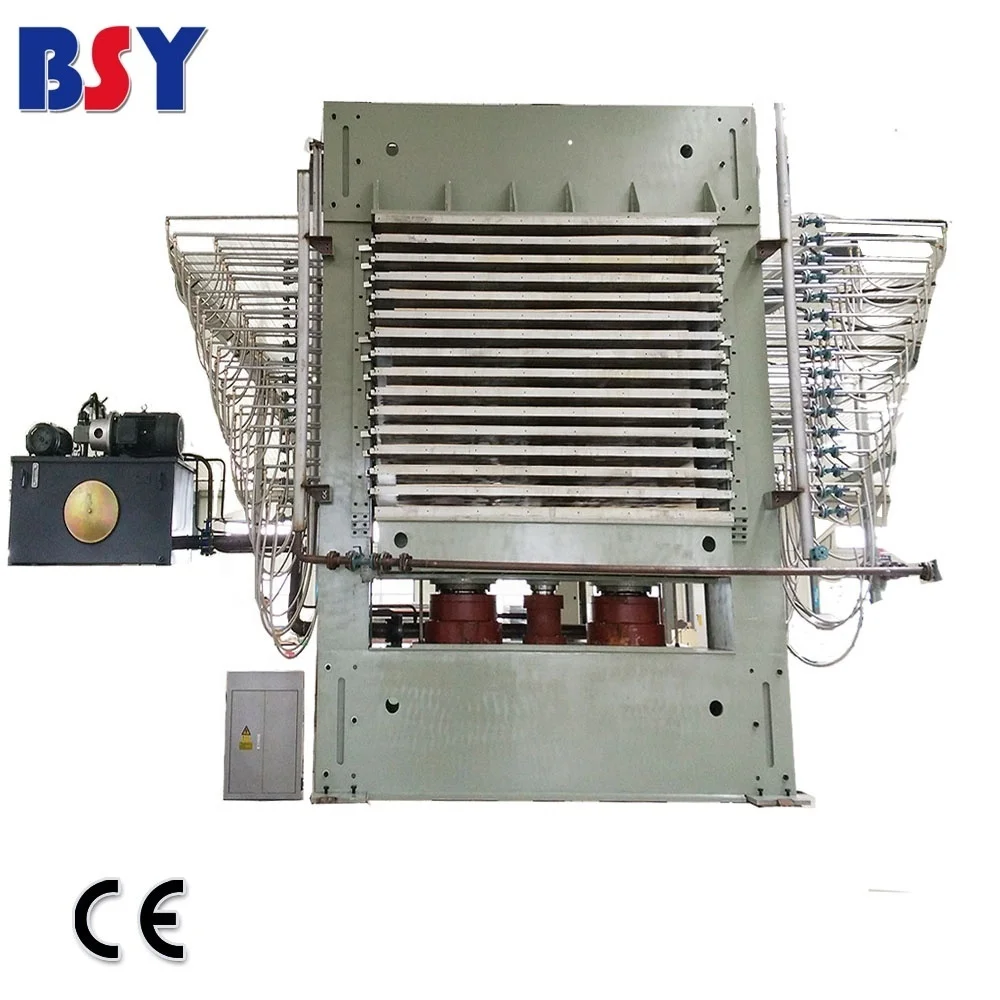

Plywood Hot press Introduction:

Hydraulic hot press is one of main machines in plywood production line.Apply for large-scale production in big factory.

Configuration:

1.Heavy,solid and reliable complete structure.

2.42mm & 52mm thick solid steel hot platen.

3.Input and output tubes of steam and heat conduction oil are alternative.

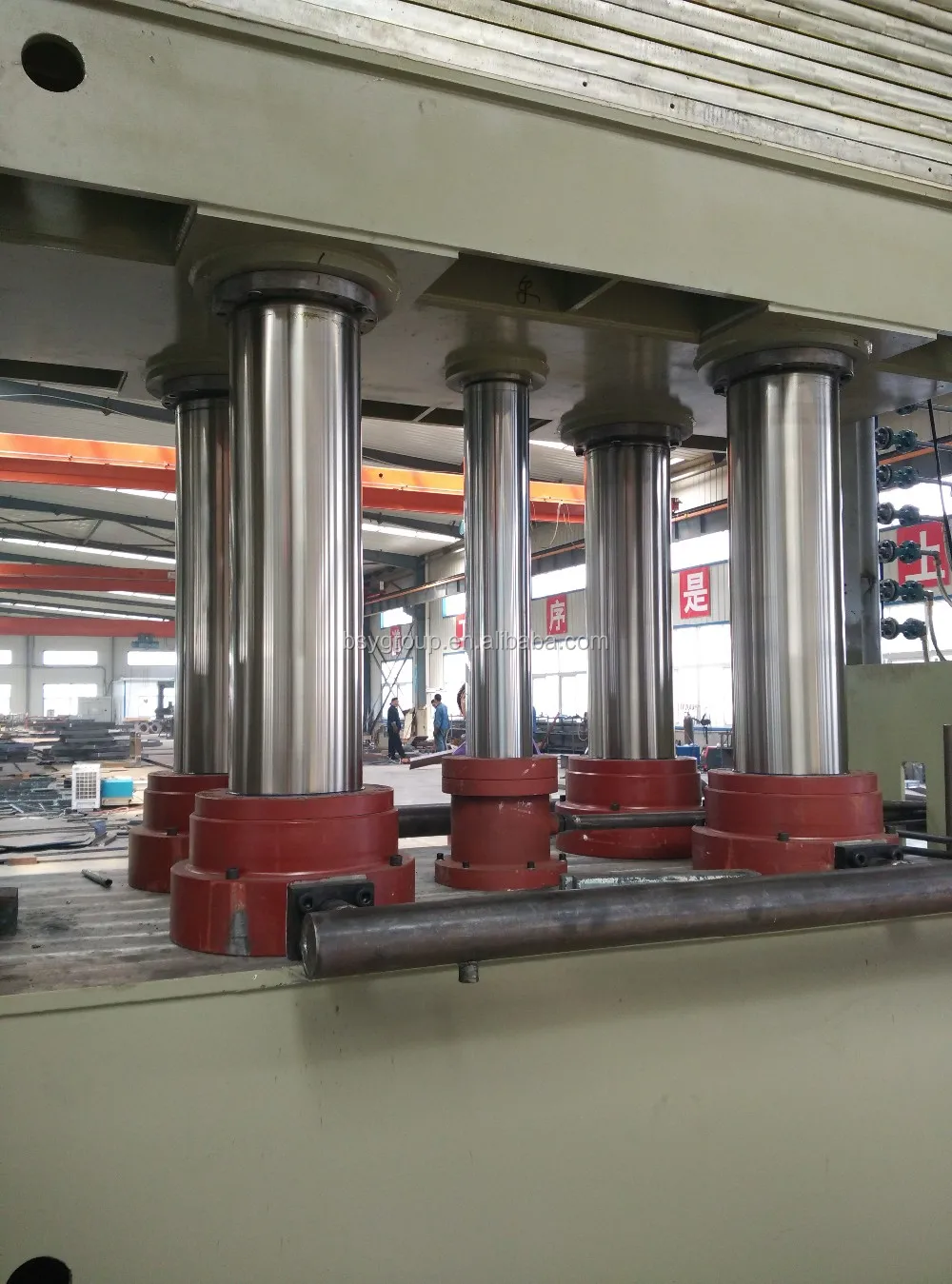

4.Oil cylinder with bigger diameter.



Model	BY214X8/4B-15	BY214X8/6-15
Nominal pressure(KN)	4000	6000
Hot-press plate sizes (mm)	2700 x 1370 x 42	2700 x 1370 x 42
Finished piece dimensions (ft)	4x8	4x8
Opening (mm)	70	70
layer number	15 with 16 plates	15 with 16 plate
Diameter of plunger cylinders (mm)	Φ 360/ 2 pieces	Φ 400/ 2 pieces
Working stroke (mm)	1050	1050
Working pressure (Mpa)	25	25
Total Motor (kw)	26	26
Closing speed (m/min)	4	4
Overall dimensions (mm)	5000 x 1446 x 5395	5000 x 1446 x 5395
Weight (kg)	34000	38000

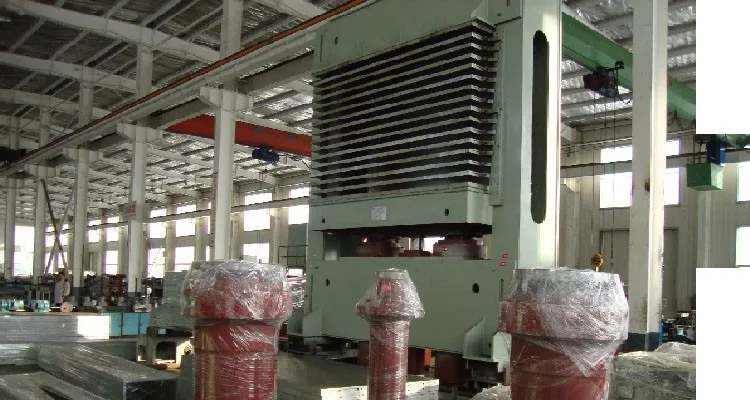

Semi-finished productions in our assembly workshop
