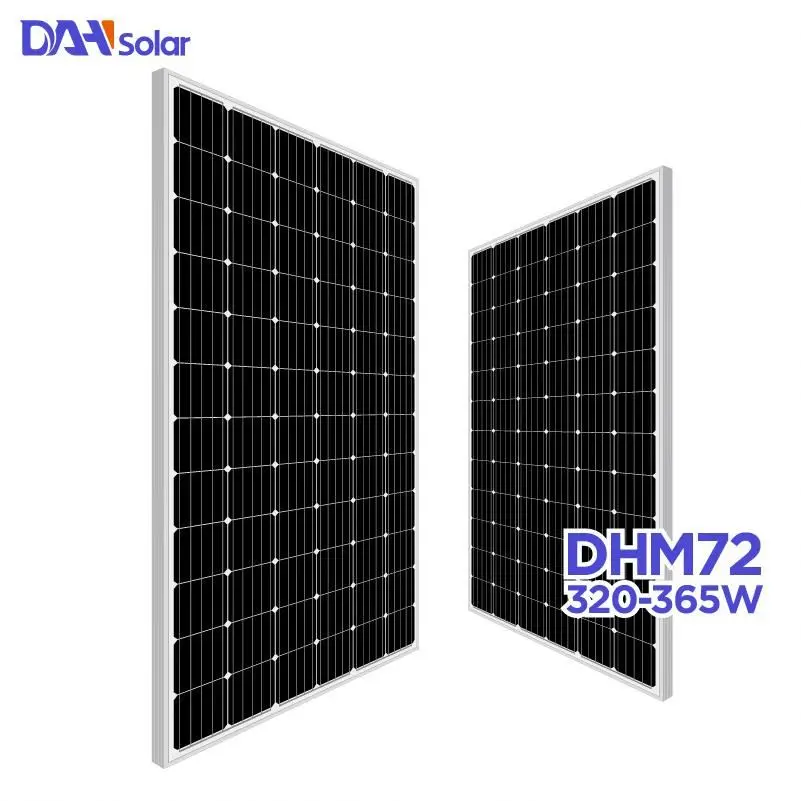

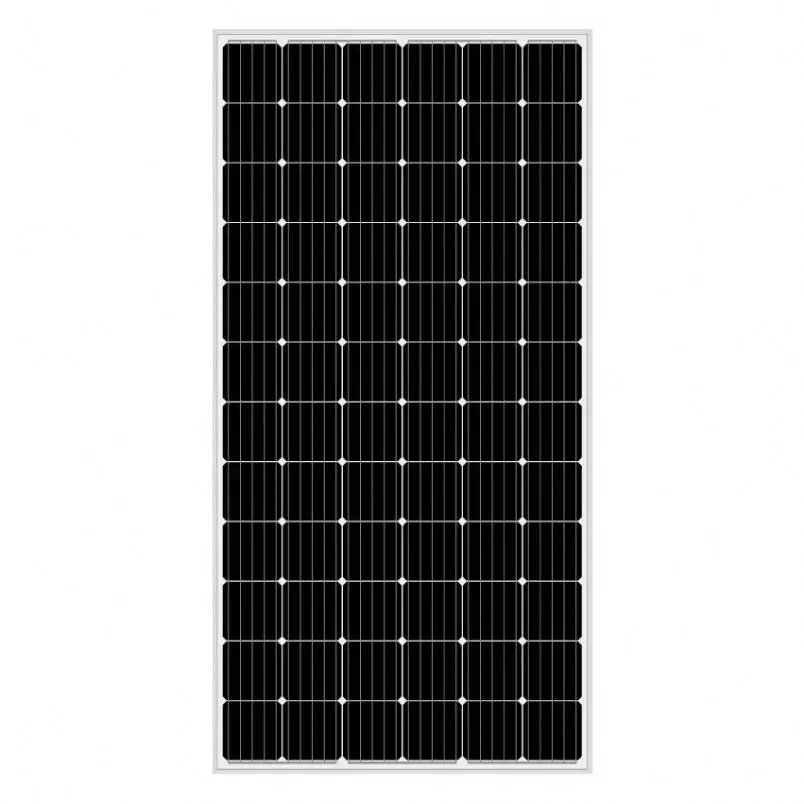

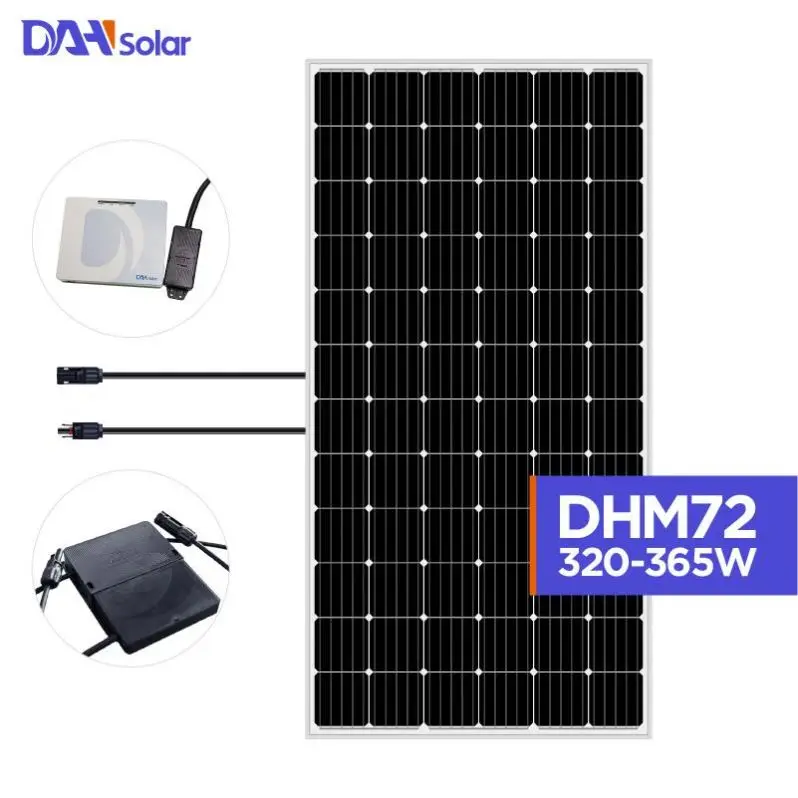

Фотоэлектрическая солнечная панель mono 450 Вт 500 600
- Категория: Солнечные панели >>>
- Поставщик: Anhui,Daheng,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.52 $* | 0.41 $* |
| Aug-16-2025 | 0.15 $* | 0.98 $* |
| Jul-16-2025 | 0.81 $* | 0.69 $* |
| Jun-16-2025 | 0.90 $* | 0.87 $* |
| May-16-2025 | 0.79 $* | 0.73 $* |
| Apr-16-2025 | 0.39 $* | 0.16 $* |
| Mar-16-2025 | 0.1 $* | 0.44 $* |
| Feb-16-2025 | 0.13 $* | 0.27 $* |
| Jan-16-2025 | 0.17 $* | 0.39 $* |
Характеристики
Production Describ
Module Type | DHM72-345 | DHM72-350 | DHM72-355 | DHM72-360 | DHM72-365 | ||||
Maximum Power(Pmax) | 345W | 350W | 355W | 360W | 365W | ||||
Open-circuit Voltage (Voc) | 46.7V | 46.9V | 47.0V | 47.2V | 47.4V | ||||
Maximum Power Voltage(Vmp) | 38.4V | 38.5V | 38.7V | 38.9V | 39.1V | ||||
Short-circuit Current (Isc) | 9.50A | 9.60A | 9.69A | 9.76A | 9.82A | ||||
Maximum Power Current (Imp) | 8.99A | 9.09A | 9.17A | 9.26A | 9.34A | ||||
Module Efficiency (%) | 17.80% | 18.06% | 18.31% | 18.57% | 18.83% | ||||
Power Tolerance | 0~+5W | ||||||||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | ||||||||
Product Details
Glass
* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
Solar Cell
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request

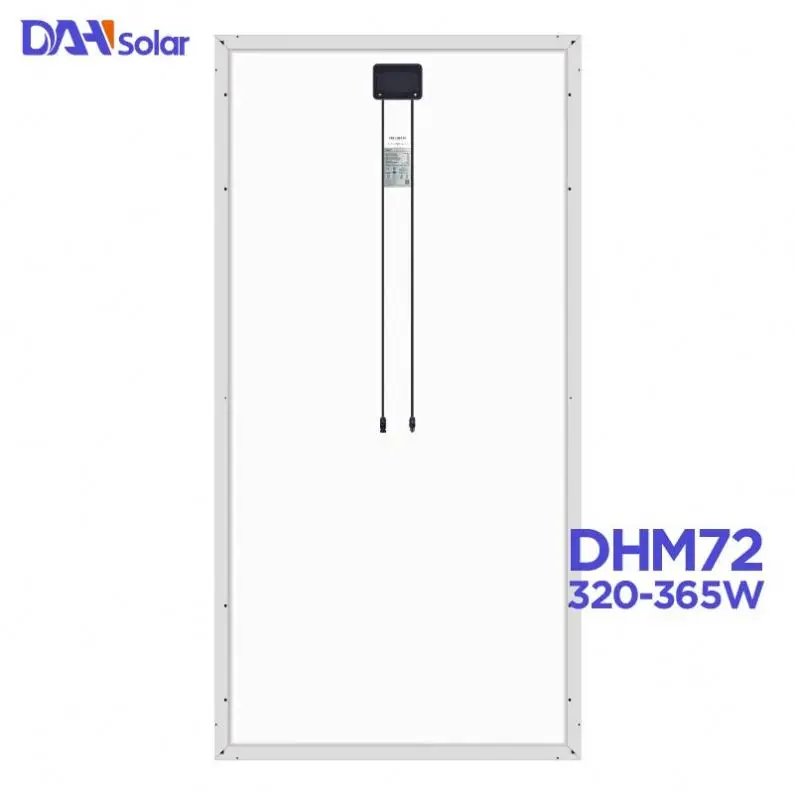

Junction Box
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 67 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.

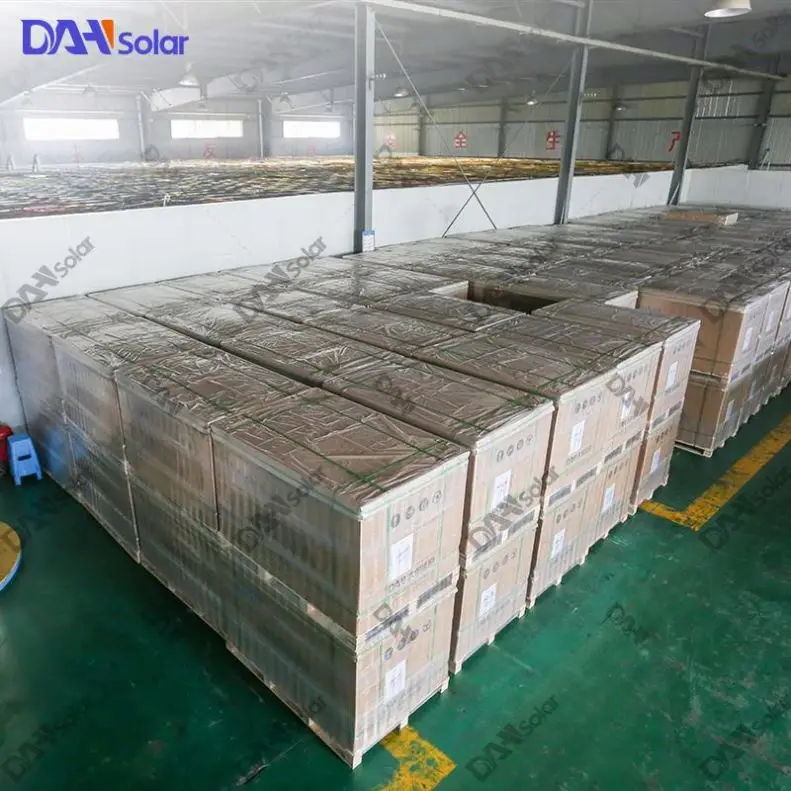

Line & Packing
(60 cells panels )Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 30 | 30 | 30 |
Pallets/Container | 14 | 28 | 28 |
Pcs/Container | 400 | 840 | 924 |
(72 cells panels )Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 27 | 27 | 27 |
Pallets/Container | 10 | 24 | 24 |
Pcs/Container | 270 | 648 | 696 |
Project cases
Company & Exhibition
Why Choose us
Independent R&D team
More than 30 R&D team for Smart PV System, 30+ Developed invention patents, annually investment amount over 1,500,000USD
World-Wide Reviews
WORLD -WIDE CUSTOMERS COMMENTS & FEEDBACk
Complete certificates
ISO, CE, TUV Rehinland, CEC Listed, INMETRO, FIDE...
Pay Attention ~
1.Factory Direct Price
2.NICE Quality.
3.QUICK SHIPPING Fastest 7 DAYS.
4.No MOQ,Small Order Welcome.
5.Customized Design,suppport OEM for all orders.
6.Support REFUND Money if the quality is not satisfactory.
7.PAYMENT Support T/T, L/C, Credit Card, E-checking, Western Union.
Payment
Payment Term | T/T | EXW | 30% T/T in advance, balance paid before dispatch | ||
FOB | |||||
CNF(CFR) | 30% T/T in advance, balance paid againist copy of B/L | ||||
CIF | |||||
L/C , Money Gram , Western Union , Paypal | |||||
Delivery Time | 7-10 working days after down payment received | ||||
