The evaporator is a very important part of the four major pieces of refrigeration.

The low-temperature condensed "liquid" body passes through the evaporator to exchange heat with the outside air,

and "gas" absorbs heat to achieve the effect of refrigeration.

Model	XBU		3S5	5S5	8S5	10S6	12S6	15S6	20S6	25S8	30S8
R22 refrigerant	Qn*	KW	8.72	14.5	23.3	29.1	34.9	43.6	58.1	72.7	87.2
Ti=12℃ To=7℃		104Kcal/h	0.8	1.3	2.0	2.5	3.0	3.8	5.0	6.3	7.5
Tc=40℃ Te=2℃	Wn	m³/h	1.5	2.5	4.0	5.0	6.0	7.5	10.0	12.6	15.1
FF=0.018 m²K/KW	Wm	m³/h	1.8	3.0	4.8	6.0	7.2	9.0	12.0	15.0	17.9
Dimensios	A	mm	610	710	950	950	1050	1110	1445	1450	1555
	B	mm	107	107	132	132	142	142	142	160	160
	C	mm	375	549	696	696	784	836	1167	1142	1247
	D	mm	400	400	400	400	500	700	800	800	800
	E	mm	103	170	250	250	217	217	297	300	352
	F	mm	110	110	110	110	110	110	110	160	160
	G	mm	80	80	80	80	80	80	80	120	120
	H	mm	45	45	45	45	45	45	45	55	55
	I	mm	30	30	30	30	30	30	30	40	40
	J	mm	134	134	160	160	160	160	190	190	190
	K	mm	140	140	165	165	165	165	165	219	219
	L	mm	60	80	80	80	80	80	80	100	100
Connections	d1	mm	35	48	48	48	60	60	60	60	60
	d2	mm	16	16	16	22	22	22	22	22	22
	d3	mm	22	22	22	35	35	35	35	35	35

Qn :  Nominal cooling capacity temperature     Wn :maximum water flow rate   Ti:water inlet temperature   To : water outlet

Wn : nominal water flow rate       Tc : condensing temperature        Te : Evaporation temperature        FF : fouling factor





Q1: Can we do our OEM logo?

A1: Yes, we can do OEM logo with your requirements.

Q2: Is sample available?

A2: Yes, but the sample and freight should be at your charge.

Q3: Are you a manufacturer or trading company?

A3: We are manufacturer.

Q4: What is your warranty?

A4: We can assure you 12 months against delivery from our factory.
Remarks: In order to provide a suitable solution and quotation for your application, please let us know more your requirements. Thank you!

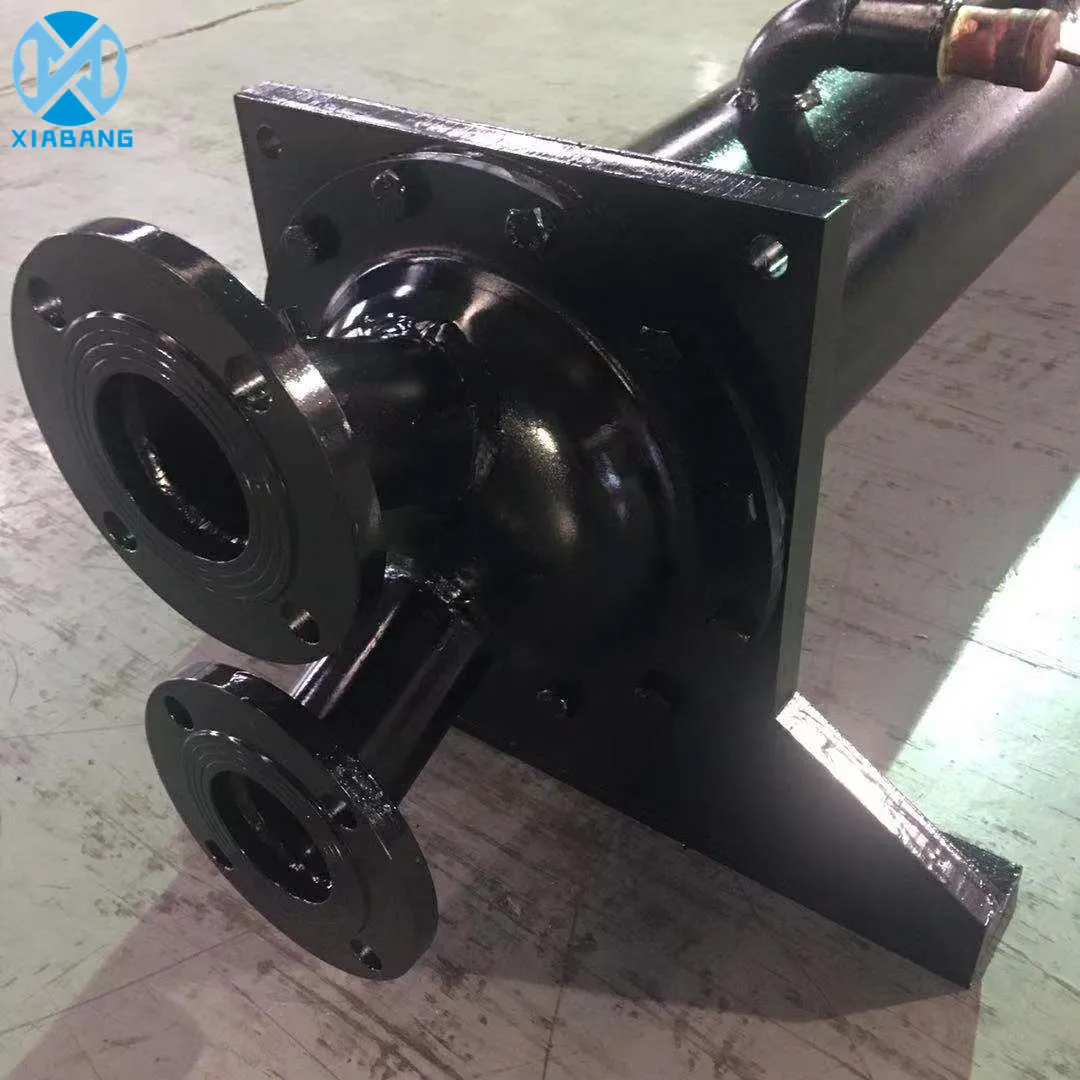

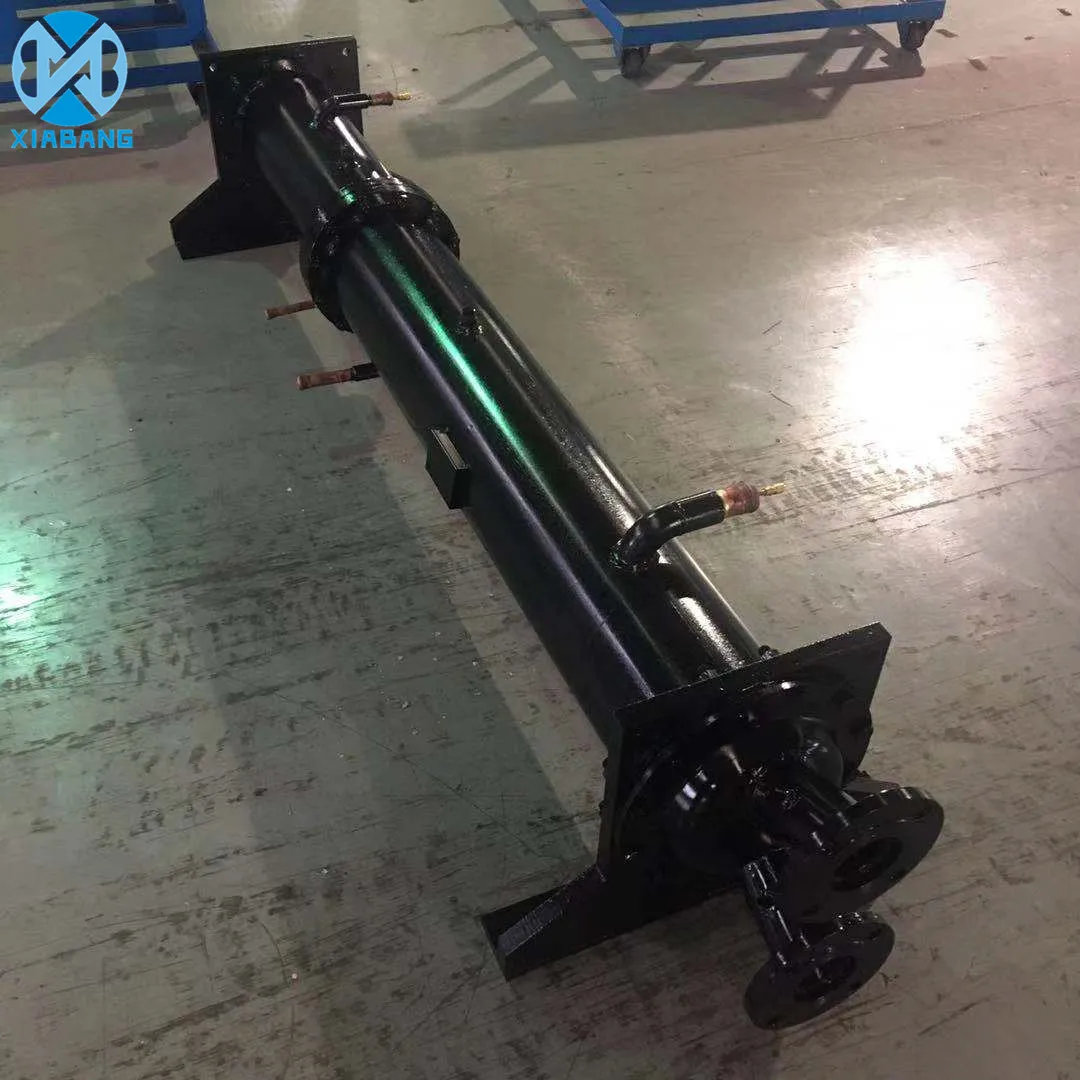

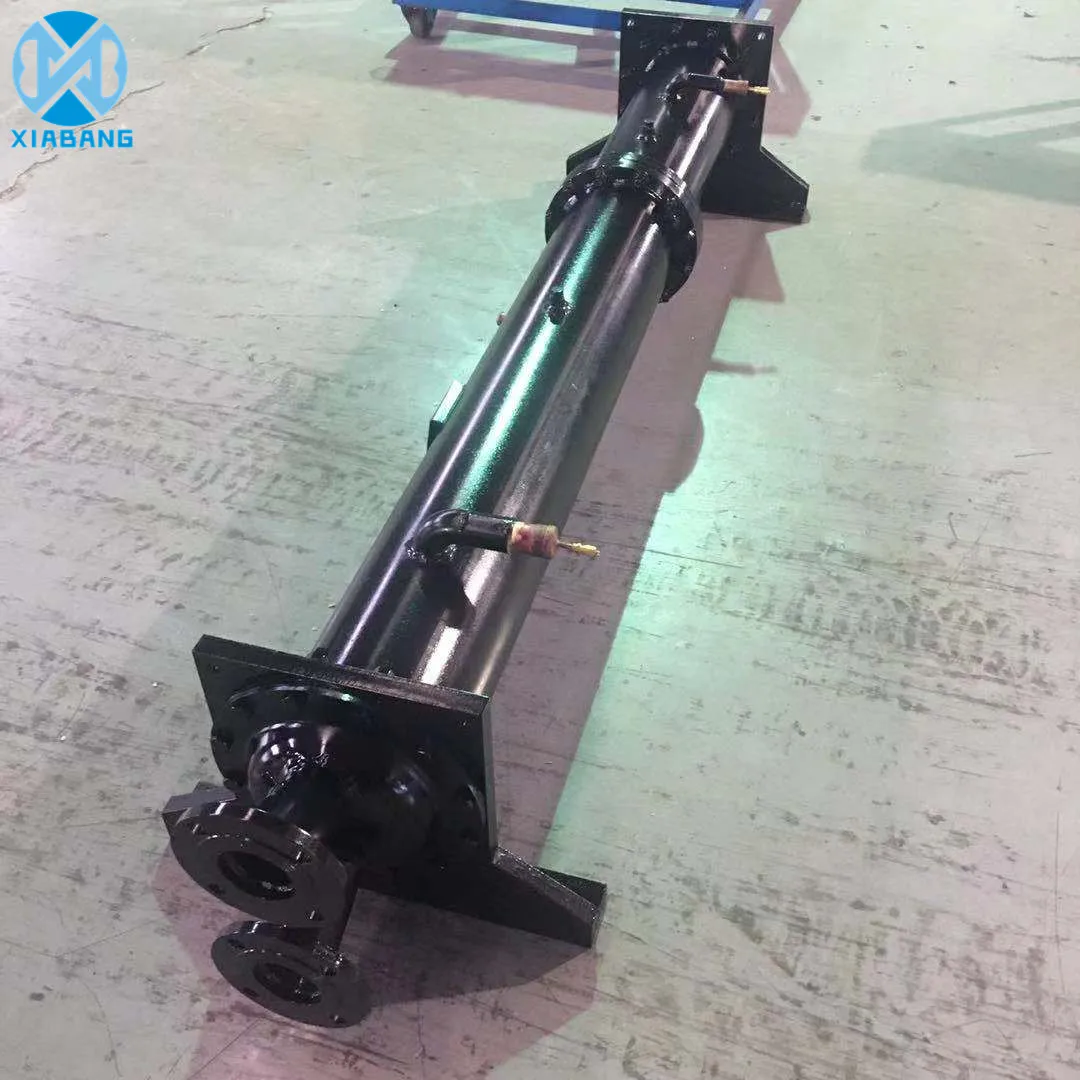

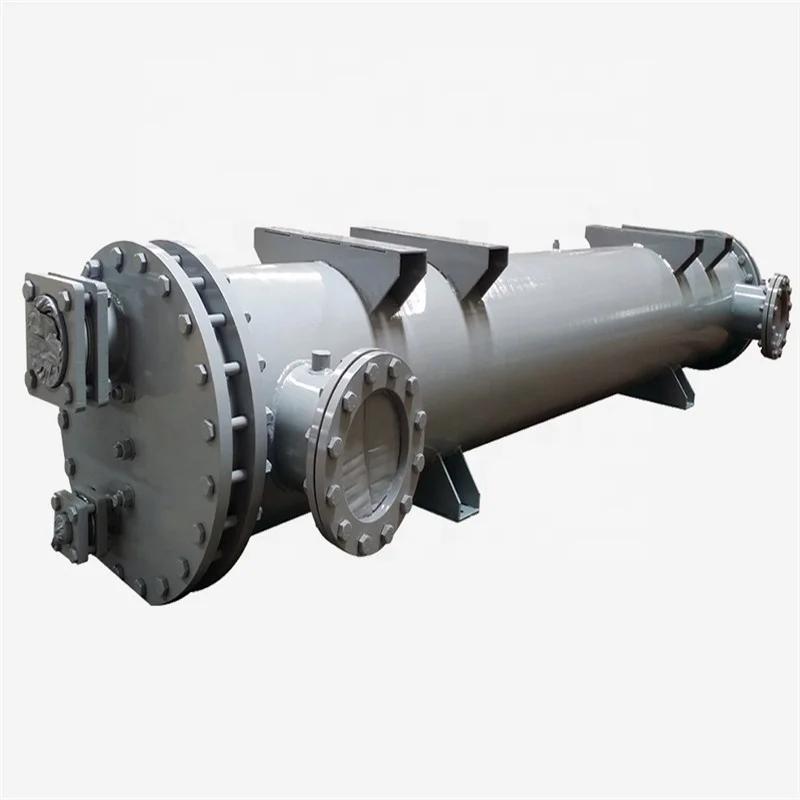

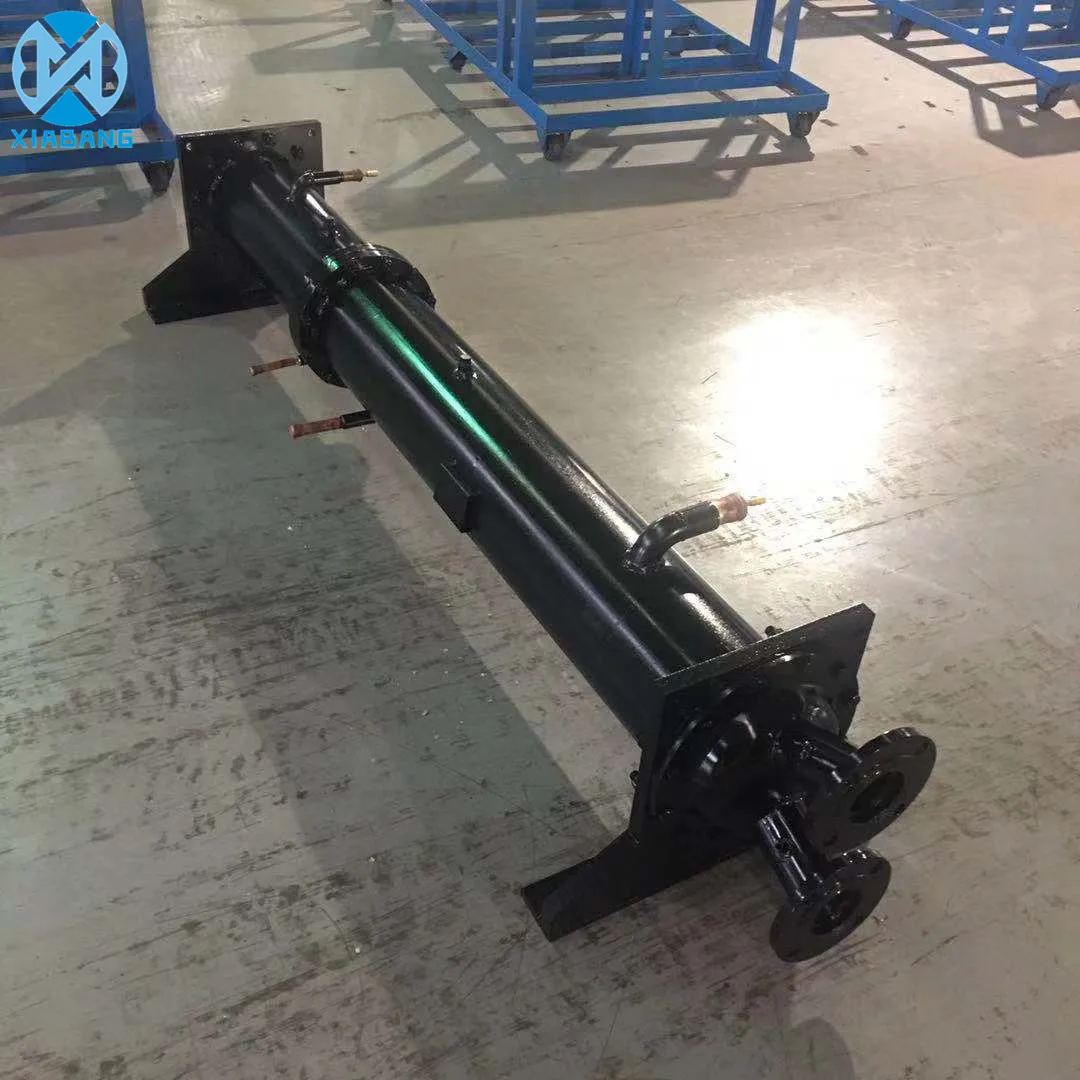

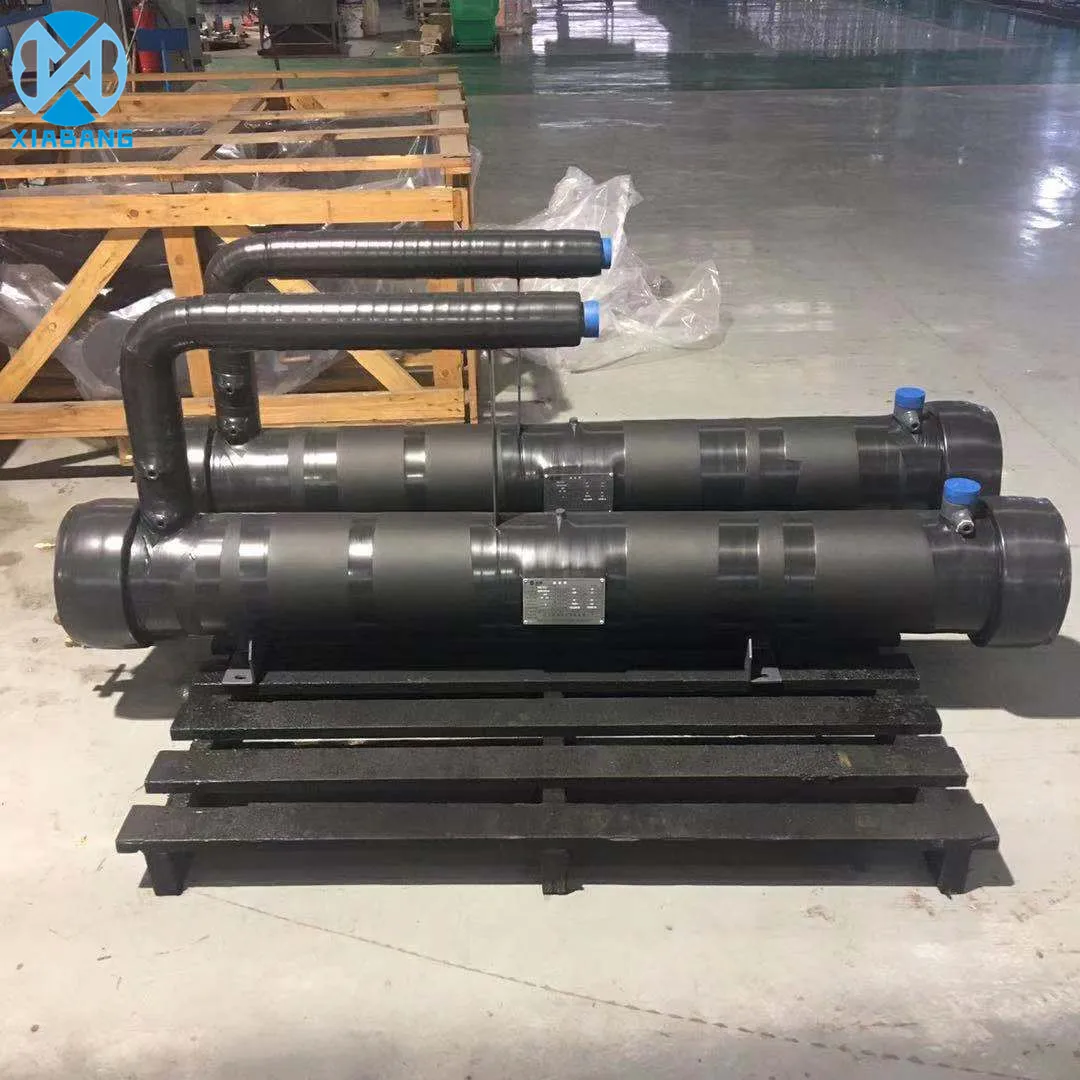

We can customize all kinds of Shell and Tube Evaporator units , please tell us your requirements, we will give you the most reasonable advice.
