Gpon/Epon is designed for chassis OLT device which provides 16 downlink 1000M PON ports, 4 uplink GE Combo ports ,4 GE SFP PORTS,2 uplink 10GE ports by Foclink Co., Ltd. The height is only 1U for easy installation and space saving. Each PON supports up to 64 terminals, the whole device supports up to 1024 ONUs under full configuration.E8604T/08T-ATG adopts advanced technology to support SLA and DBA to keep strong function on the Ethernet and QoS features.
We support gpon olt 4 port,8 port olt,10g epon olt,16 port gpon olt and so on,also support customized services
Tips：Logo below(like foclink)can be customzied or delete as you required
4 ports Gpon
4 ports Epon：
8 Port Gpon
8 ports EPON
Key Features: Carrier-class stability and network resiliency (1)Adopt large-scale NGBN operation system with intellectual property rights in the global carrier network. (2)Support PON fiber redundancy protection and device redundancy protection protocol (3)Support rich security features to protect the users, devices and network. (4)Dual power supply input and power redundancy (5)All PON GE and 10GE ports provide L2/L3 full-line speed without losing packets
Full PON Service: (1)Each PON support 1:64 splitting ratio ( The maximum quantity of 64 ONU) (2)Hot plug PON fibber module design, the farthest 20Km transmission distance (3)Support 128bits triple churning function to ensure the confidential for the data transmission. (4)Support dynamic bandwidth distribution DBA algorithm
Powerful OAM: (1)Use packet forwarding based on hardware to be effective for feature detection and packet filtering (2)Support auto protection and user blocking for ARP attack based on MAC address (3)Support all kinds of protecting DDoS, CPU over-current and VRRP etc (4)Support BFD, FlexLink, auto linkage aggregation and Ethernet Ring protection

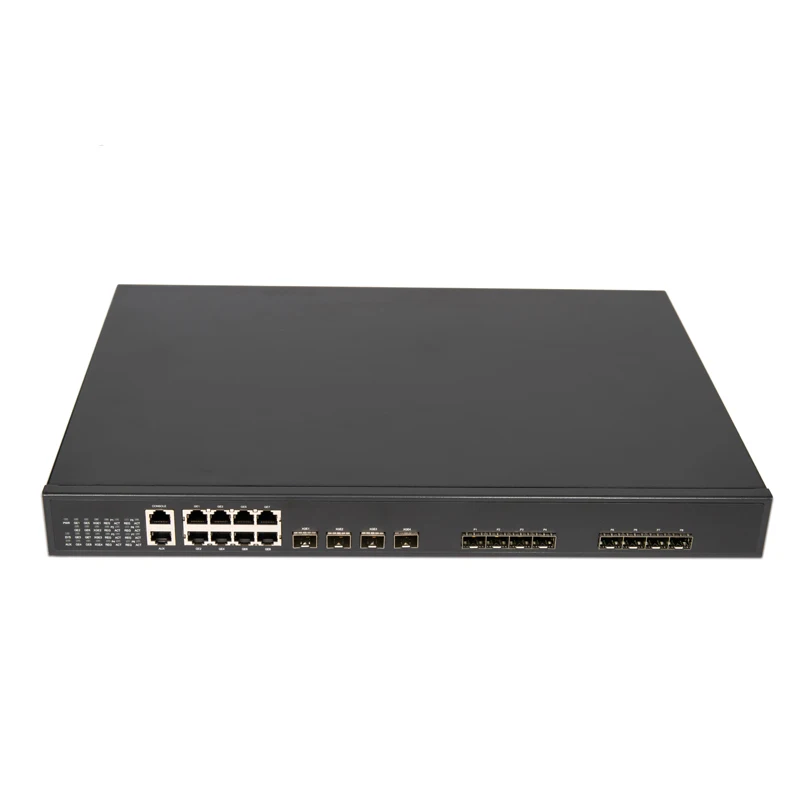

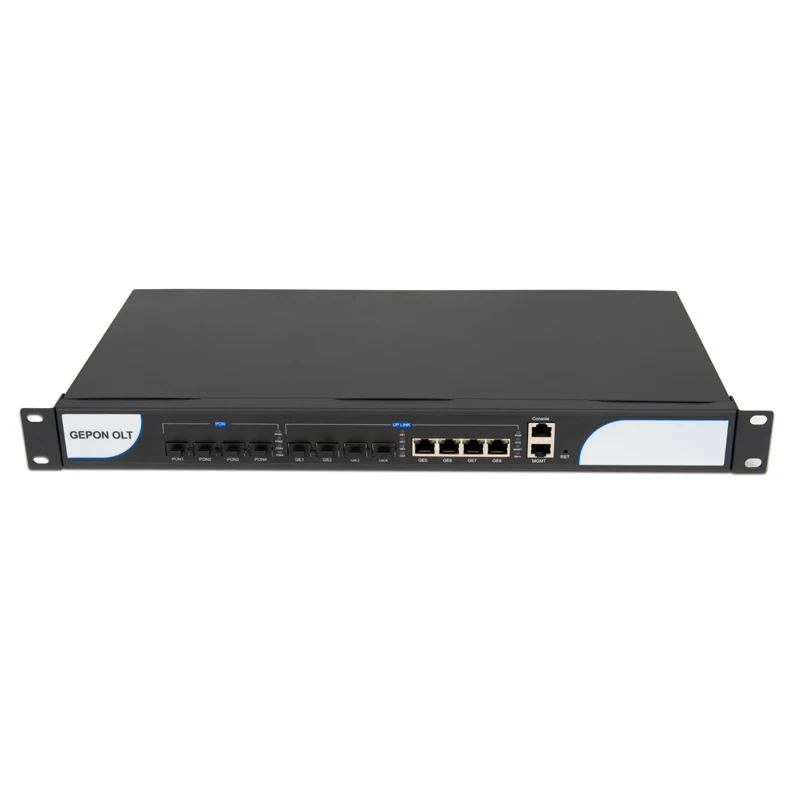

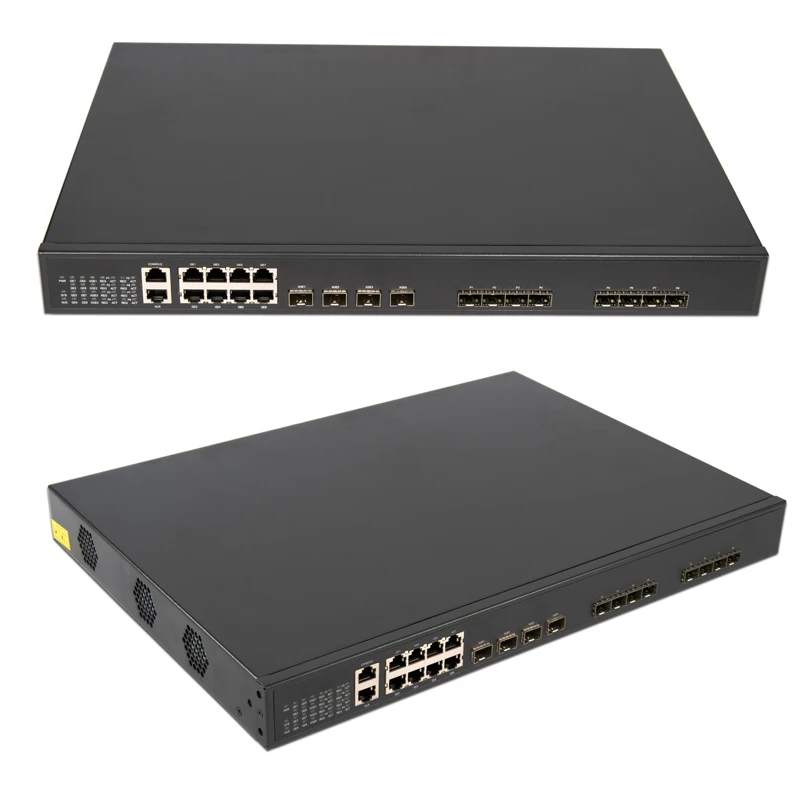

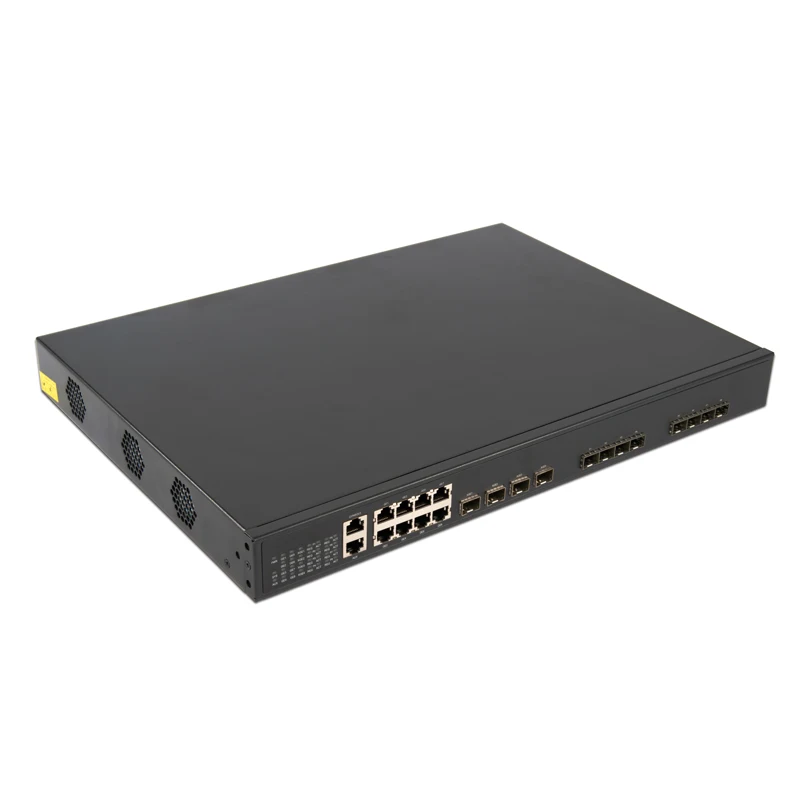

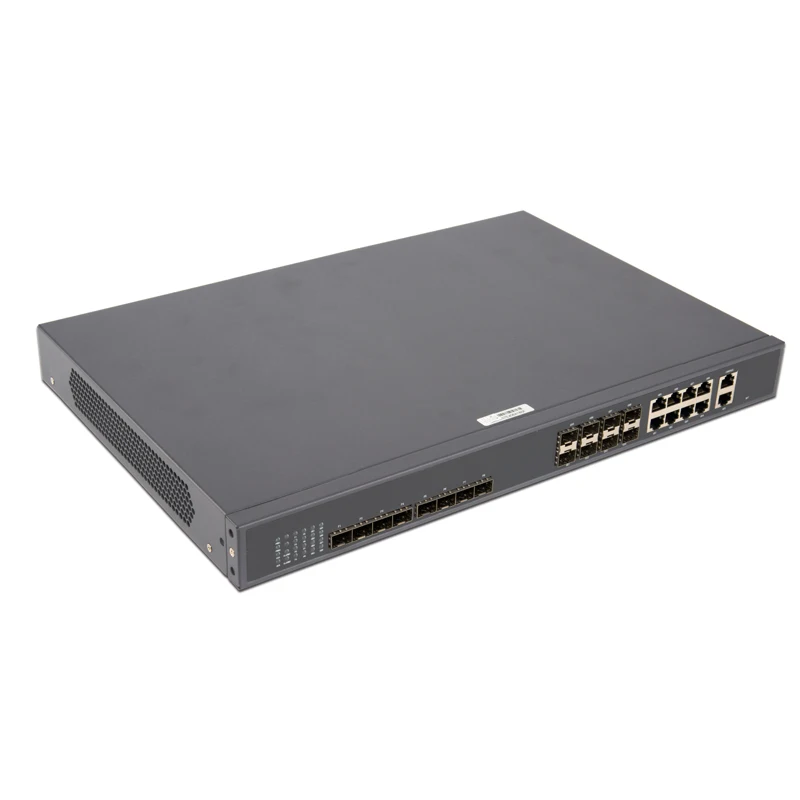

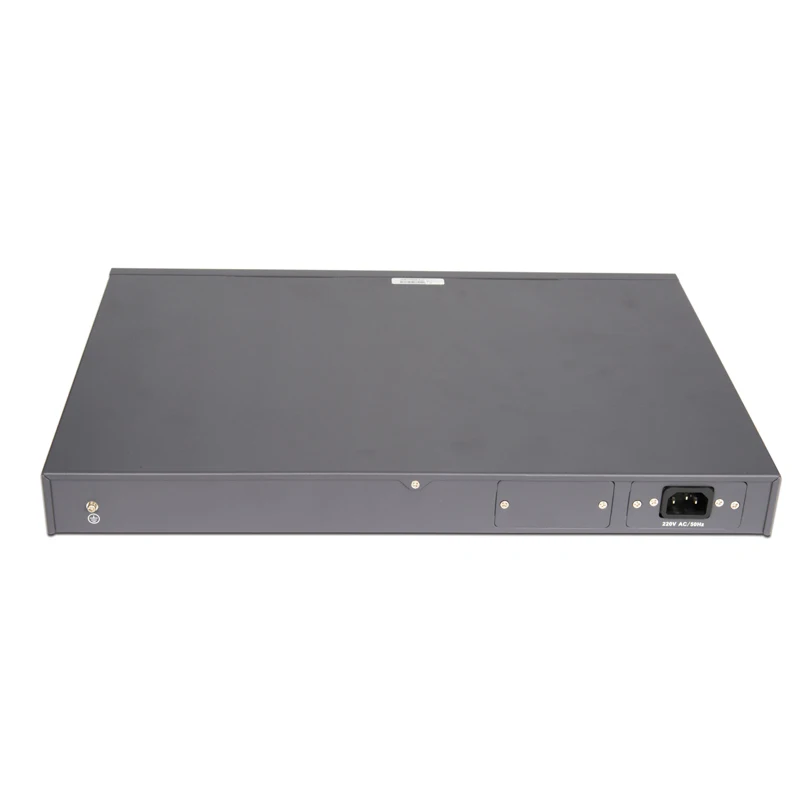

Details Images
Specification
Item
FOC-E8616T-ATG
Switching capacity
128Gbps
Throughput(IPv4/IPv6)
95.23Mpps
Service port
16*PON,4*GE SFP,4*GE Combo,2*10GE
Redundancy design
Dual power supply, support AC input,dual DC input and AC+DC input
Power supply
AC:90~240V,47~63Hz ; DC:-36V~-72V;
Power consumption
≤85W
Outline dimensions (mm) (W*D*H)
442mm×44mm×315mm
Weight (in maximum configuration)
≤3kg
Environmental parameter
Working temperature:0℃~50℃ Storage temperature:-20℃~70℃ Relative humidity:10%~90%,no condensing
Packing & Delivery
With more than 200 employees in my company,at least 200pcs OLT can be produced. 2).Research Department With our separate research team,so we are albe to have products made according to your requirements. 3).Qulity assurance Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test. The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.
