ЕС поставщик Danfoss спиральный компрессор SZ185-4RI все имеющиеся модели МТЗ MT SY SZ оригинал готово к
- Категория: Детали для охлаждения и теплообмена >>>
- Поставщик: Wigmors,Wincenty,Szerszen
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 309483.59 $* | 324957.26 $* |
| Aug-20-2025 | 306883.88 $* | 322227.68 $* |
| Jul-20-2025 | 257469.86 $* | 270342.32 $* |
| Jun-20-2025 | 301681.68 $* | 316765.64 $* |
| May-20-2025 | 262671.92 $* | 275805.19 $* |
| Apr-20-2025 | 296480.74 $* | 311304.92 $* |
| Mar-20-2025 | 293879.36 $* | 308573.88 $* |
| Feb-20-2025 | 291278.2 $* | 305842.16 $* |
| Jan-20-2025 | 288678.46 $* | 303112.47 $* |
Характеристики

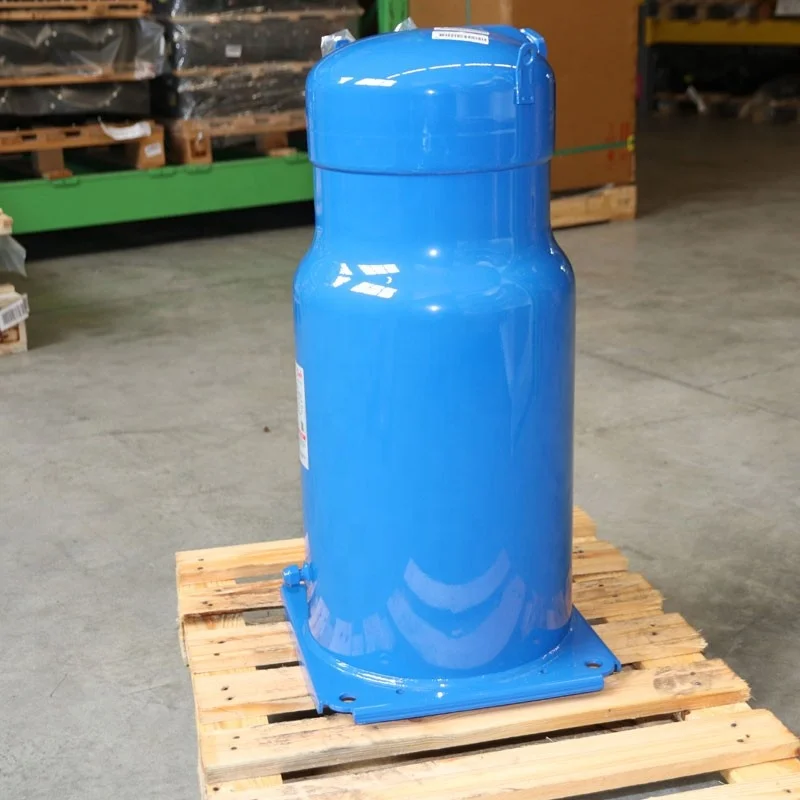

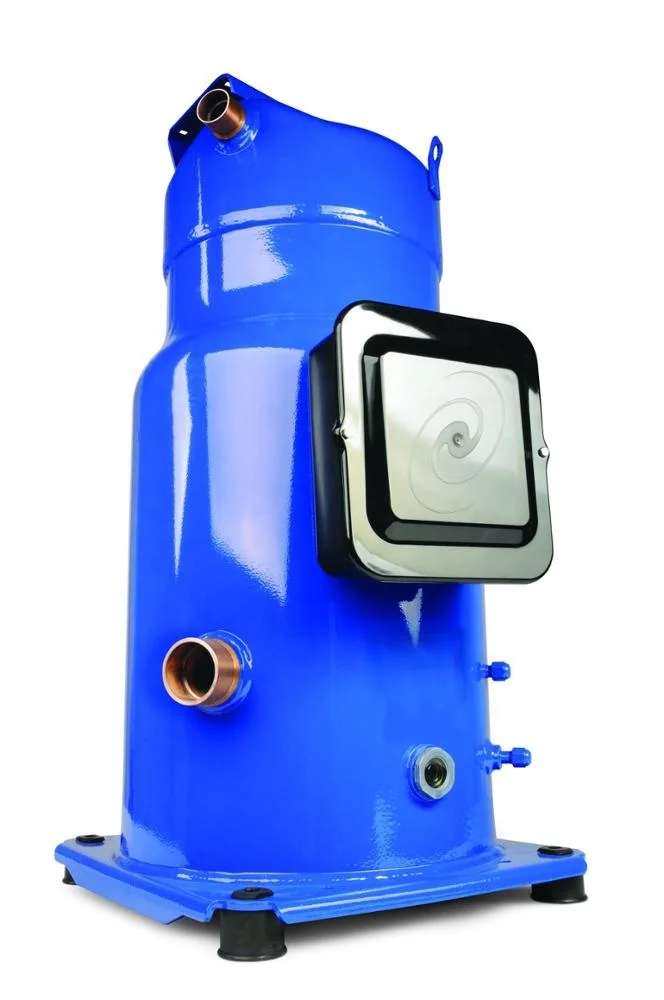

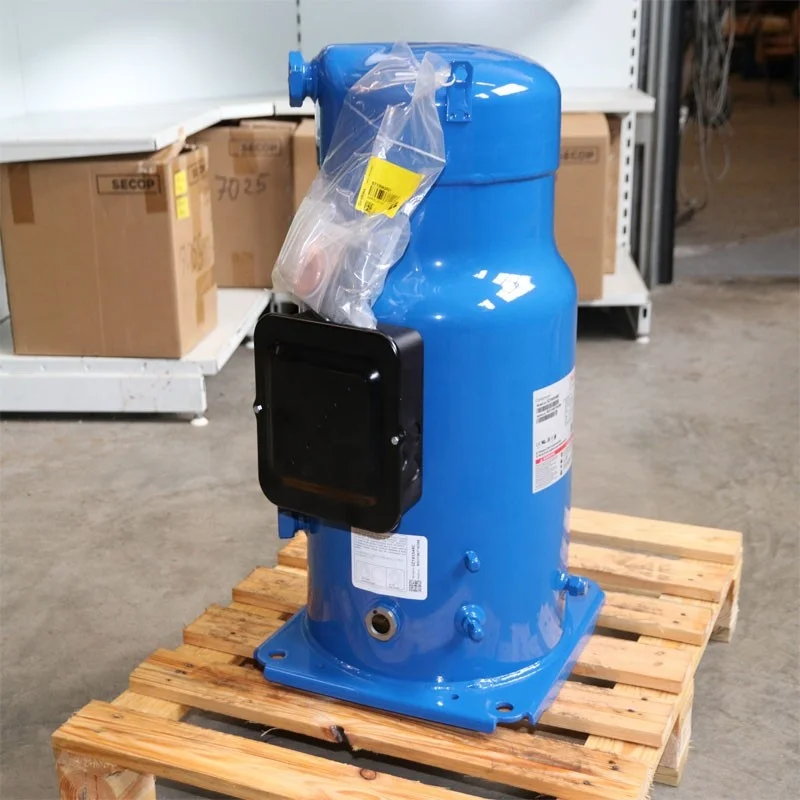

Scroll compressor, SZ185S4RC
SZ185-4RI
| Gross weight | 111 kg |
| Net weight | 101 kg |
| Approval standard | CE UL |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 400/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Description | SZ185-4 |
| Diameter [mm] | 317 mm |
| Discharge connection height [mm] | 643 mm |
| Discharge connection mounting torque [Nm] | 110 N-m |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection rotolock size [in] | 1 3/4 in |
| Discharge connection size [in] | 1 3/4 in |
| Discharge connection sleeve pipe size [in] | 7/8 in |
| Drawing number | 8551119b |
| Economizer | No |
| Factory HP [bar] | 33 bar |
| Factory LP [bar] | 25 bar |
| Fitting remark | (shipped with rotolock version only) |
| Fitting sleeve | ODF |
| Fitting standard | Rotolock |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Generation code | C |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| GP LP torque [Nm] | 15 N-m |
| High side max pressure (Ps) | 34.3 bar |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 2.5 L |
| High value of nominal voltage at 50Hz [V] | 400 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 440 V |
| High value of voltage range at 60Hz [V] | 506 V |
| IP protection class | IP54 (with cable gland) |
| Low side max pressure (Ps) | 25 bar |
| Low Side TS Max | 54 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 31.2 L |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 175 A |
| Maximum Operating Current [MOC] | 35 A |
| MMT | 35 A |

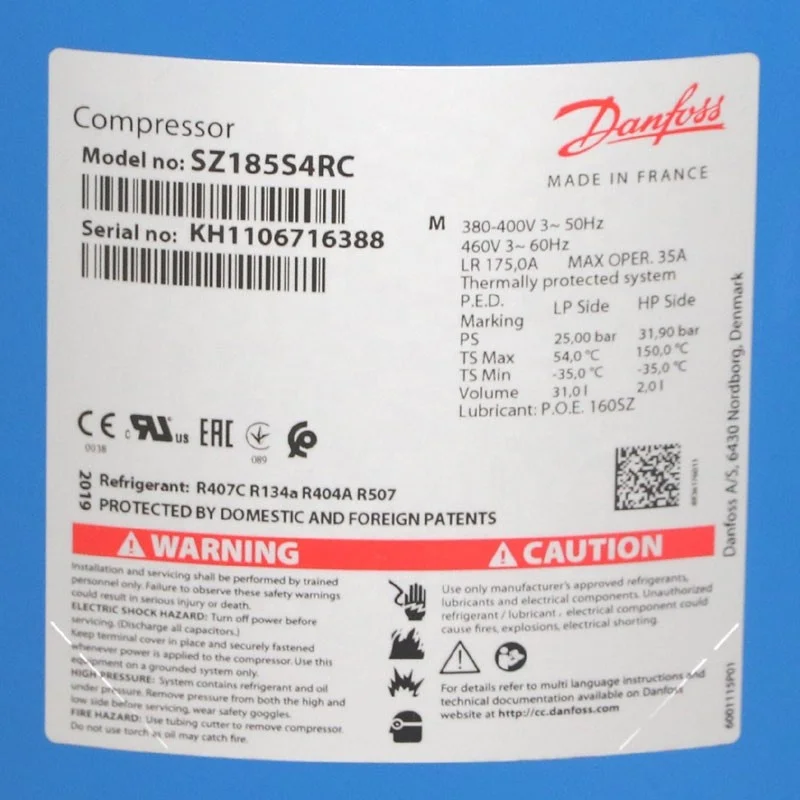

| Model number | SZ185S4RC |
| Motor protection | Internal thermostat, ext. overload protector needed |
| Mounting torque [Nm] | 21 N-m |
| Nominal cooling capacity at 50Hz | 38.6 kW |
| Nominal cooling capacity at 60Hz | 51.8 kW |
| Nominal heating capacity at 50Hz | 36.8 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 6.2 L |
| Oil drain | 1/4'' flare |
| Oil drain torque [Nm] | 35 N-m |
| Oil equalization | 3/8'' flare SAE |
| Oil equalization torque [Nm] | 48 N-m |
| Oil reference | 160SZ |
| Oil type | POE |
| Packaging height [mm] | 698 mm |
| Packaging length [mm] | 470 mm |
| Packaging weight [Kg] | 106 kg |
| Packaging width [mm] | 400 mm |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw 4.8 mm |
| Refrigerant | R134a R404A R407C R507A R513A |
| Refrigerant charge [kg] [Max] | 13.5 kg |
| Relief valve | None |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped fittings | Suction and discharge solder sleeves, rotolock nuts and gaskets |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 180 mm |
| Suction connection mounting torque [Nm] | 130 N-m |
| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection rotolock size [in] | 2 1/4 in |
| Suction connection size [in] | 2 1/4 in |
| Suction connection sleeve pipe size [in] | 1 3/8 in |
| Swept volume [cm3] | 249.9 cm3 |
| Technology | Scroll |
| Test dif [bar] [Max] | 24 bar |
| Test HP [bar] [Max] | 32 bar |
| Test LP [bar] [Max] | 25 bar |
| Torque earth [Nm] | 2 N-m |
| Torque Ebox cover [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 678 mm |
| Type | SZ |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.77 Ohm |
More info:
https://assets.danfoss.com/documents/DOC142386422359/DOC142386422359.pdf
More models in stock , please contact me for details:
| SY240A4PBI |
| SY300A4CAI |
| SY300A4CBI |
| SY300A4PBI |
| SY380A4CAI |
| SY380A4CBI |
| SZ084-4VI |
| SZ084-4VM |
| SZ090-4VI |
| SZ090-4VM |
| SZ090-6VI |
| SZ100-4VI |
| SZ100-4VM |
| SZ100-6VI |
| SZ110-4VI |
| SZ110-4VM |
| SZ115-4CAI |
| SZ115-4CAM |
| SZ115-4RI |
| SZ115-4RM |
| SZ120-4VI |
| SZ120-4VM |
| SZ125-3CAI |
| SZ125-4CAI |
| SZ125-4CAM |
| SZ125-4RI |
| SZ125-4RM |
| SZ148-4VAI |
| SZ148-4VAM |
| SZ160-4CBI |
| SZ160-4CBM |
| SZ160-4RAI |
| SZ160-4RAM |
| SZ161-4VAI |
| SZ161-4VAM |
| SZ175-4CAI |
| SZ175-4RI |
| SZ175-4RM |
| SZ185-3CAI |
| SZ185-3RI |
| SZ185-4CAI |
| SZ185-4CAM |
| SZ185-4CBI |
| SZ185-4PCI |
| SZ185-4RI |
| SZ185-4RM |
