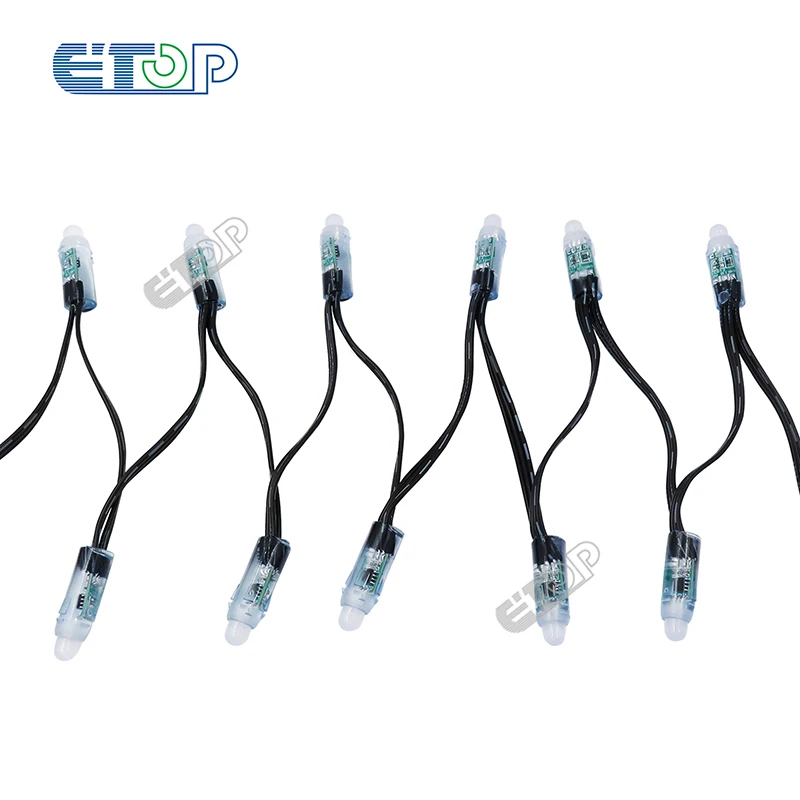

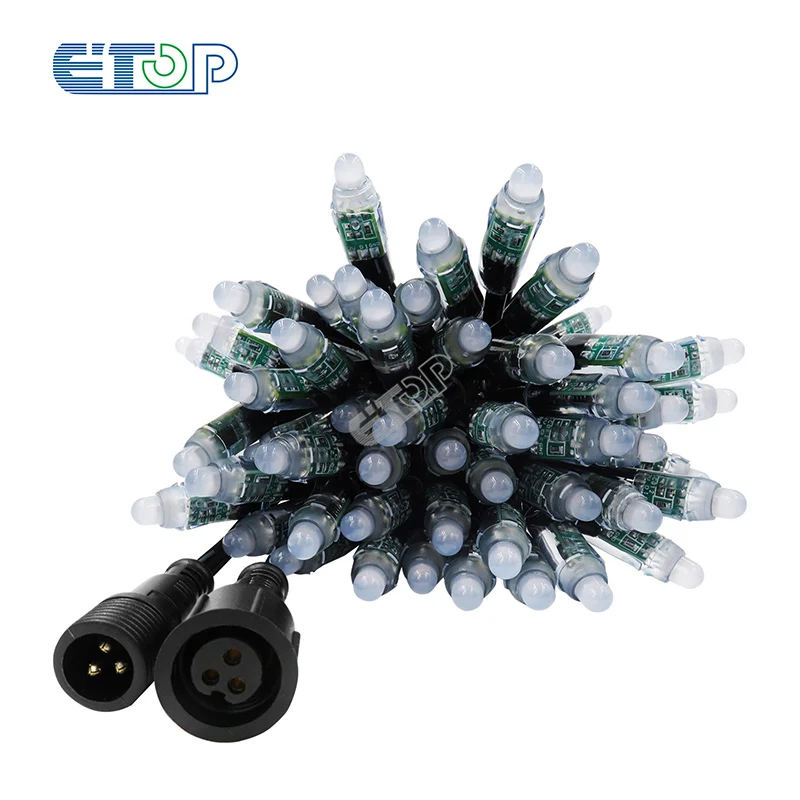

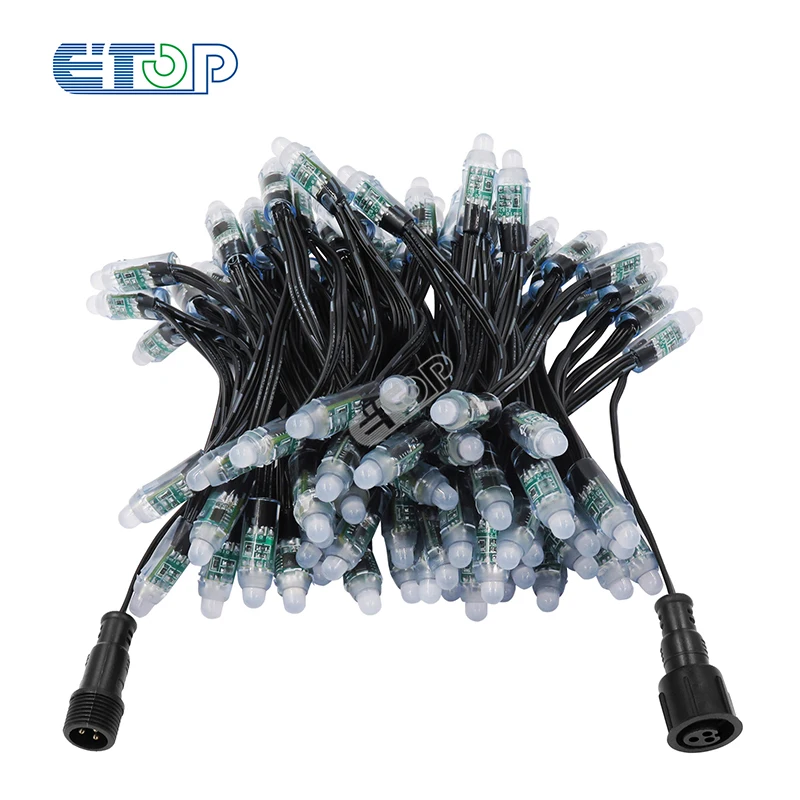

12mm 18awg DC12V ws2811 black wire ip68 bullet led pixel lights

Big quantity please contact us to choose better shippment method....



Features:

1. Adpots high quality 8mm 0.24w round hat RGB LED as lighting source.

2. With good proection level. can achieve IP68.

3. Each module as one pixel, takes 3 dmx channels,white strobe color,can be controlled individually,

4. It is easy installation, open hole.

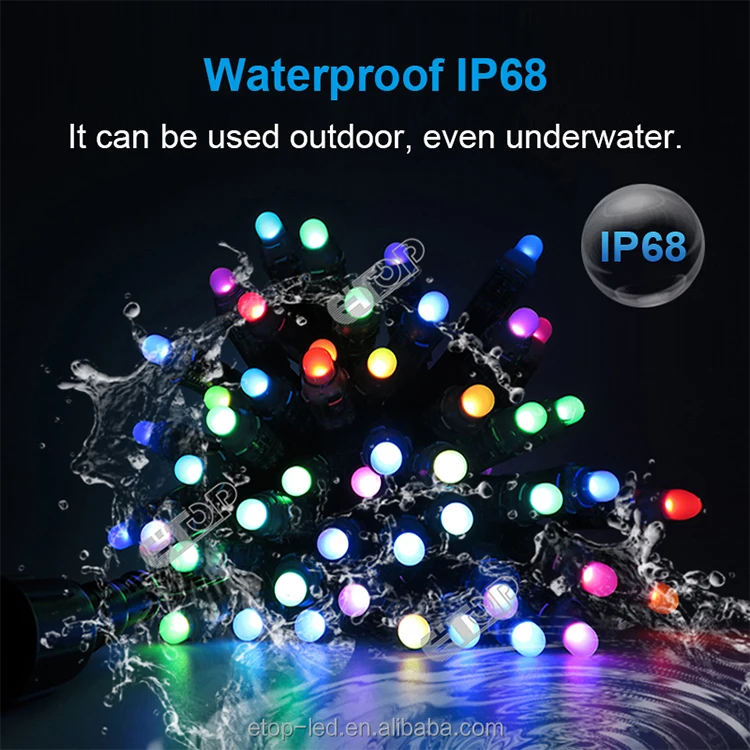

5. Good waterproof type,IP68 rated,epoxy resin filled

6. Using the strong cabe,with good cold resistance ability

7. Works with dmx matrix controller,or SPI pixel controll,on-line controller.etc

Specification:

Part No	ET-2811-12V-IP68-R-18awg
Color	full rgb color,24bit,256 gray scale
LED Qty	1pcs 8mm round hat 0.24w rgb led with 4pin common anode
Input Volt	DC12V
Max current	50MA
Max Power	0.6W
Driver method	Constant current circuit
Dimension	12mm diameter(open hole)
Viewing angle	100-120degree
Protection Level	IP68
Certification	CE and RoHS

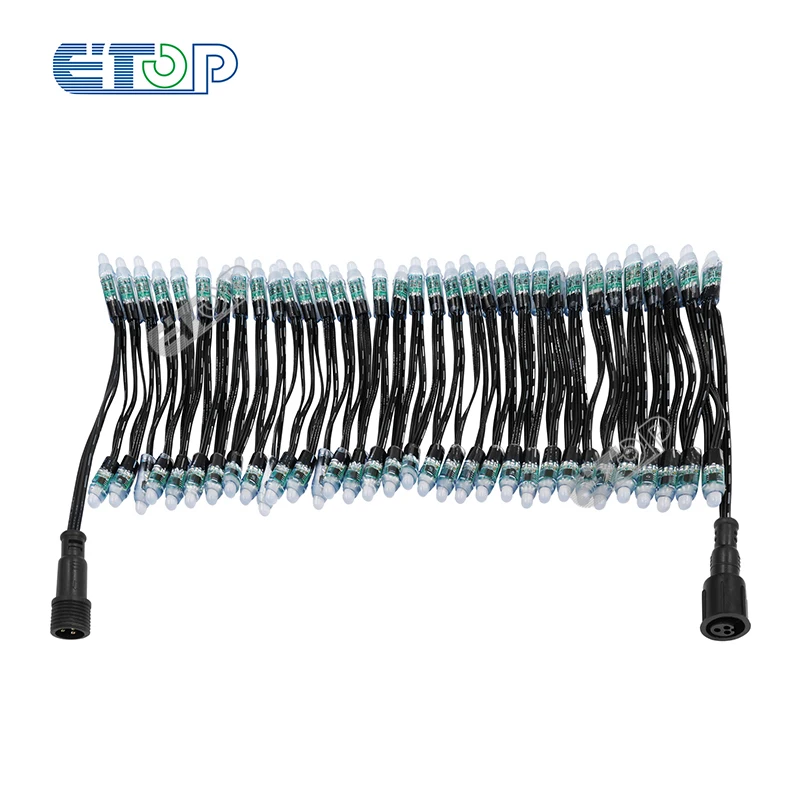

Standard connection	100pcs nodes per string

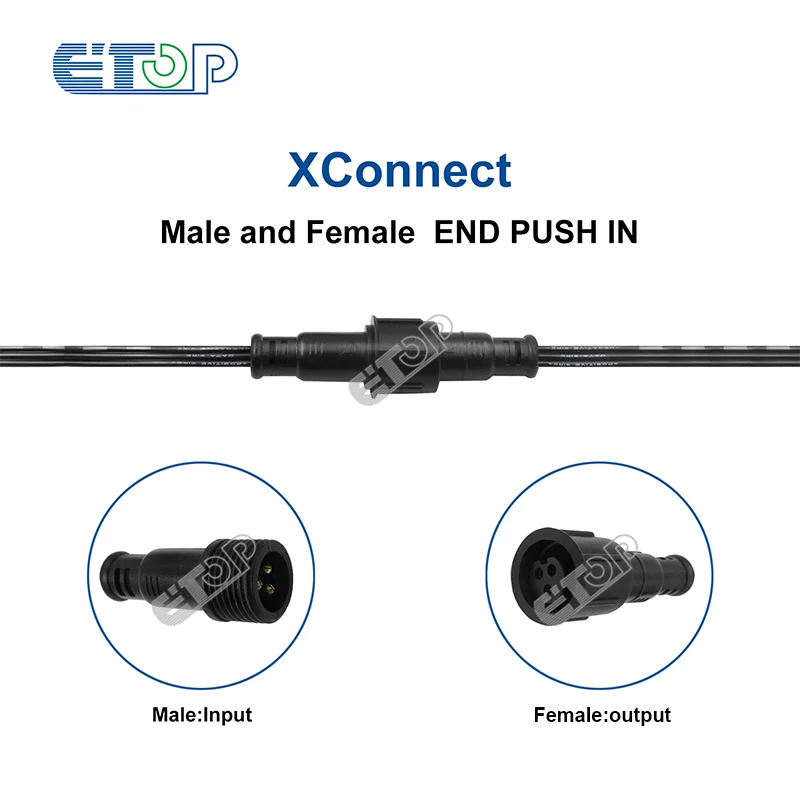

Standard wire length	120mm long,4inches(10cm) center spacing;18 awg   13.5mm/18.5mm/xconnect black waterproof male and female connectors (20cm each)
Housing	transparent PVC
Fixed way	12mm diameter open hole



Applications:

Lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc
