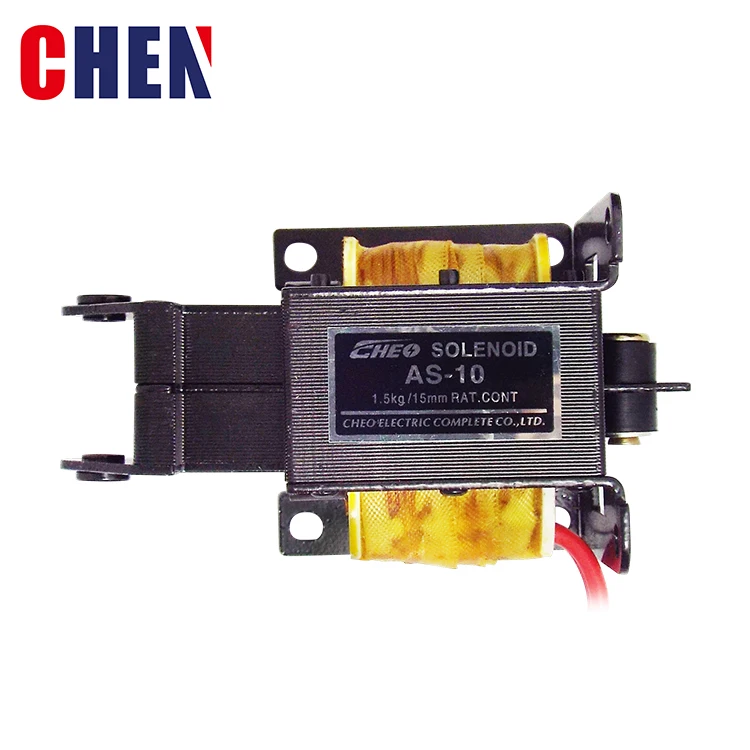

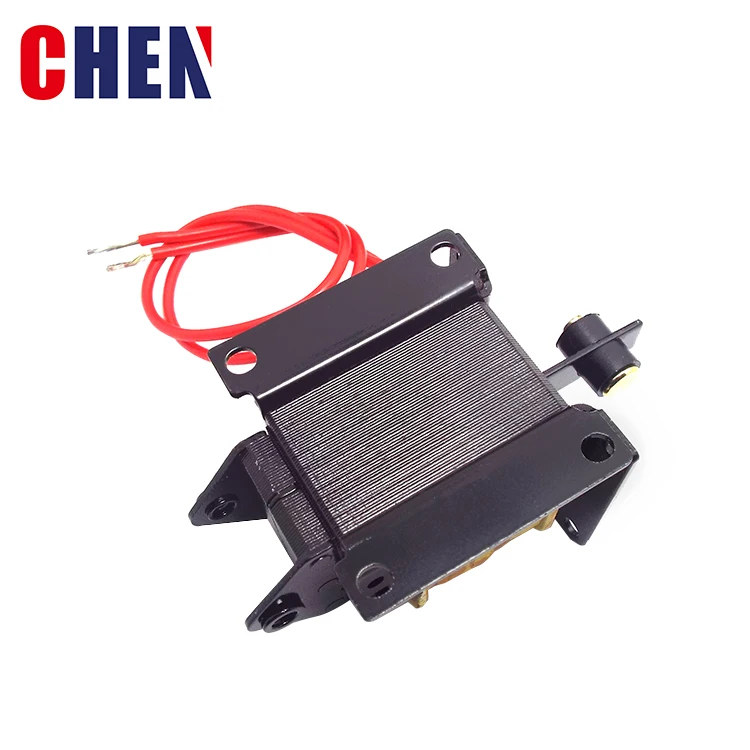

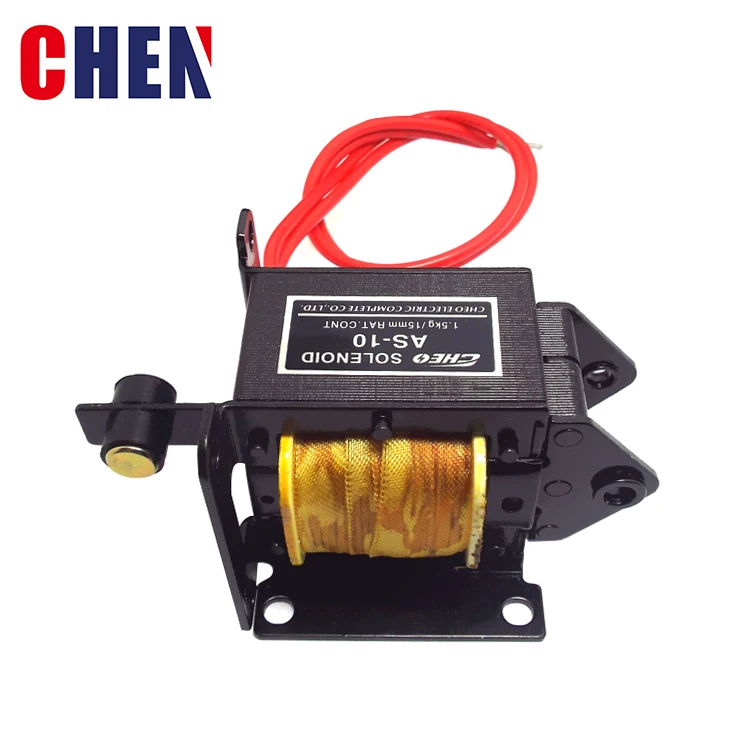

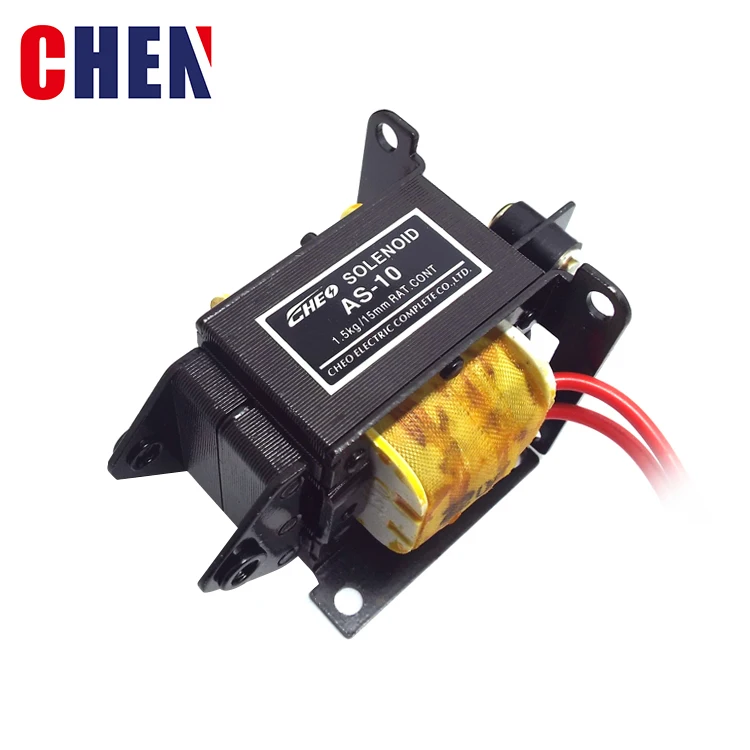

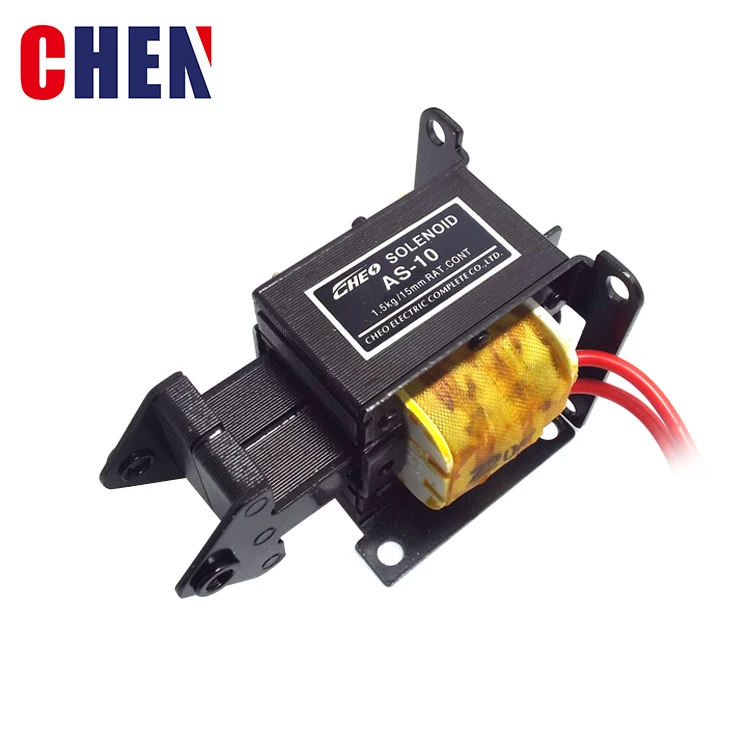

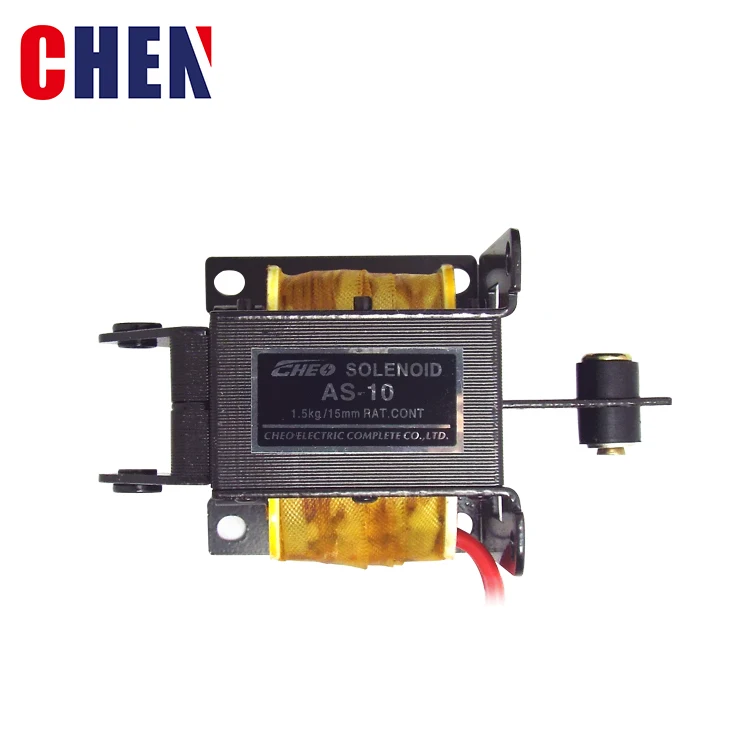

AS-10 1.5kgf 14.7N Stroke 10mm AC laminated push pull type electromagnet Solenoid
Product Description
AS series AC electromagnetic, patent No. ZL00251761.1, which is the latest results of high quality AC electromagnetic. As we use superior silicon steel sheet, and cast sealed coil, we improved the insulation capability, safety and reliable, beautiful shape, small size, light weight, with high speed of adsorb and release, save for electric. It is mainly used for circuit of AC 50Hz or 60Hz, rated voltage up to 415V, for the purpose of long and short distance controlling of mechanical equipment automatic system and all kinds of operation mechanism. This product is in line with GB14048.5 standard.
| Model | Action forms | Rated stroke | Rated force | Rated voltage | Rated cycle | Insulation class |
| mm | N(kgf) | V | HZ | |||
| AS-10 | PUSH-PULL | 10 | 14.7(1.50) | AC220orAC110 AC380 AC24 AC36
Non-standard voltages can be customized | 50/60HZ Common (2 lead wire) | A |
| Model | Insulation resistance | Frequency voltage | Temperature rise | Rated operating frequency | Movable iron core weight | Total weight |
| 60% | g | g | ||||
| AS-10 | DC500V 50MΩ
above | AC1500V 1 Minute | Below 85°C | 1200 time / hour | 125 | 455 |
