Бесщеточный двигатель беспроводная циркулярная пила Тайвань 20
- Категория: Циркулярные пилы >>>
- Поставщик: SERGIA,INTERNATIONAL,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.11 $* | 0.45 $* |
| Aug-16-2025 | 0.87 $* | 0.86 $* |
| Jul-16-2025 | 0.91 $* | 0.96 $* |
| Jun-16-2025 | 0.65 $* | 0.15 $* |
| May-16-2025 | 0.21 $* | 0.77 $* |
| Apr-16-2025 | 0.70 $* | 0.23 $* |
| Mar-16-2025 | 0.35 $* | 0.50 $* |
| Feb-16-2025 | 0.18 $* | 0.61 $* |
| Jan-16-2025 | 0.57 $* | 0.96 $* |
Характеристики
Product Description

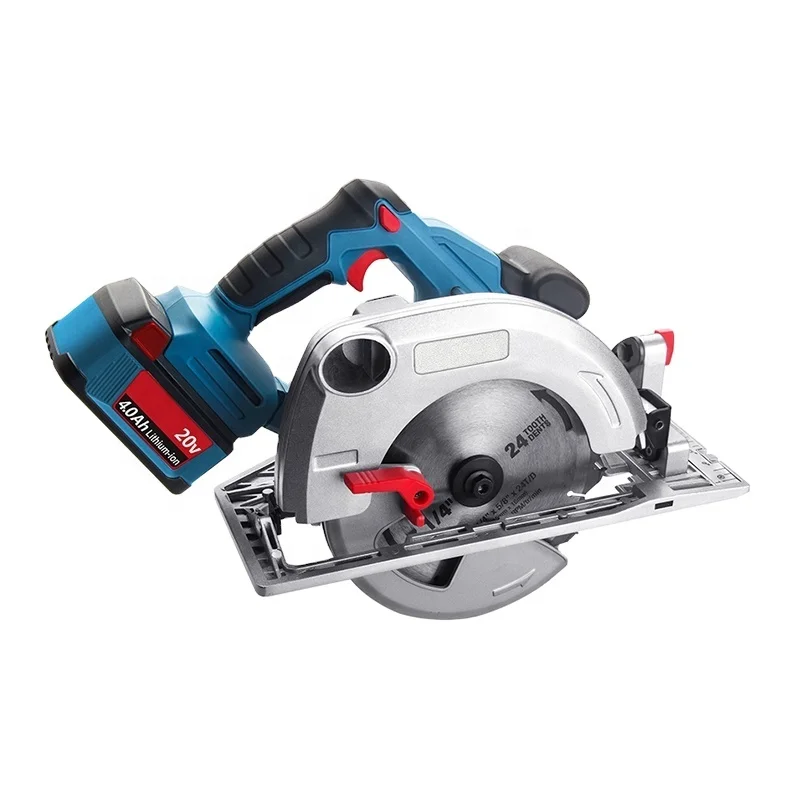

20V Brushless Circular Saw
Features
● Brushless EC motor, max. power, best performance &longer life time.
● Spindle lock for saw blade replacement.

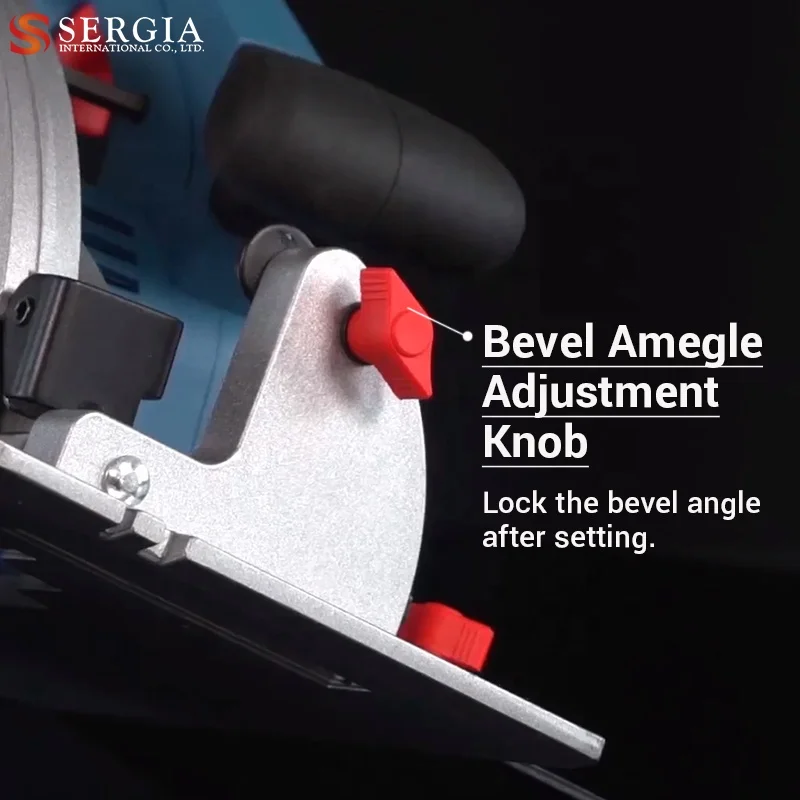

● Tool free cutting depth adjustment.
● Variable speed switch helps user set optimal speed.
● Lock-off switch for safety.

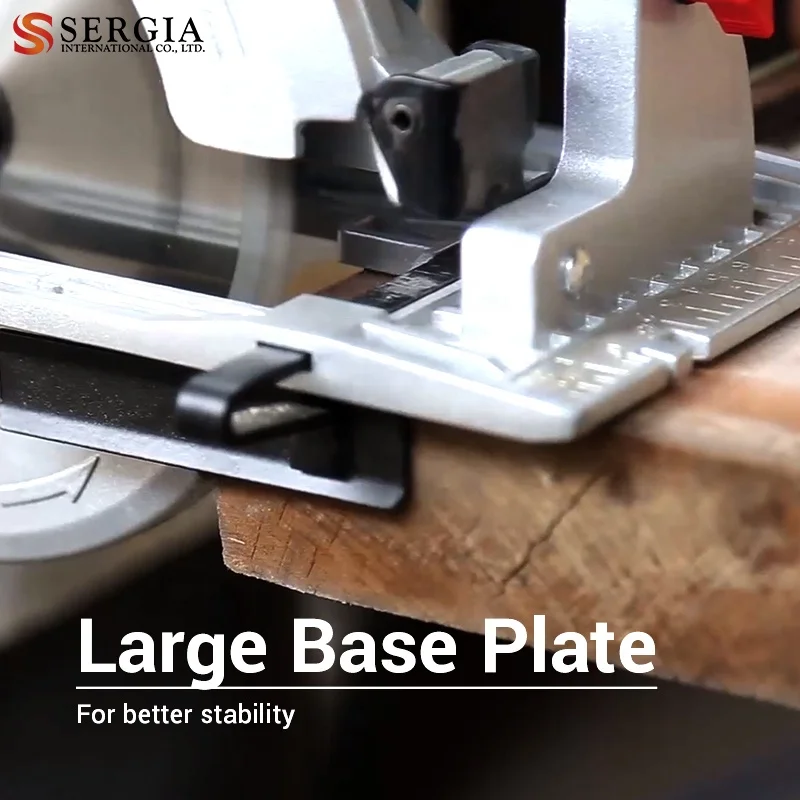

● Sturdy base plate for safe guidance.
● Ergonomics slim handle with soft grip for comfortable use.
● Efficient dust extraction port design.
● From 2.0Ah to 5.0Ah battery capacities with rubber protection for different applications.
● Blower function for cleaning sawdust from cutting area.

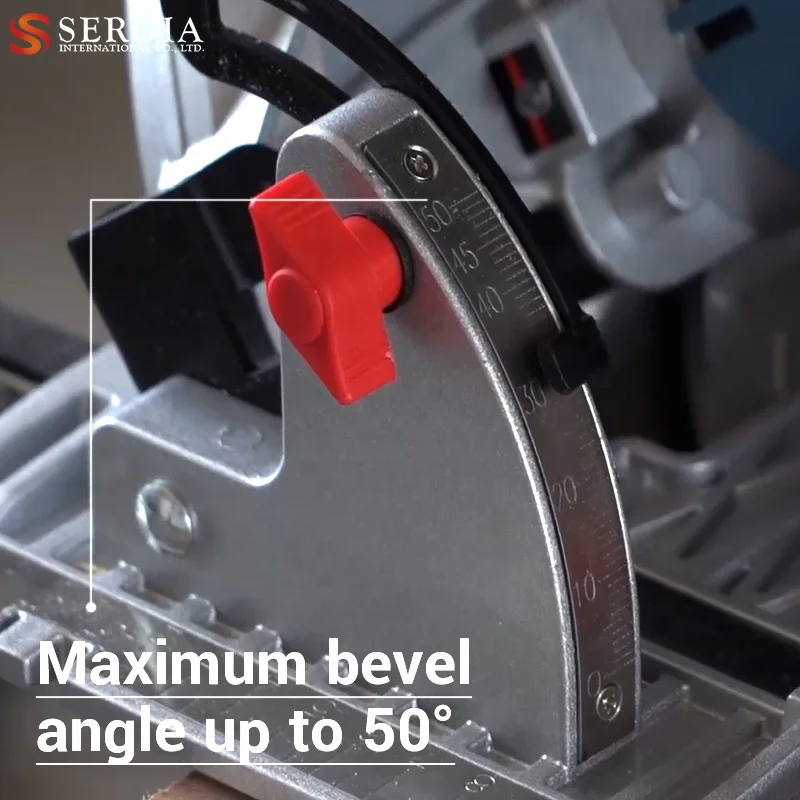

● Maximum bevel angle up to 50°.
● Built-in blade change key storage.
● Maximum bevel angle up to 50°.
● Built-in blade change key storage.
*All the prices are only for reference. Exact price will be based on the latest quotation.
Model No. | 513001J6 |
Blade size | 185mm (7-1/4”) |
Arbor size | 20mm (13/16") |
No Load Speed | 5,000 RPM |
Max. cutting capacity | 90°: 65mm (2-9/16”) 45°: 43mm (1-11/16”) |
Voltage | DC-20V |
Dimension | 306x109x201 mm |
Weight with 4.0Ah battery | 4.41 kg |
Details Images
20V Li-ion Battery
Share the same Charger and Battery
Compatible Tool Models:
502013J6,502014J6,502015J6,502016J6,502017J6,502018J6,503011J6,504005J6,507002J6,507003J6,508002J6,508003J6,508004J6,509002J6,510001J6,511001J6,511002J6,511003J6,511004J6,512001J6,512002J6,513001J6,513002J6,513003J6,513004J6,514001J6,515001J6
What's Brushless Motor?
As their name implies, Brushless DC Motors controls the speed and torque via a closed loop controller instead of the mechanical brushes and commutator.
A typical brushless motor has permanent magnets which rotate around a fixed armature, eliminating problems associated with connecting current to the moving armature.
A typical brushless motor has permanent magnets which rotate around a fixed armature, eliminating problems associated with connecting current to the moving armature.
The advantages of a Brushless EC Motor over brushed motors are :
1.Electronic control: Brushless motors are synchronous and precise controlled motor.
2.Less friction and heat: The elimination of brushes can reduce friction and run cooler.
3.Low Repair Cost: No need to replace brushes, commutator, and other wearable parts.
4. Longer run time: Electronic controller brushless motor will optimize battery energy use.
5.Higher efficiency: High efficient brushless motor will construct power tools with the best performance, more reliable, and more durability.
6.More compact size: Lower weight and smaller size of brushless motor will realize tools with compact design for comfortable use.
2.Less friction and heat: The elimination of brushes can reduce friction and run cooler.
3.Low Repair Cost: No need to replace brushes, commutator, and other wearable parts.
4. Longer run time: Electronic controller brushless motor will optimize battery energy use.
5.Higher efficiency: High efficient brushless motor will construct power tools with the best performance, more reliable, and more durability.
6.More compact size: Lower weight and smaller size of brushless motor will realize tools with compact design for comfortable use.
v.s | Brushless Motor | Brushes Motor |
Friction | Low | High |
Heat | Low | High |
Controller | Electronic Controlled motor | Carbon Brushes & Commutator (need to replace these parts after their service life time) |
Torque | High | Low |
Efficiency | High | Low |
Life | Long | Short |
Repair Cost | Zero | High (carbon brushes& other wearable parts) |
Our Company
“High quality is not an act, it is a habit.”
We are a professional automotive specialty tool and industrial tool exporter and manufacturer in Taiwan. Using our technology and expertise, we have kept developing more and more new products with improved know-how, in order to meet the markets' demands.
Our main and constant policy is to persist in the stabilizing quality, speedy, delivery and best service to expand our products to the worldwide market. Many of our products are hand tools, pneumatic tools and metal machining, currently taking steps towards more specialized auto repair tools are considered the very best that can be purchased and our pricing is extremely competitive.
Our goal is to create the mutual benefits between our customers and co-worker suppliers, and also stick to the object of "customer service", "high quality" and "high efficiency" to provide our customers the highest quality and service in OEM and ODM projects.
So that, we would like to invite you join the list of our potential customers to share all our thorough know-how and product lines in these fields.
We Provide
Production Flow
Packing & Delivery
FAQ
Q: Can we get a sample?
A: Yes. Please contact with us and make sure what sample do you need.
Q: Can I have our own logo on the products?
A: Yes. It is no problem to have your own logo on the products. Please contact with us to make sure the detailed art work before placing order.
Q: What is your MOQ requirement?
A: It depends on the products, please feel free to contact with us.
Q: What about the leading time?
A: It depends. Please confirm the exact delivery time with us as different products and different quantity will have different leading time. In general, the leading time is about 45 to 60 days.
Q: How about the packing and shipping?
A: Normally, we have carton and foam in it for packaging. If you have any other specific requirements, please feel free to contact with us.
Q: What is your Payment Terms?
A: 50% down payment; the rest T/T before shipment.
Q: Do you offer exclusivity ?
A: Please check with us for the details. It depends on the market in the country you are.
