4 порта Impinj R2000 чип UHF RFID считыватель
- Категория: Устройство чтения для контрольно-пропускной системы >>>
- Поставщик: Shenzhen,Tasei,RFID,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 155.37 $* | 163.95 $* |
| Aug-18-2025 | 153.93 $* | 161.0 $* |
| Jul-18-2025 | 129.35 $* | 135.93 $* |
| Jun-18-2025 | 151.14 $* | 159.16 $* |
| May-18-2025 | 131.33 $* | 138.2 $* |
| Apr-18-2025 | 148.64 $* | 155.31 $* |
| Mar-18-2025 | 147.11 $* | 154.21 $* |
| Feb-18-2025 | 146.97 $* | 153.41 $* |
| Jan-18-2025 | 144.29 $* | 151.23 $* |
Характеристики
4 ports Impinj R2000 Chip UHF RFID Reader Module
Products Description

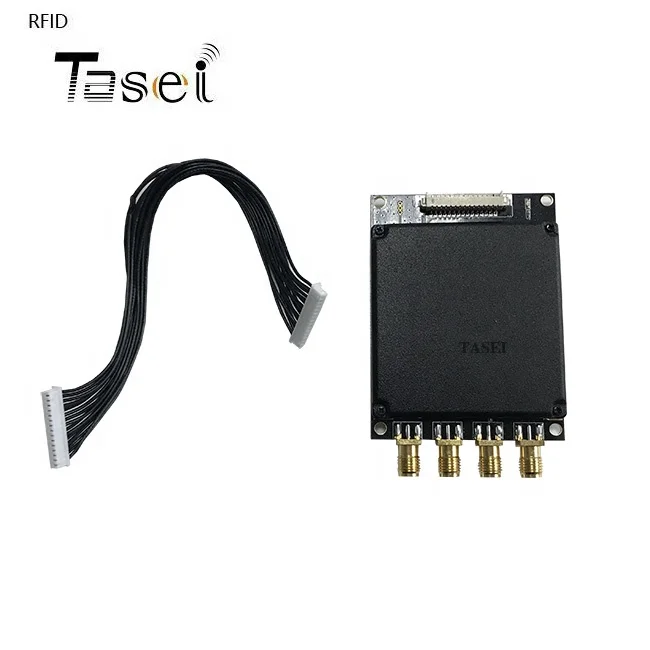

TS-314M is a high performance 4-channel module based on Impinj Indy R2000 chip
*Using Impinj INDY R2000 RF chip
*24hoursx365 days non-stop
*Peak Inventory Speed: 700 tags/s.
*Unique I-Search multi-tag recognition algorithm
*EPC C1 G2 and ISO 18000-6B protocols are both supported.
*Low power design, peak current is only 1.2A at 30dBm output power
*Antenna protection function, reminding the user when the antenna is not connected (can be turned off)
*Using Impinj INDY R2000 RF chip
*24hoursx365 days non-stop
*Peak Inventory Speed: 700 tags/s.
*Unique I-Search multi-tag recognition algorithm
*EPC C1 G2 and ISO 18000-6B protocols are both supported.
*Low power design, peak current is only 1.2A at 30dBm output power
*Antenna protection function, reminding the user when the antenna is not connected (can be turned off)
Working Environment | ||||||||
Operating Temp | -20°C to 55°C | |||||||
Storage Temp | -20°C to 85°C | |||||||
Humidity | 95%(+55°C) | |||||||
Parameter | ||||||||
Protocol | ISO 18000-6C(EPC gen2) ISO 18000-6B | |||||||
Frequency Range | 902MHz~928MHz or 865MHz~868MHz or customize others frequency according to your needs | |||||||
Working Voltage | 3.7V-5V | |||||||
Standby current | <50mA (EN high level) | |||||||
Sleep Current | <100uA (EN low level) | |||||||
Operating Current | 1.2A +/-10% | |||||||
Output Power | 0-33dbm | |||||||
Output Power Precision | +/- 1dB | |||||||
Output Power Flatness | +/- 0.2dB | |||||||
Data interface | RS232 and TCP/IP | |||||||
Receive Sensitivity | < -85 dBm | |||||||
Peak Inventory Speed | >700 tags/sec | |||||||
Tag Buffer Capacity | 1000 tags @ 96 bit EPC | |||||||
Tag RSSI | Supported | |||||||
Antenna Detector | Supported | |||||||
Ambient Temp Monitor | Supported | |||||||
Working Mode | Single/DRM | |||||||
GPIO | 2 inputs optical coupling 2 outputs optical coupling | |||||||
Max Baud Rate | 115200 bps | |||||||
Heat Dissipation | Air cooling | |||||||
