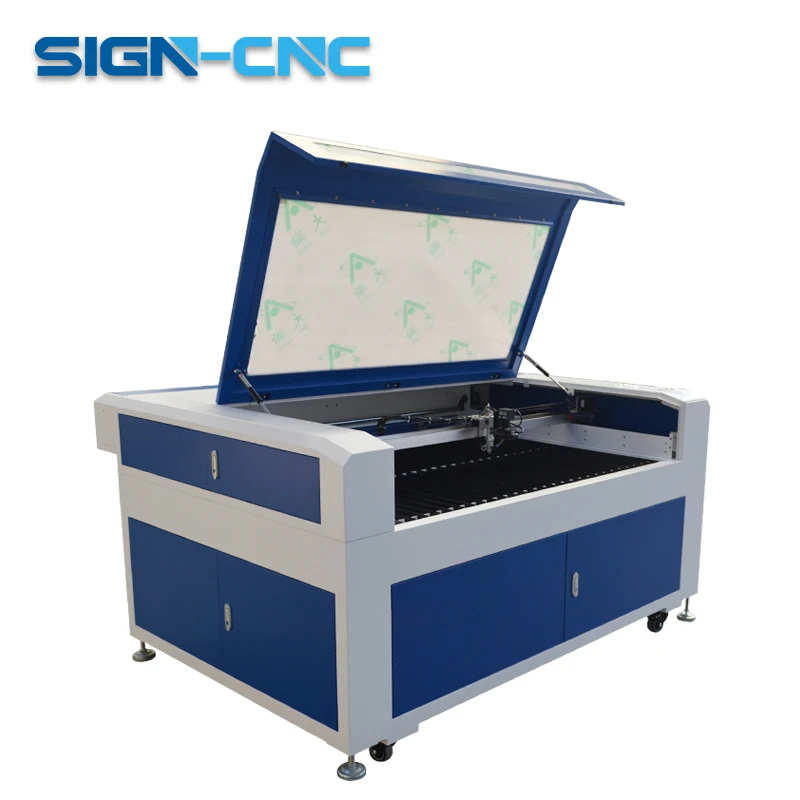

1. Laser machine working for non-metal materials engraving and cutting, laser tube is famous brand Beijing Reci and all the parts original and high quality

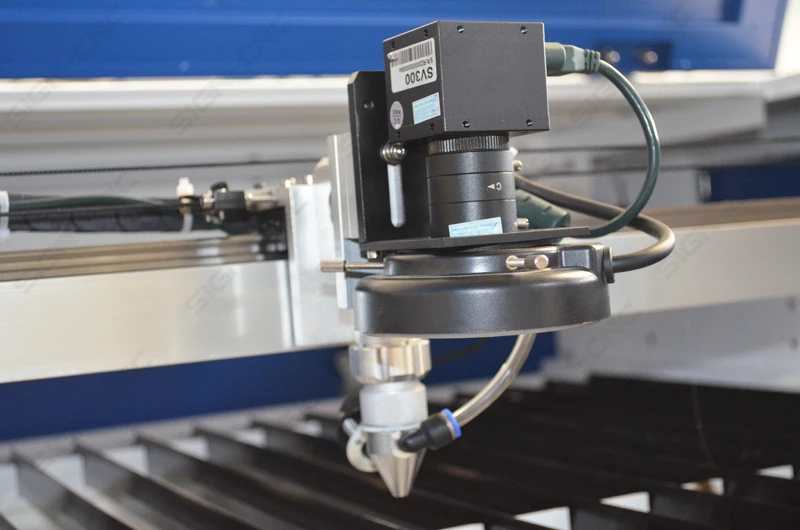

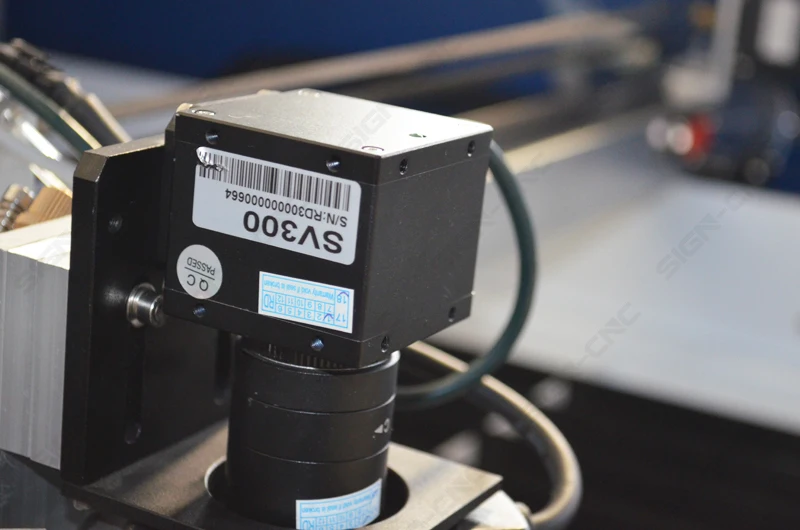

2. Machine with CCD Camera:
CCD can get every edge of the objection and extend (entad or forth) expected distance, and then cut them. According to common knowledge, the fabric labels may a little different from each other, and adoption of this technology can solve this problem. Install 5 million pixel colorful of camera. Can do accurately locating cutting for those edge-immovable objections. For example, it can accurately cut those distorted-not-much fabric labels. It is for exact picture cutting, like fabric label, embroidery cutting and so on.
Machine parts:
The double head machine standard configuration is two set of laser system.
Name of parts
Quantity
A complete machine bed
1 pc
Laser tube Beijing Reci
1 pcs
Laser power supply
1 pcs
Laser head
1 pcs
Singapore Lens and mirror
1 pcs
Water chiller
1 pcs
Air pump
1 pcs

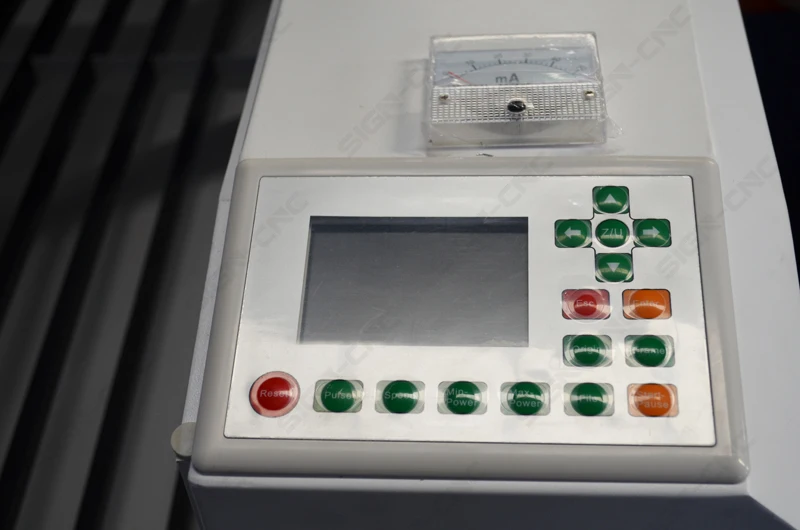

Ruida control system with control panel
1 set

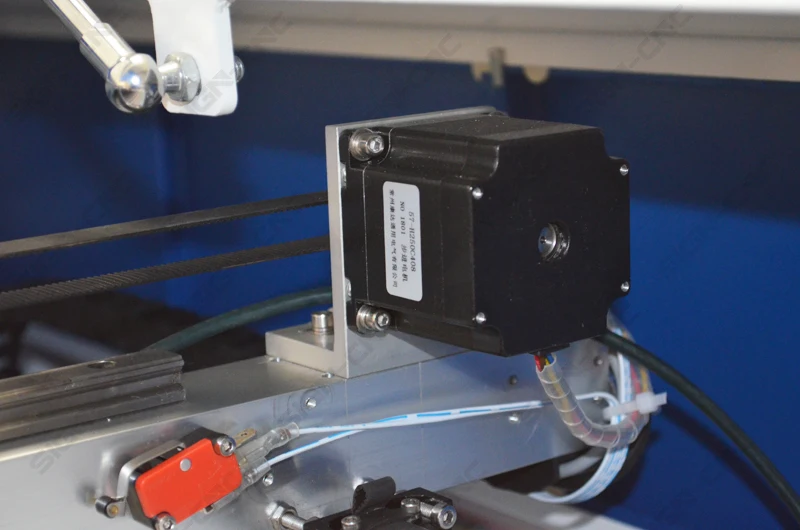

Stepper motor and driver
2 sets
Blade working table
1 pc
Exhaust fan
1 pc
USB cable and all of the machine cables
1 set
Tools box: a set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, Stainless steel ruler, CD or U disk, a focal length of stick
1 pc
Manual of machine
1 pc
Applicable Industries:
Advertisement, arts and crafts, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry.
Applicable Materials:
Non-metal materials such as wood, MDF, balsa, timber, veneer, plywood, bamboo, acrylic, crystal, glass, plexiglass, mirror glass, textiles, garments plastics, PMMA, paper, cardboard, foam, foils and films, packaging film, PES, Laminate sheet, double color board/plate, granite, marble, slate, leather, rubber, ceramic and other nonmetal materials.
1. Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.
2. Up/down table: to adjust the height of table, for putting 300mm depth materials.
3. Red dot: The laser is invisible. Red dot shows the position of the laser on the material,, quickly find the position.
4. Honeycomb platform: Engraving and cutting soft materials like paper, leather and so on.
5. Auto-focus: working together with up/down table to adjust the focus distance automatically.
Company Information
Jinan SIGN CNC located in Jinan, Shandong, China
Strong professional technical team to provide the best products
Many years of experienced managers with the most perfect price system integration schemes for our customers.
Established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
Experienced in exporting the CNC machine for over 7 years, familiar with the different requirements from all kinds lines
Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.
All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
Welcome to visit our factory.
Packaging & Shipping
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
MOQ
1 set
Port of loading
Qingdao, China. Other cities are ok
Time of delivery
15 working days after receiving payment
Payment methods
T/T in advance, 50% deposit, the balance should be paid before shipping
1. Two year warranty for machine, and if machine parts not work because of quality, we can repair and replace parts for free in one year.
2. Technical support in 24 hours online, WhatsApp, TM, Skype, E-mail, solving the relative questions in time.
3. Life time free maintenance service.
4. Free training course at our factory with professional engineers.
5. We provide the consumable parts at agent price when you need replacement.
