Домашней безопасности видео-дверной звонок Домофон с голосовых сообщений

Why Choose Bcomtech Video Door Phone Intercom ?

* 720P/960P  high resolution screen: you will see the image quality more clear

 * Digital photo frame: put your favorite family picture on SD card it will show one by one

 * Point to point call transfer: when room 1 answer, transfer the call to room 2 or room 3

 * CBVS and AHD signal: also support old version door camera only change the monitor

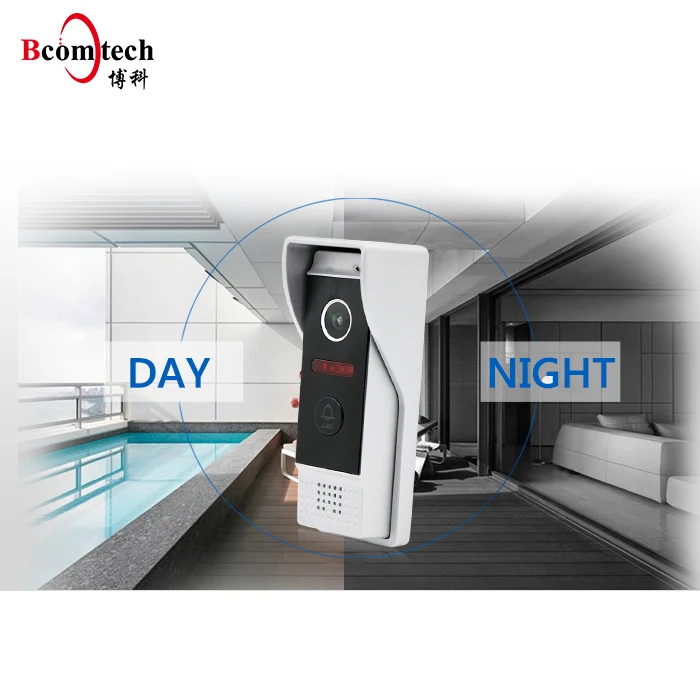

 * Outdoor panel built in IR CUT : which night view image more clearly

 * Customized ring tone: you can download you like song out in SD card and set it as ring tone
 * Voice Message: when visitor call monitor no answer, will auto jump to message mode

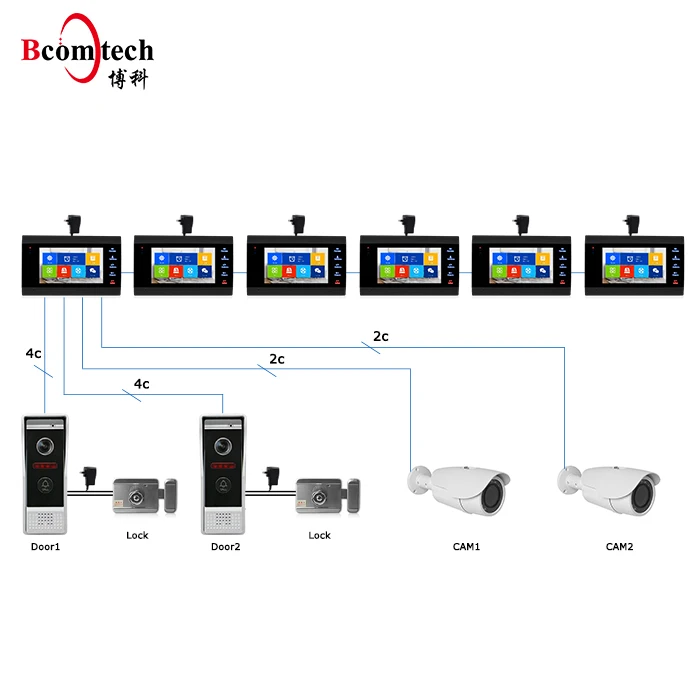

 * Max support 2 outdoor cameras, 6 indoor monitors and 2 CCTV cameras.

Parameter

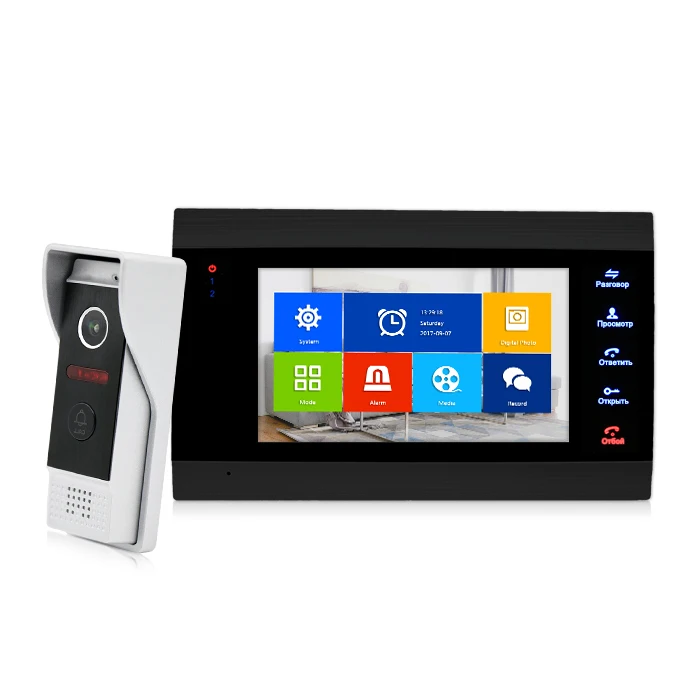

Indoor Monitor

Model

84706-EM

84706-EMB

Monitor

7" TFT LCD video doorphone

Resolution

1024(H)*3(RGB)*600(V)

Memory

Support Max. 32GB SD card

Intercom Mode

Hands-free dual-way communication

Conversation duration

120s

Keypad

sensor screen

Power Consumption

400mA Max.

Power Supply

External power DC12V

Built-in power AC100-240V

Support

2 call panerl + 6 indoor monitor + 2 CCD camera & 2 alarm

Input Video Signal

Motion detection

Yes

System

Support 6 Indoor Monitor + 2 Call Panel + 2 Camera

Function: Unlocking/Monitoring/Intercom Calling/Transfer Calling/ Recording

Advantage: Wiht Photo Frame/MP3 & MP4 Player/ Clock & Voice Message/ Backgroud Music

Outdoor Unit

Model

84203-1.0MP

84203-1.3MP

84203-2.0MP

Camera Sensor

720P

960P

1080P

2.8mm lens

3.7mm lens

3.7mm lens

View Angle

pinhole lens:2.8mm 110º

LEDs For Night LED

IR LEDs(120º)

Power Consumption

200mA Max.

Power Supply

Supplied from indoor monitor

Material

Aluminum alloy panel

Waterproof

IP65

Operation Temp

-40℃ +50℃

Istallation

Surface mount

Supports Multi-languages

The system supports six different languages

IP65 Waterproof, Anti-thunderstorm Design

The outdoor panel can also works well even in bad weather.

Indoor Monitor

720  high resolution screen: you will see the image quality more clear

 * Digital photo frame: put your favorite family picture on SD card it will show one by one

 * Point to point call transfer: when room 1 answer, transfer the call to room 2 or room 3

 * CBVS and AHD signal: also support old version door camera only change the monitor

Outdoor Call Panel

♦Robust slim metal construction

♦Embedded box included

♦Outdoor panel built in IR CUT : which night view image more clearly
♦Voice Message: when visitor call monitor no answer, will auto jump to message mode

Package

Villa Intercom System
