Autoclaved Aerated Concrete or AAC is a lightweight, precast concrete material that comes in two forms: blocks and panels. It was developed in Sweden during the 1920s. AAC offers structural strength, heat and sound insulation, and fire resistance in one material.

Being aerated, AAC contains 50-60% air and has a density of 750 kgs/cbm. Although it weighs only about 40% of conventional CHB, the compressive strength averages 4.25 MPa which is twice the PNS (Philippine National Standard) requirement for Type II non load-bearing CHB.

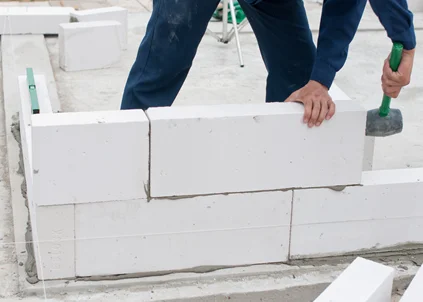

Unlike other concrete products, AAC may be sawn, drilled, chiseled, nailed or screwed using conventional carpentry or electric power tools. Thin bed mortar is used as adhesive to join the blocks or panels together.
Its main ingredients (cement, lime, silica sand, gypsum, and water) are mixed into a slurry. Aluminum powder is added as an expansion agent. The chemical reaction generates tiny air bubbles and causes the mixture to expand to nearly twice its original volume.
After its initial setting, it transforms into a semi-solid state which is then wire cut into precisely sized blocks or panels and then baked (autoclaved).
Autoclaving uses high-pressure steam at temperatures of up to 190°C to accelerate hydration of the concrete. It can produce in 8 to 14 hours concrete strengths equal to that of concrete moist-cured for 28 days at 70°F.

Detailed Images

Raw material

- Siliceous materials: Sand/Fly ash/ Tailings containing silicon/ Ceramic waste

- Calcareous materials: Lime bock + Cement + Gypsum

- Others: Aluminium powder paste

Advantages
♥ Lightweight : density of AAC block is 400-700kg/m3,1/3 of solid clay blocks, 1/5 of common concrete blocks.
♥ Fire proof : main materials of AAC blocks are inorganic. it has features of keeping temperature, resisting fire and
releasing no harmful gas.
♥ Sound insulation noise reduction :with distinctive large quantities of pores inside, AAC blocks have great sound insulation, its sound insulation index of 100mm thick can achieve 40.8db
♥ Good heat preservation,energy saving : with a large number of pores inside, AAC blocks have good heat preservation
♥ Reducing project cost and Convenient construction : surface of AAC blocks are smooth, it needn't plastering , lots of decoration costs will be saved. It can be sawed, cut, drilled freely and bound with other building materials which is favorable for building
♥ Anti-seismic :AAC blocks have light weight, so it have low inertia and good performance on anti-seismic
♥ Environmental protection :slag, flyash, mine waste and other industrial wastes can be used as raw material of ALC panel,which is friendly to environment

Packing & Delivery

	Eblock Standard Pallet Packaging
1	In order to ensure the quality and integrity of each single block delivered to the site, we use pallet packaging to protect our products against adverse weather conditions and transport vibration
2	Standard pallet dimension: (L x W x H) 1200 mm X 1000 mm X 1800 mm

Certifications

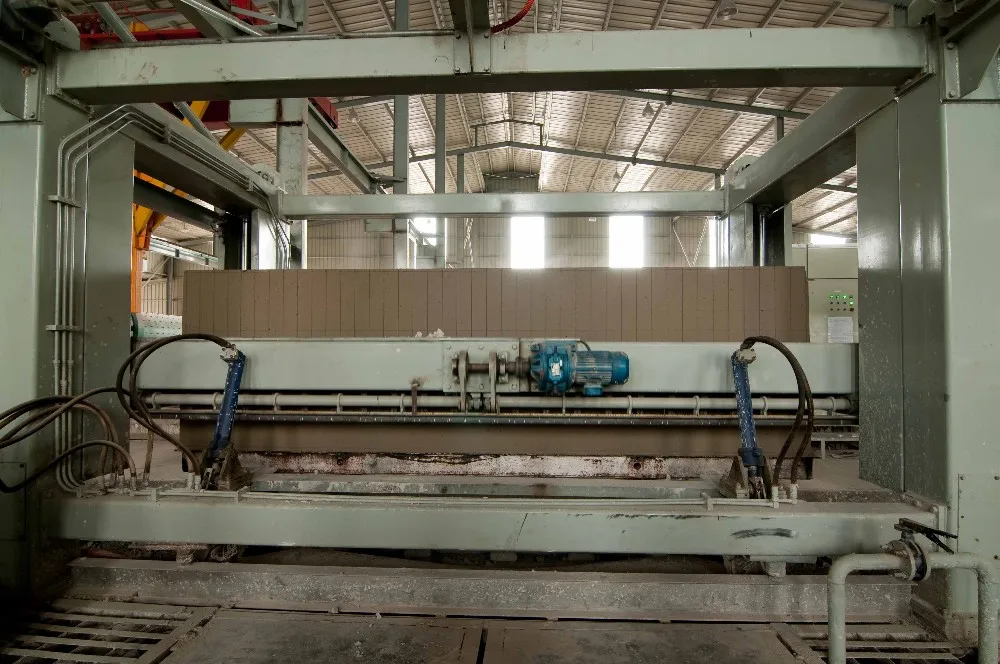

Quality In Manufacturing Process

We apply a strict quality control procedure as refer to European Standards in our factory to ensure the quality of any single block delivered to the site in the most perfect condition.

All raw materials are carefully selected from reputable suppliers. The manufacturing process is set up with a lot of automations by latest German technology in order to bring outstanding quality to our products.

Certificates

We understand hat a truly "GREEN" and Environmentally friendly product must be produced from a truly "Factory".

We have achieved some certificates, such as: VIETCERT (ISO 9001:2015), VIETCERT (ISO 14001:2015), VIETCERT (TCVN 7959:2011), VIETNAM BUILDING COUNCIL etc.

Our Core Strengths:
a. 12 years experiences in the field of making brick machinery and autoclaved aerated concrete (AAC) production line equipment.
b. brand advantages: Eblock Brand is a Vietnamese national leader in size, scope, and technology.
c. we are the manufacturer, all machines and equipments are sold at factory price.
d. lifetime warranty.

Our Company

Related Products

WATERPROOF BLOCK	LINTEL	PANEL	MORTAR PRODUCTS
600X240X100 (mm)	200x100x100 (mm)	Length : 1200 - 4800 mm, Width 600 mm, Thickness 50-200 mm	Thin-bed Mortar: Estimated Rated 2.25-6.0 kg/m2
3.0 ~ 7.5 (MPa)	3.0 ~ 7.5 (MPa)	3.0 ~ 7.5 (MPa)	Plastering Mortar : Estimated Rated 10 kg/m2
Water Absorption 10-15%	Dry Density 450-550 (kg/m3)	Dry Density 500-830 (kg/m3)	Skimcoat Mortar : Estimated Rated 4.3  kg/m2
Dry Shrinkage <=0.2 (mm/m)		Flat Shape/T-shape	Primer Mortar:  Estimated Rated 10 kg/m2
Fire Resistance 4-8 (hours)	Fire Resistance 4-8 (hours)	Fire Resistance 4-8 (hours)
STC 38 (dB)	STC 38 (dB)	STC 32-48 (dB)
		Steel Mesh: single or double (4-12 mm)

AAC PANELS
Made with cement, lime,silica sand as raw materials, with reinforcing bars treated with anti-rust coating. These panels are produced with high-temperature, and high-pressure curing.
it's a silicate plate of high performance, and has many incomparable merits like exceptional fire resistance, sound insulation, and thermal reduction. It can be used as external wall panels, partition panels (internal walls), roof panels, and floor panels.
Width: 600mm
Length: 600-6000mm
Thickness: 50-300mm per 25mm interval
