Строительные материалы Eblock панели ALC whatsapp +

E-BLOCK ALC (Autoclaved Lightweight Concrete) Panel is a sustainable green building material for simple and effective construction. These panels are made of cement, lime, gypsum and aluminum additives that help create bubbles within, hence making the panel lighter and thermal efficient. The tongue and groove of these panels makes the joint more secure and tight in terms of water leakage and with its lightness in weight, makes the installation easier and faster.

ALC panel:

External wall panel
Roof panel
Thin panel
Internal wall panel
Floor panel
Lintel

ALC panel technical standard:

LENGTH	FROM 1,200mm TO 4,800mm
WIDTH	600mm	Not including Tongue & Groove detail
THICKNESS	FROM 50mm TO 200mm
REINFORCED STEEL MESH	Single or Double	Ø4mm – Ø12mm

Specifications	Value
Compressive strength	3.0 ~ 7.5 (MPa)
Dry density	500 ~ 830 (kg/m3)
Thermal conductivity	0.11 ~ 0.18 (W/mK)
Fire resistance	4 ~ 8 (hours)
Sound Trasmission Class	32 ~ 48 (dB)

E-BLOCK offers in-house installation management services that cater effectively to a wide range on onsite needs, as well as ensuring safety and quality.

E-BLOCK can help to progress any project, by ensuring that day-to-day tasks are carried out smoothly, for instance, or offering onsite solutions.

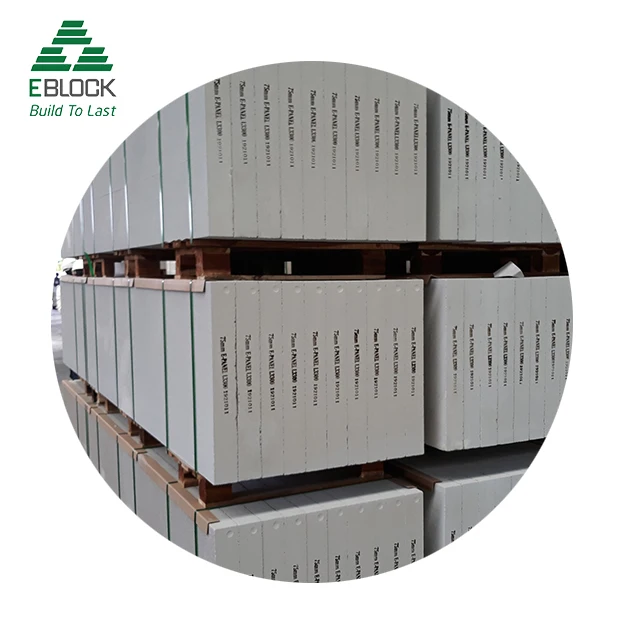

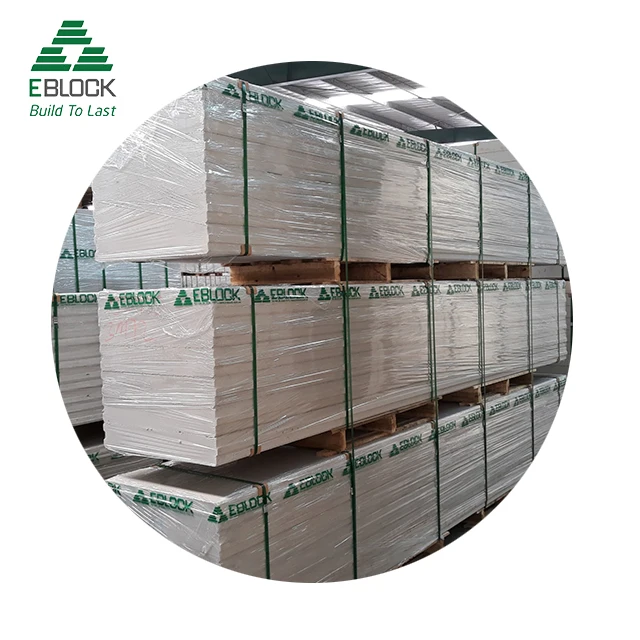

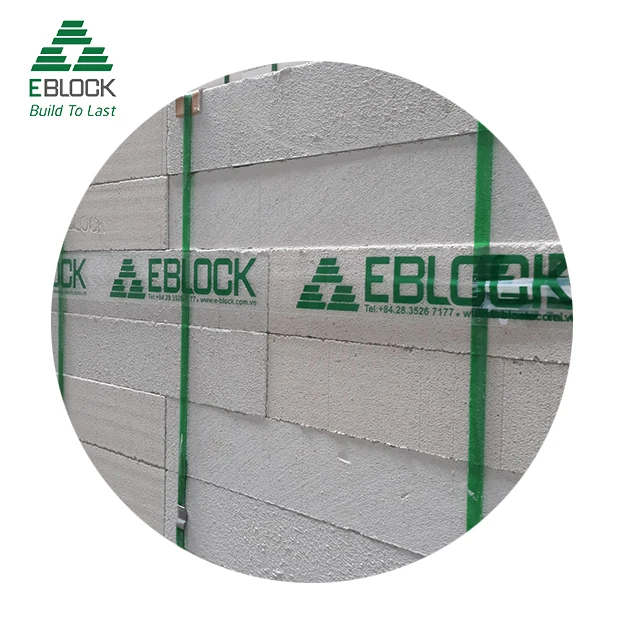

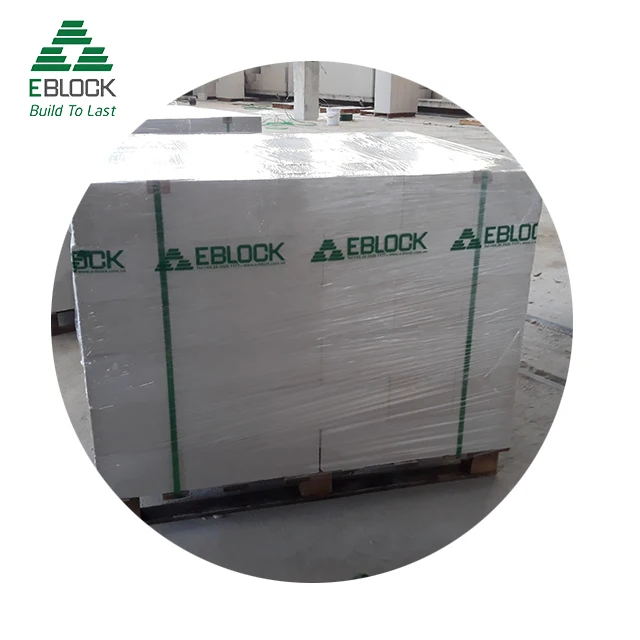

Detailed Images

Application

Our Company

About Eblock

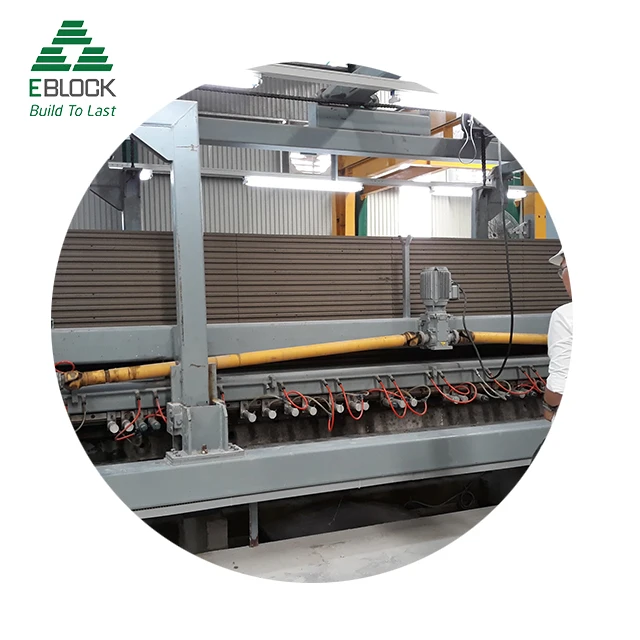

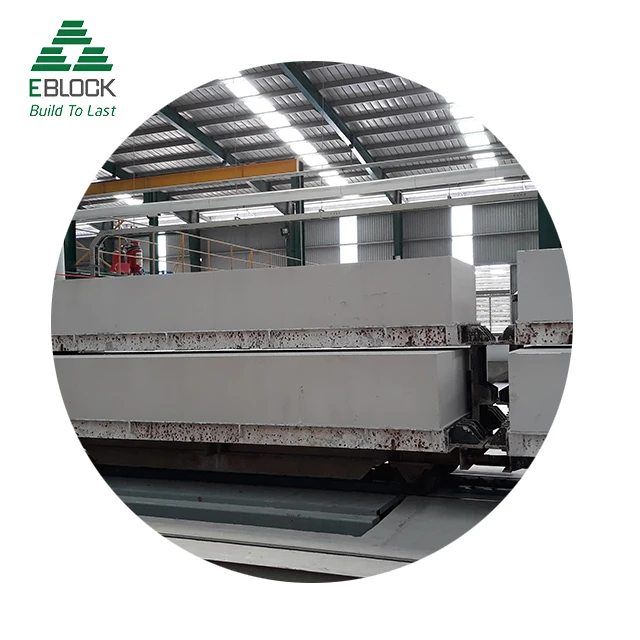

Eblock is the Asian biggest Vietnam-based AAC manufacturer with Top modern factory in ASEAN (2 lines) equipped with state-of-the-art machinery and technology, that boast a total capacity to more than 400.000m3 per annum.

Export daily to more than 20 countries: Singapore, Malaysia, Taiwan, Australia, New Zealand...

Provide a complete full solution for Wall System including Blocks, Panels, Mortar, Plaster, Skim coat and other accessories.

Certificate
