Material dealing process:Put the fly ash or sand into the ball mill to mill via the conveyor belt, after milling, put the slurry into the slurry storage tank by slurry pump.
Batching, mixing and pouring process:The lime, cement will convey by conveyor to the dry powder measure scale to scale separately. The slurry convey by slurry pump then to the automatic scale;the power and slurry put into the mixer,pouring into the mould.
Curing process:After slurry pouring into the mould, put the mould box into the curing room with 50~70℃. After 2-3 hours curing,the blocks become solid
Cutting process:Using reversal crane carry the mould and block to demould on cutting cart. The cutting cart will take the block to level cutting machine,vertical cutting ,two sides cutting,and remove the top waste material.
Autoclaved:Finished cutting using semi-product crane carry to the front of autoclave grouped,hoisting machine or dragger will drag steam trolley into autoclave to steam,it need 10-12 hours.
Finished block dealing:Finished product out of autoclave,with separting machine to separate layer by layer.
Package:Using finished block carry hanger clamp the finished product to package line on wooden pallets,after package, then by forklift transport the finished products to piled yard according to specifications to stack.
Certifications
| VIETCERT | VGBC | CODEMARK | DEMING |
| ISO 9001:2015 | Certificate of membership | Australia | QCVN 16:2017/BXD |
| ISO 14001:2015 | | CM40238 | |
| | | CM20117 | |
COMPRESSION TEST
Compressive strength of our AAC is 500- 750 psi. Being a non-load bearing material, such compression strength is far more superior considering the fact that average compression strength of non-load bearing concrete hollow blocks is 350 psi.
FIRE RATING TESTS
AAC blocks and panels will not burn if subjected to fire. Fire rating of AAC is 4 hours which is double the average fire rating of 2 hours for other masonry materials.
SOUNDPROOF TESTS
AAC blocks and panels have superior sound reduction qualities that inhibits transmission of sound. For 100mm thickness, sound reduction is 44 dB (decibels) while for 150mm thickness, sound reduction is 55 dB (decibels)
SCREW PULL-OUT TEST/SINGLE POINT HANGING POWER TEST
AAC blocks and panels are most suited for wall mounting requirements. It can withstand heavy loads without the risk of screws losing its anchor. With a 1.50 inch screw fully inserted on an AAC block or panel, it can withstand a load of 80 kilograms before the screw will fail on the material.
WATER MOISTURE AND ABSORPTION
AAC blocks and panels have low moisture and water absorption qualities. Inherent average moisture of the material is 4.70 percent while average water absorption in a 24 hour period is 9 percent.
THERMAL REDUCTION
AAC material has outstanding thermal reduction properties.It does not absorb heat due to its physical properties.This will therefore reduce HVAC costs in the long term.
![]()
Our Company
![]()
![]()
NEW ERA BLOCK TILE JSC
With the cooperation of British Fossett Corporation, New Era Block Tile JSC has set up the first AAC manufacturing factory based on German technology located in Thinh Phat Industrial Zone, Ben Luc, Long An province with an area of 5 hectares. The first products under EBLOCK brand were lauched in 2010.
NEW ERA BLOCK TILE JSC
With current two modern manufacturing lines that enable a total capacity of 400.000 m3 per year, New Era Block Tile JSC with our EBLOCK brand is proud to to the leading manufacturer of AAC products in Vietnam. EBLOCK products are also regularly exported to more than 20 countries in the world such as Singapore, Taiwan, Australia, New Zealand, etc.
Related Products
From basic products of AAC blocks, we have developed successfully a lot of Light Wall Solutions and we supply entirely all components that make a complete wall system including Blocks, Panels, Water-Resistant Block, Lintel, Mortars, Coasting Plasters, Skimcoats, etc.
![]()
![]()

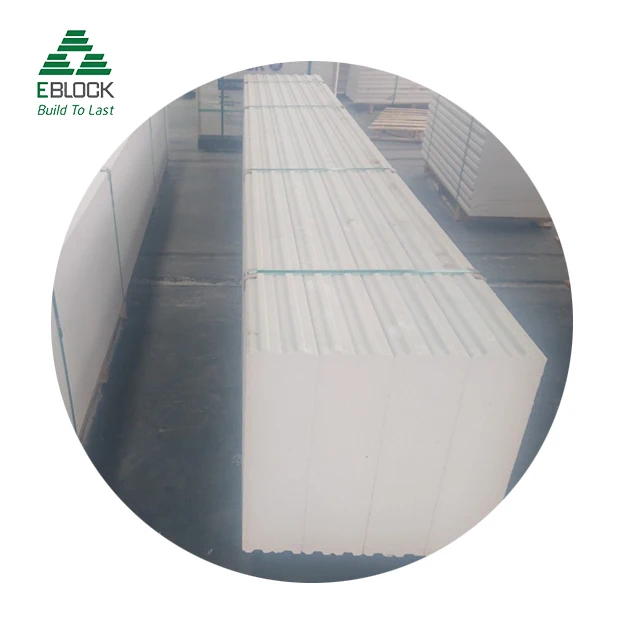

AAC PANELS
Made with cement, lime,silica sand as raw materials, with reinforcing bars treated with anti-rust coating. These panels are produced with high-temperature, and high-pressure curing.
it's a silicate plate of high performance, and has many incomparable merits like exceptional fire resistance, sound insulation, and thermal reduction. It can be used as external wall panels, partition panels (internal walls), roof panels, and floor panels.
Width: 600mm
Length: 600-6000mm
Thickness: 50-300mm per 25mm interval
Our Core Strengths:
a. 12 years experiences in the field of making brick machinery and autoclaved aerated concrete (AAC) production line equipment.
b. brand advantages: Eblock Brand is a Vietnamese national leader in size, scope, and technology.
c. we are the manufacturer, all machines and equipments are sold at factory price.
d. lifetime warranty.
