Электростатический распылитель генератор высокого
- Категория: Другие источники питания >>>
- Поставщик: FU,FONG,ENTERPRISES,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3137.26 $* | 3294.70 $* |
| Aug-19-2025 | 3110.46 $* | 3266.81 $* |
| Jul-19-2025 | 2610.35 $* | 2741.97 $* |
| Jun-19-2025 | 3058.75 $* | 3211.27 $* |
| May-19-2025 | 2662.70 $* | 2795.14 $* |
| Apr-19-2025 | 3005.86 $* | 3155.66 $* |
| Mar-19-2025 | 2979.67 $* | 3128.64 $* |
| Feb-19-2025 | 2952.57 $* | 3100.53 $* |
| Jan-19-2025 | 2926.21 $* | 3072.9 $* |
Характеристики
Product Description

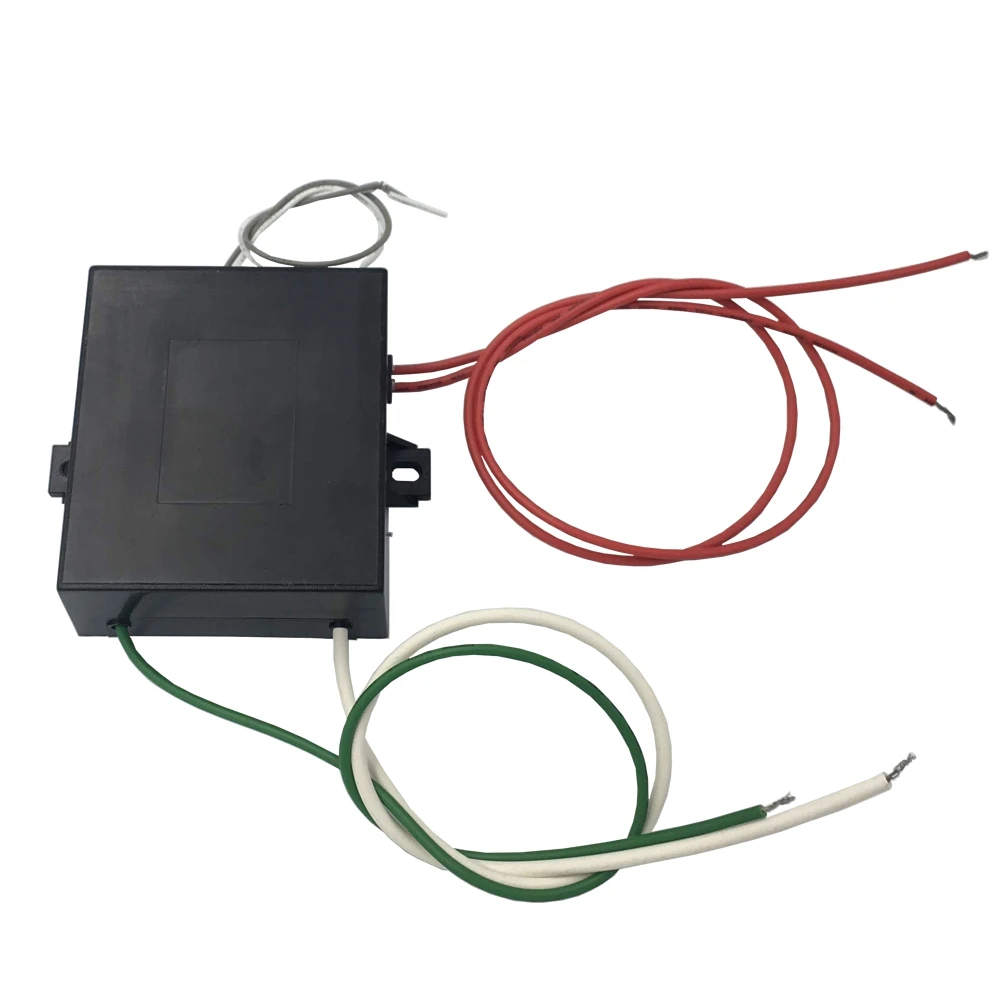

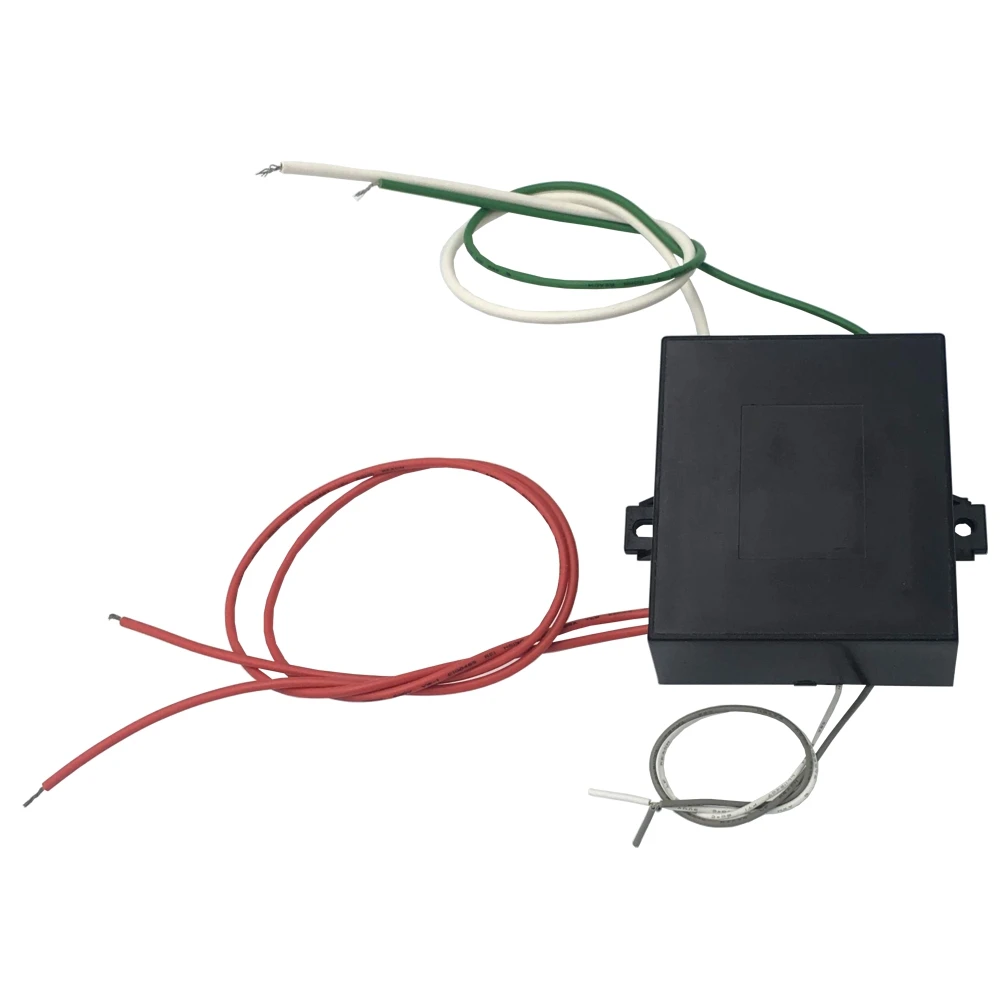

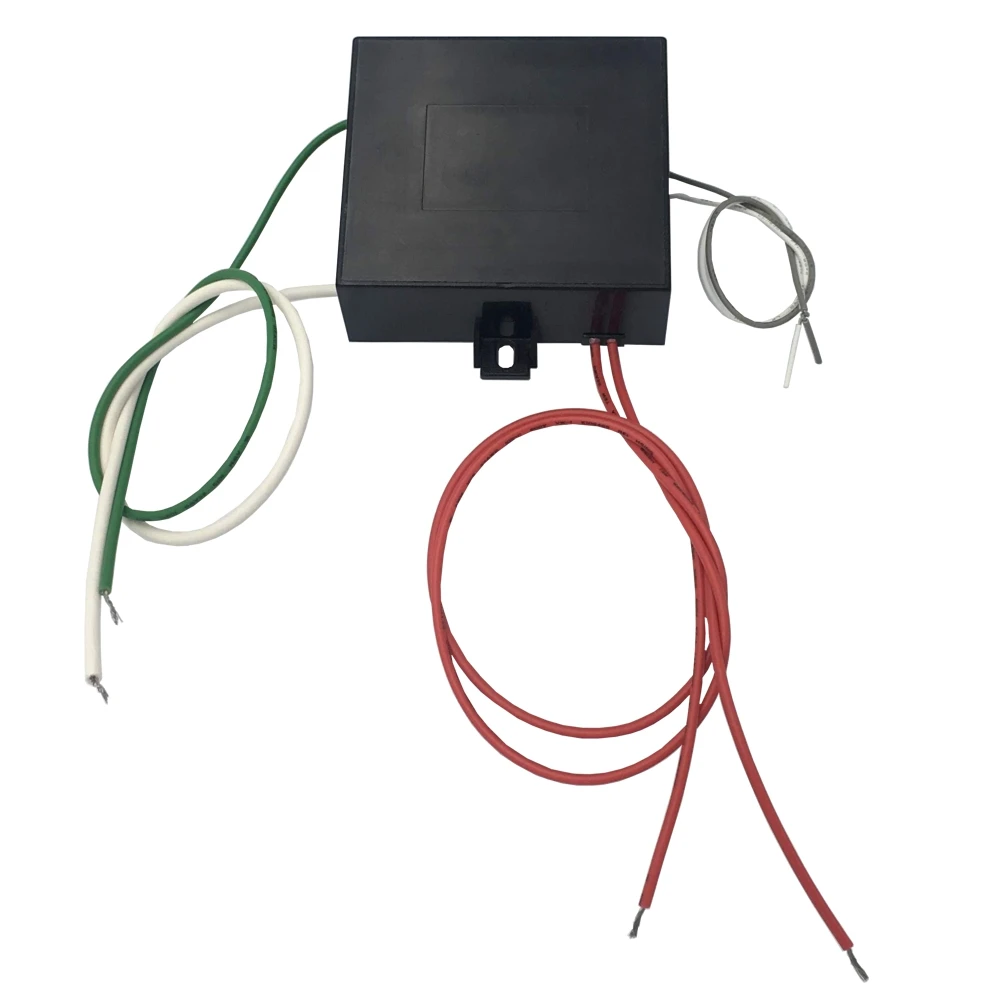

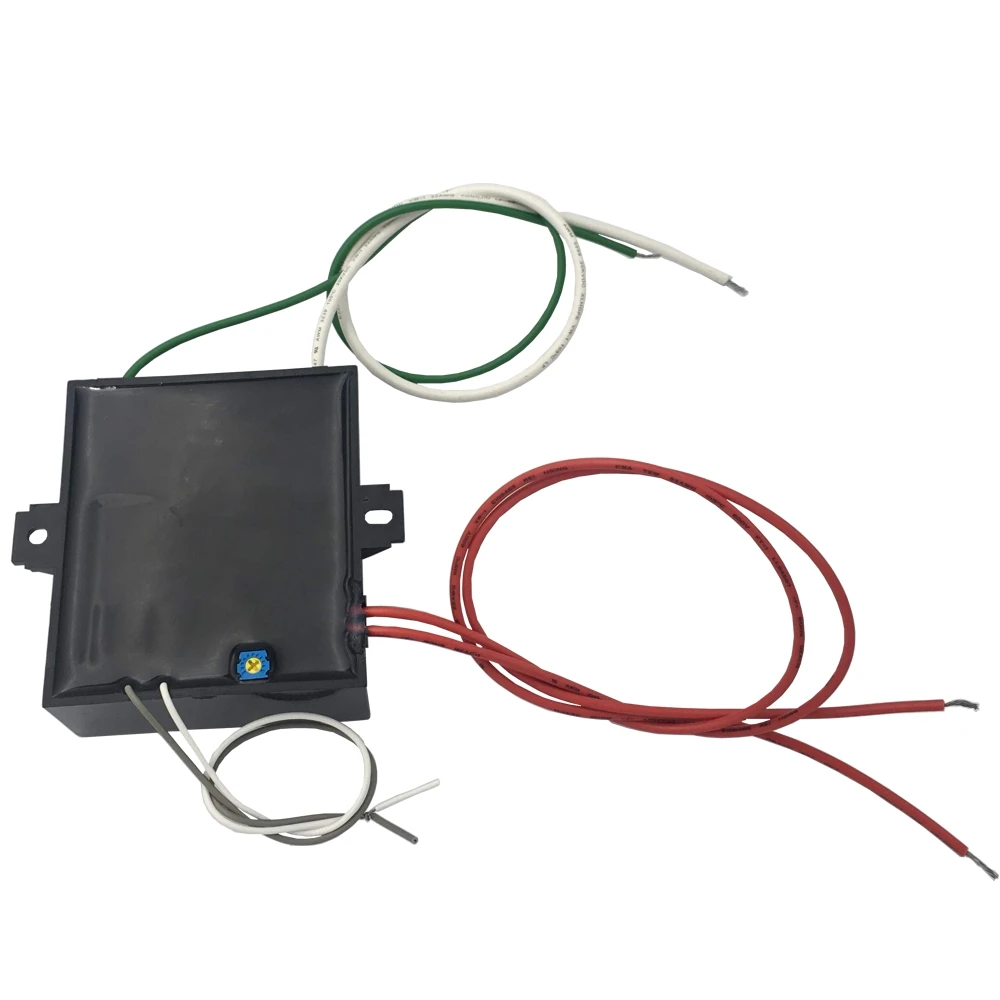

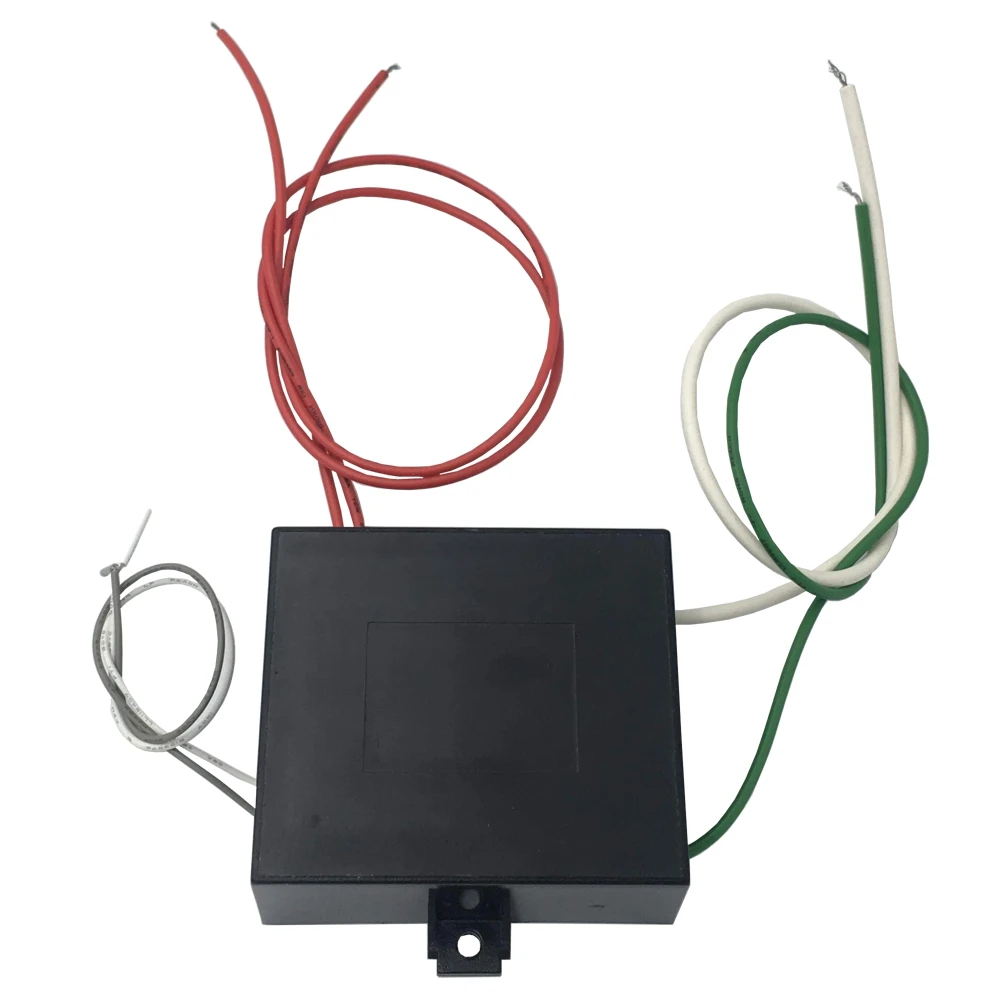

- Model name: FHVU-4W-1N
- Input voltage: 100~240 VAC
- Output voltage:
- HV: max -25KV (1000MΩ impedance HV probe)
- LV: max -25KV (1000MΩ impedance HV probe)
- Power consumption: max 4.0 watt (normal load)
- Power consumption: max 5.0 watt (short)
- Dimension: 76mm x 67mm x 30mm
- Output voltage control: OPEN: LV; CLOSE: HV (white and gray leads)
- Input leads: UL1015 AWG22 600V black, white leads
- HV output lead: UL3239 AWG22 20KV white lead
- HV ground lead: UL1015 AWG22 600V green lead
- Output voltage control leads: UL 1007 AWG24 300V white , gray leads
- Weight: 250 gw
- UL94V-0 plastic enclosure
- UL94V-0 epoxy fully potted
- Warranty: 1 year
![FHVU-4W-1N (-25KV)_01.jpg]()
![FHVU-4W-1N (-25KV)_02.jpg]()
![FHVU-4W-1N (-25KV)_03.jpg]()
![FHVU-4W-1N (-25KV)_04.jpg]()
![FHVU-4W-1N (-25KV)_05.jpg]()

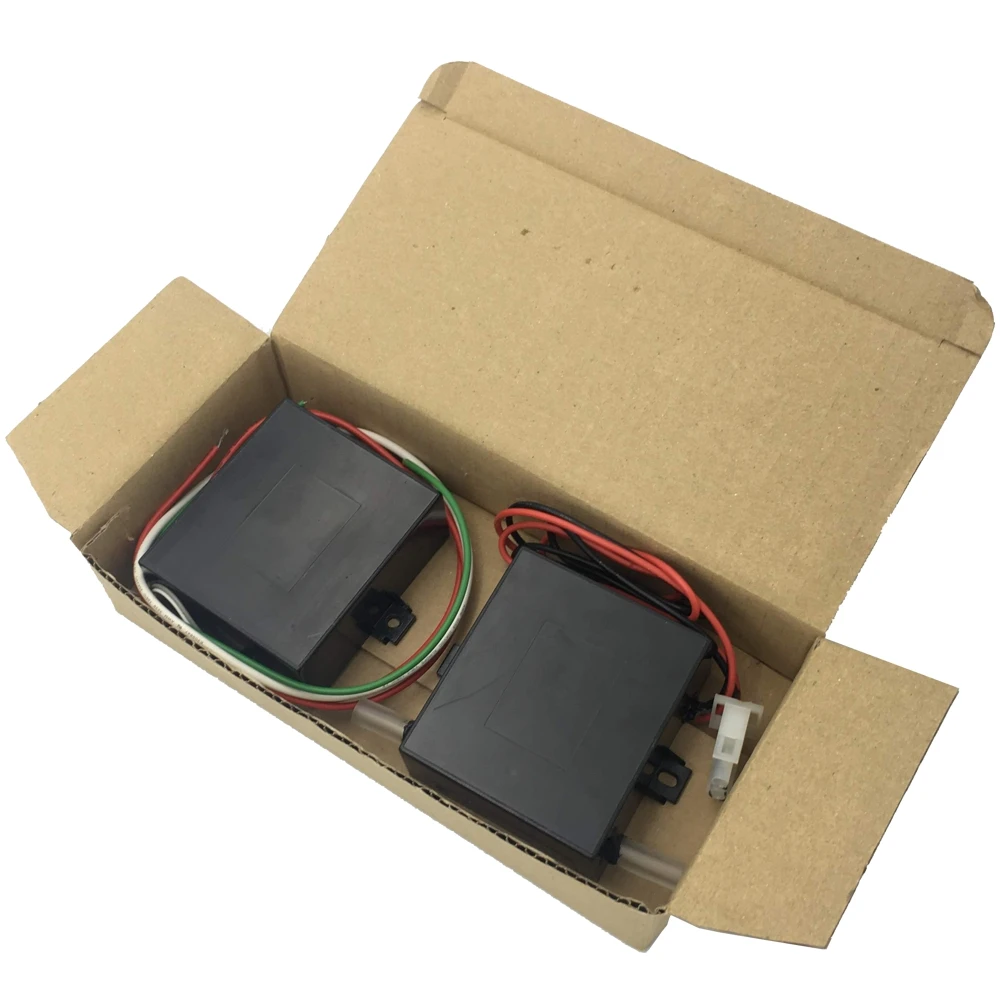

![FHVU-4W-1N (-25KV)_Pack01.jpg]()
Our Services
- Customization is available
- Input volatge
- adjustable trimmer
- power cord
- connector
- label
- Air inlet tubing length or connector (PBT/PVDF connectors are available)
- Ozone outlet tubing length or connector (PBT/PVDF connectors are available)
- Exclusive sale is negotiable
- by area
- by application
- Safty certifications on demand
- UL
- CE
- TUV
- CB
Packaging & Shipping
- EMS/FedEx/UPS/DHL/TNT delivery for samples
- Air freight from Taoyuan air port, Taiwan
- Ocean freight from Keelung port, Taiwan
Company Information
UL/VDE/TUV recognized, ISO-9001:2015 certified. Thirty years of experience in the design and manufacturing of high voltage transformers, high voltage power supplies. Our engineering staff welcomes the opportunity to modify our existing design or create a specified high voltage power supply for your application. Products are widely used in air cleaner, refrigerator, ozone generator, gas and oil ignition device, electrostatic precipitator and other fields.
