Характеристики
Product Description
1. UGENT CONDUCTIVE SILKSCREEN INK (Product Code: UGDC033SSCDSV)
PRODUCT DESCRIPTION
UGDC033SSCDSV is an Graphene Conductive ink (10e2-10e3ohms/square) developed for excellent adhesion on ABS, PC, PC+ABS, PET, Acrylic, PVC and air dry paint part. Addition of hardener (UG-002H) at 10/1 ratio by weight recommended if printed on 2 component paint or paint painted metal substrate. Applicable with manual, semi-automatic and high speed screen printing equipment
TYPICAL PROPERTIES
PROPERTY | UGDC033SSSV |
Resiatantivity | 100Ω - 3kΩ |
Color | Black |
Recommended Film Thickness | Above 5 micros |
Mesh Size | 60 - 90T |
Substrate | Plastic, Paper, Ceramic & Metal. |
Conductive Silkscreen Printing

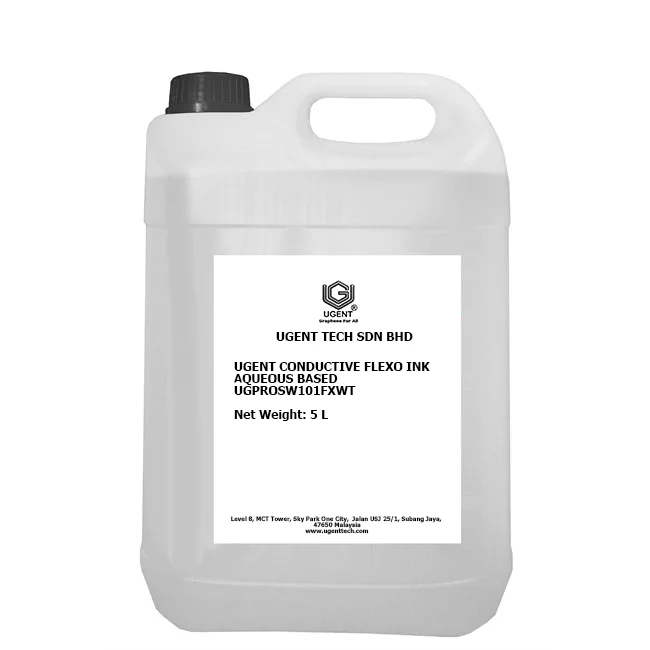

2. UGENT CONDUCTIVE FLEXO INK, AQUEOUS BASED (Product Code: UGPROSW101FXWT)
PRODUCT DESCRIPTION
Ugent UGPROSW101FXWT is an electrically conductive ink designed specifically for application by flexographic printing. UGPROSW101FXWT is an Aqueous-based graphene ink which demonstrates superior conductivity, UGPROSW101FXWT is environmentally friendly, non-toxic, aqueous and can be stored at room temperature (20°).
TYPICAL PROPERTIES
PROPERTY | UG-PRO-SW-101FO-WT |
Color | Black |
Solvent | Water Based |
Viscosity | 80 - 90cP |
Viscosity Din Cup#4 | 27 sec. |
Filler | Graphene |
Sheet resistance @ thickness | 10KΩ@10μm, 4-8KΩ@20μm, 2-4KΩ@50μm, 0.2-1KΩ above 50μm |
Transparent Substrates | Paper, PS, PVC, PC. ABS etc., |
Conductive Flexographic Printing

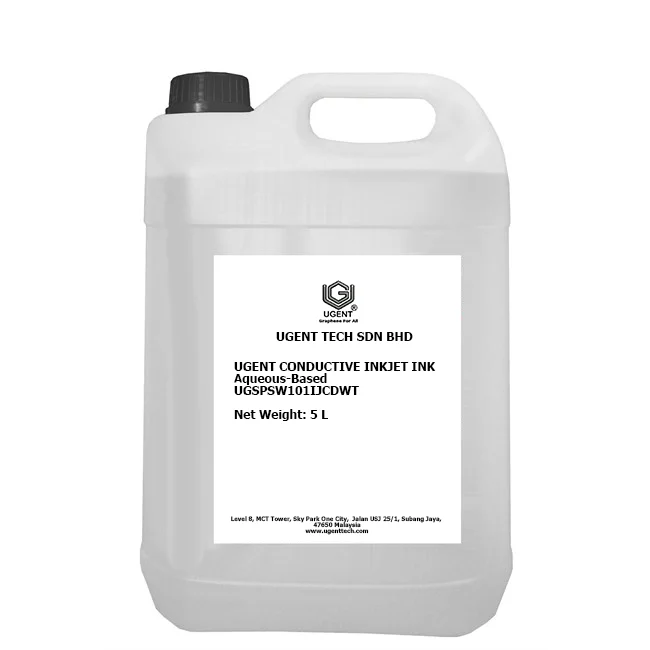

3. UGENT CONDUCTIVE INKJET INK, AQUEOUS BASED (Product Code: UGSPSW101IJCDWT)
PRODUCT DESCRIPTION
Ugent UGSPSW101IJCDWT is an electrically conductive ink designed specifically for application by inkjet printing. UGSPSW101IJCDWT is an Aqueous-based graphene ink which demonstrates superior conductivity, UGSPSW101IJCDWT is environmentally friendly, non-toxic, aqueous and can be stored at room temperature (20°).
TYPICAL PROPERTIES
PROPERTY | UGSPSW101IJCDWT |
Color | Black |
Solvent | Water |
Viscosity (@ 100 s-1) | 3-4 cP |
Filler | Graphene |
Deposition Method | Inkjet |
Total Solid Content | 3 ~ 4 wt% |
Sheet resistance @ thickness | ~ 4KΩ/square inch@1µm ~ 1KΩ/square inch@20µm |
Transparent Substrates | Paper, Plastics Sheet |
Conductive Inkjet Printing Sensor/Heater
4. SPARY COATING CONDUCTIVE INK (Product Code: UG PRO 030)
PRODUCT DESCRIPTION
UG PRO 030 series is a spray coating conductive ink specially designed for ESD Resistance application for photovoltaics, solar, electronic, EMI, RFID and other. with excellent adhesive to acrylonitrile-butadiene-styrene (ABS), acrylic, polycarbonate (PC) and polyphenylrne oxide (PPO) moulded part generally use for home appliances.
TYPICAL PROPERTIES
Paint | UG PRO 030 |
Supply Viscosity | 15 sec RT-Ready fro Spray |
Color | Matt Black |
Spray Method | Conventional Air Spray |
Spray Pressure | 4.0 ~ 5.0 kg/cm² |
Substrate | Metal, Ceramic, Plastic |
Flash-off Before Oven | 5 minutes |
Drying Condition | 50 ~ 60 °C x 15 min |
Recommended Film Thickness | 7 ~ 20 µ |
Conductive Spray Coating
Packaging & Shipping
PACKING DETAILS 25Kgs / plastic drum ; 50Kgs / plastic drum ; 200Kgs / iron drum ; 200Kgs / plastic drum ; 1000Kgs / IBC Package / ; 20.5MT / ISO TANK. We can also customize special package according to your requirement.
SHIPPING METHOD
Samples and Small quantity order FedEx/DHL/UPS/TNT ,Door to Door. Batch goods :By Air, by Sea or by Rail. FCL: Airport/Seaport/Railway Station receiving. Lead Time: 1-7 working days for samples; 7-15 working days for mass.
Company Information
ABOUT UGENT TECH SDN BHD
Ugent Tech Sdn Bhd, Company Registration: 651928-U, Established on 2014 engaged in graphene, carbon nanotube development and nanocomposite production and development.
At present main products include various specifications of graphene, graphene nanoplatelets, graphene oxide, graphene dispersion and variety of nanocomposite including electrical, thermal, conductive, EMI, ESD materials for application in rubber, polymer, epoxy, PU etc. Please visit our product page for products detail.
Ugent's products market across the globe, including Asia, America Europe, universities, research institutions in oversea and domestic. We work closely with our customers to customize our materials for specific applications. Please contact us to discuss your specific needs
Ugent's core Technologies is low-cost production techniques.
The company goal is to achieve a graphene-based and CNT-based nano-materials industrialization materials based on graphene could be used in modern high-tech industries and traditional industries.
We work toward to become one of the largest multi functional graphene based nanomaterials production and walk in the forefront of the world in manufacturing technologyand application of technology.
